Manual Transaxle/Transmission




General Specifications










Transaxle Ratios

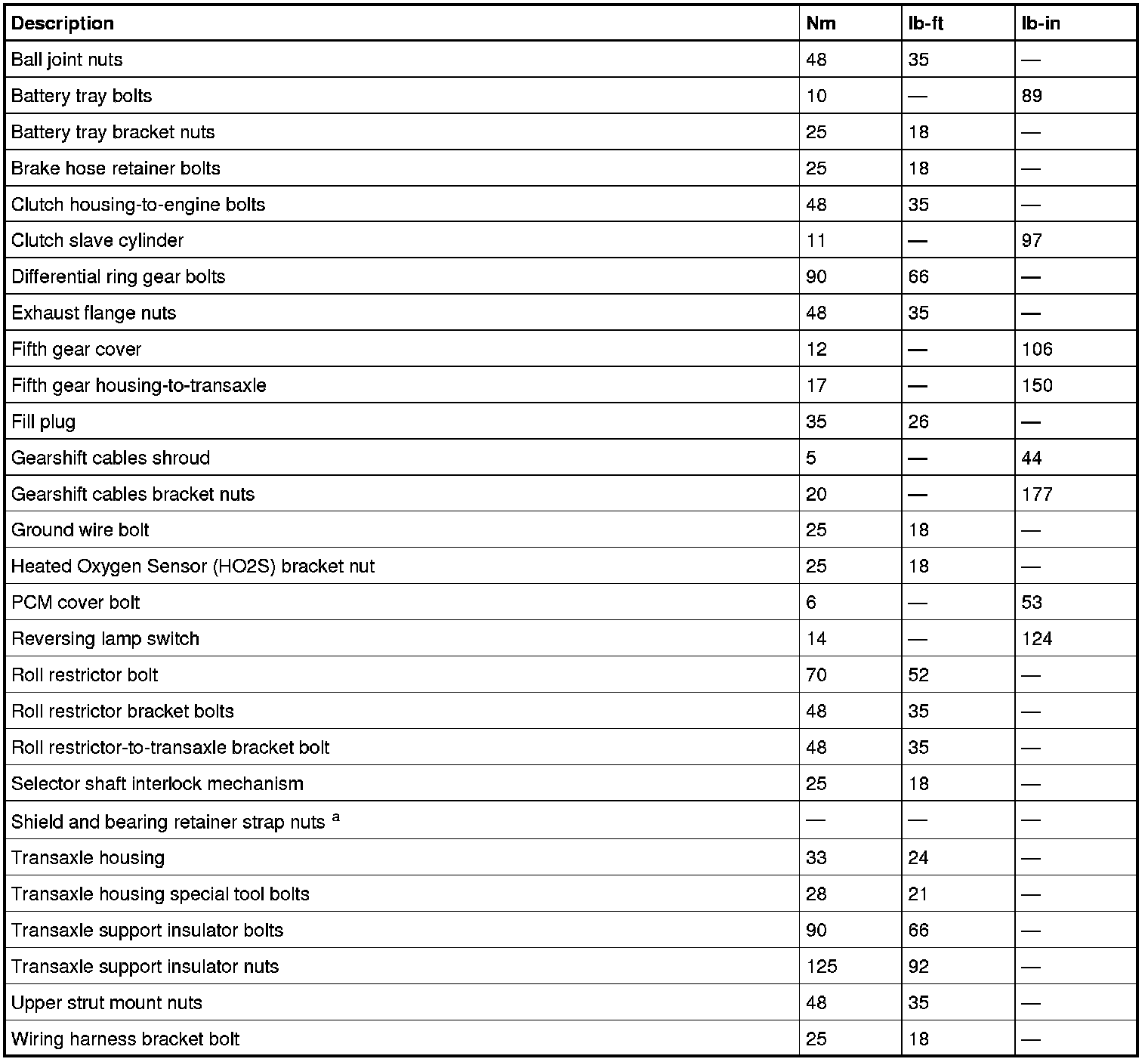

Torque Specifications





a Refer to the procedure in Manual Transmission/Transaxle.
