Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Blower Motor
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

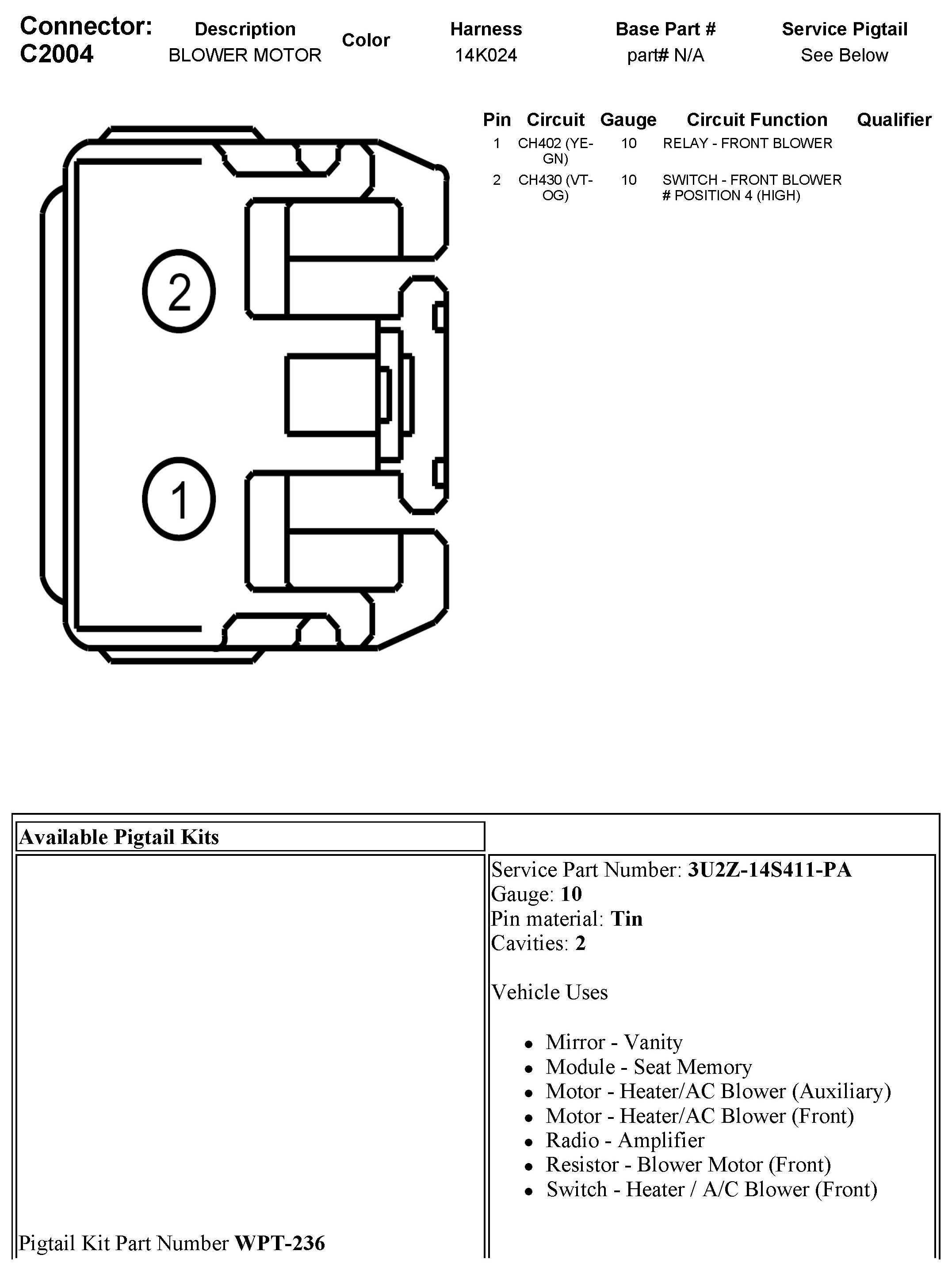

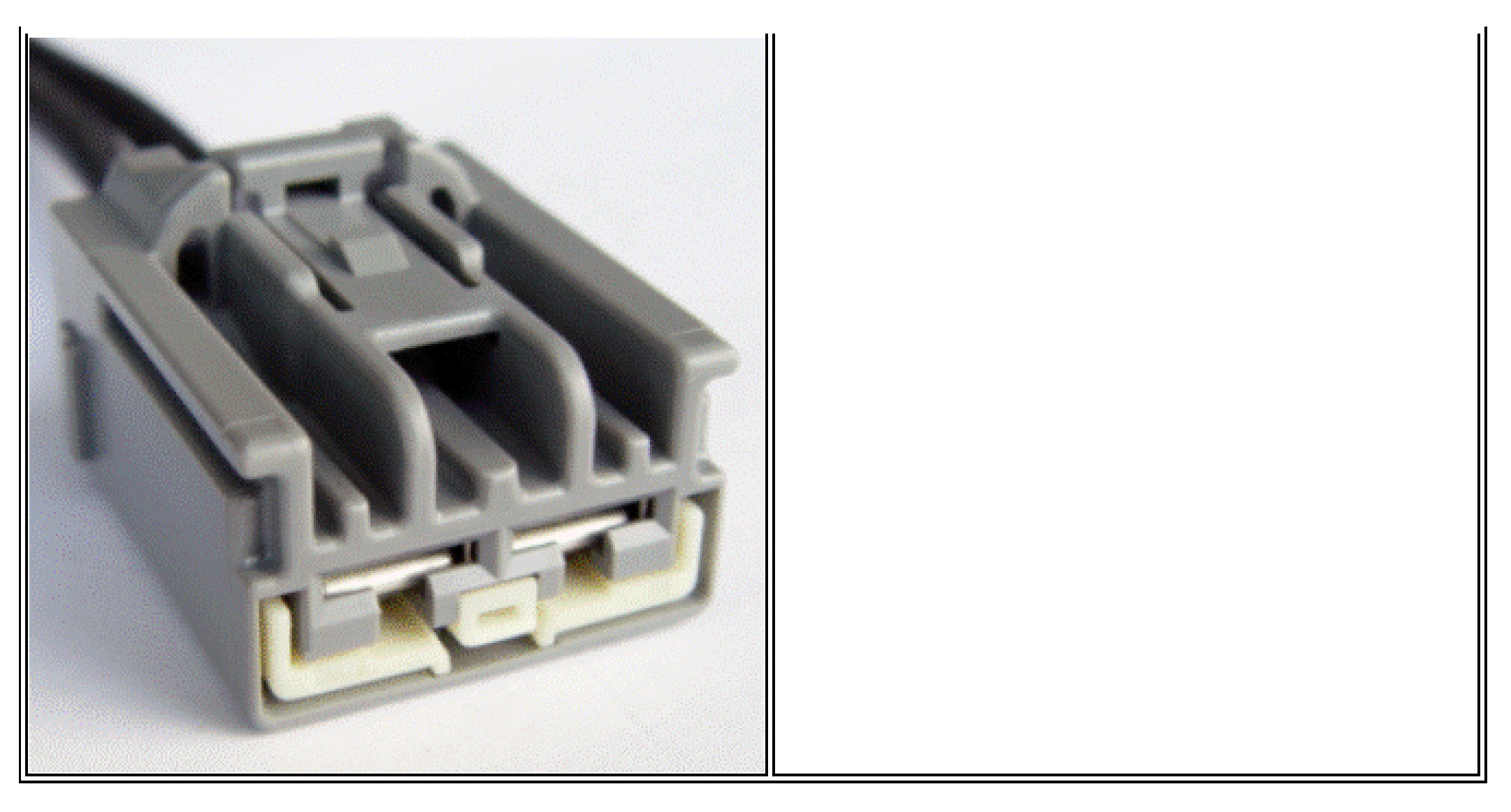

Blower Motor
