Home >> Ford >> 2012 >> F 150 4WD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case >> C2371B Transfer Case Control Module (TCCM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

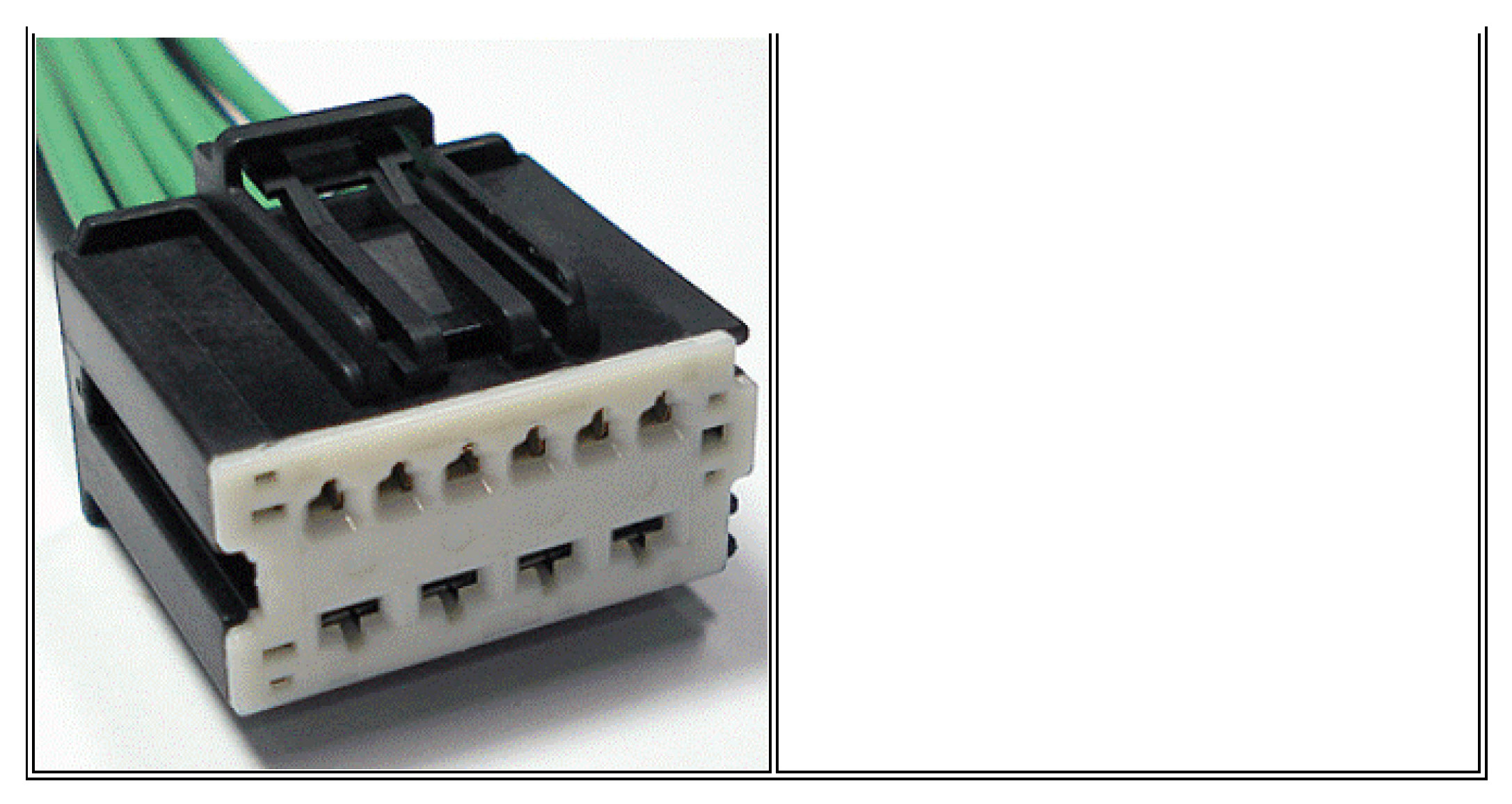

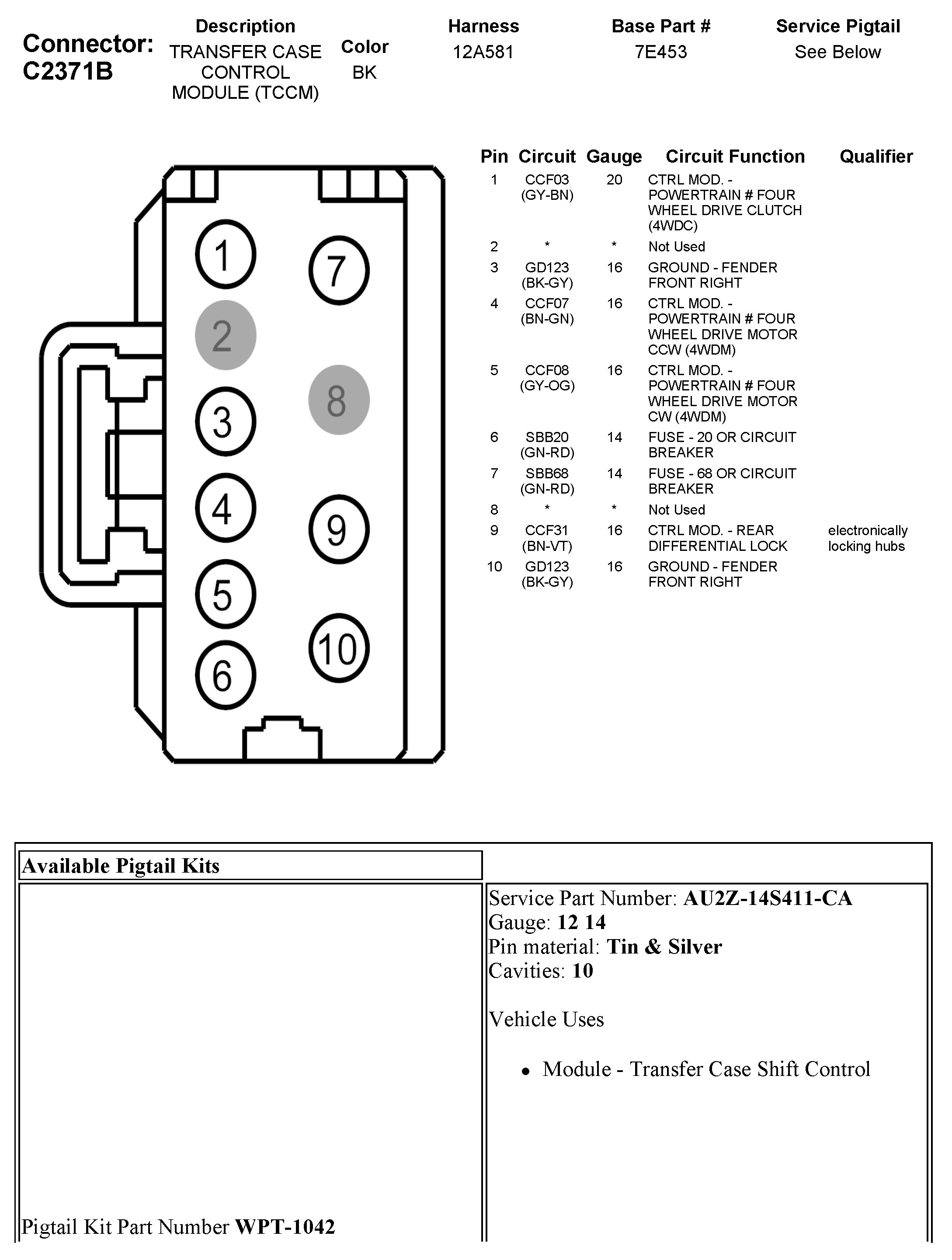

C2371B Transfer Case Control Module (TCCM)
