Home >> Ford >> 2012 >> F 150 2WD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> C2280F Body Control Module (BCM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

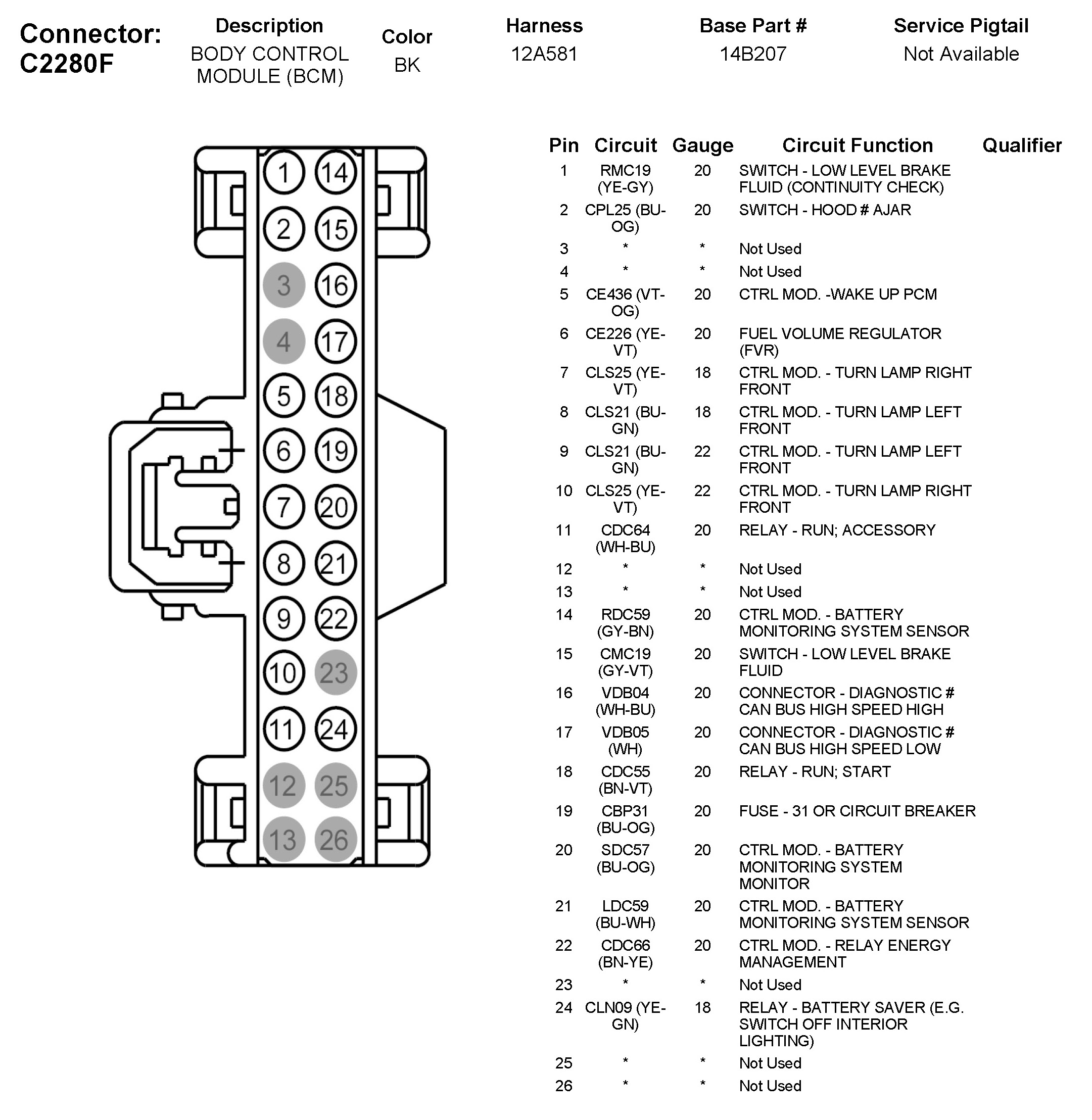

C2280F Body Control Module (BCM)
