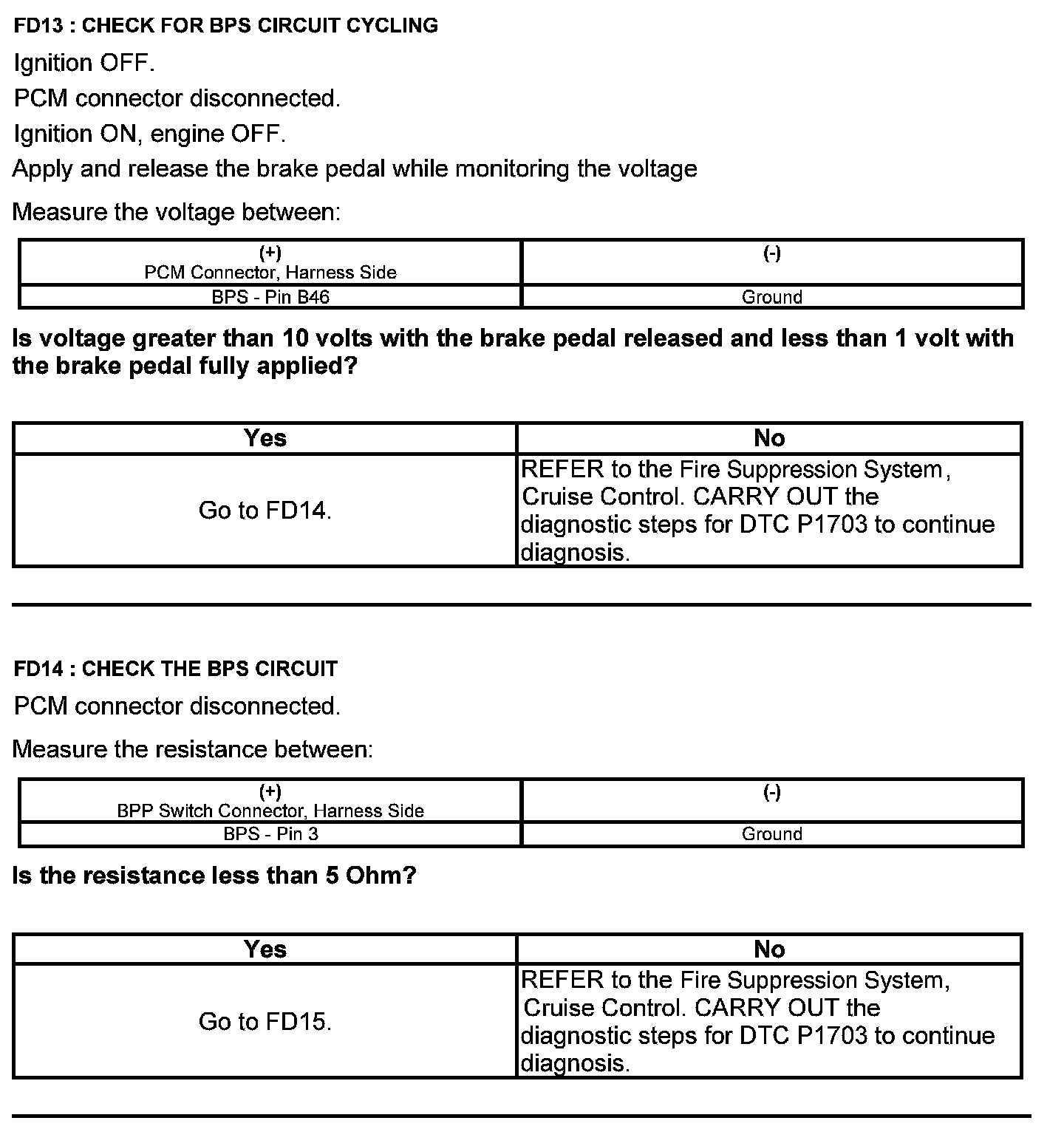

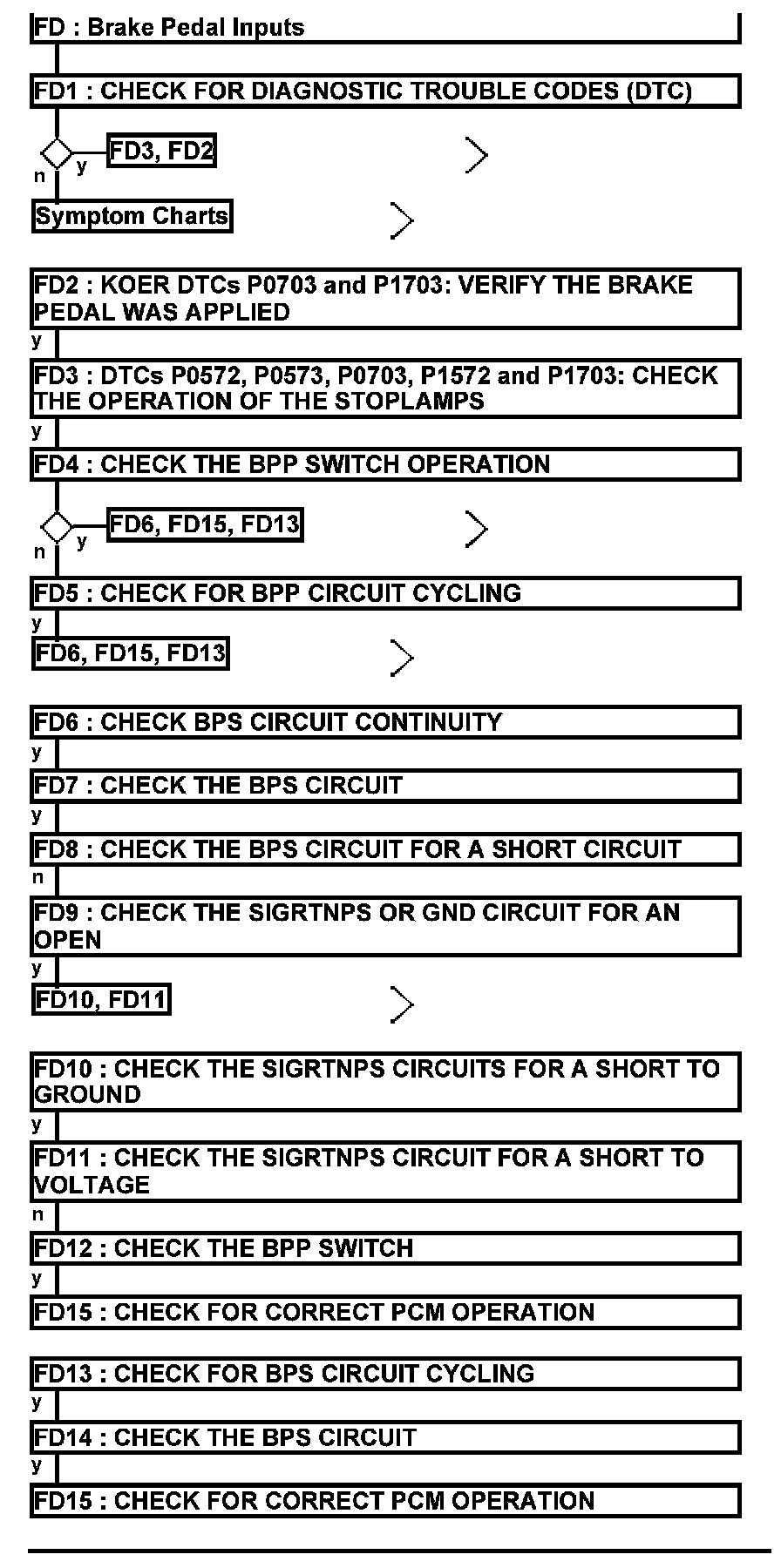

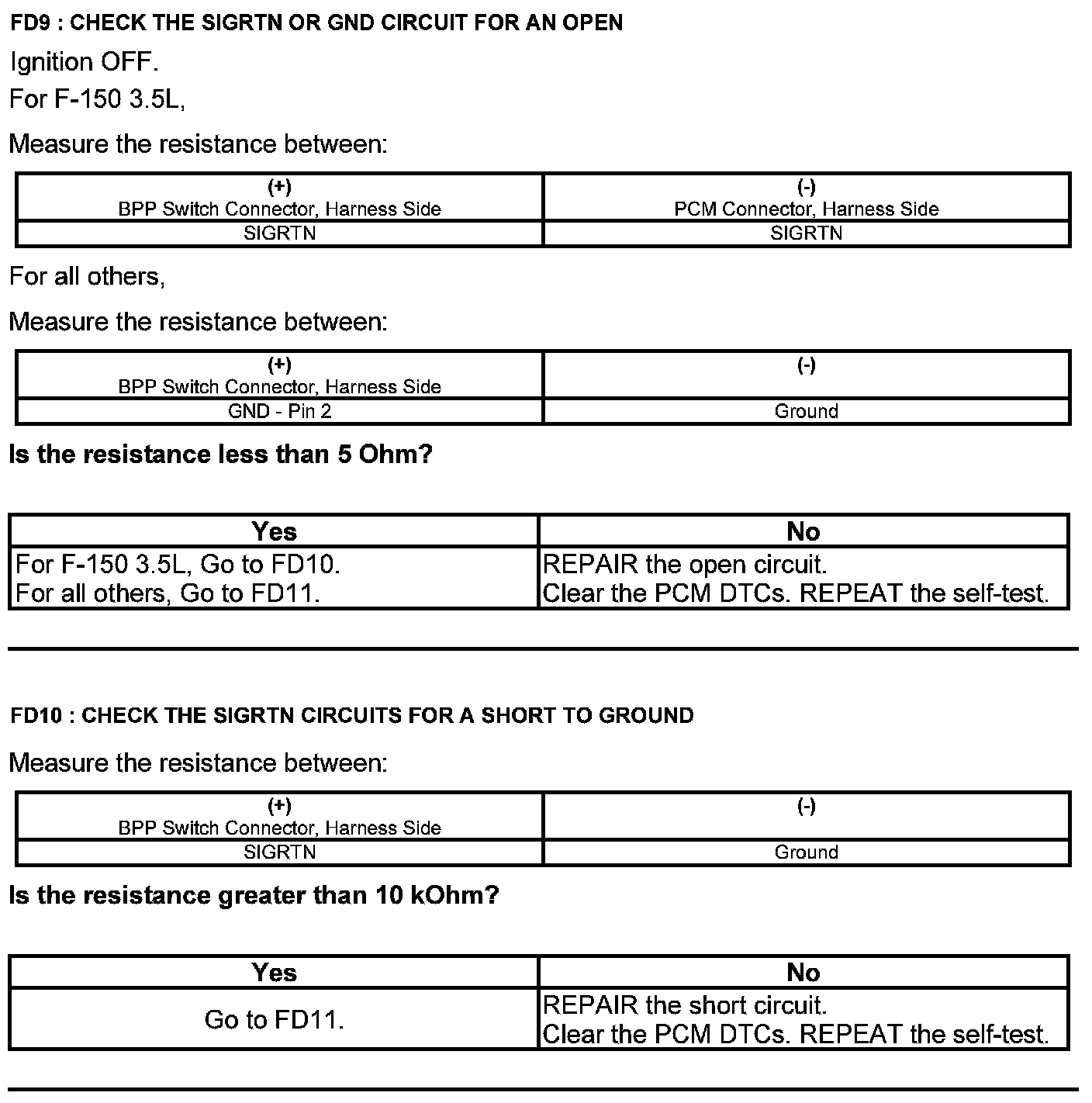

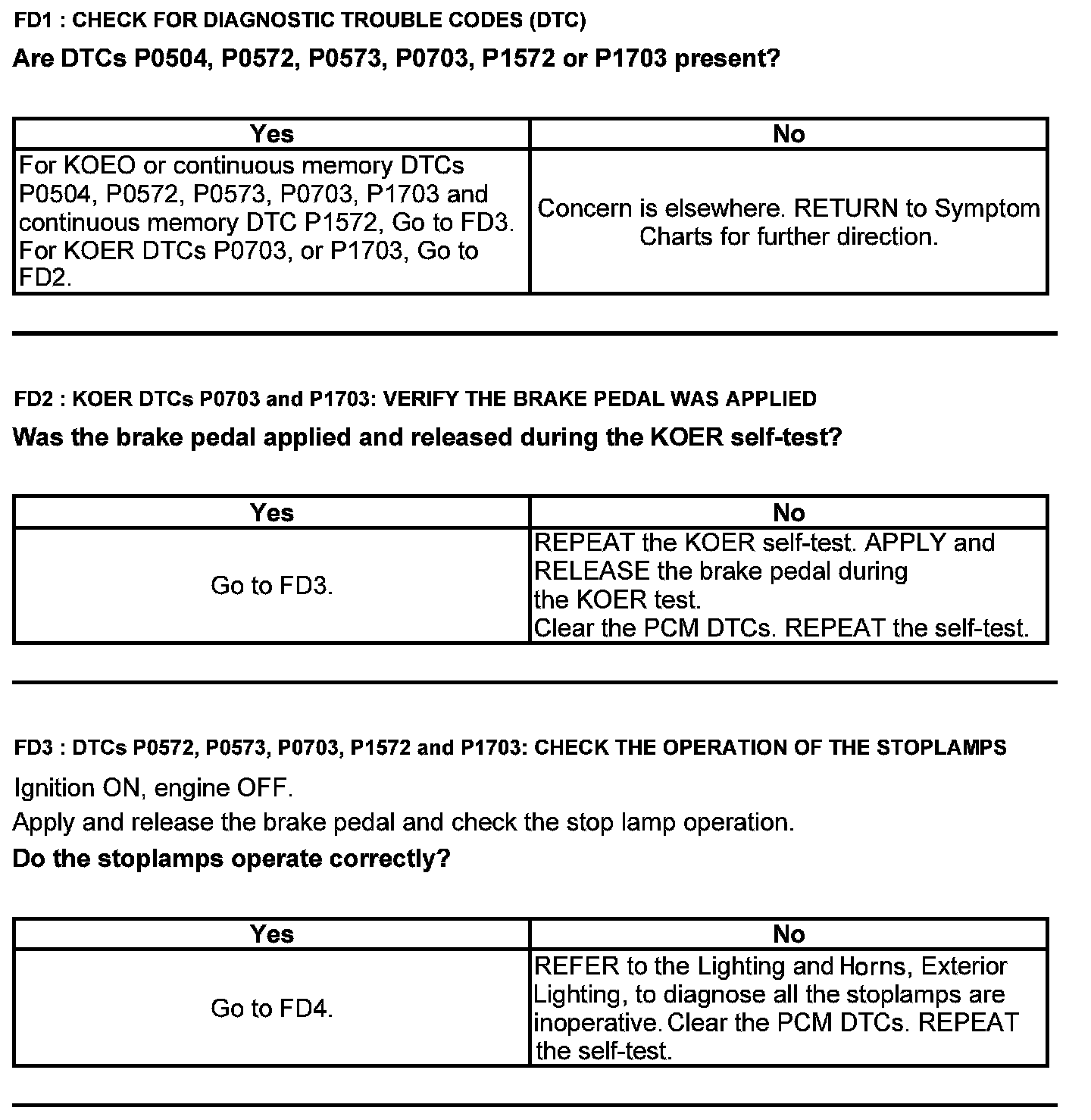

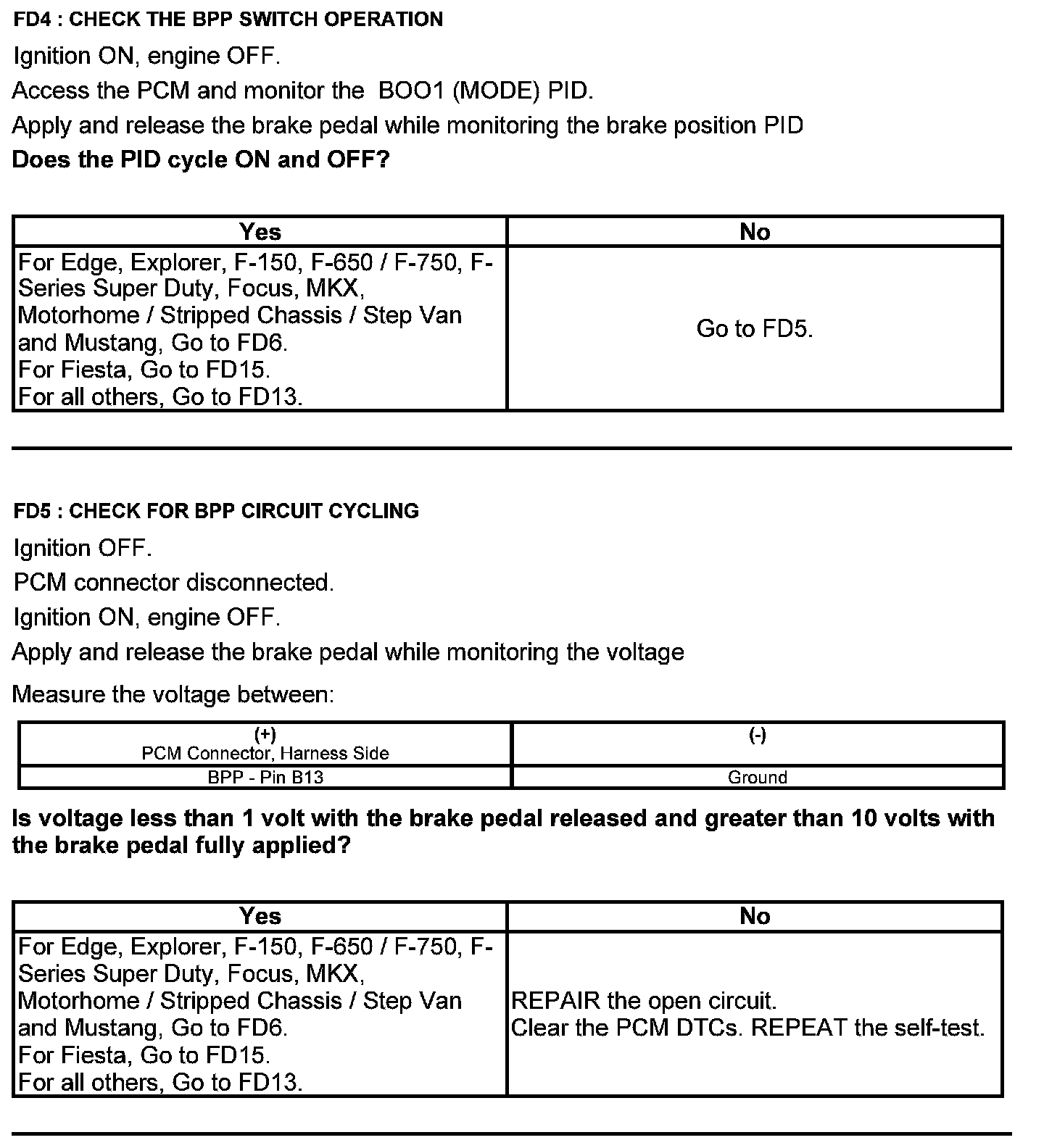

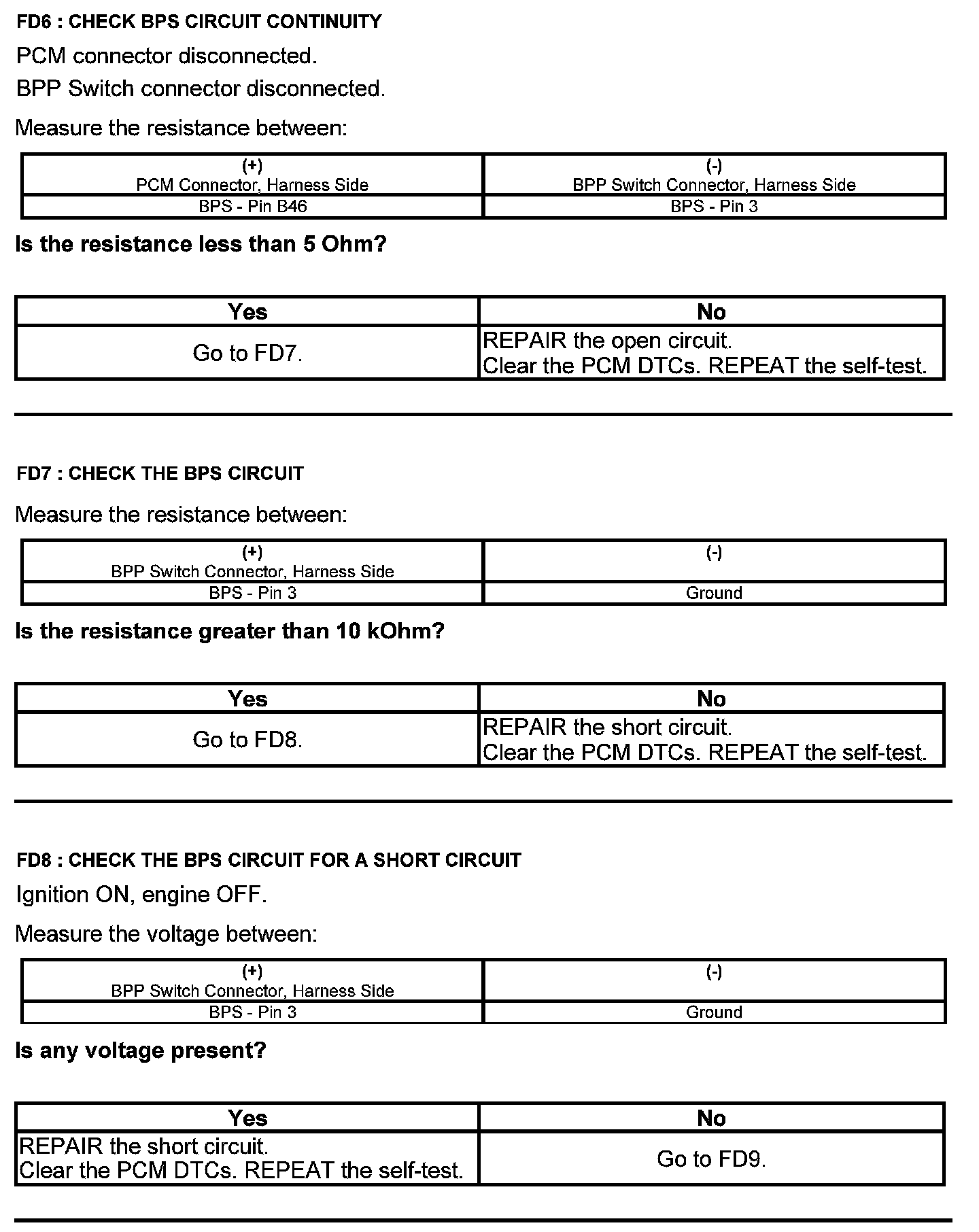

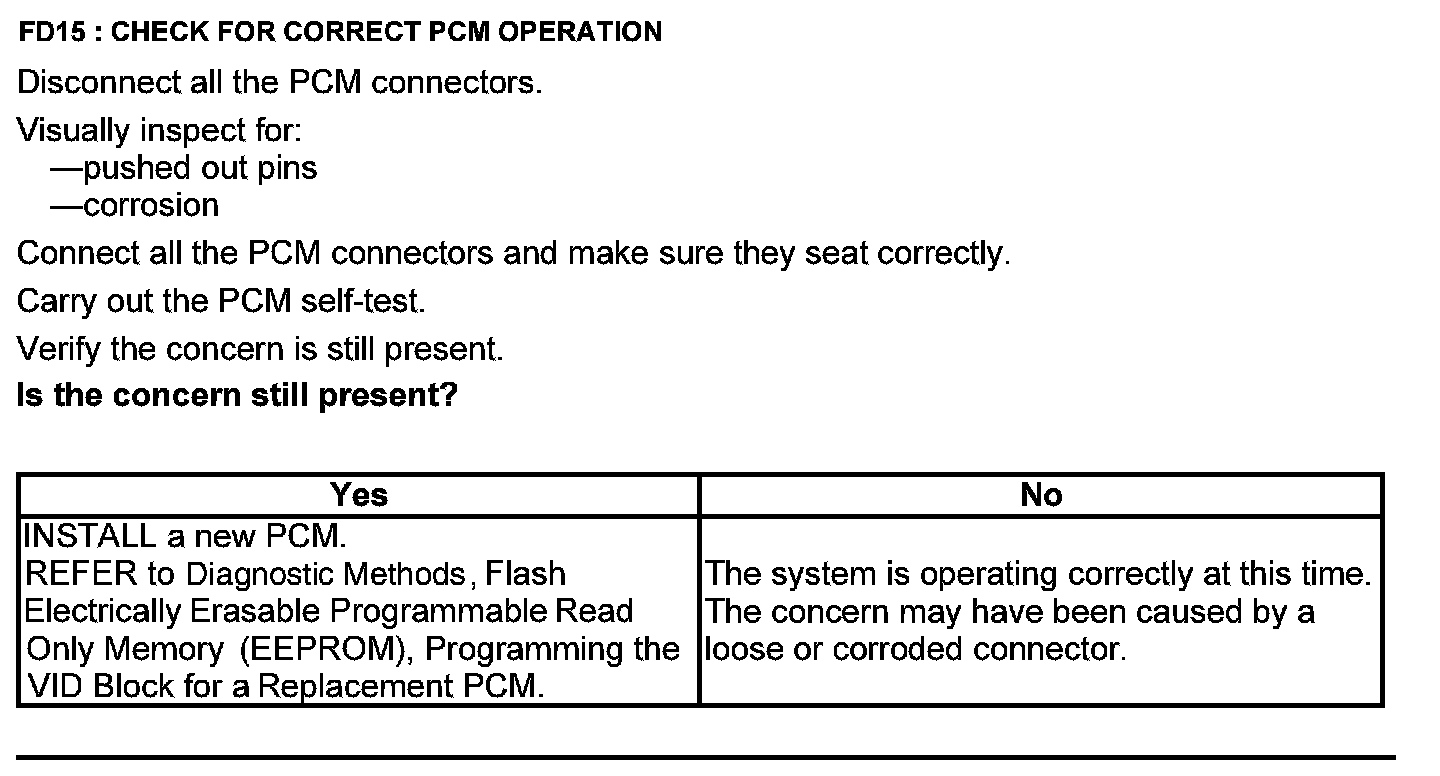

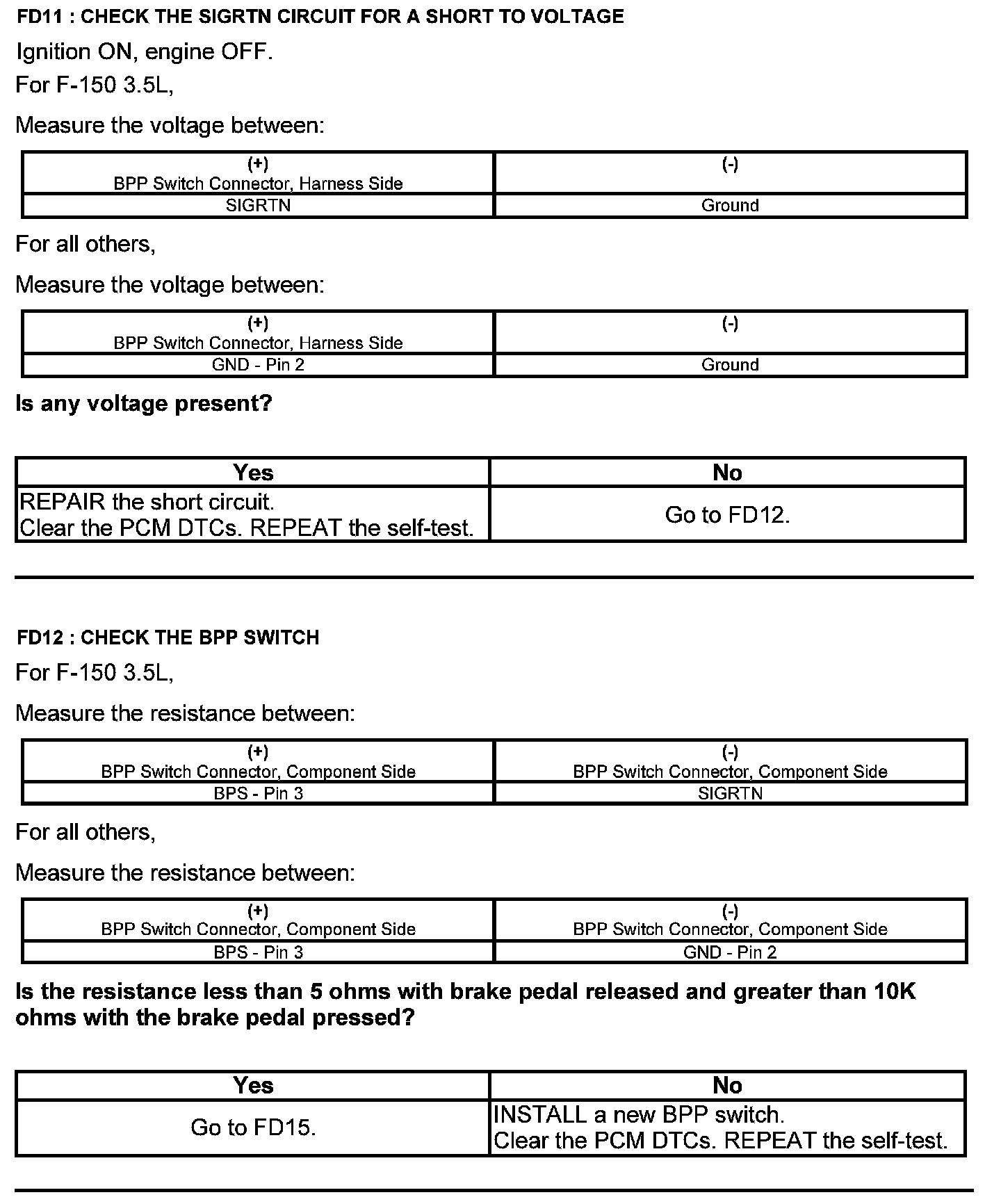

Test FD: Brake Pedal Inputs



Brake Pedal Inputs












Brake Pedal Position (BPP) Switch Connector





Harness Side

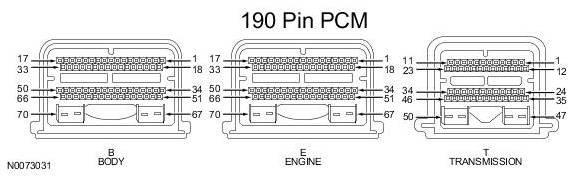

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
