Engine Lubrication

Engine Lubrication Components - Exploded View

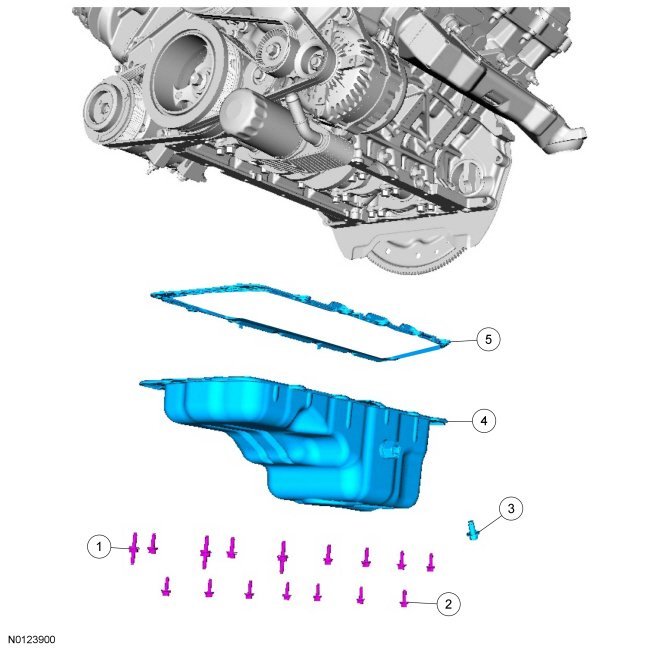

Oil Pan and Gasket

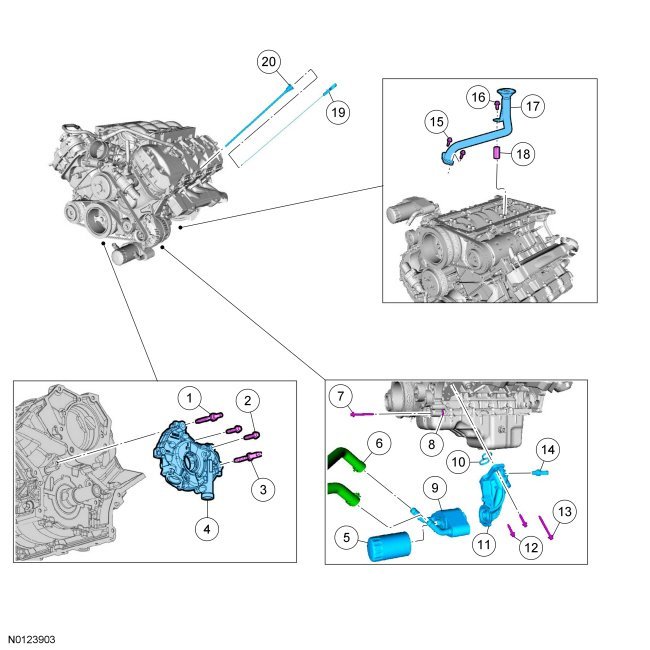

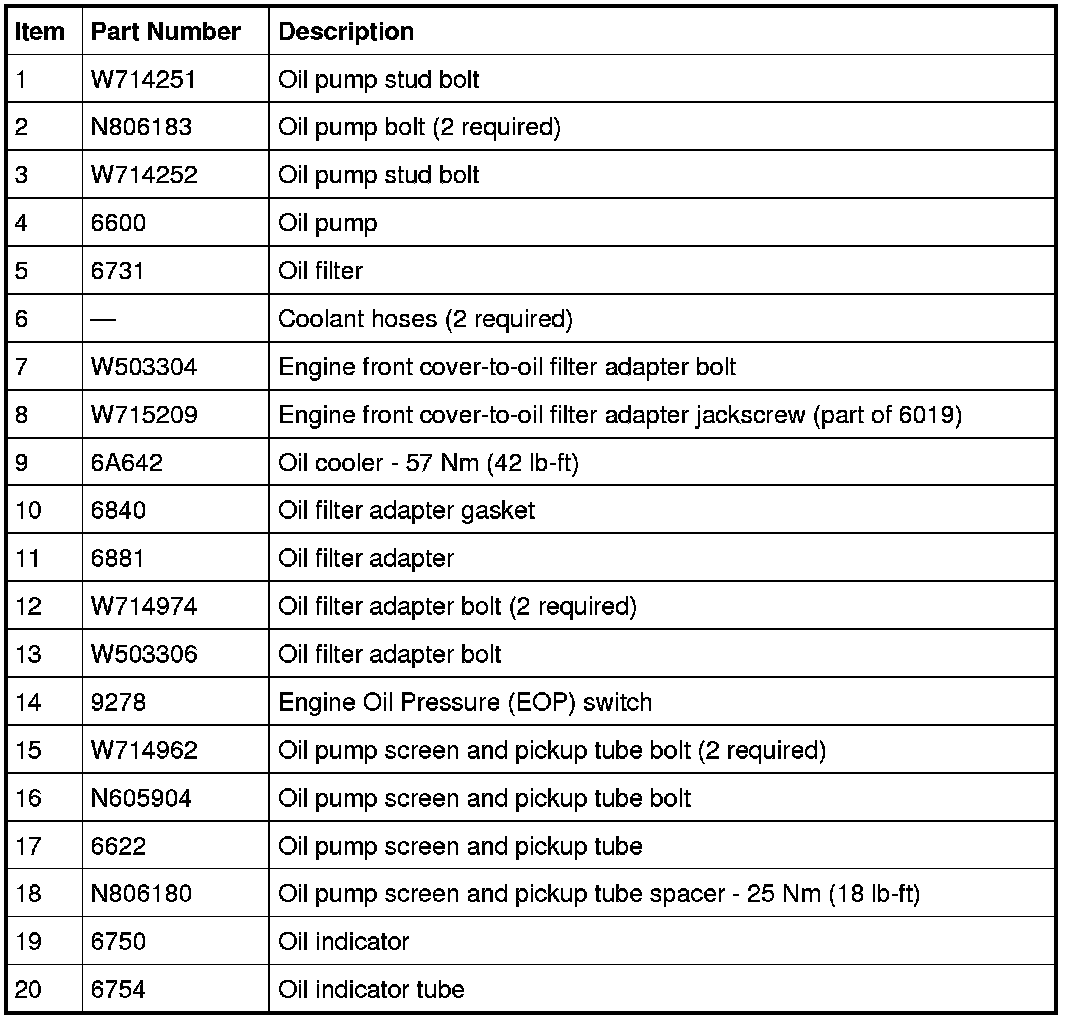

Oil Pump, Oil Filter Adapter, Oil Pump Screen and Pickup Tube and Oil Level Indicator and Tube

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
