Home >> Ford >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> C1381B Powertrain Control Module (PCM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

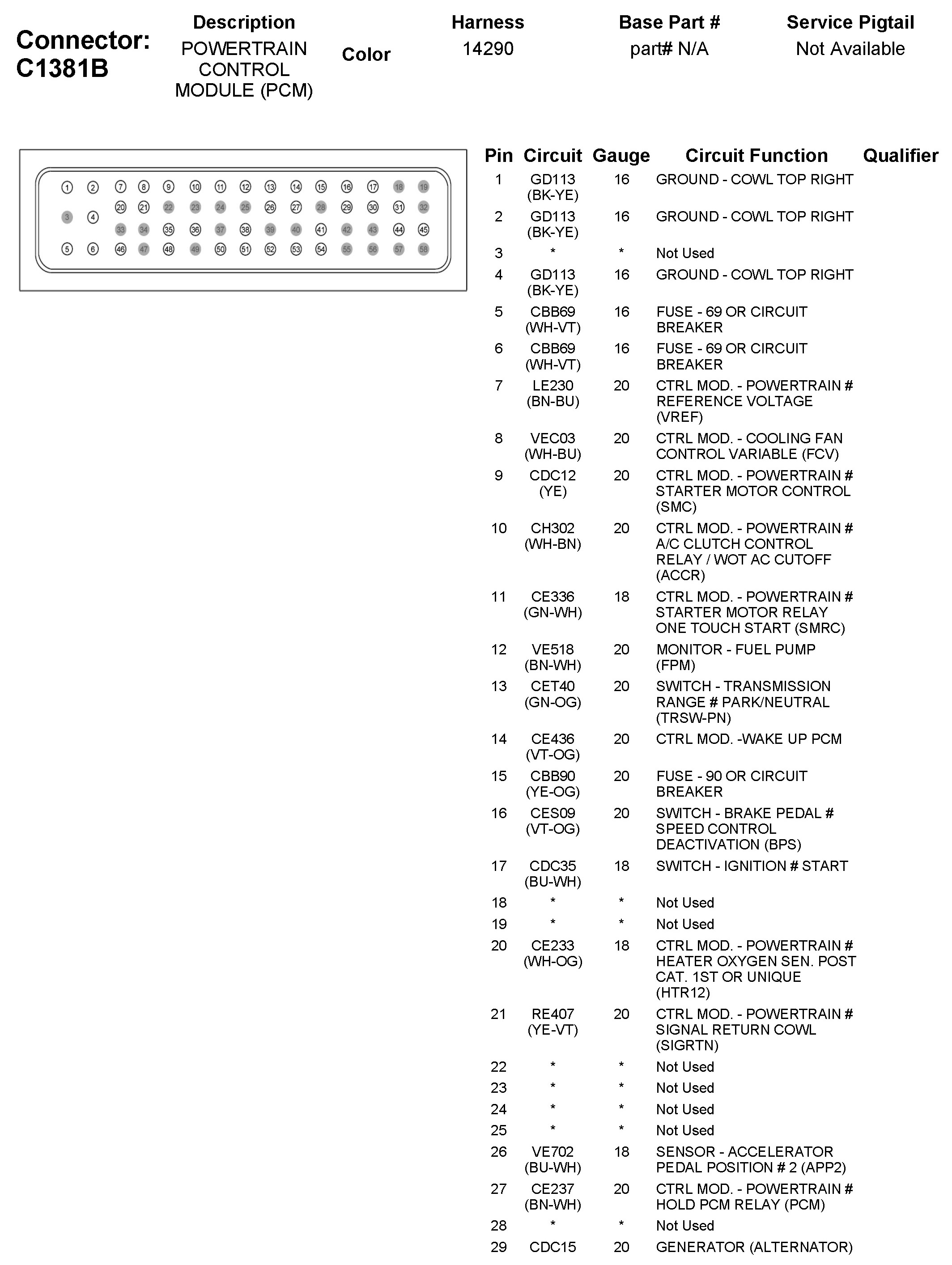

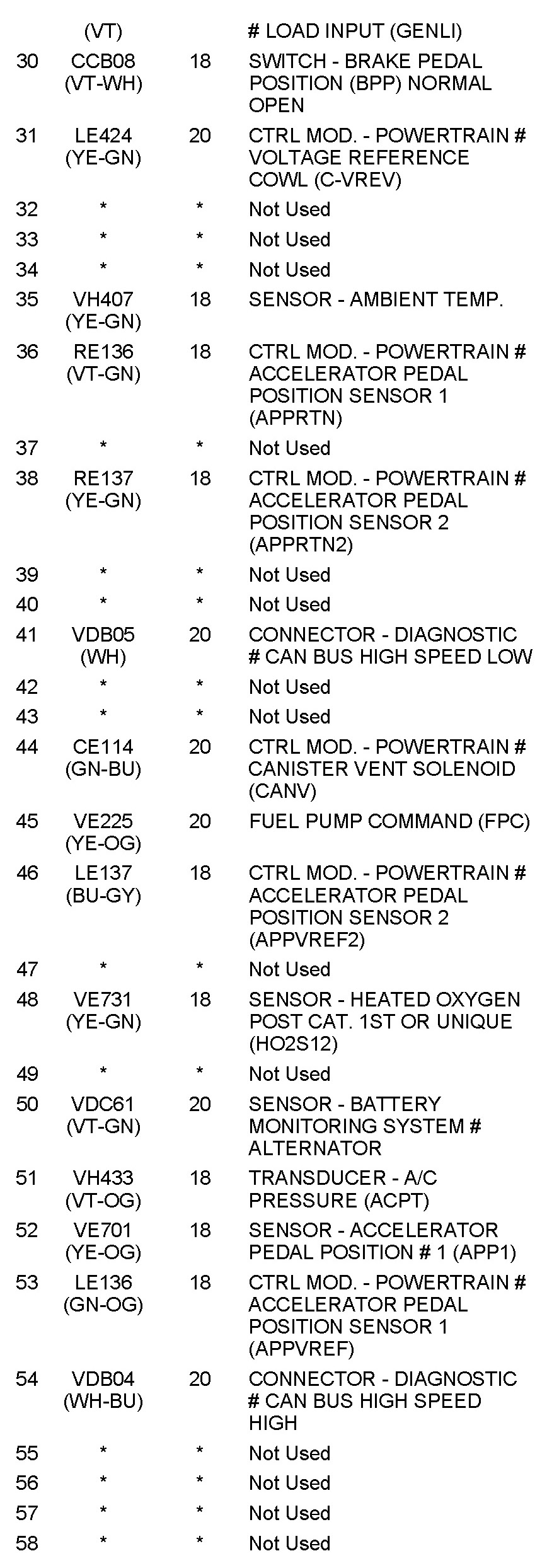

C1381B Powertrain Control Module (PCM)
