Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turbocharger
>>
Turbo Boost Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

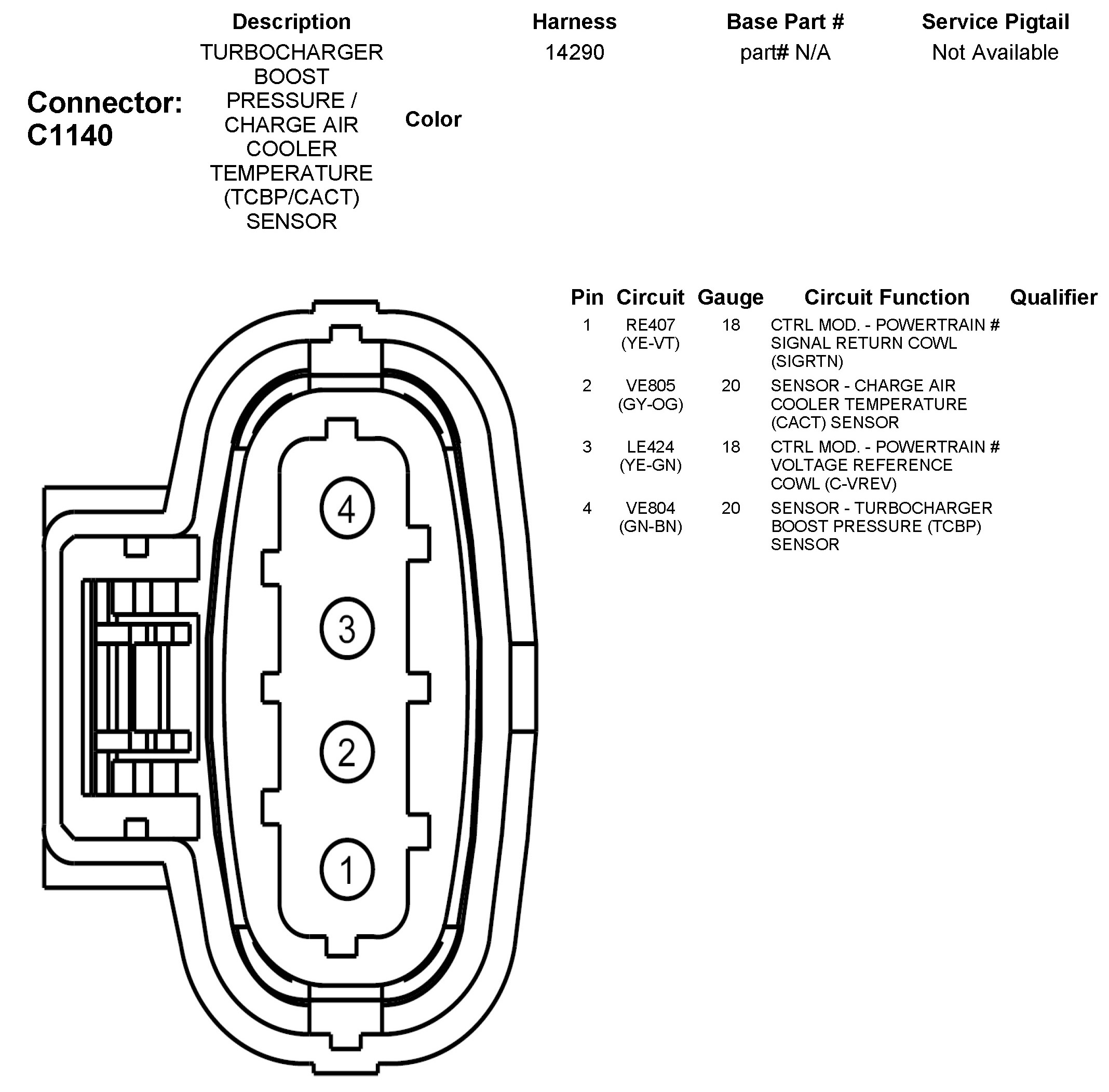

Turbo Boost Sensor
