C2123 Front Control / Display Interface Module (FCDIM)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

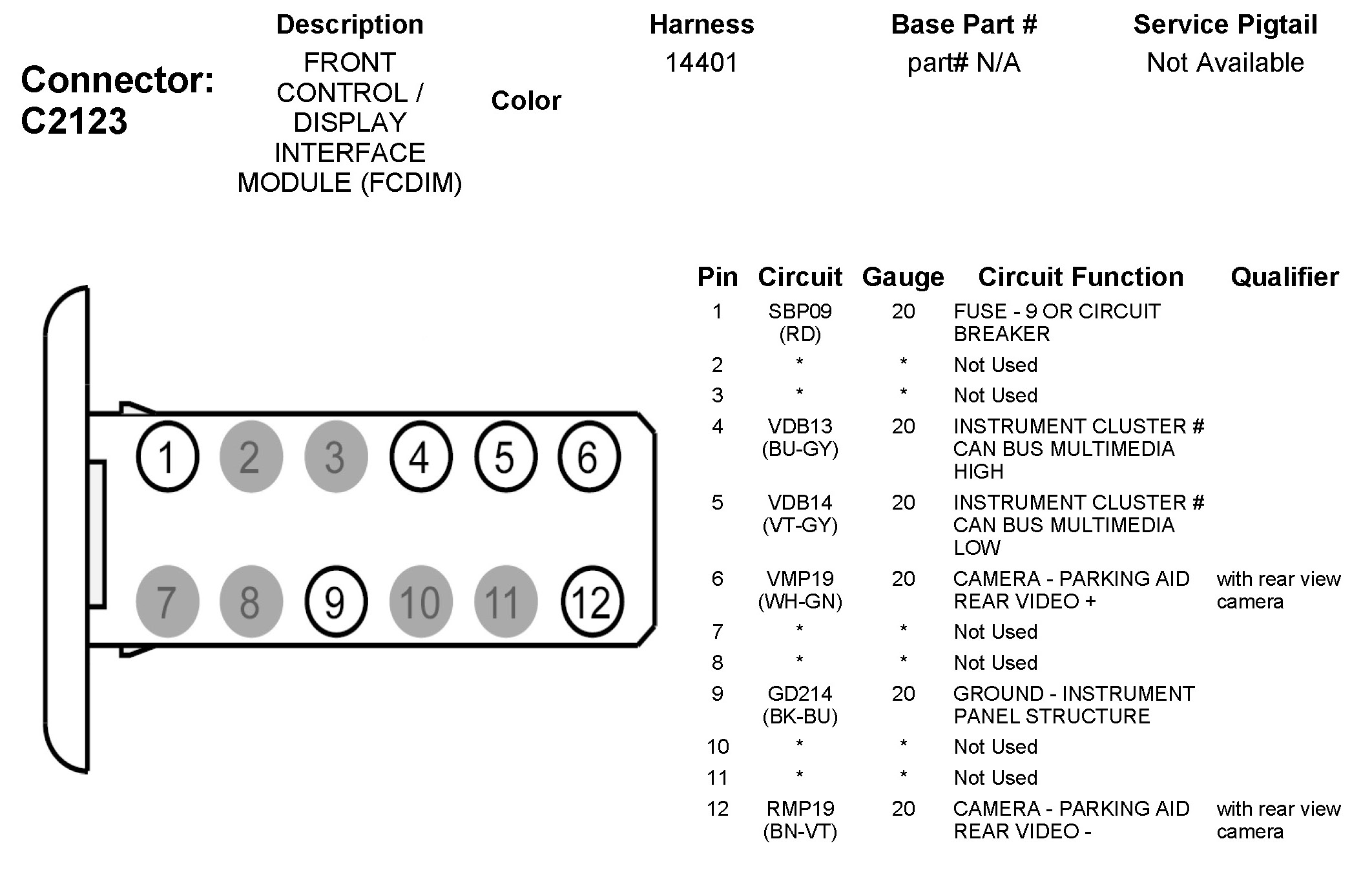

C2123 Front Control / Display Interface Module (FCDIM)
