Home >> Ford >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Humidity Sensor >> C233 In-vehicle Temperature / Humidity Sensor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

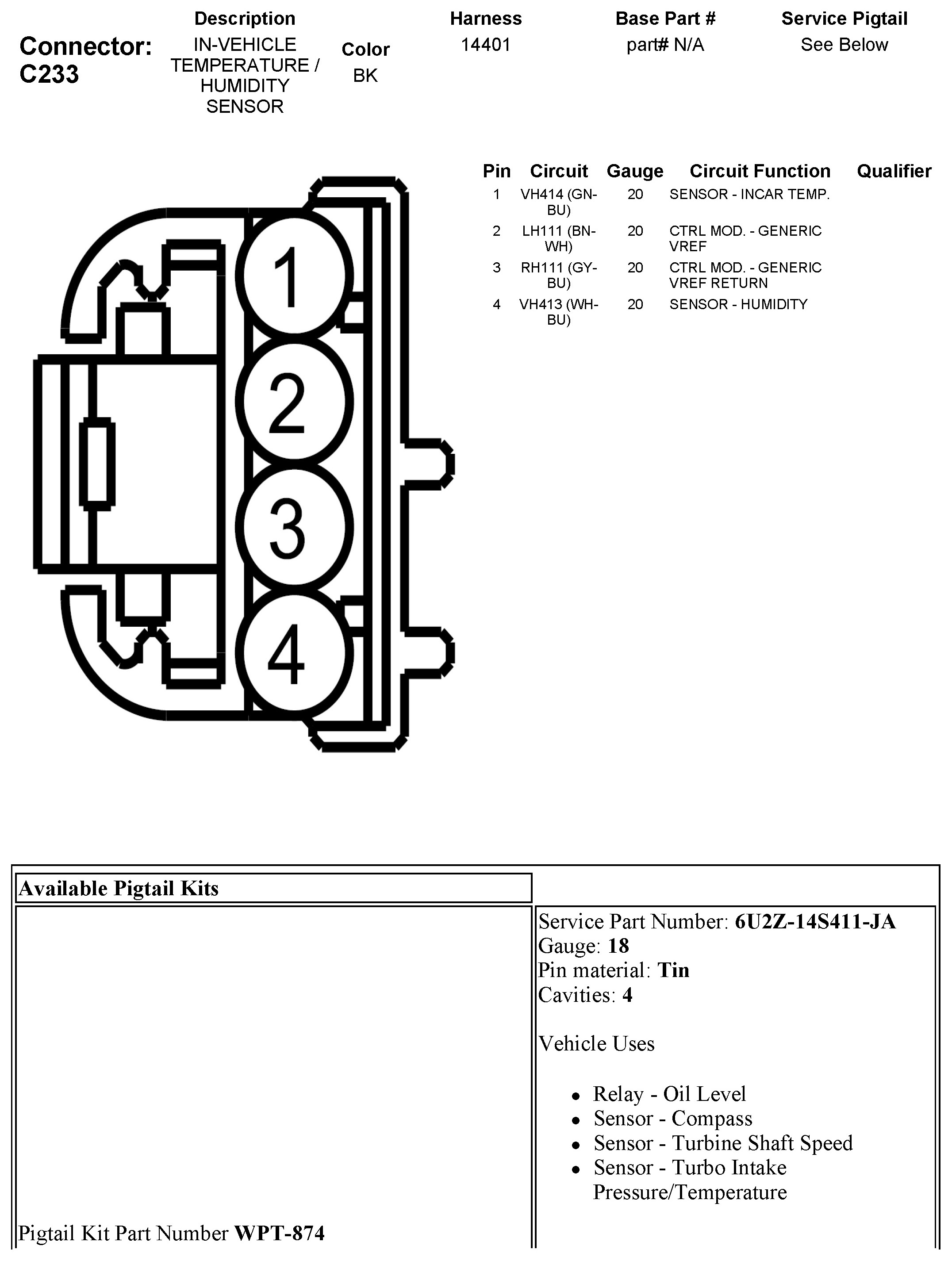

C233 In-vehicle Temperature / Humidity Sensor
