Home >> Ford >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Diagrams >> C2280F Body Control Module (BCM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

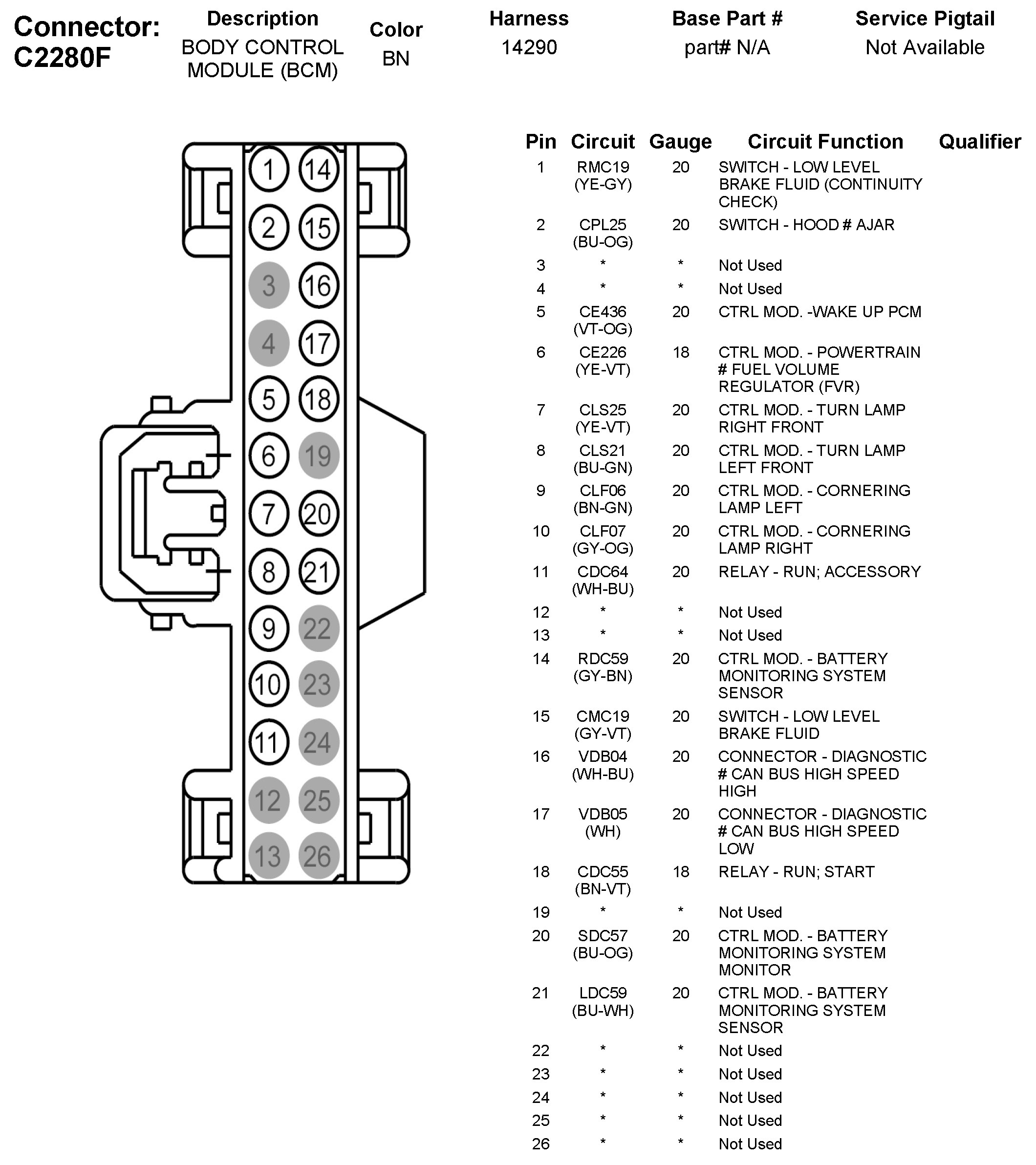

C2280F Body Control Module (BCM)
