OEM Ground Distribution: Grounds: G302

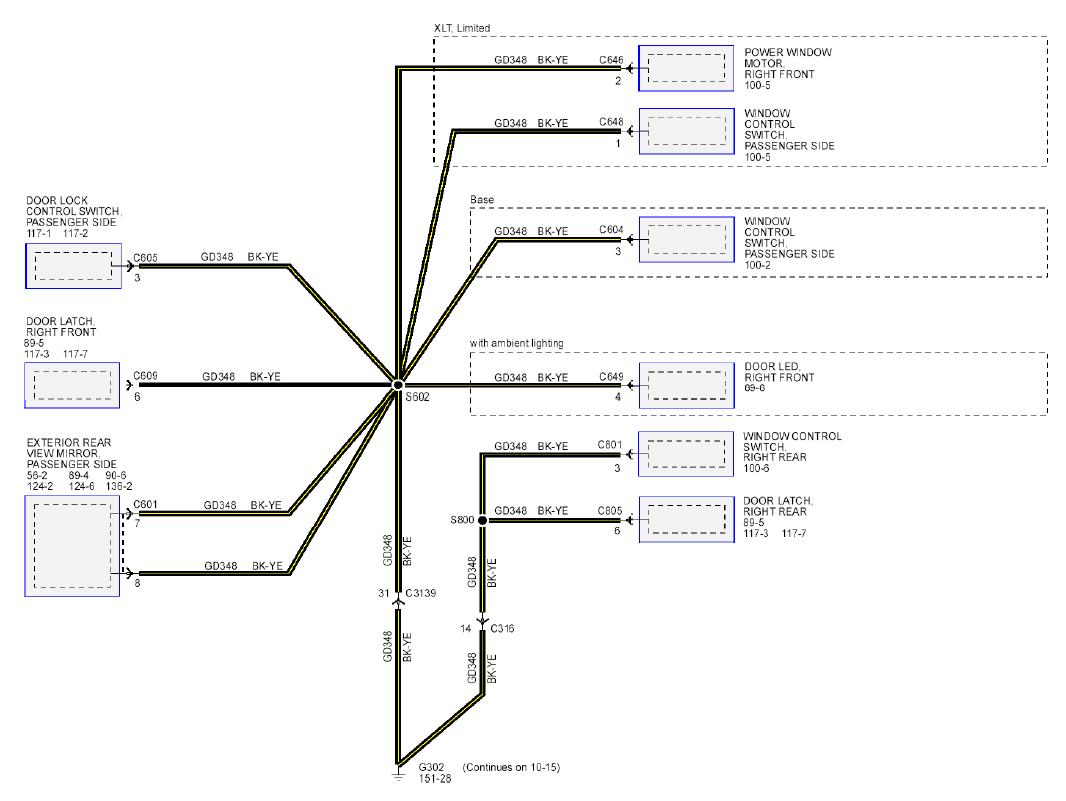

Fig 1: Grounds Circuit Diagram (G302)
G07895283Courtesy of FORD MOTOR CO.

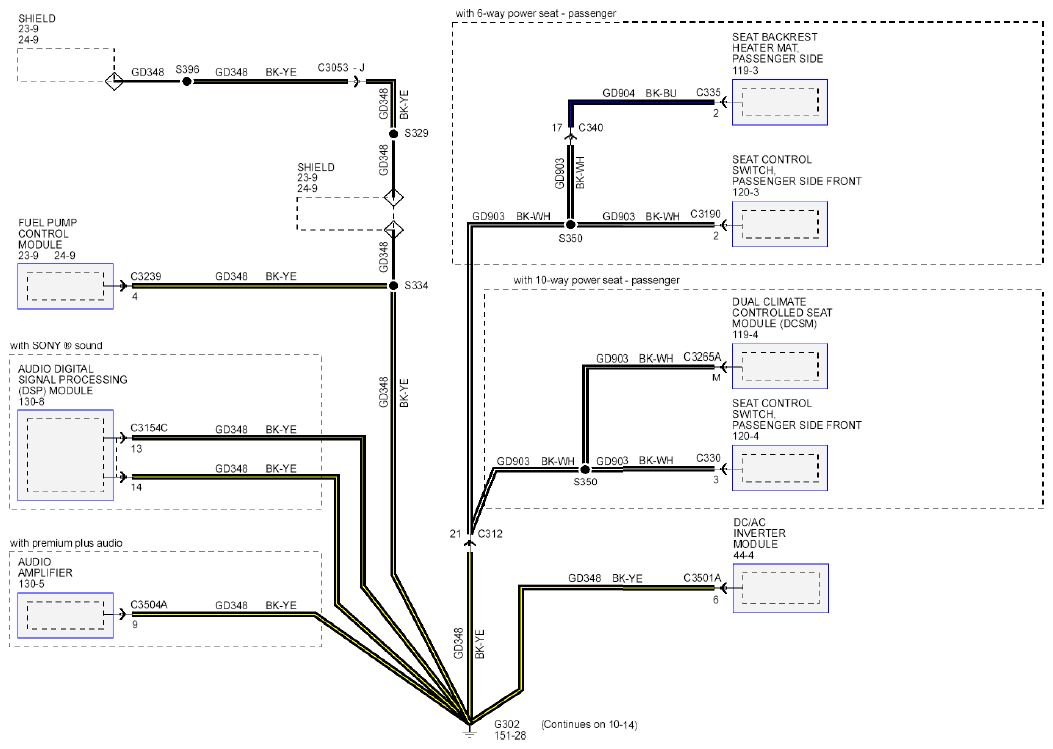

Fig 2: Grounds Circuit Diagram (G302)
G07895284Courtesy of FORD MOTOR CO.
