Passive Anti-Theft System (PATS) Transceiver: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

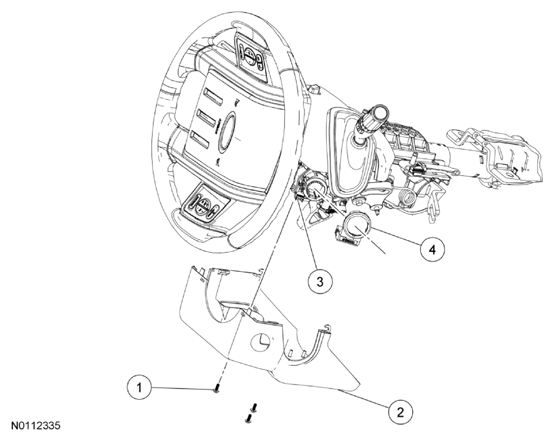

Fig 1: Exploded View Of Passive Anti-Theft System (PATS) Transceiver

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W710485	Lower steering column shroud screws (3 required)
2	3530	Lower steering column shroud
3	-	Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401)
4	15607	PATS transceiver
