General Procedure

NOTE: For specifications refer to the appropriate engine mechanical article. For 2.0L GTDI, refer to the GENERAL SPECIFICATIONS , or for 3.5L Ti-VCT, refer to the GENERAL SPECIFICATIONS tables.
  1. NOTE: Piston and piston pins are a matched set and should not be interchanged.

    Measure the piston pin bore diameter in 2 directions in the middle of each side as shown. Verify the diameter is within specification.

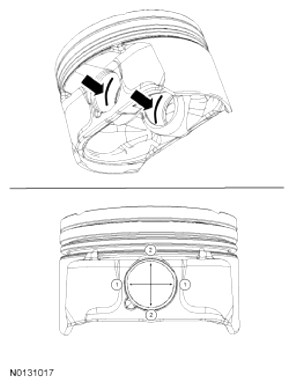

    Fig 1: Identifying Piston Pin Bore Diameter Measuring Directions
    G08028455Courtesy of FORD MOTOR CO.
