OEM Ground Distribution: Grounds: G300

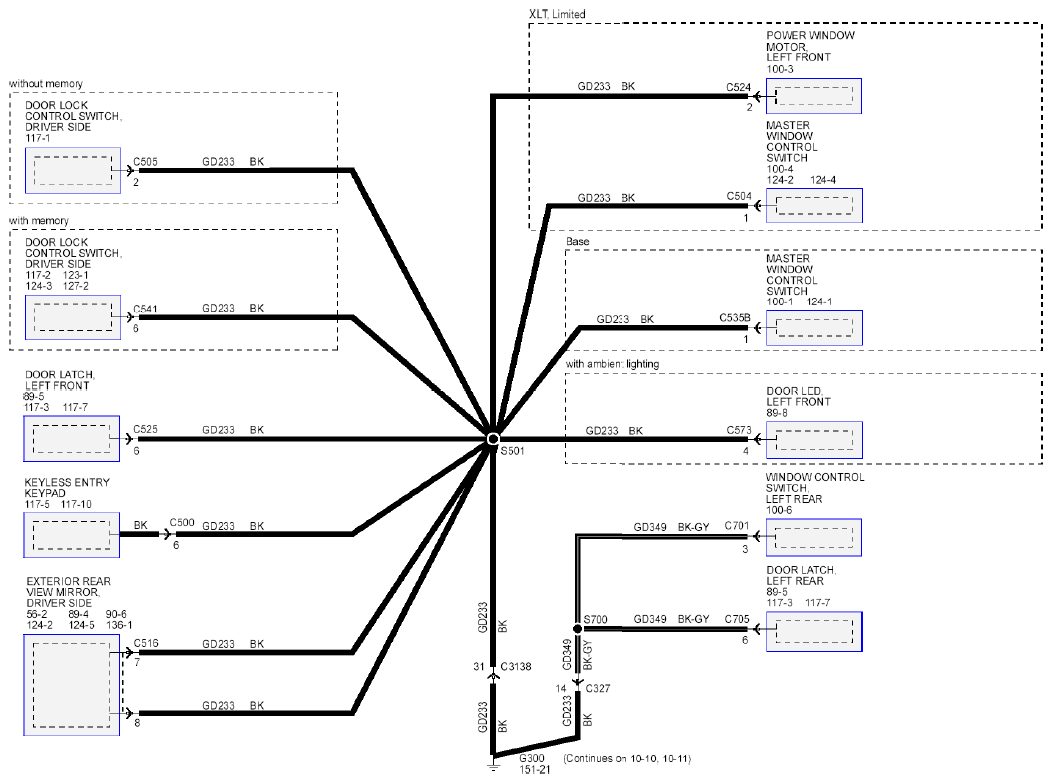

Fig 1: Grounds Circuit Diagram (G300)
G07895278Courtesy of FORD MOTOR CO.

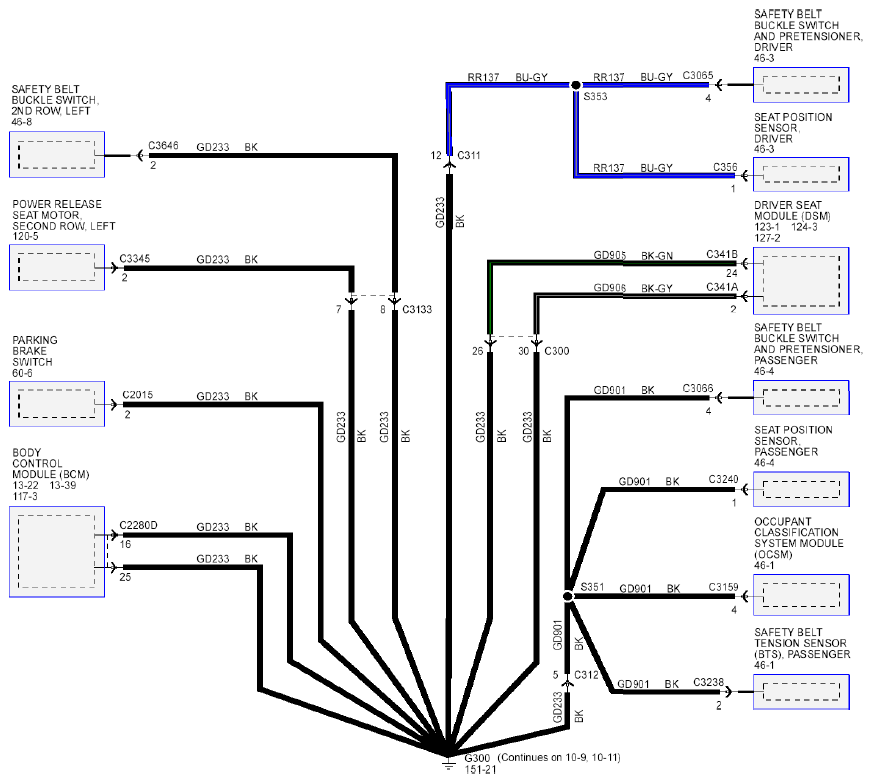

Fig 2: Grounds Circuit Diagram (G300)
G07895279Courtesy of FORD MOTOR CO.

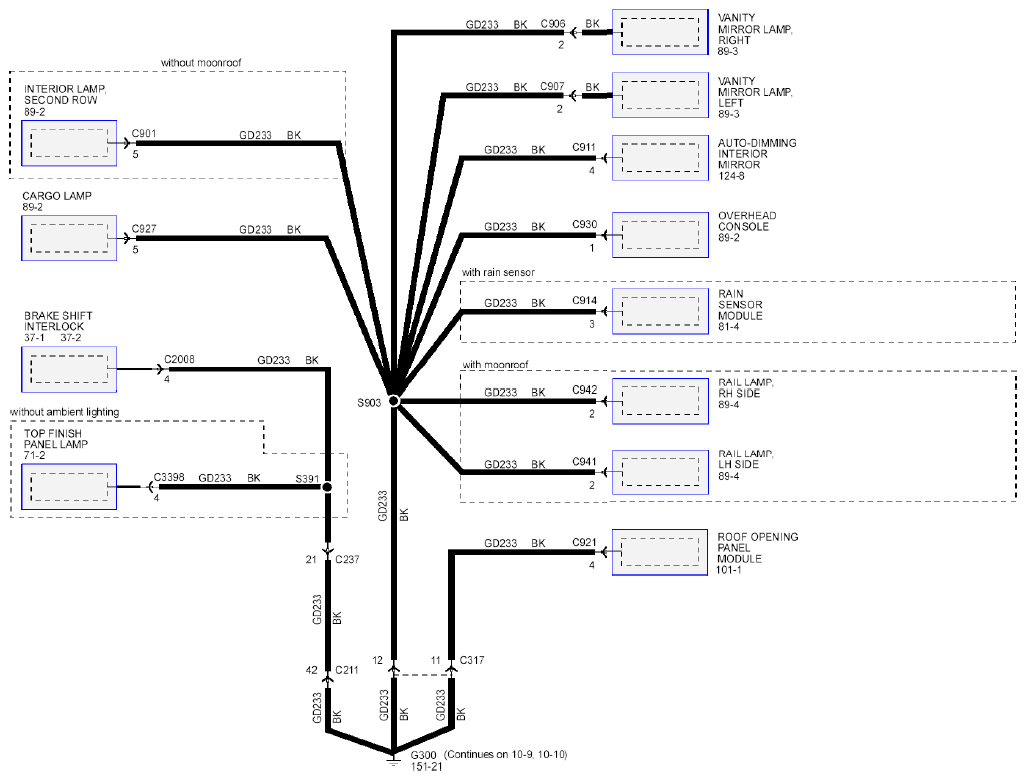

Fig 3: Grounds Circuit Diagram (G300)
G07895280Courtesy of FORD MOTOR CO.
