Module Communication Network
>>
Except Sync Gen2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Except Sync Gen2

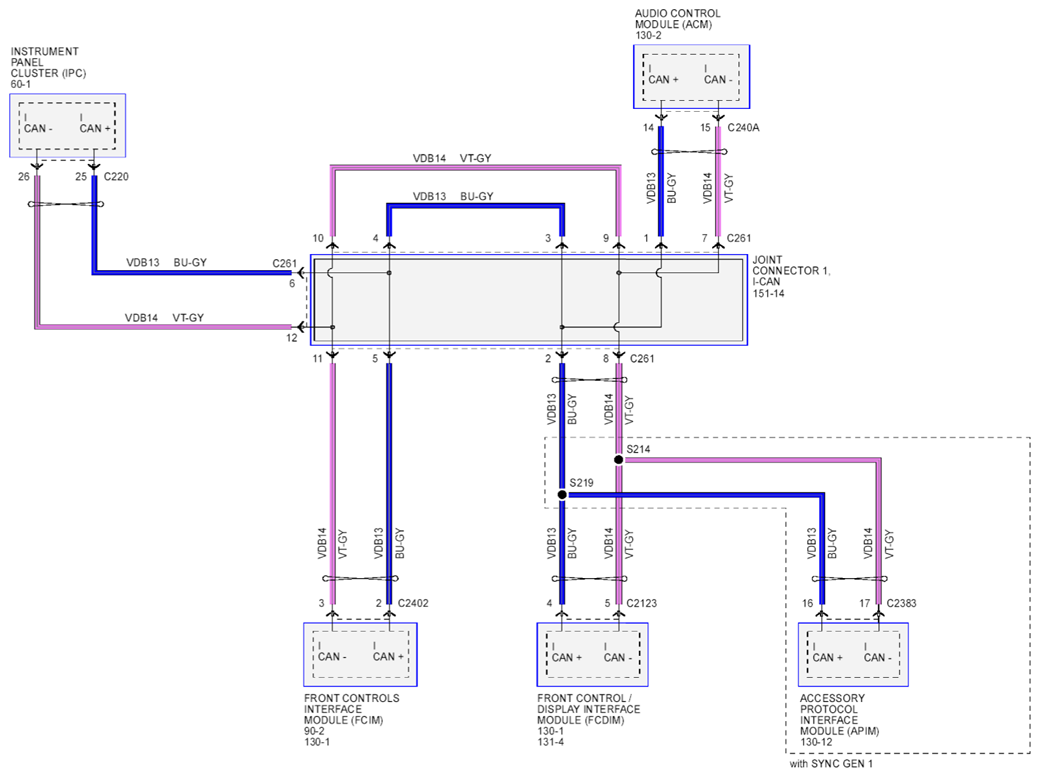

Fig 1: Module Communication Network Circuit Diagram (Except SYNC GEN2)
Courtesy of FORD MOTOR CO.
