Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Module

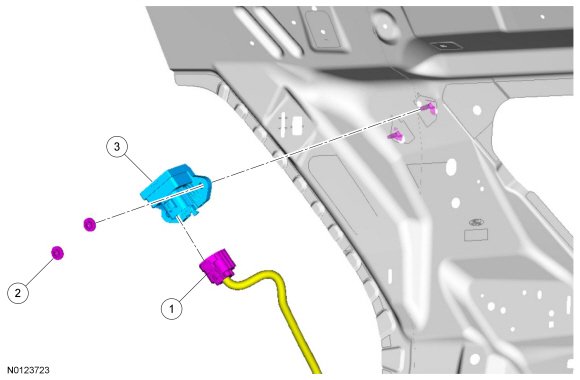

Exploded View

Fuel Pump Control Module











Removal

NOTE:Removal steps in this procedure may contain installation details.

1. Remove the RH (Right Hand) C-pillar trim panel, REFER to C-Pillar Trim Panel - With Inflatable Safety Belts or REFER to C-Pillar Trim Panel - Without Inflatable Safety Belts .

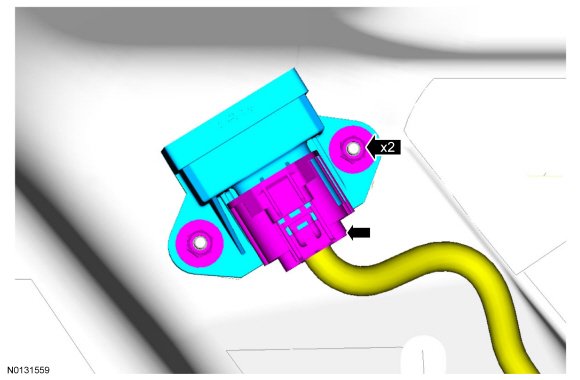

2.
- 6 Nm (53 lb-in).





Installation

1. To install, reverse the removal procedure.
