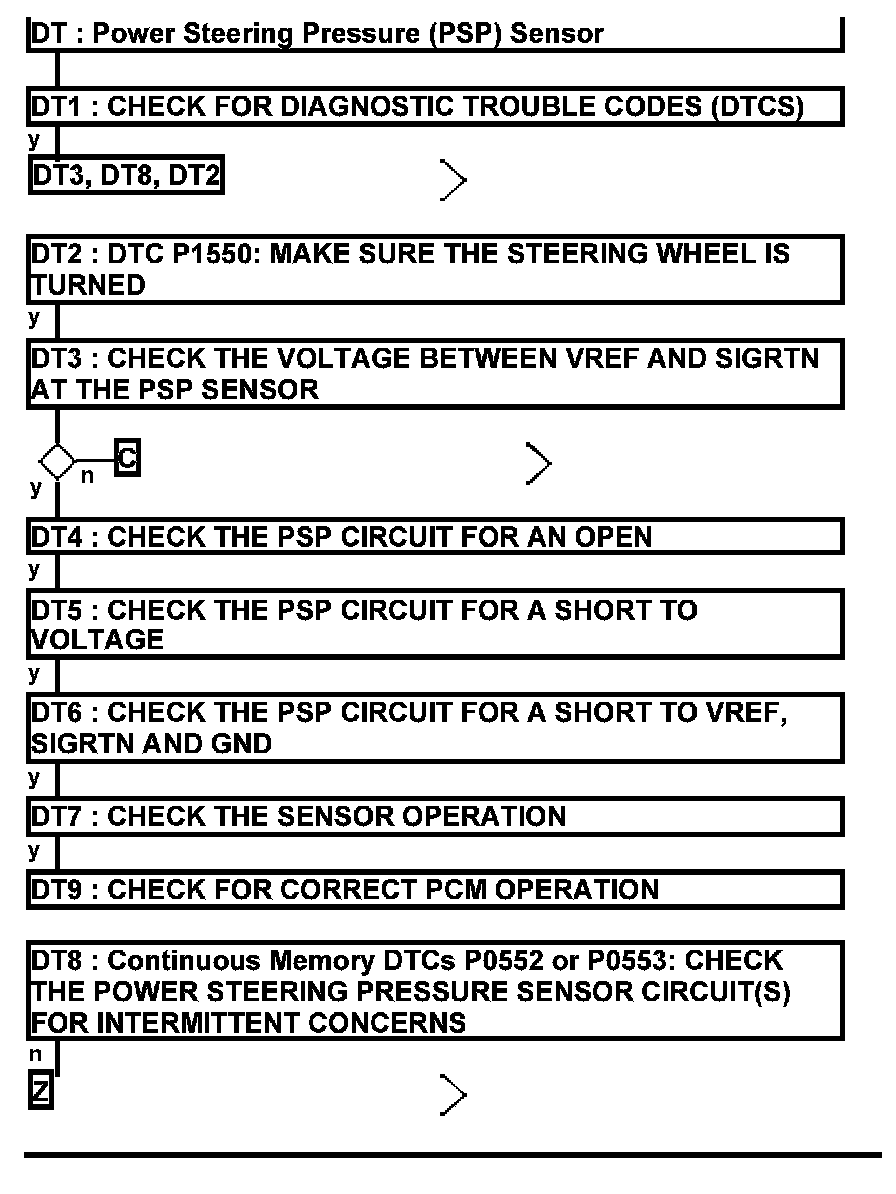

Test DT: Power Steering Pressure (PSP) Sensor

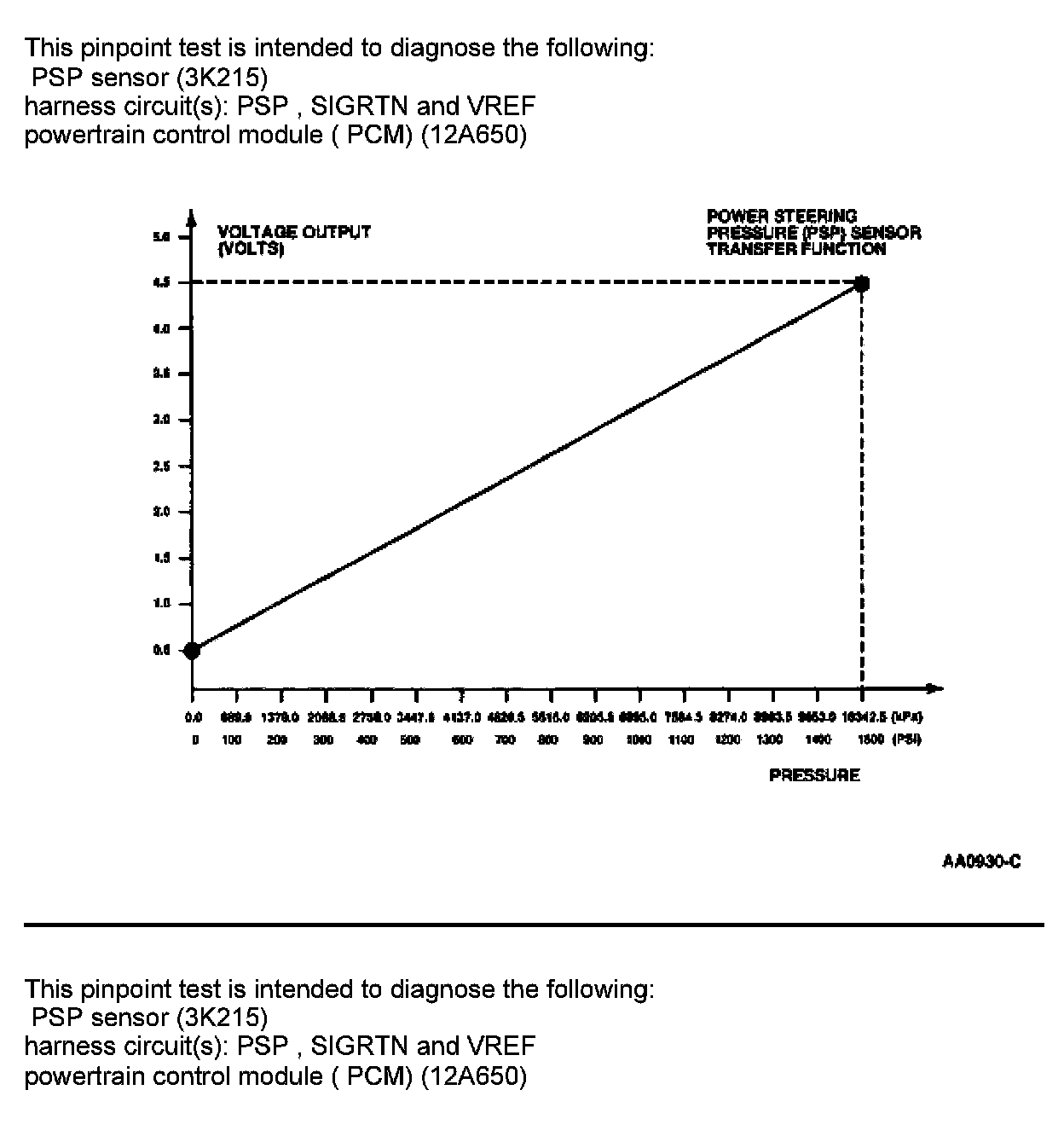

Power Steering Pressure (PSP) Sensor

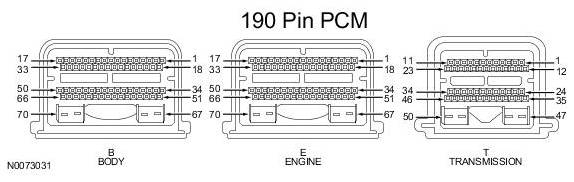

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
