Register - Center

Register - Center

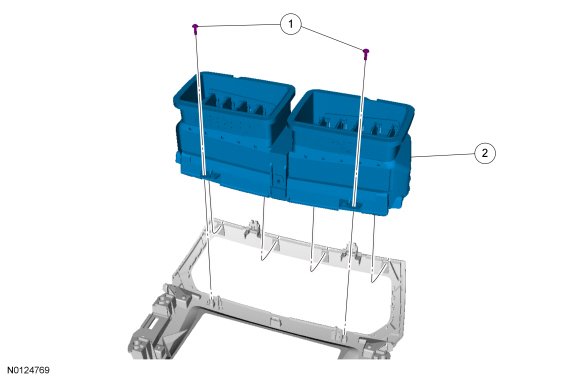

Exploded View










Removal

1. Remove the FCIM (Front Controls Interface Module). REFER to Front Controls Interface Module (FCIM) .

2. Remove the 2 center register assembly screws.

3. Remove the center register assembly.

Installation

1. To install, reverse the removal procedure.
