Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

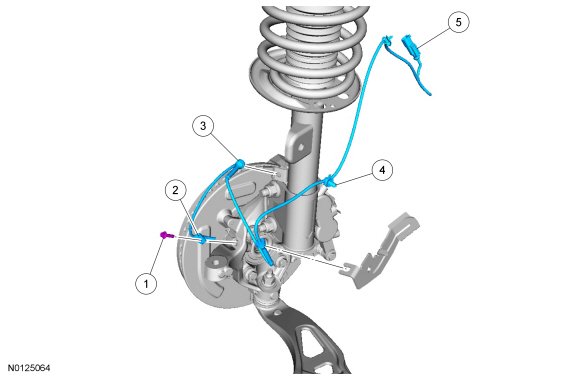

Exploded View










Removal

1. Remove the wheel and tire. REFER to Wheel and Tire .

2. Remove the fender splash shield. REFER to Fender Splash Shield .

3. Disconnect the wheel speed sensor electrical connector.

4. Detach the 2 pin-type retainers.

5. Detach the 2 grommets from the routing brackets.

6. Remove the front wheel speed sensor bolt and the front wheel speed sensor.

Installation

1. Position the front wheel speed sensor and install the front wheel speed sensor bolt.
- Tighten to 15 Nm (133 lb-in).

2. Attach the 2 grommets to the routing brackets.

3. Attach the 2 pin-type retainers.

4. Connect the wheel speed sensor electrical connector.

5. Install the fender splash shield. REFER to Fender Splash Shield .

6. Install the wheel and tire. REFER to Wheel and Tire .
