Seat - Exploded View

Seat - Exploded View

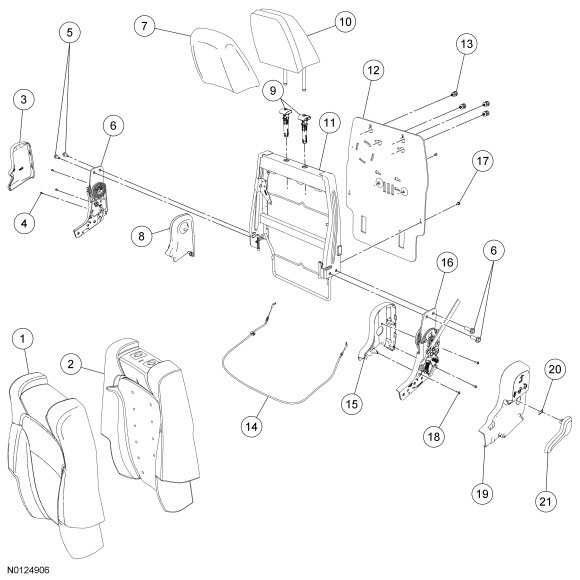

Exploded View

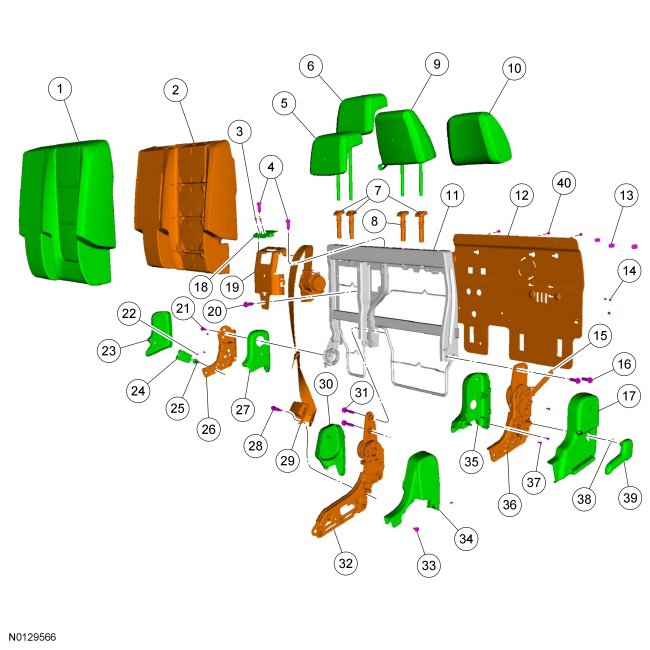

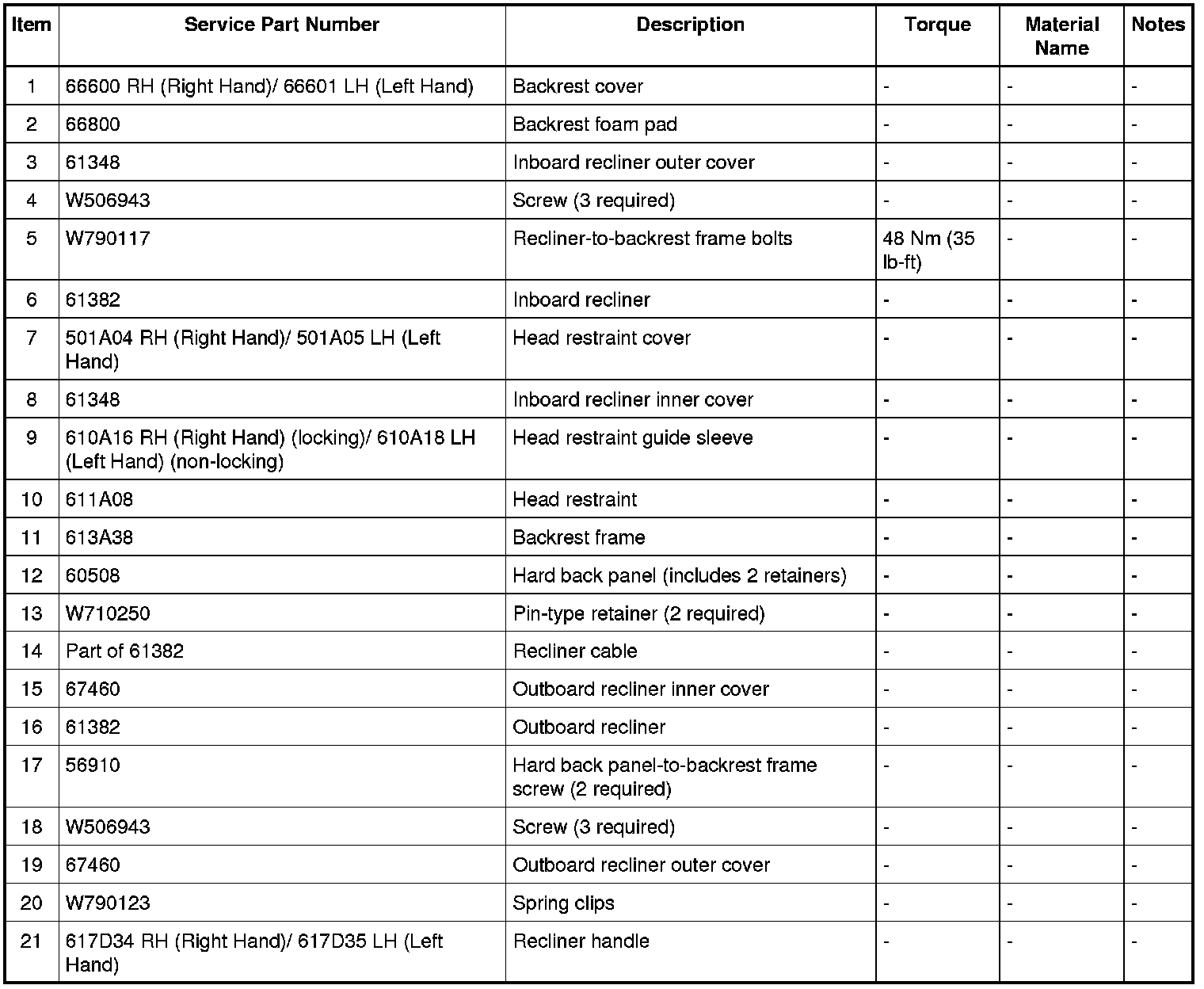

40 Percent Backrest

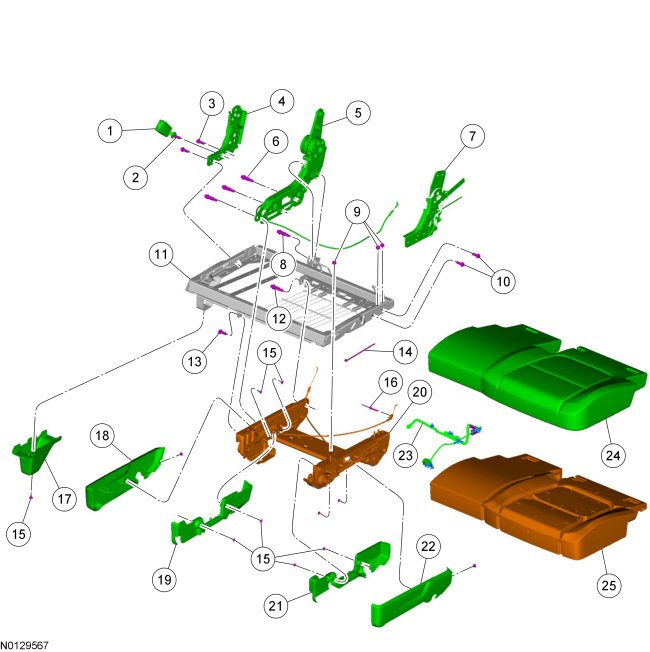

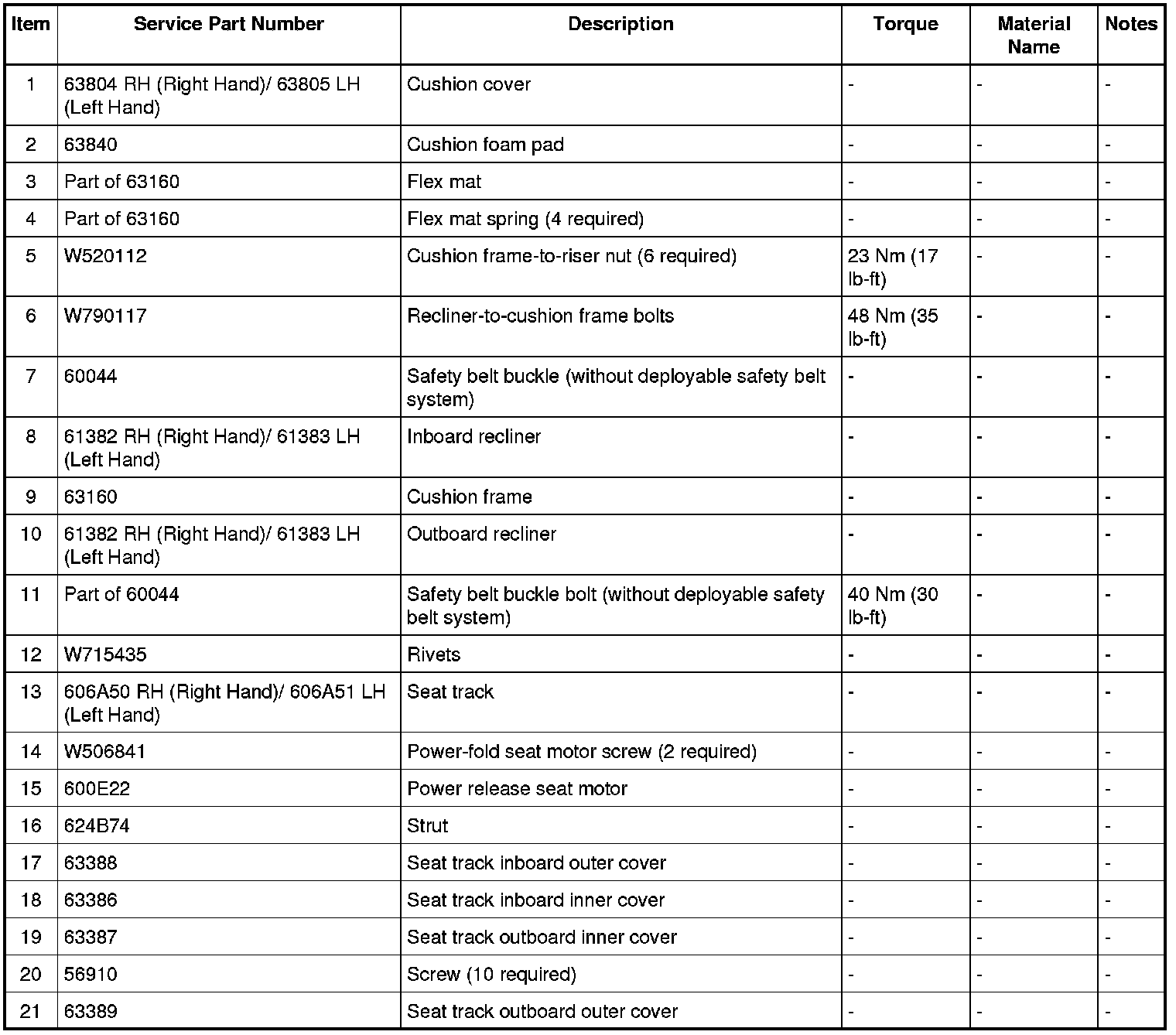

40 Percent Cushion

NOTE: LH (Left Hand) shown, RH (Right Hand) similar.

NOTE: For information on the deployable safety belts, REFER to Safety Belt Buckle - 2nd Row, 40 Percent Seat, with Inflatable Safety Belts and REFER to Safety Belt Inflator - 2nd Row, 40 Percent .

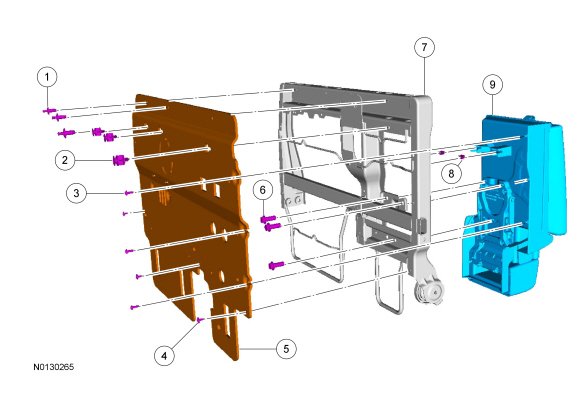

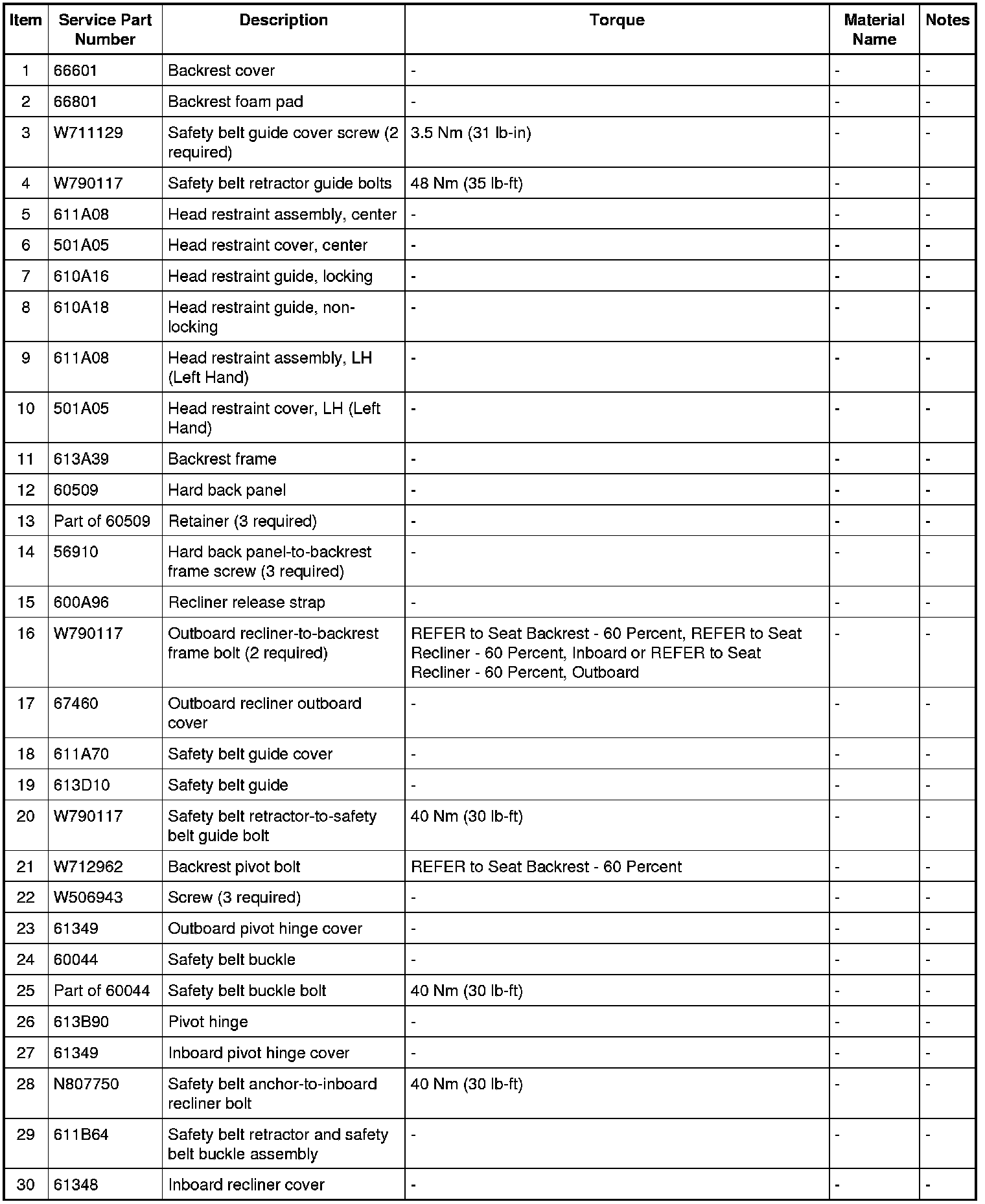

60 Percent Backrest















60 Percent Arm Rest

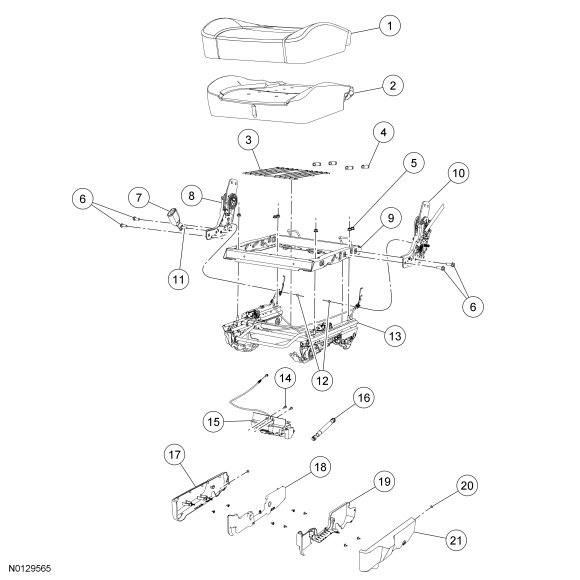

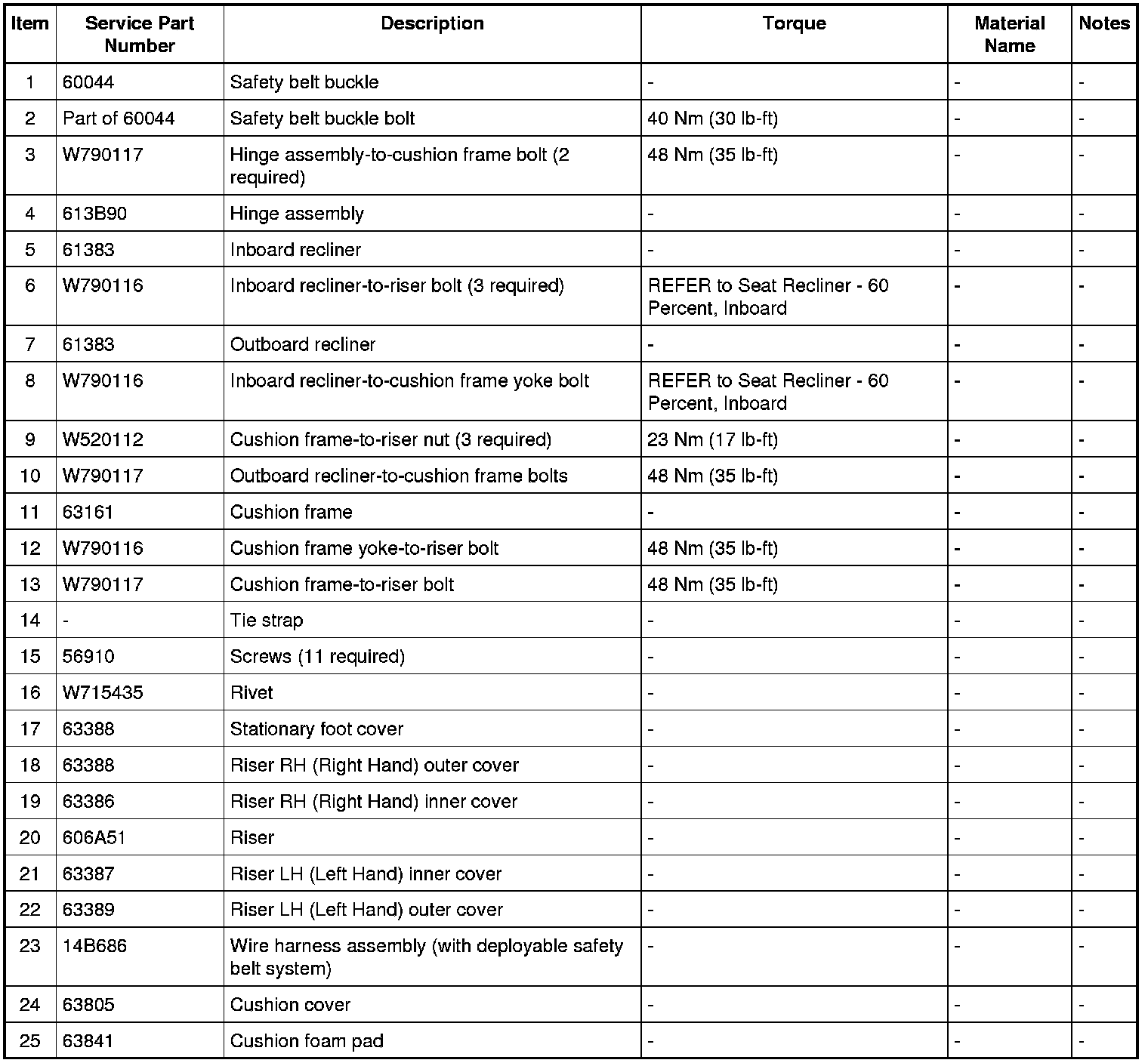

60 Percent Cushion

NOTE: For information on the deployable safety belts, REFER to Safety Belt Buckle and Inflator - 2nd Row, 60 Percent Seat .
