Seat - Exploded View, Front




Seat - Exploded View, Front

Exploded View

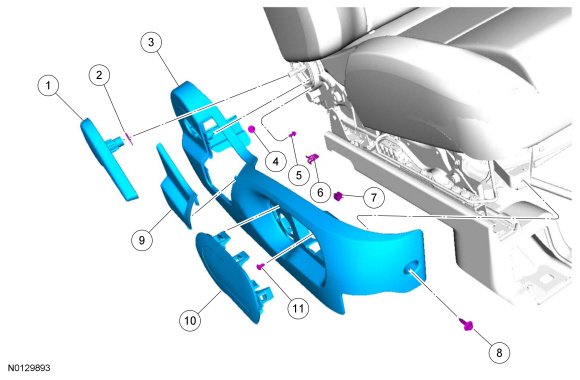

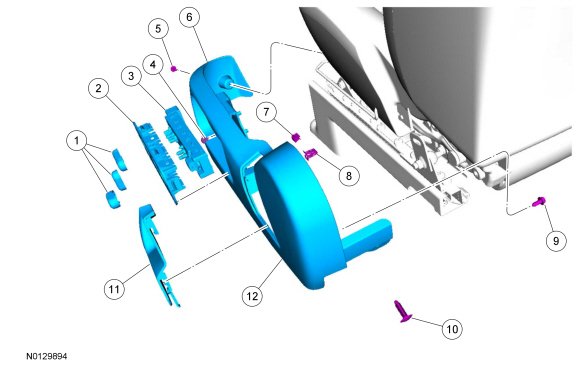

Cushion Side Shield - Manual Track With Manual Recline

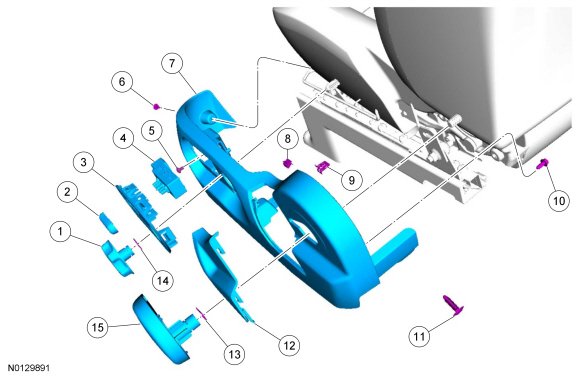

Cushion Side Shield - Power Track With Manual Recline and Manual Lumbar (6-Way Power)










Cushion Side Shield - Power Track With Power Recline and Power Lumbar (10-Way Power)

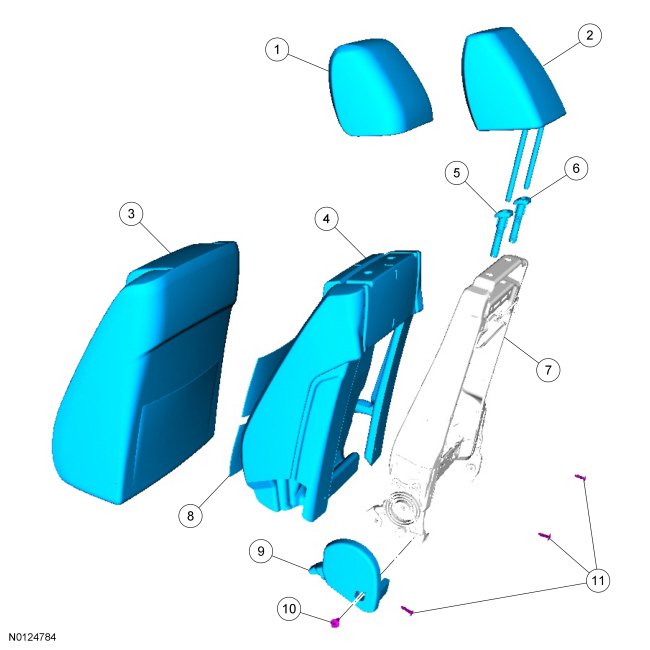

Seat Backrest - Trim Parts

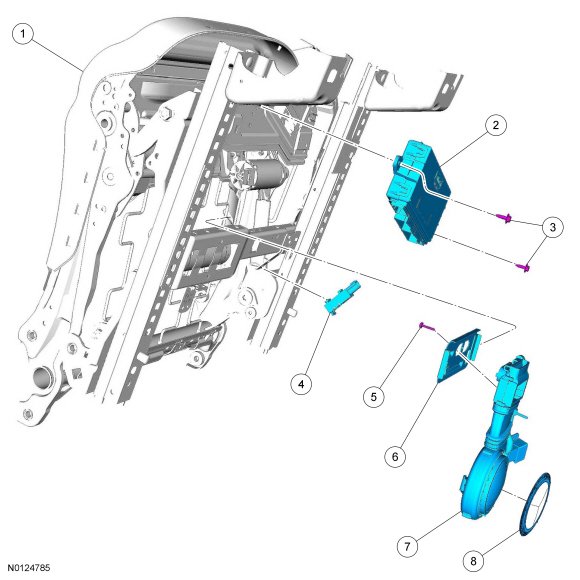

Seat Backrest - Frame parts With Manual Lumbar and Static Lumbar

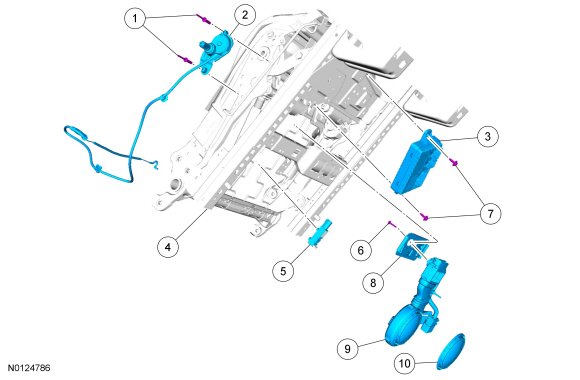

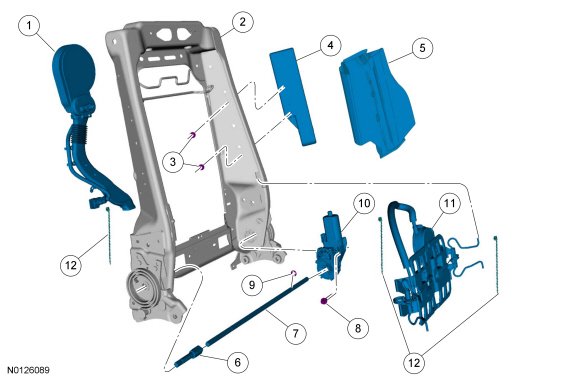

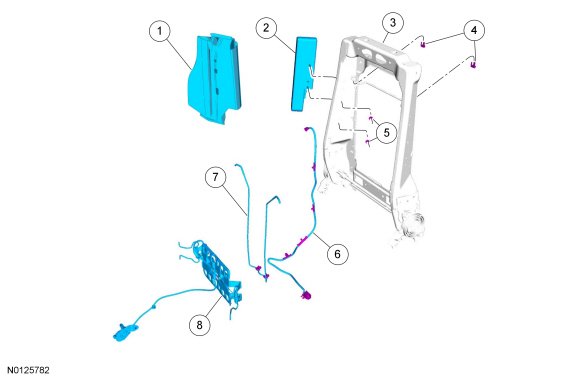

Seat Backrest - Frame parts With Power Recline, Power Lumbar and Climate Controlled Seat System

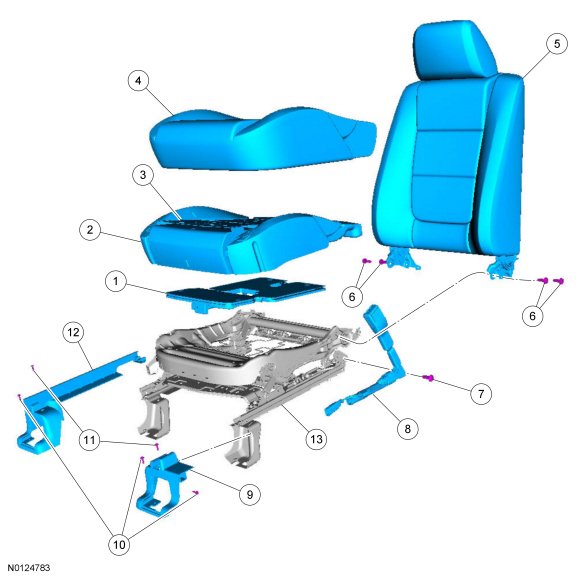

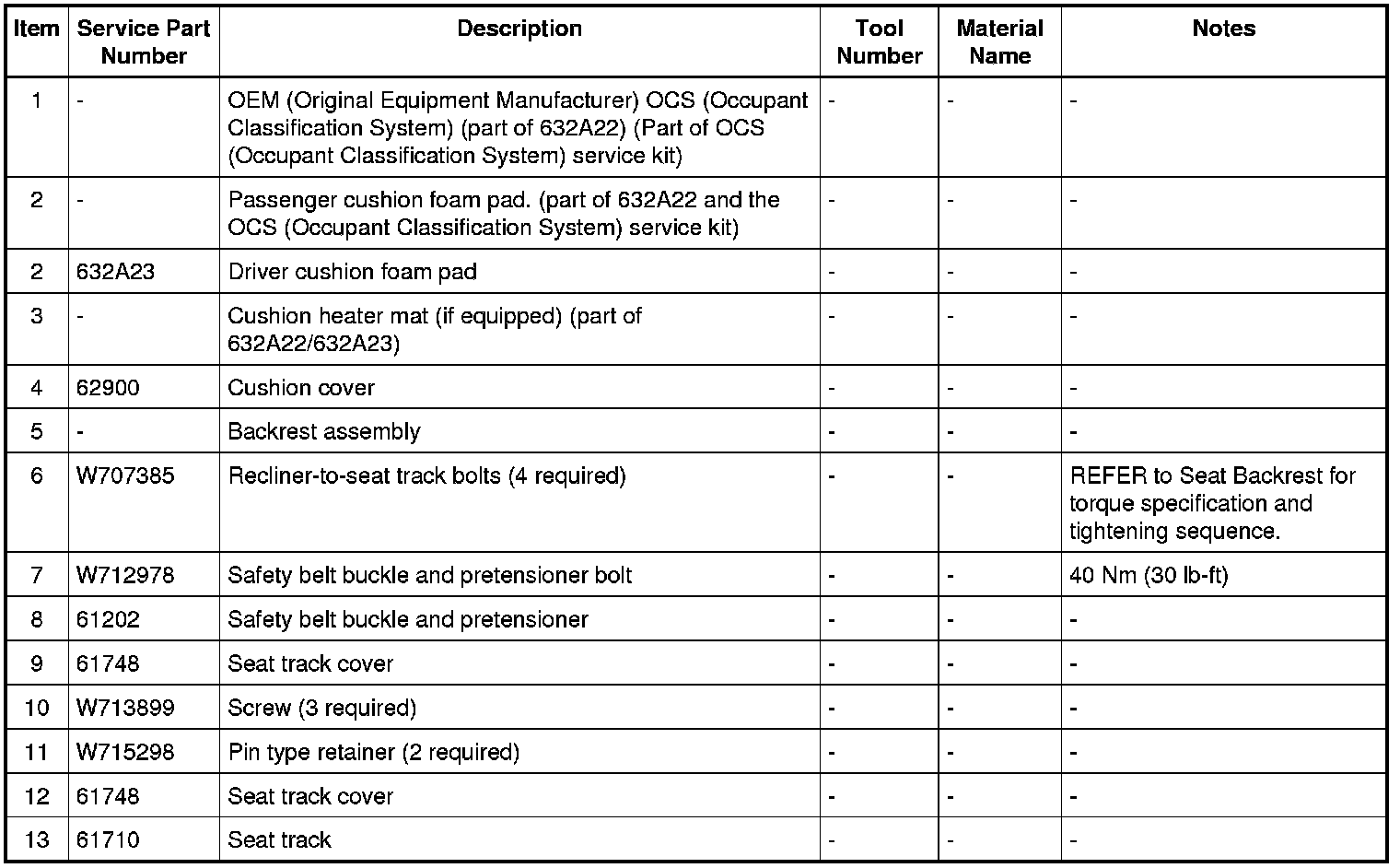

Seat Cushion With An OEM (Original Equipment Manufacturer) OCS (Occupant Classification System) Bladder System and Heat










Passenger Power Seat Track










Driver Power Seat Track
