Seating - 3rd Row

Seat Control Switch

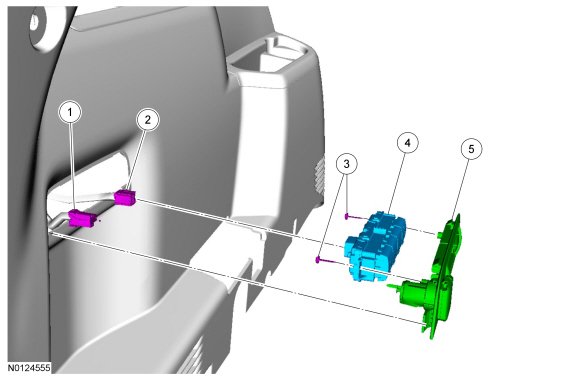

Exploded View










Removal

1. Using a non-marring tool, pry out the switch bezel and remove from the quarter trim panel.

2. Disconnect the electrical connector, remove the 2 screws and seat control switch.

Installation

1. Install the seat control switch.

- Install 2 screws.
- Connect the electrical connector.

2. Install the switch bezel to the quarter trim panel.
