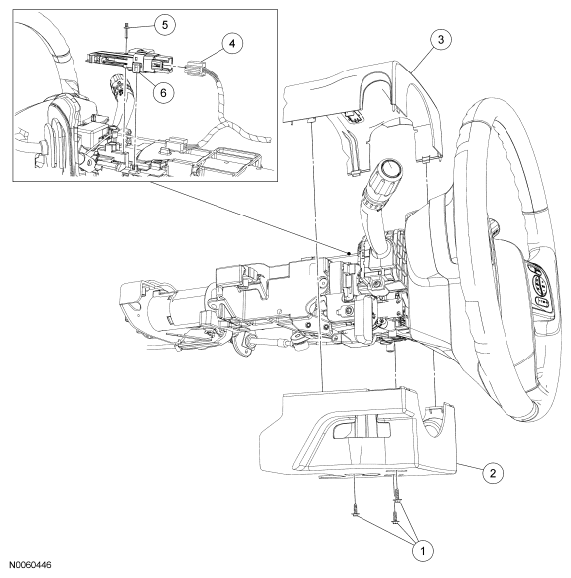

Brake Shift Interlock Actuator - Column Shift: Notes
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W710485-S |
Lower steering column shroud screws |
| 2 |
3533-B |
Lower steering column shroud |
| 3 |
3530-B |
Upper steering column shroud |
| 4 |
- |
Brake Shift Interlock Actuator (BSIA) electrical connector |
| 5 |
3F907-A |
BSIA screw |
| 6 |
3F770 |
BSIA |
