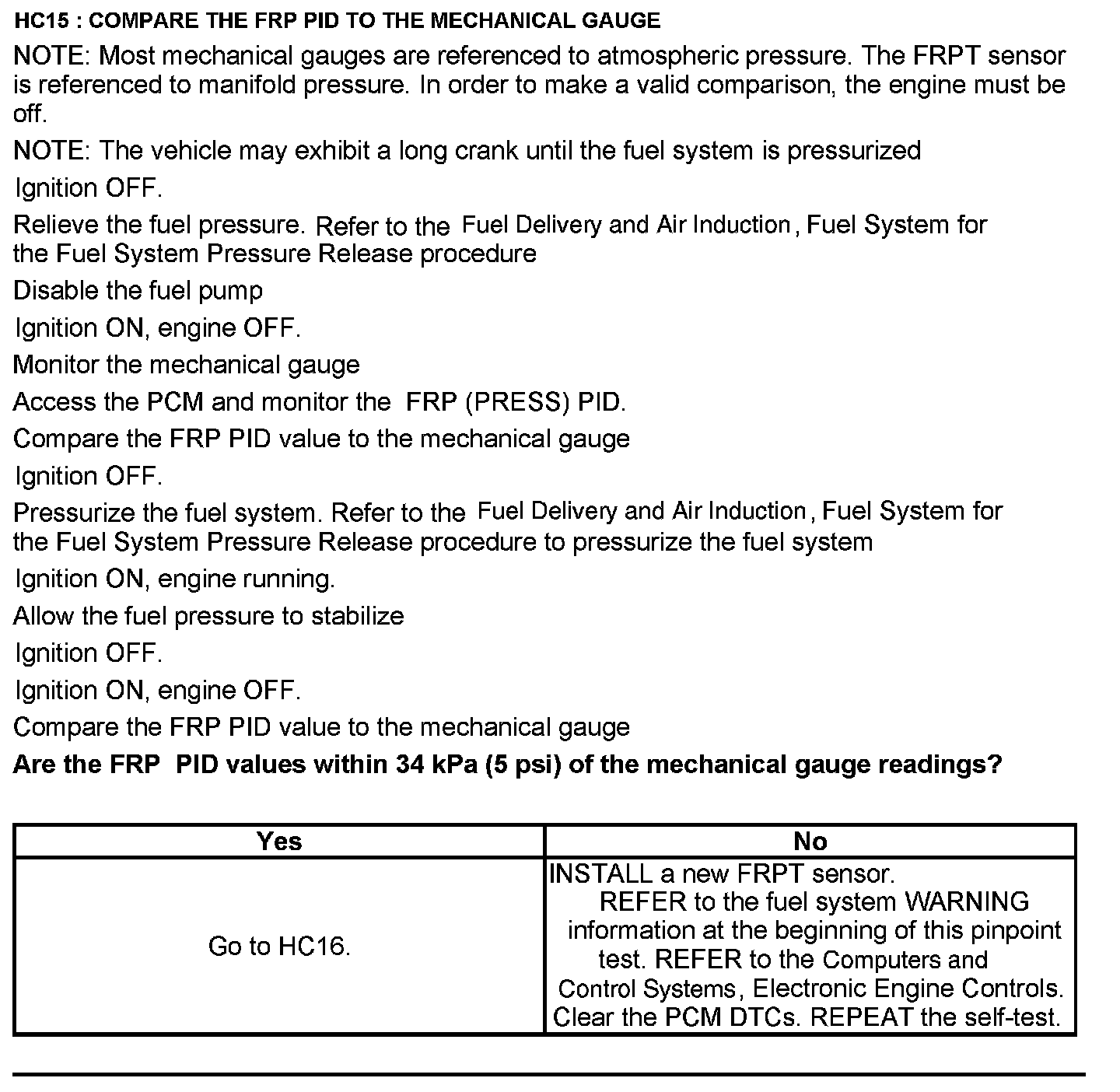

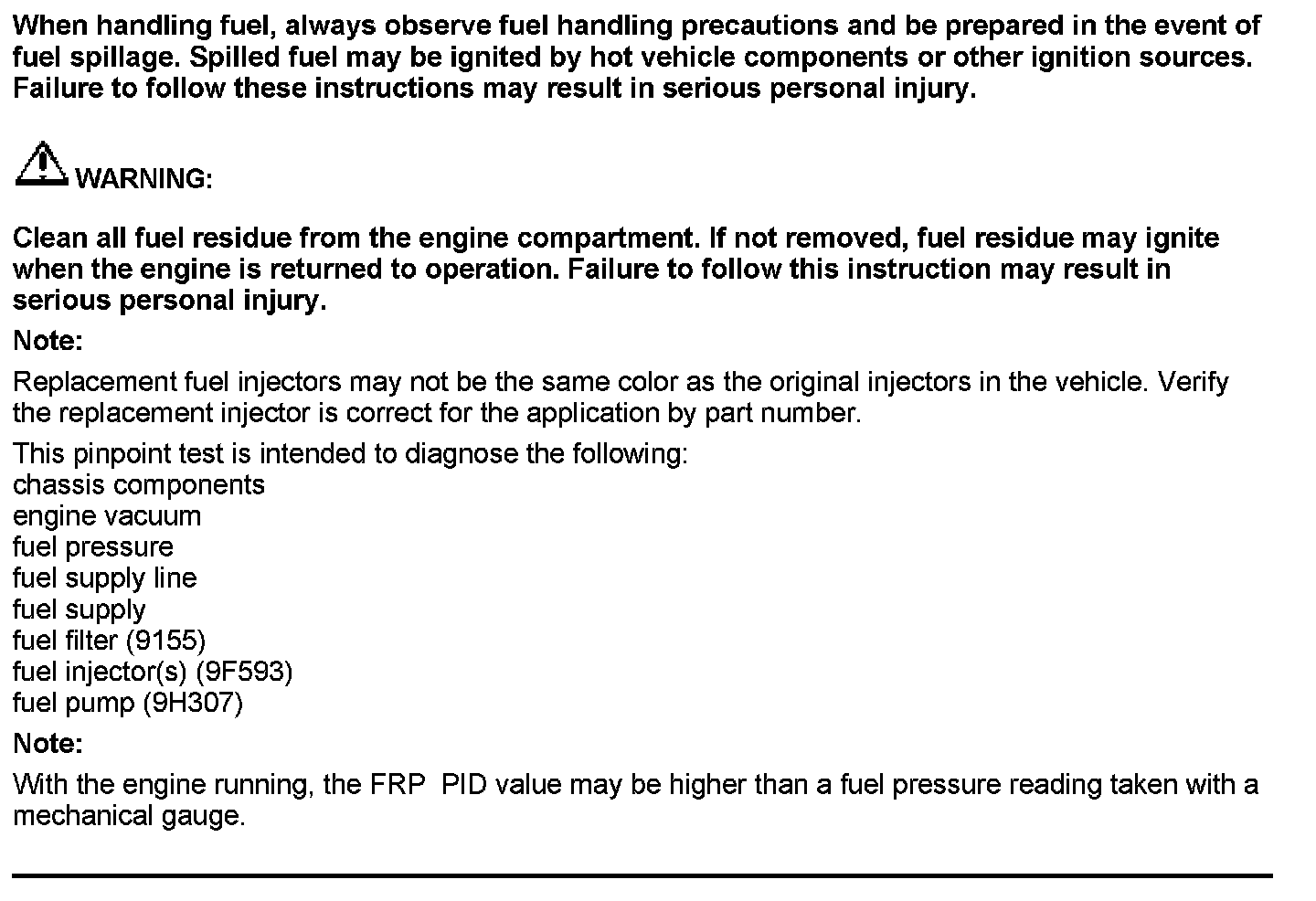

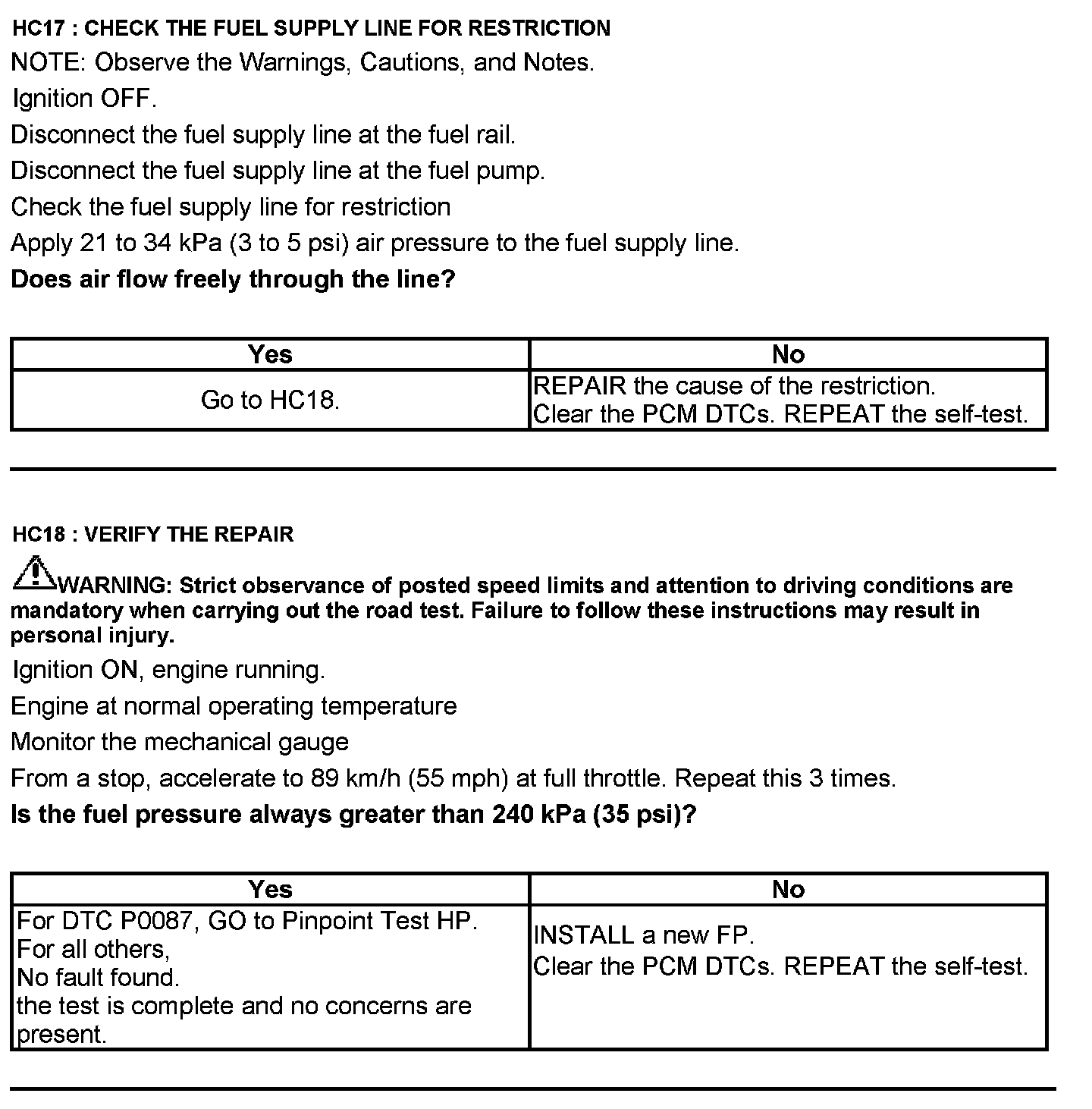

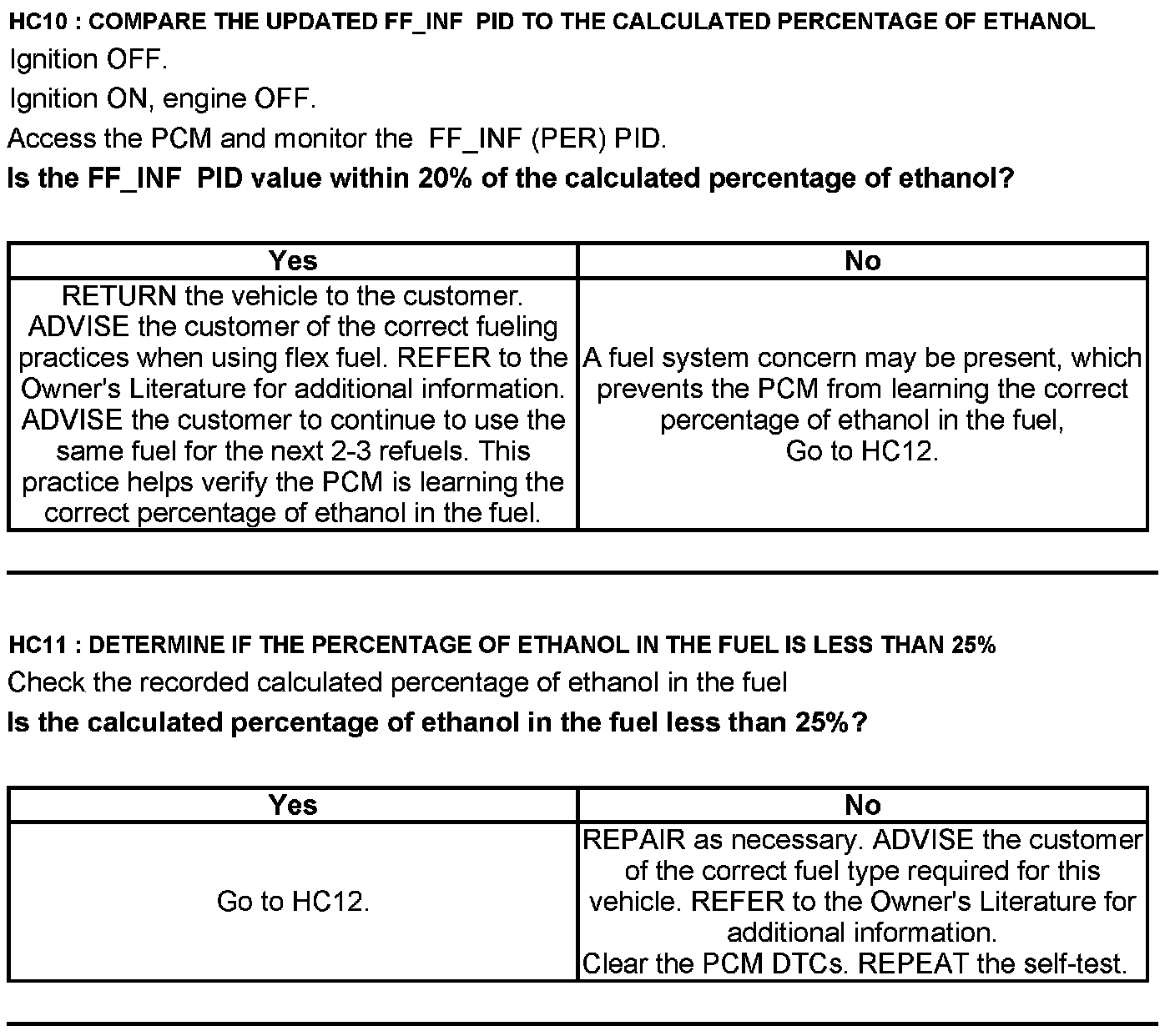

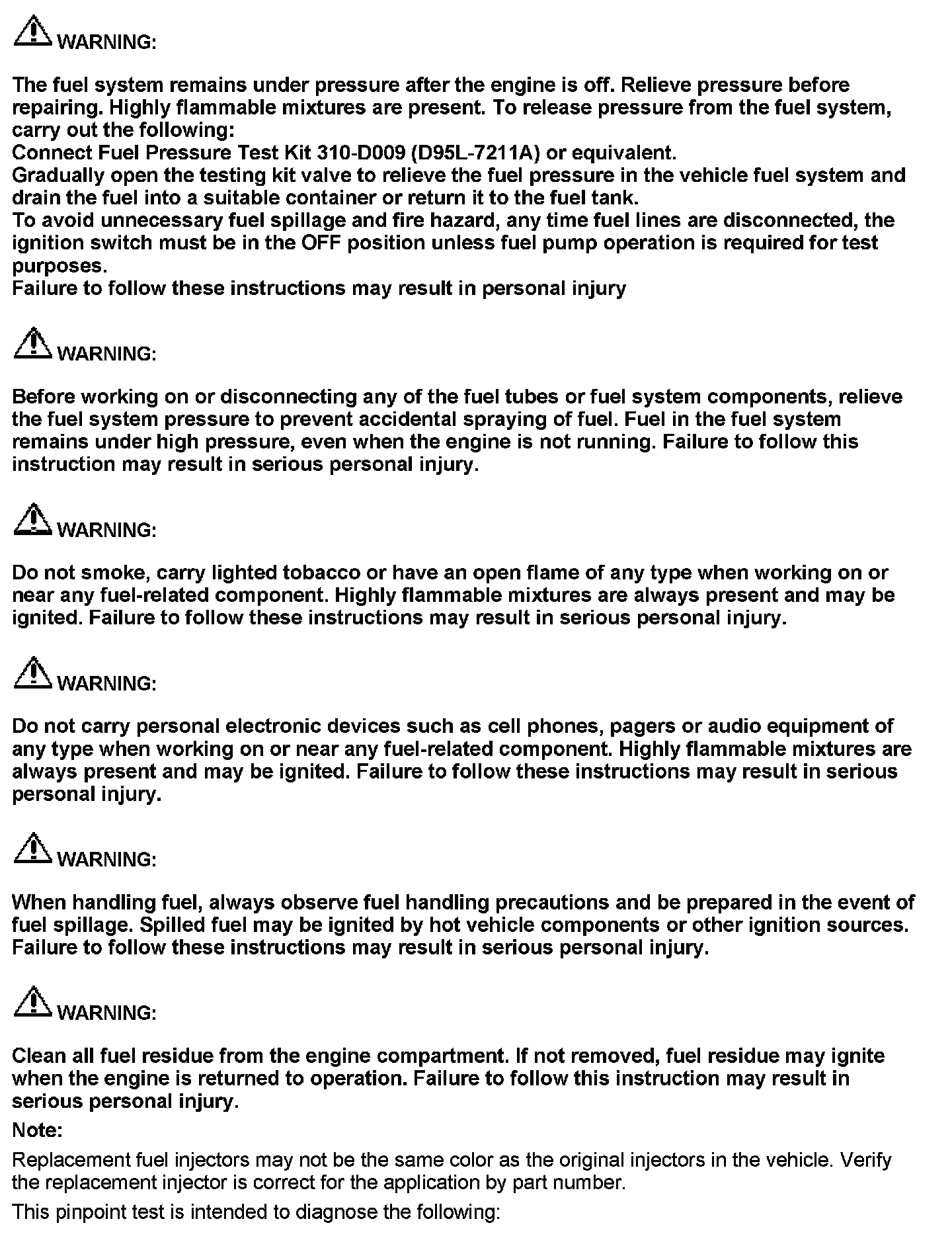

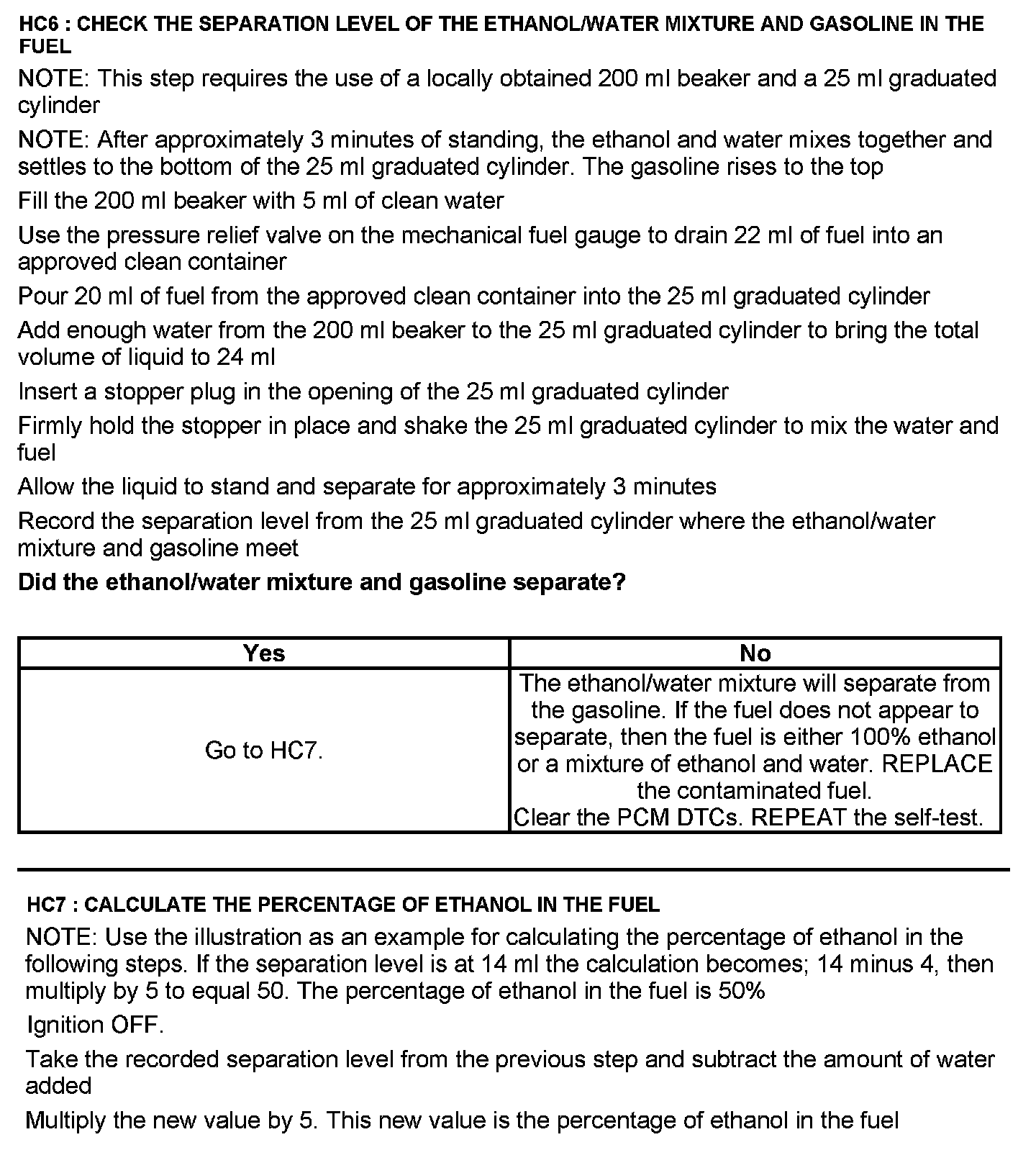

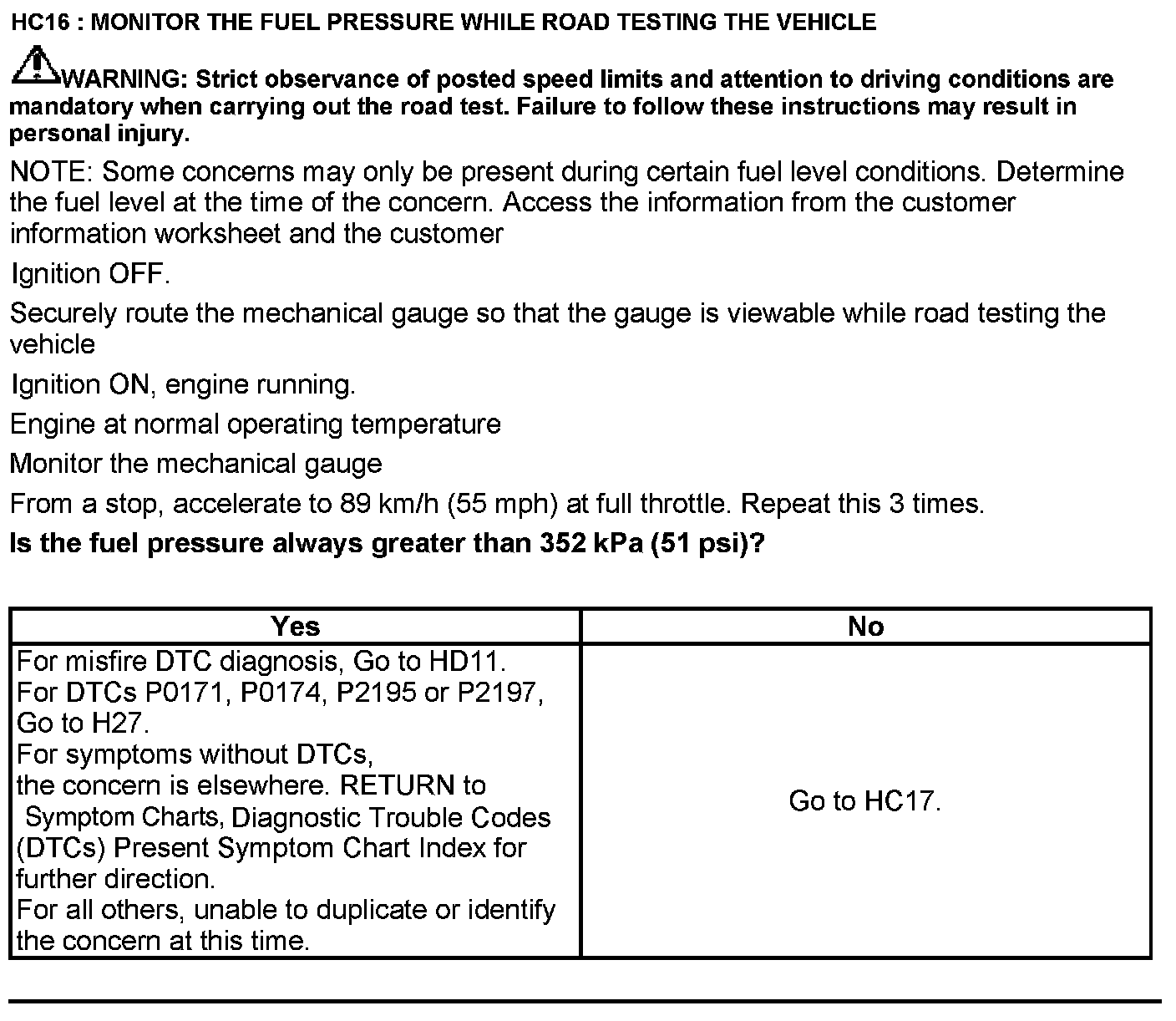

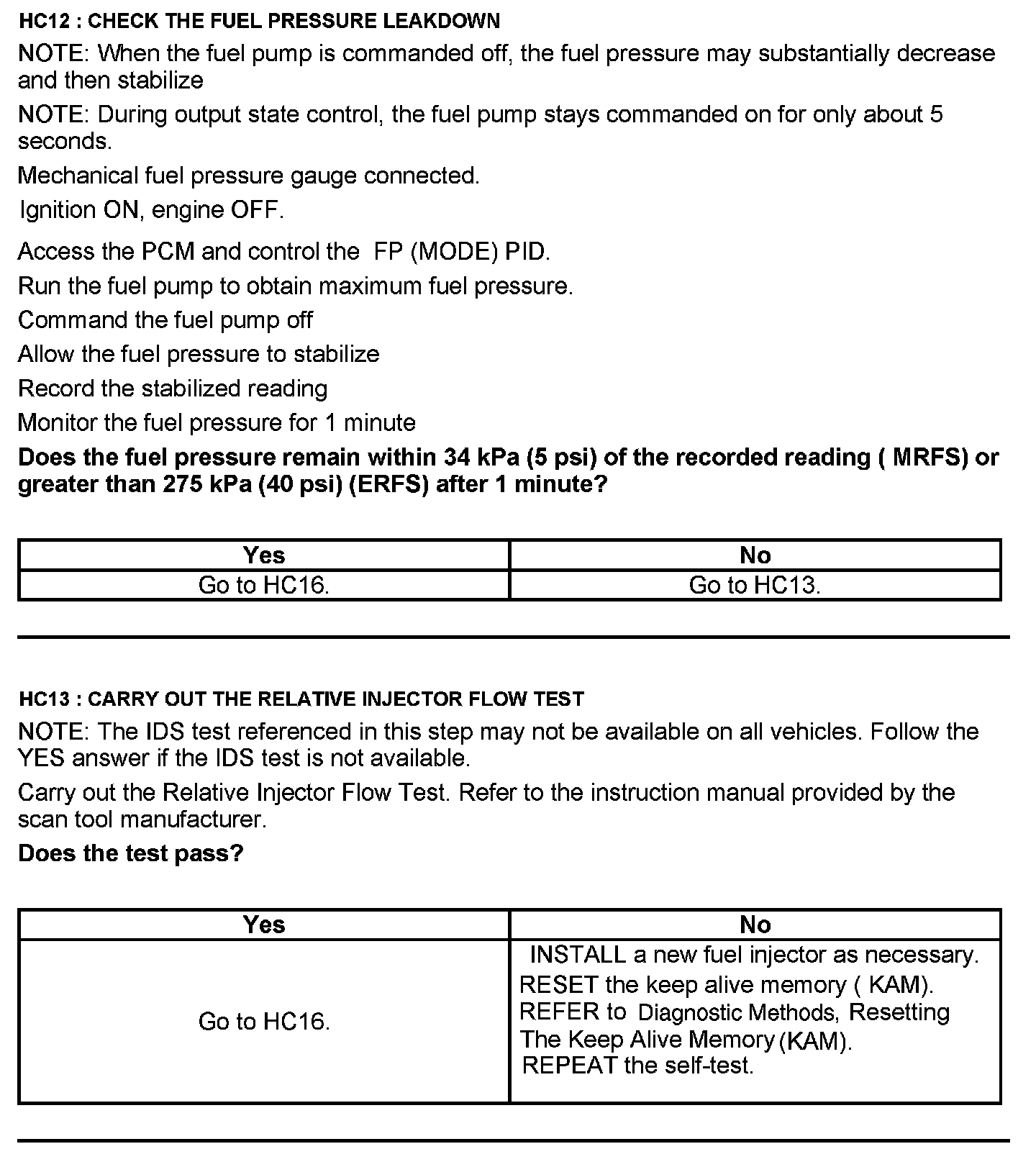

Vehicles That Do Not Start

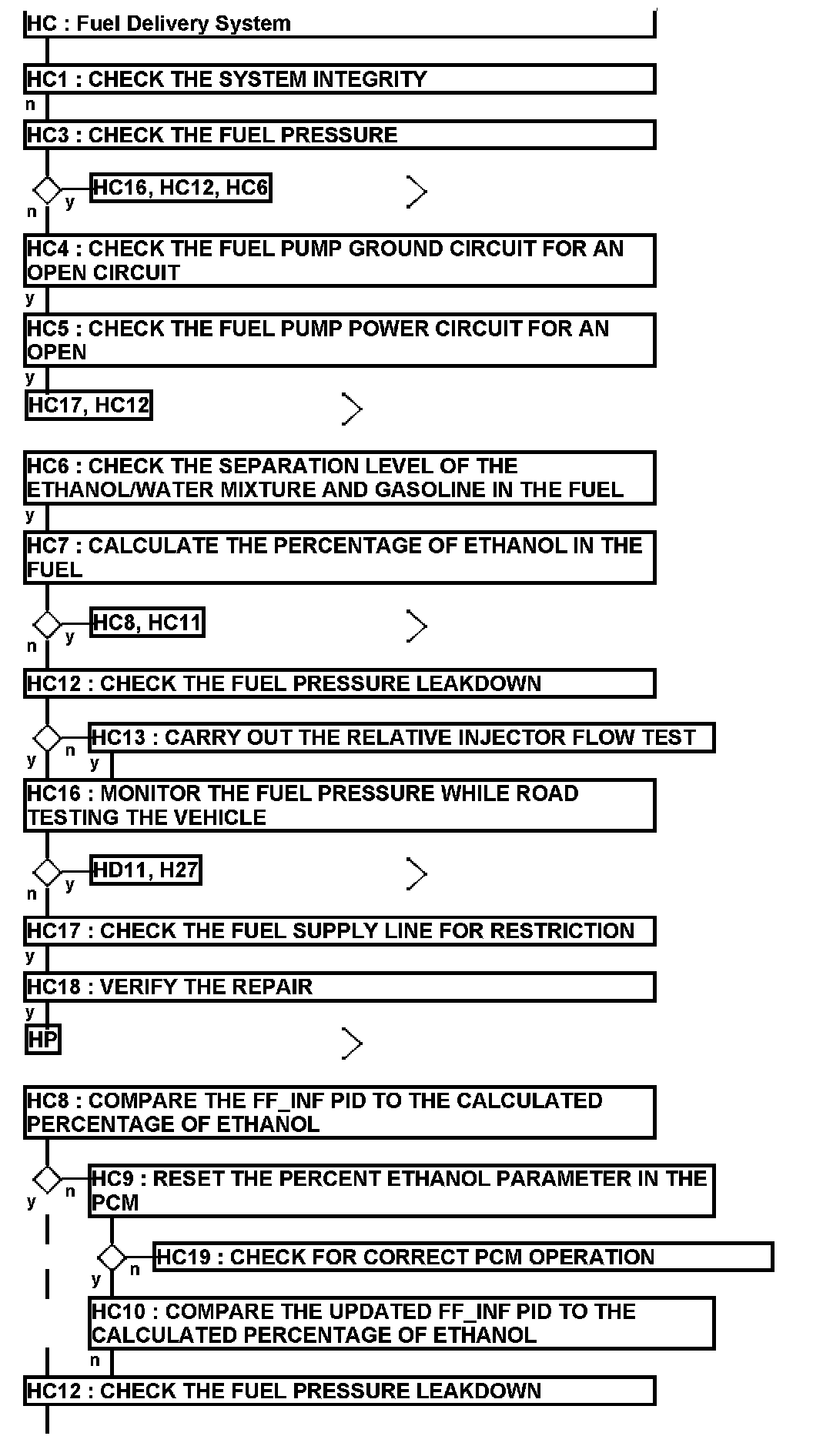

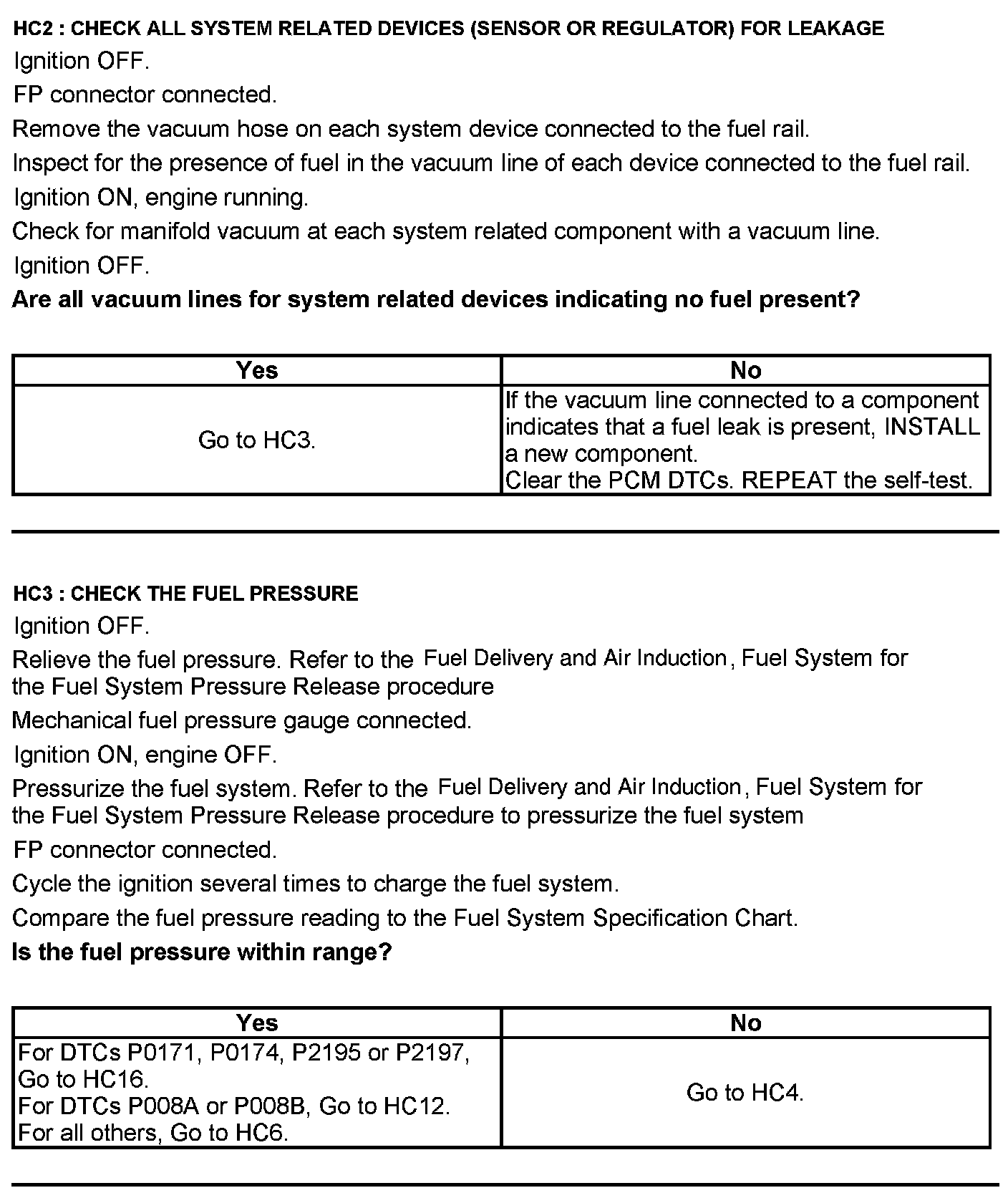

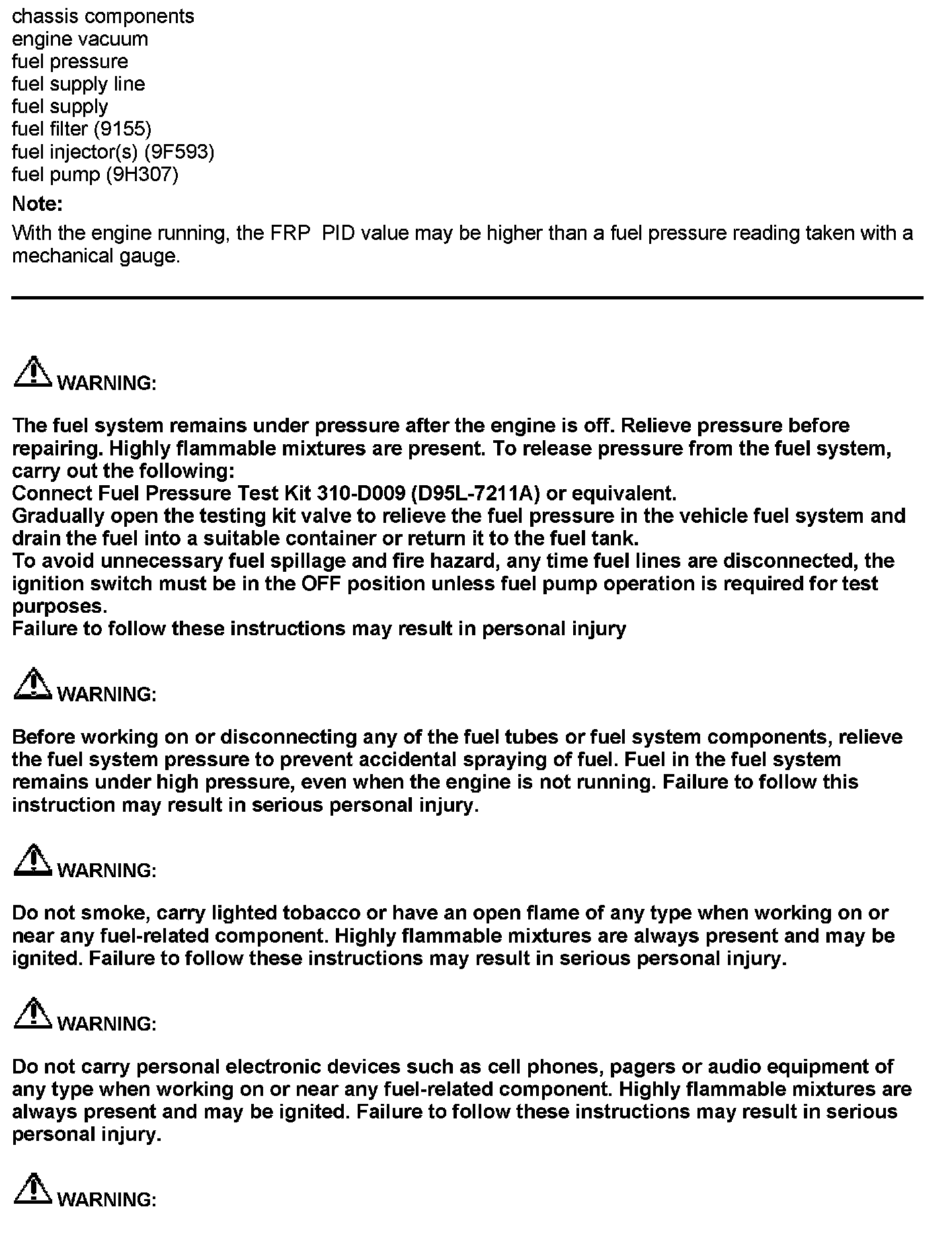

Fuel Delivery System - Vehicles that don't start

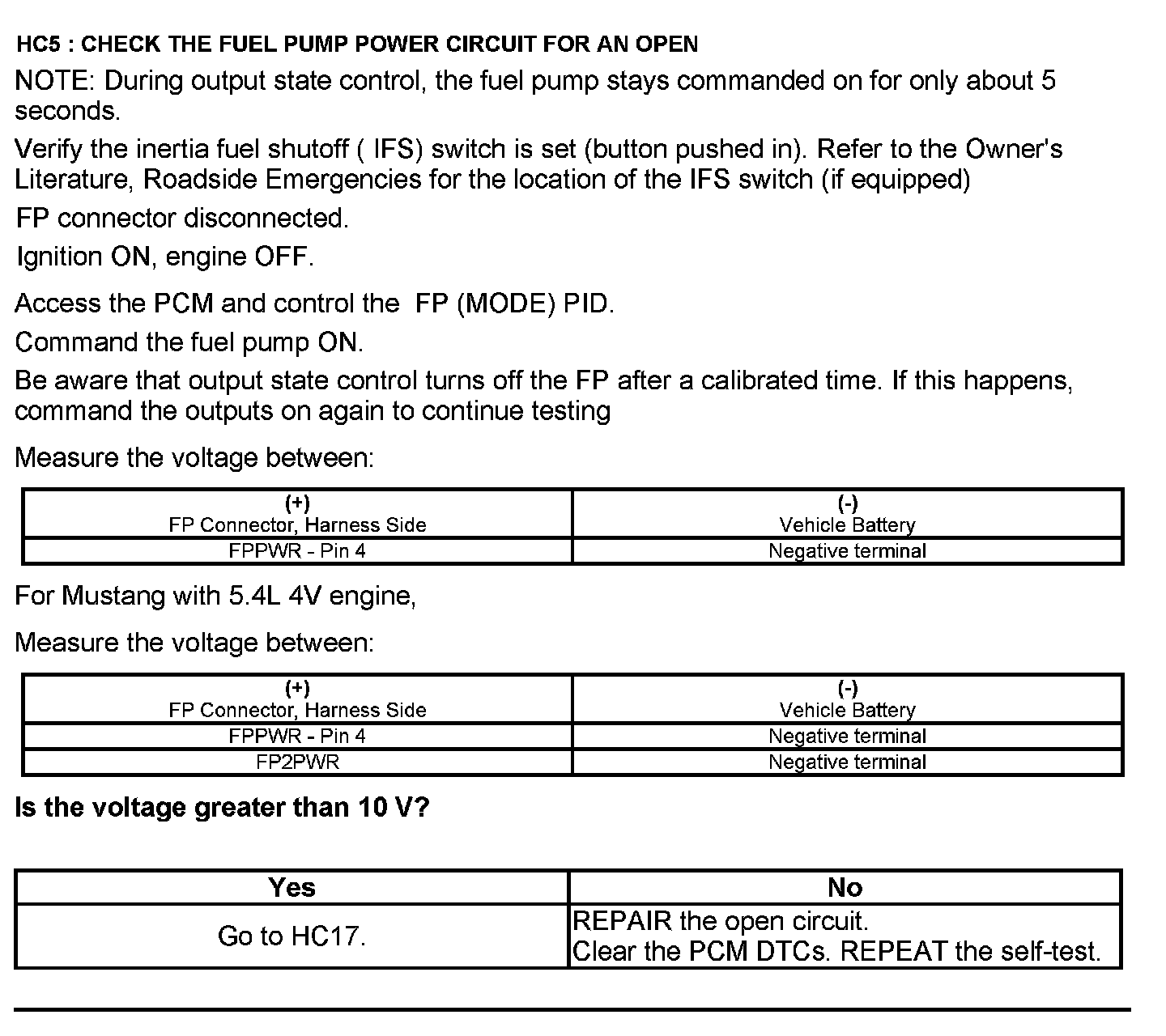

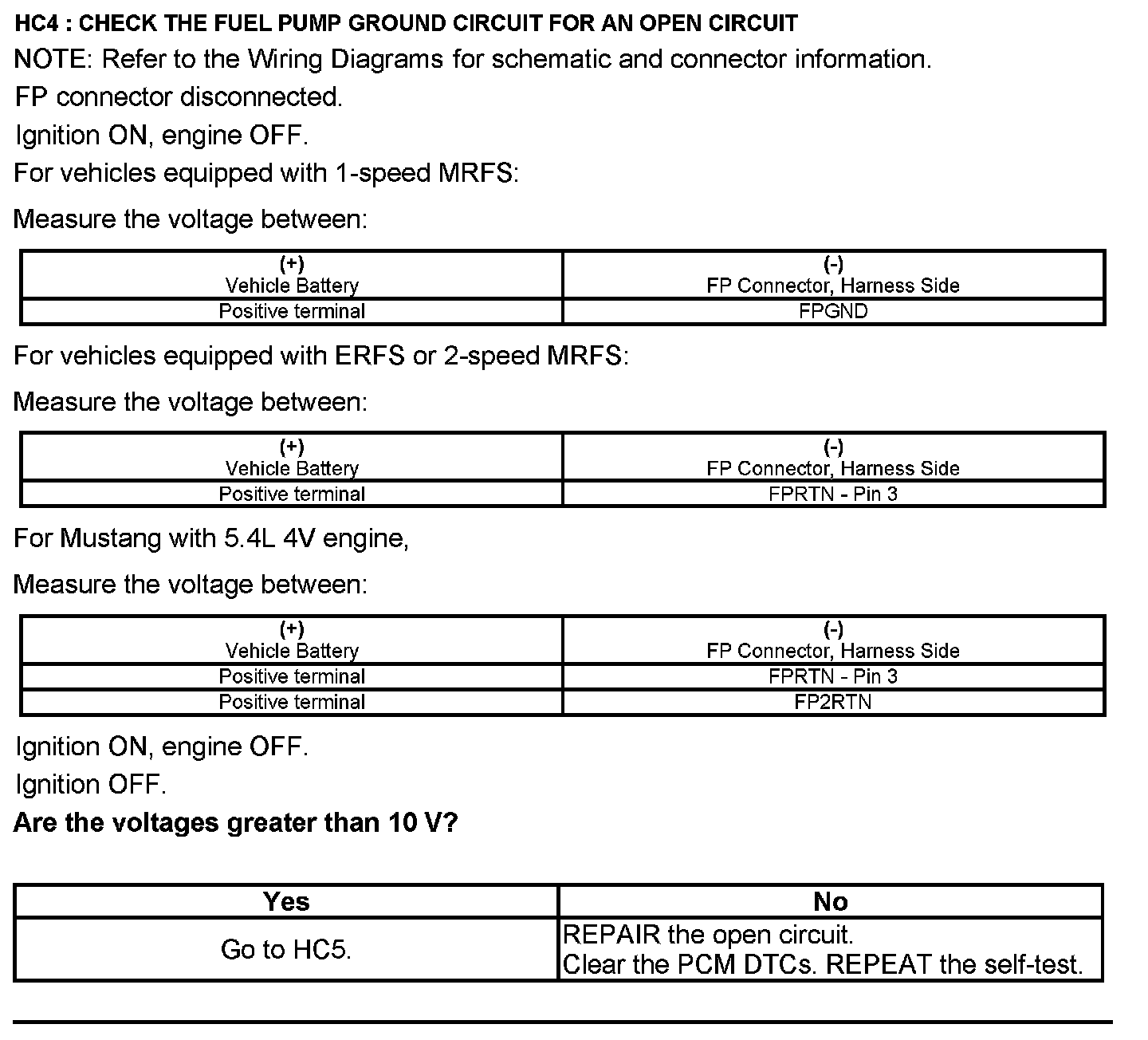

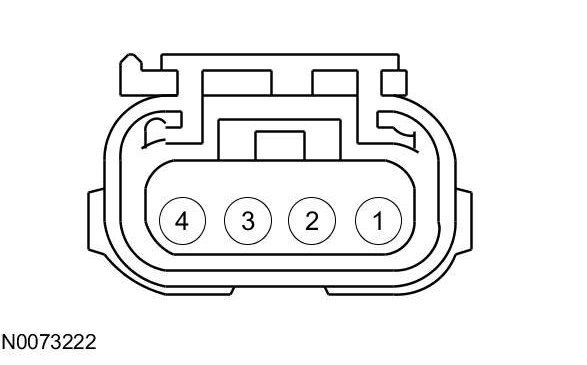

Fuel Pump (FP) Connector





Harness Side
