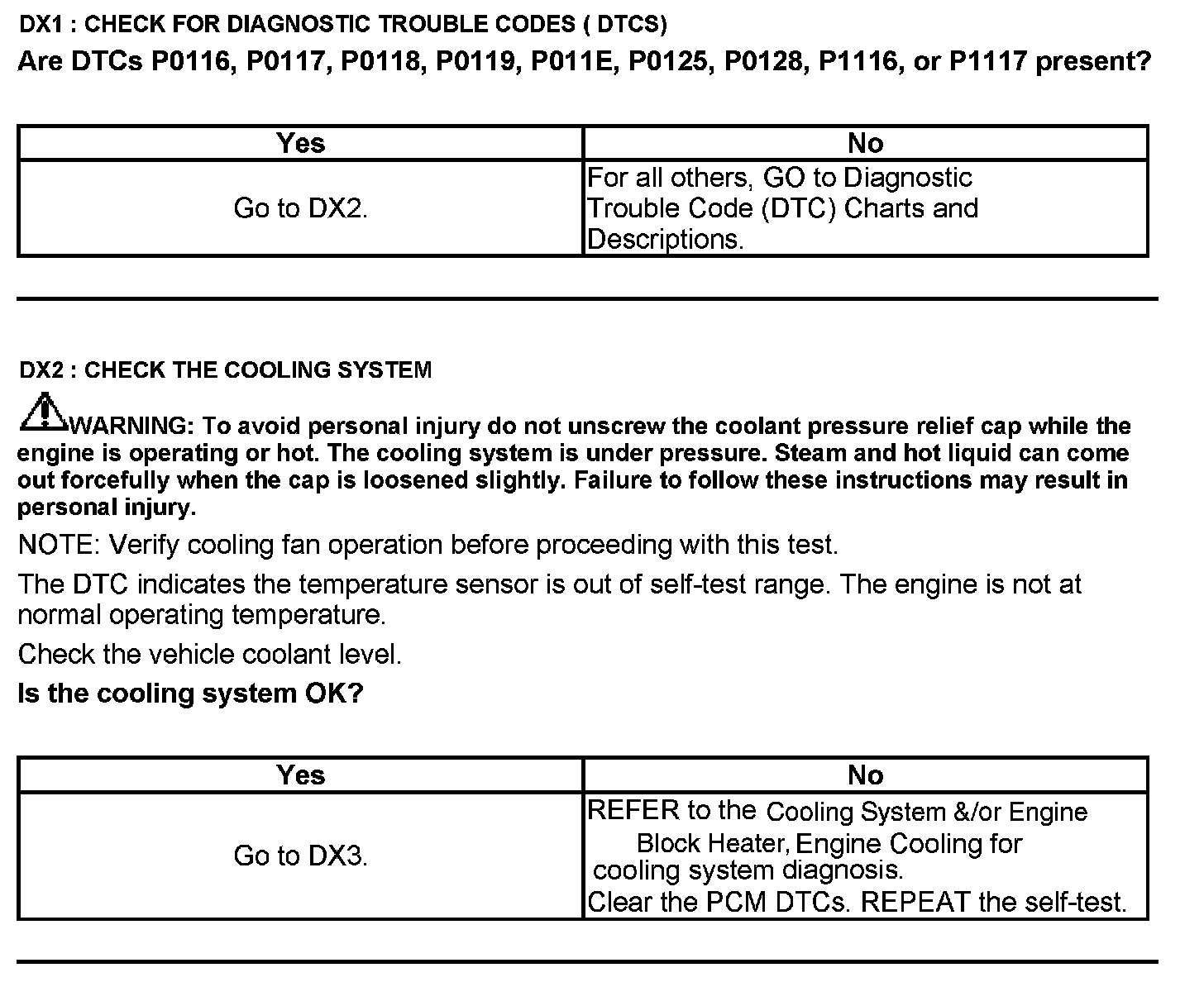

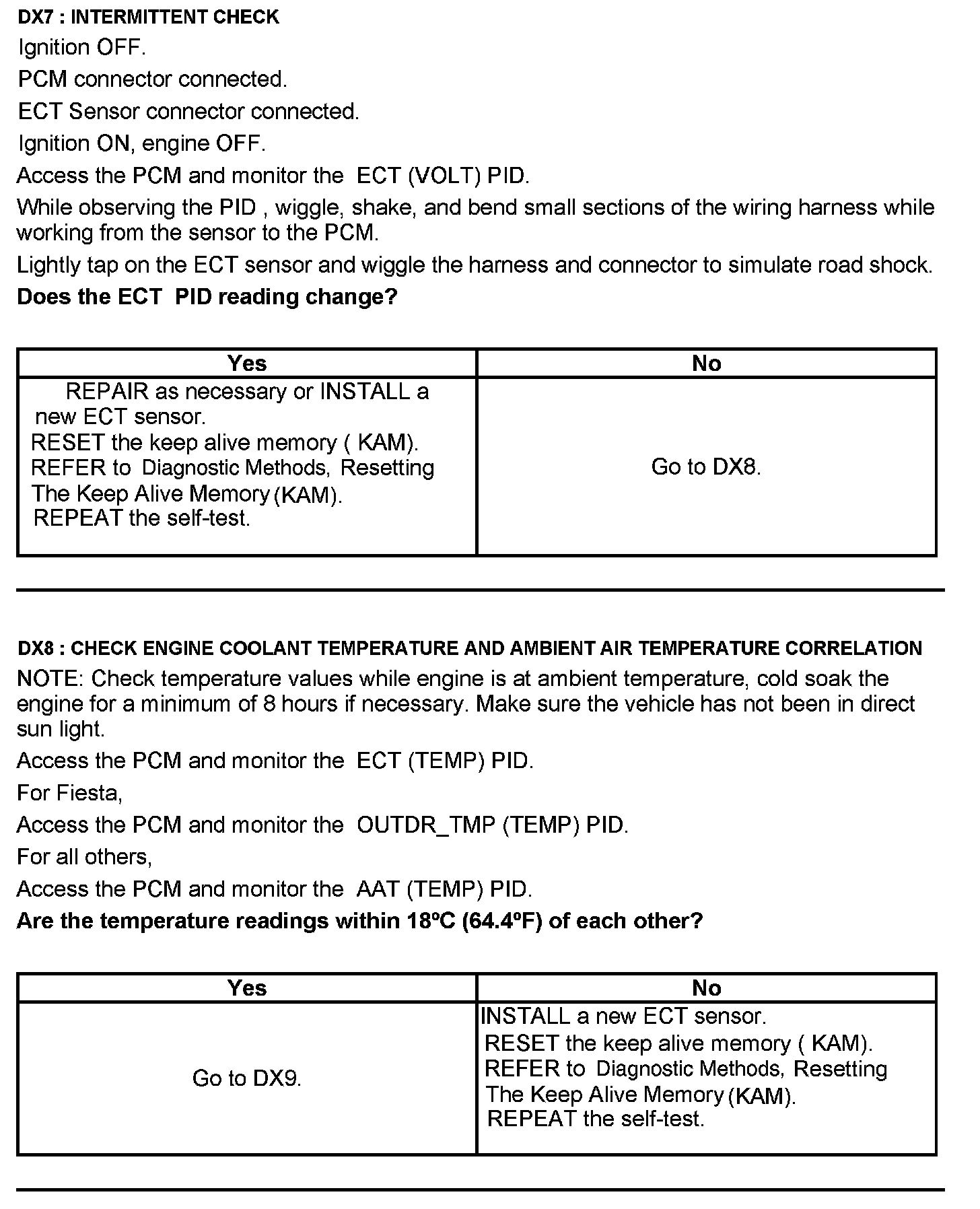

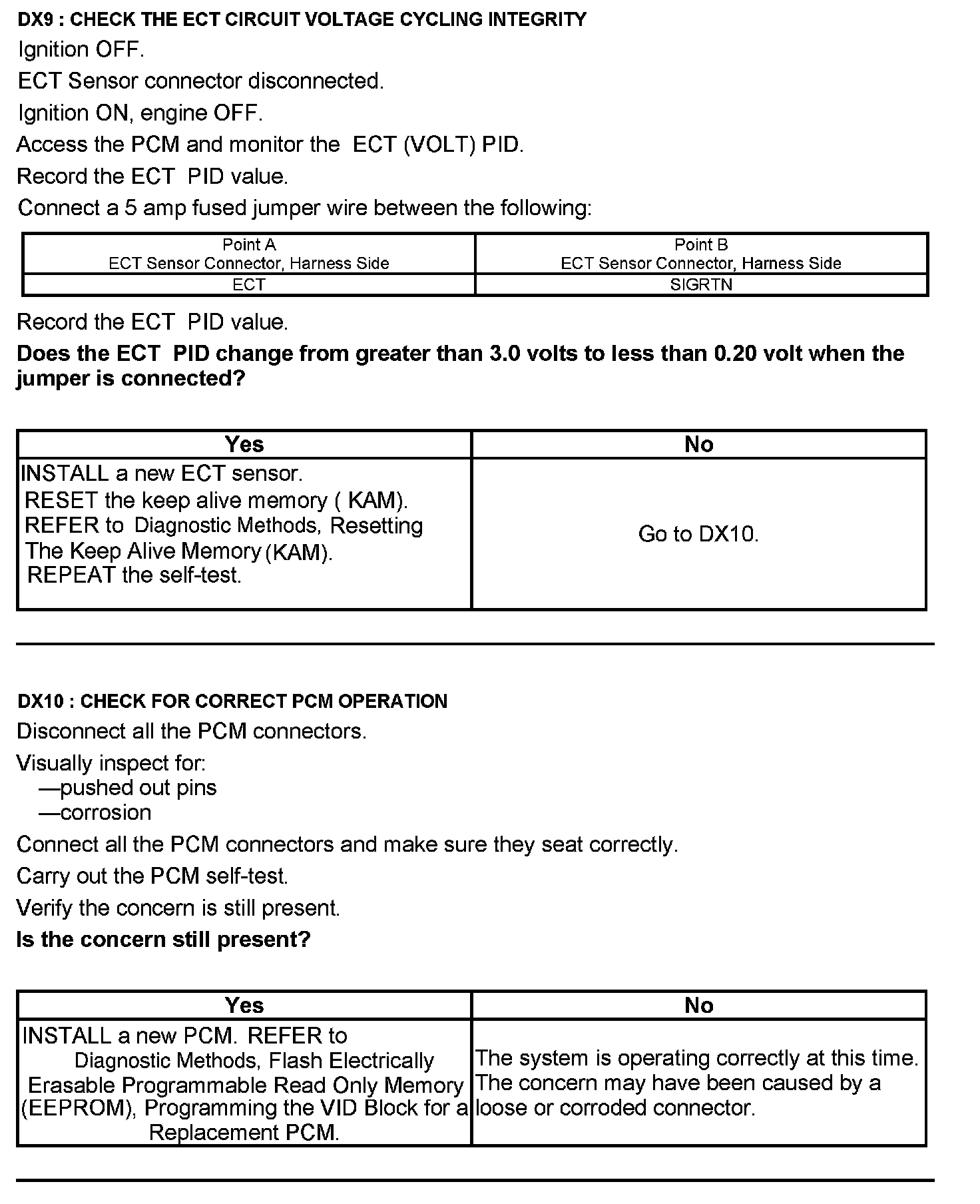

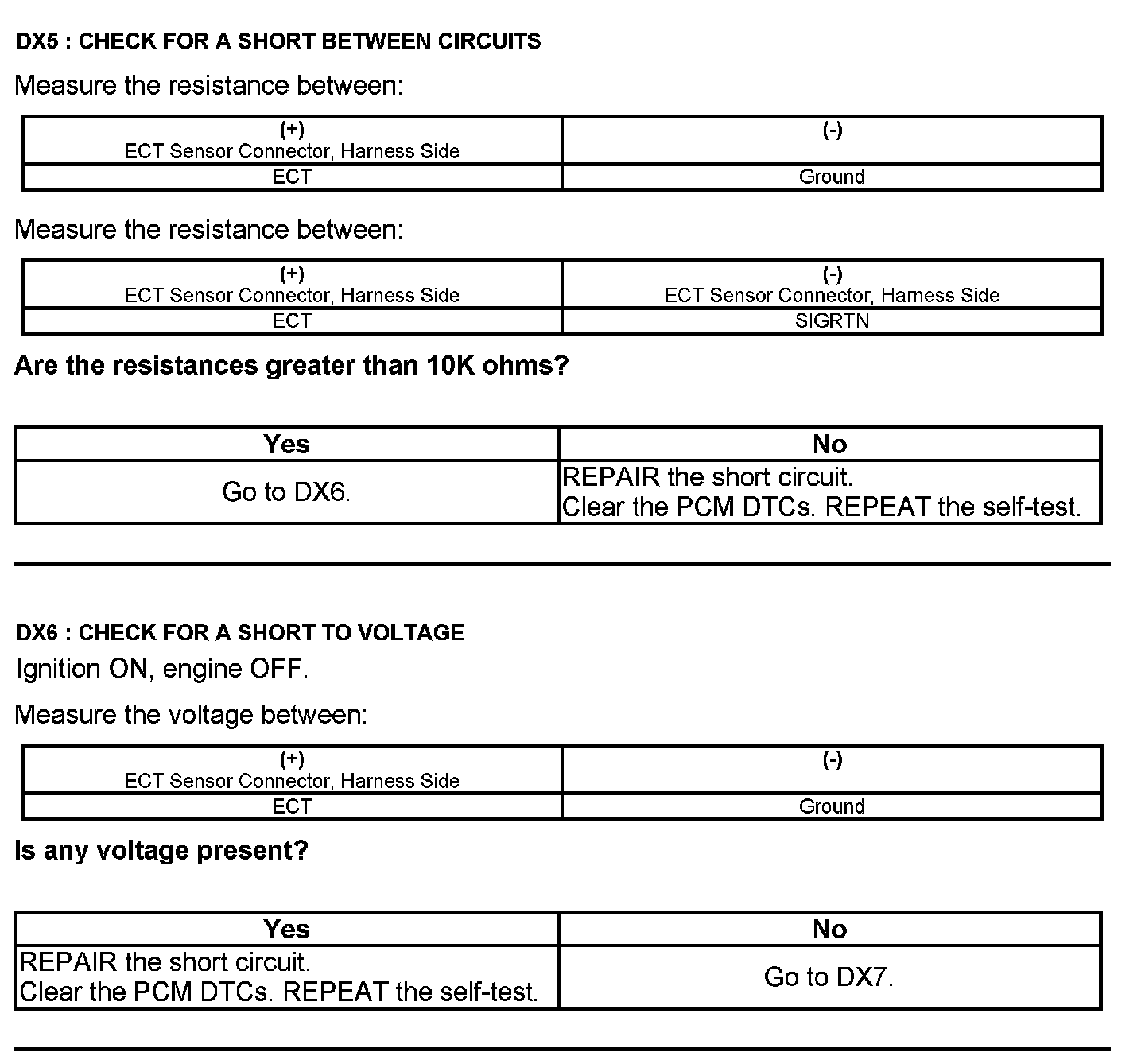

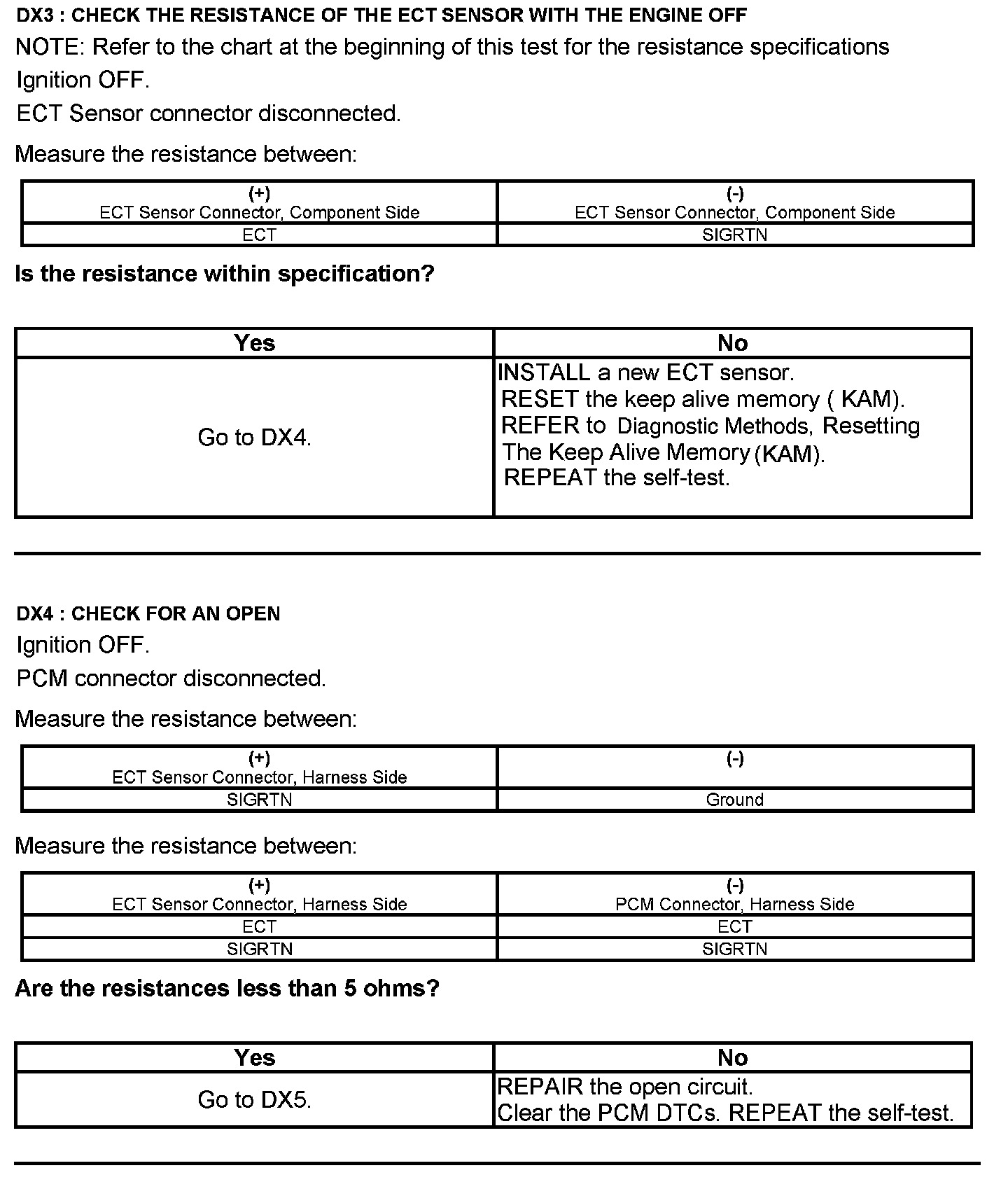

Test DX: Engine Coolant Temperature (ECT) Sensor

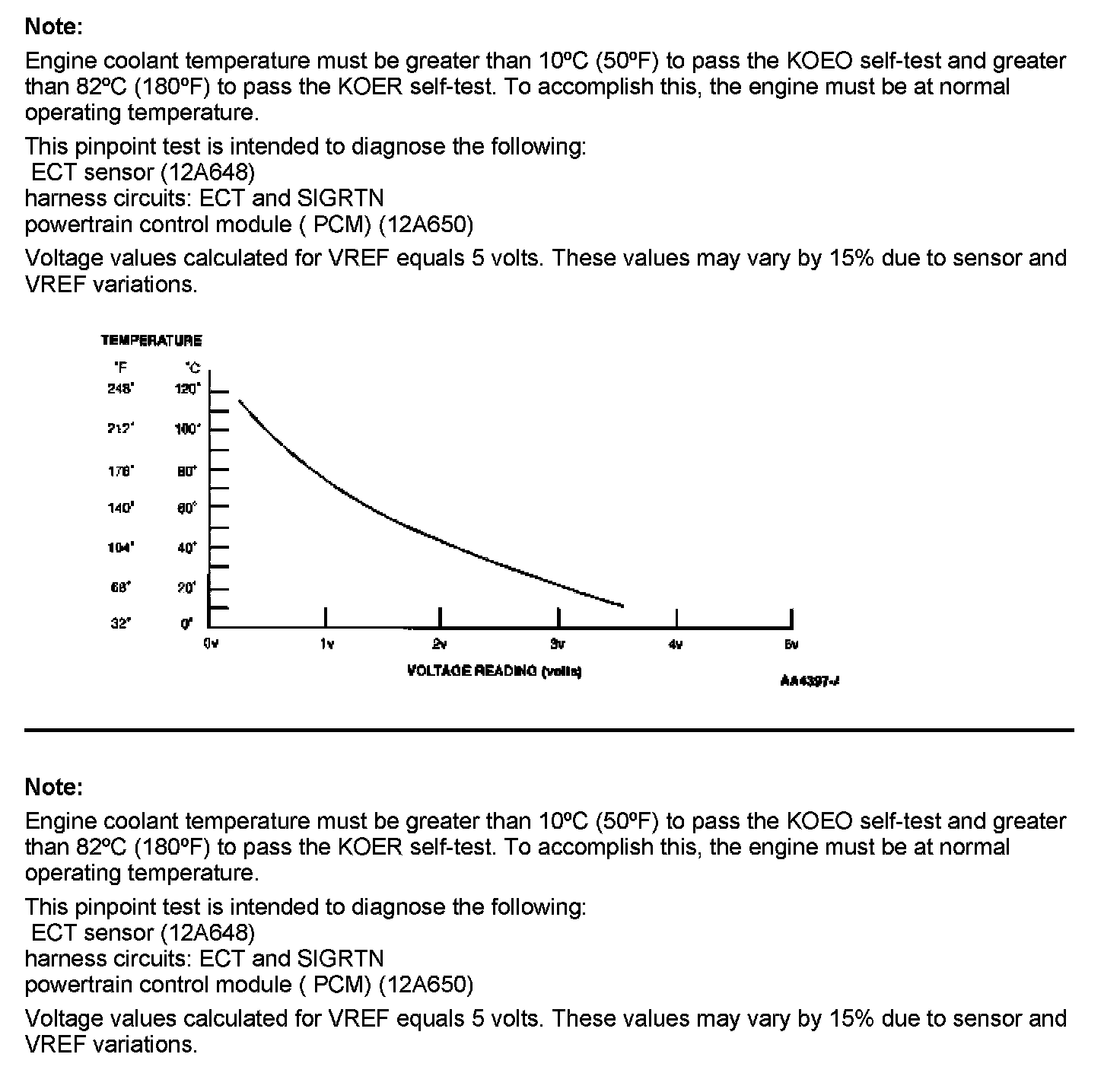

Engine Coolant Temperature (ECT) Sensor

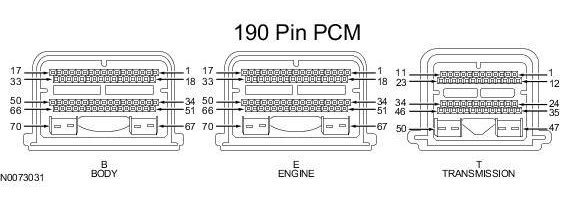

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
