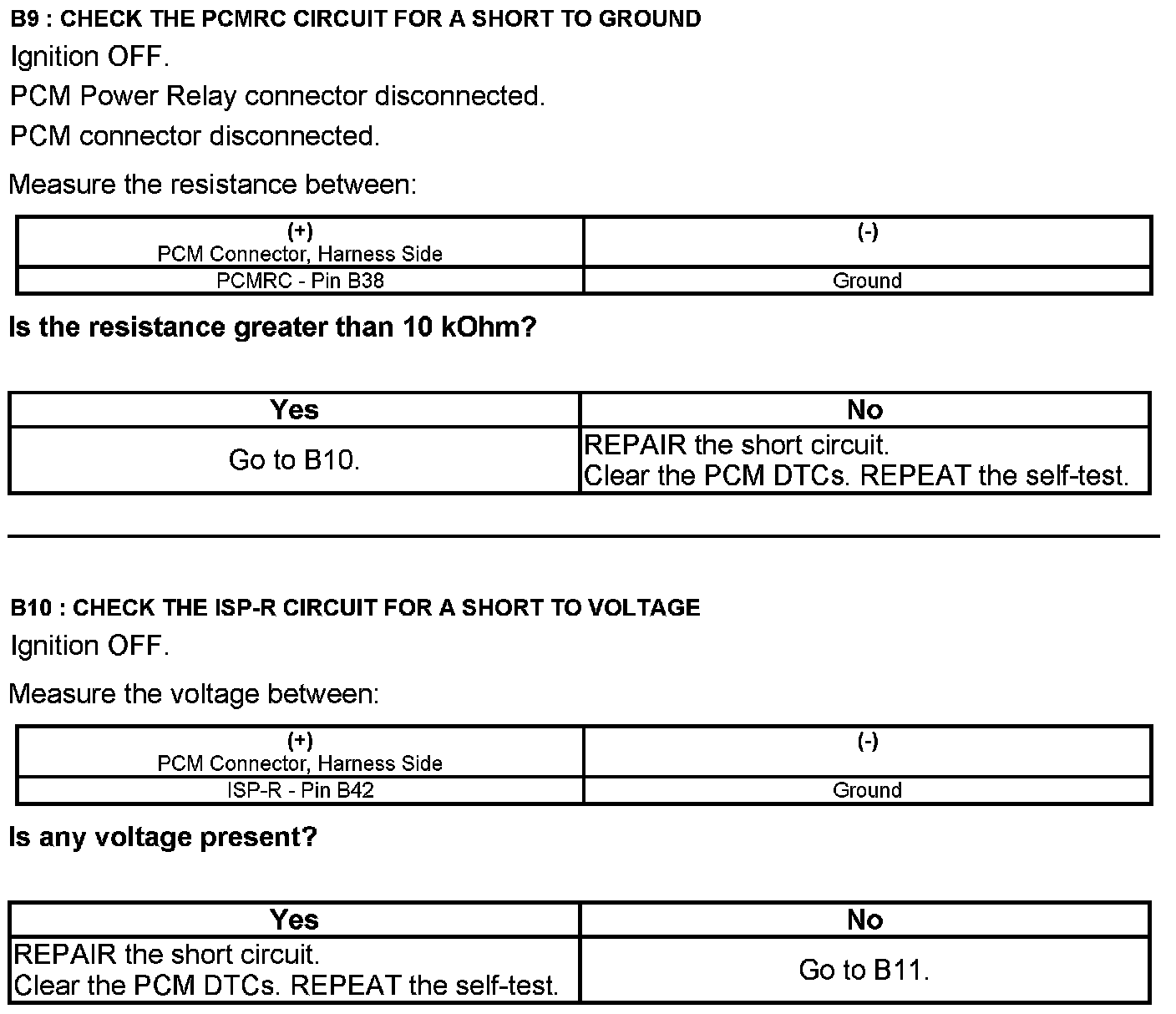

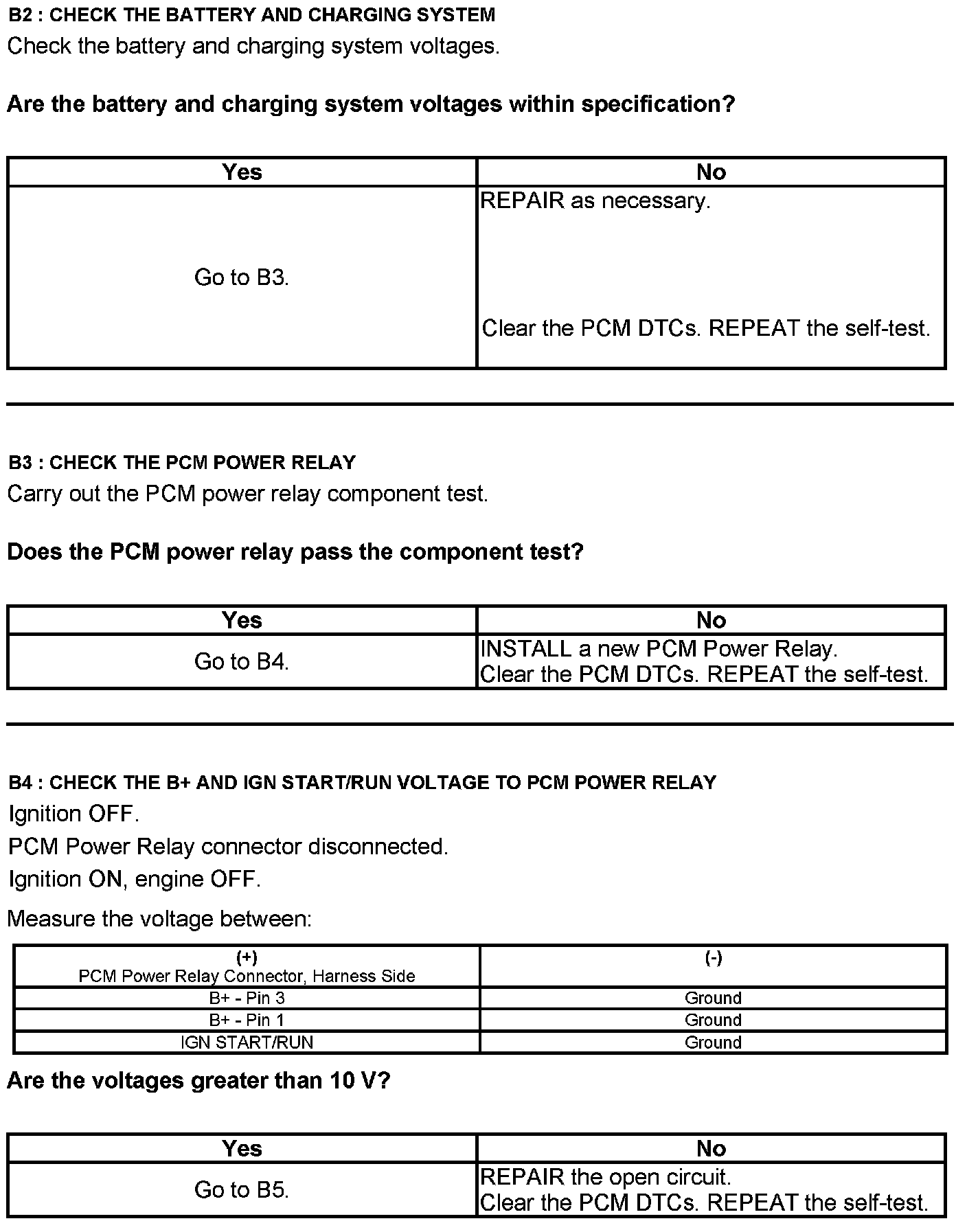

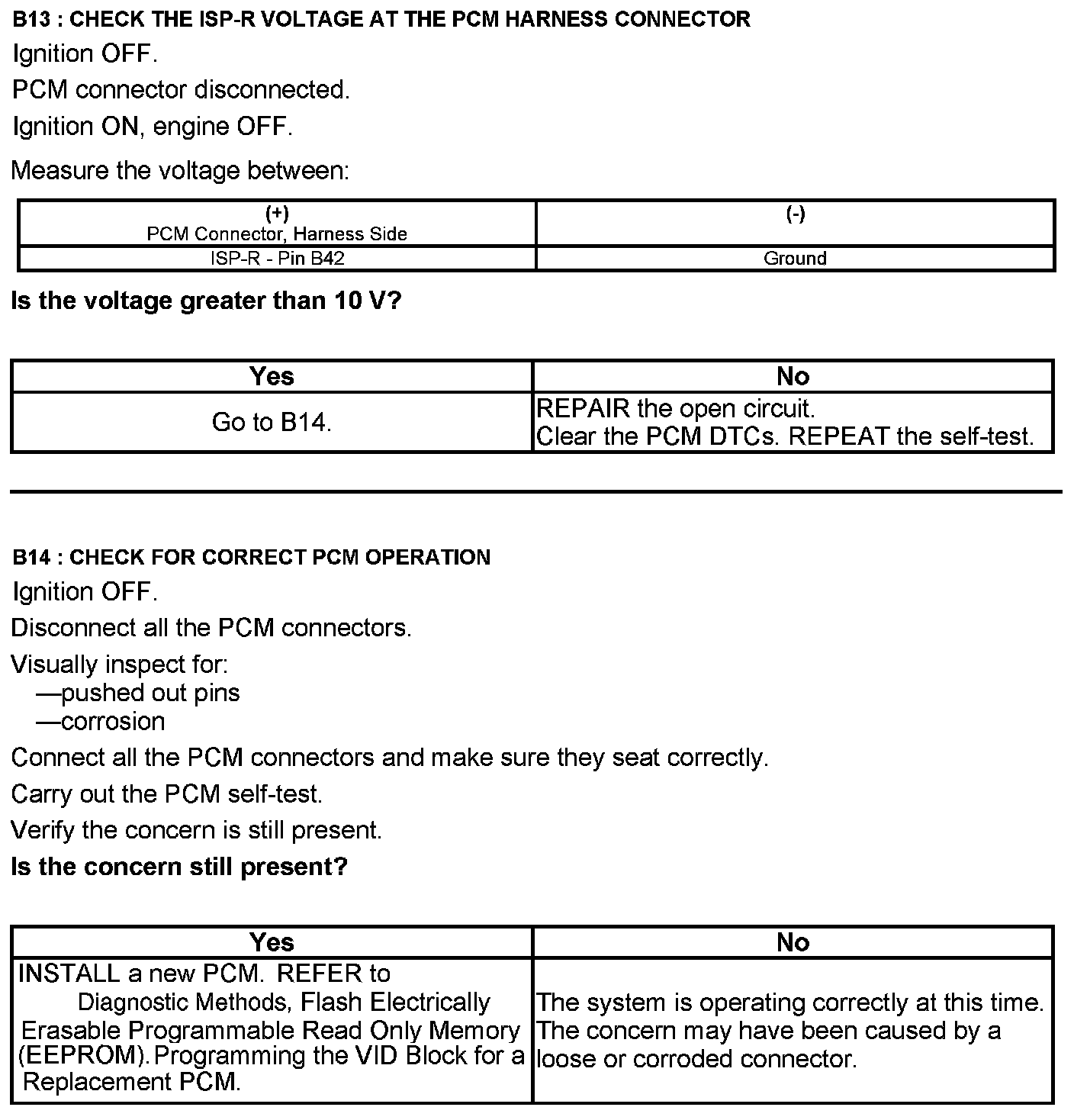

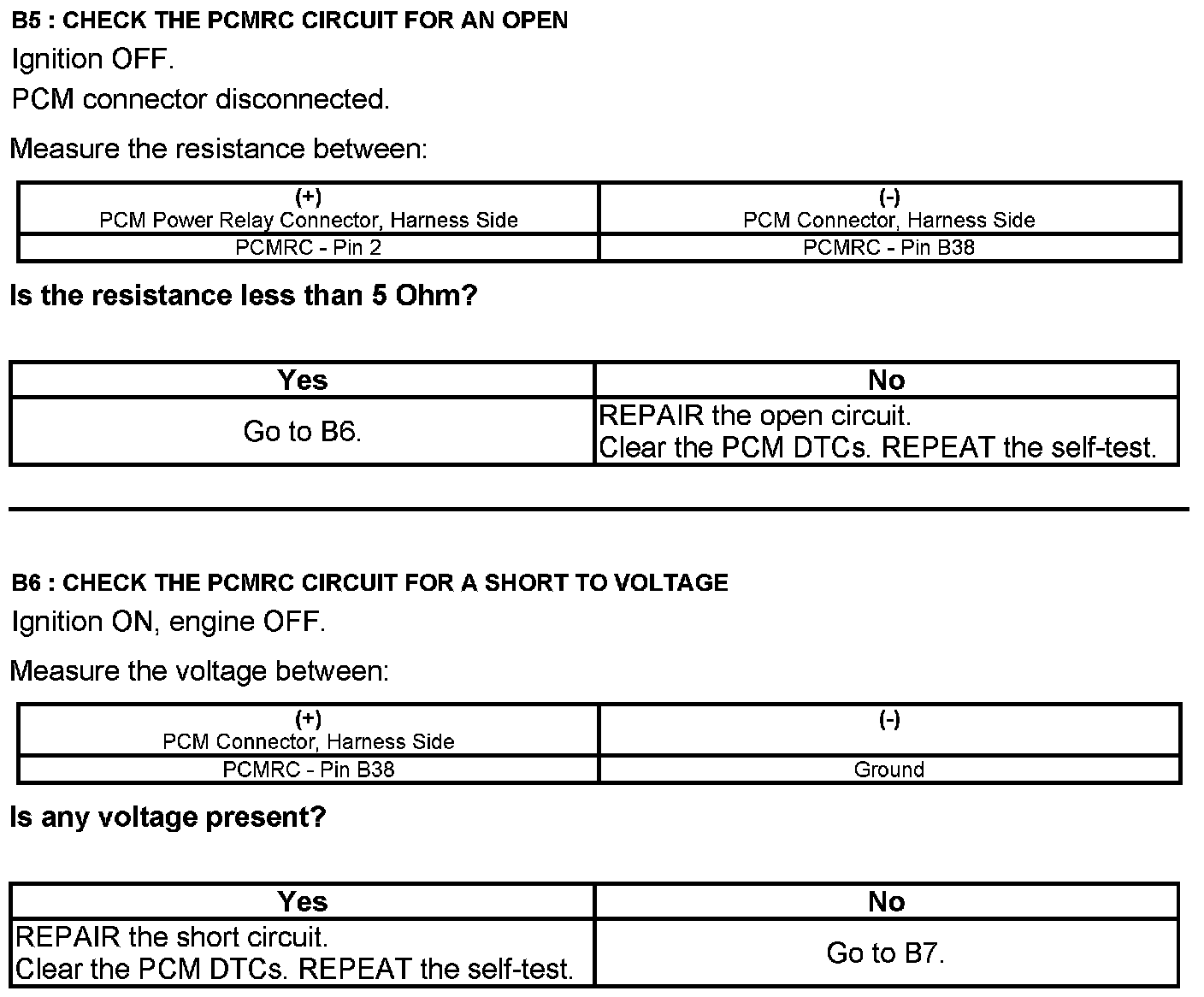

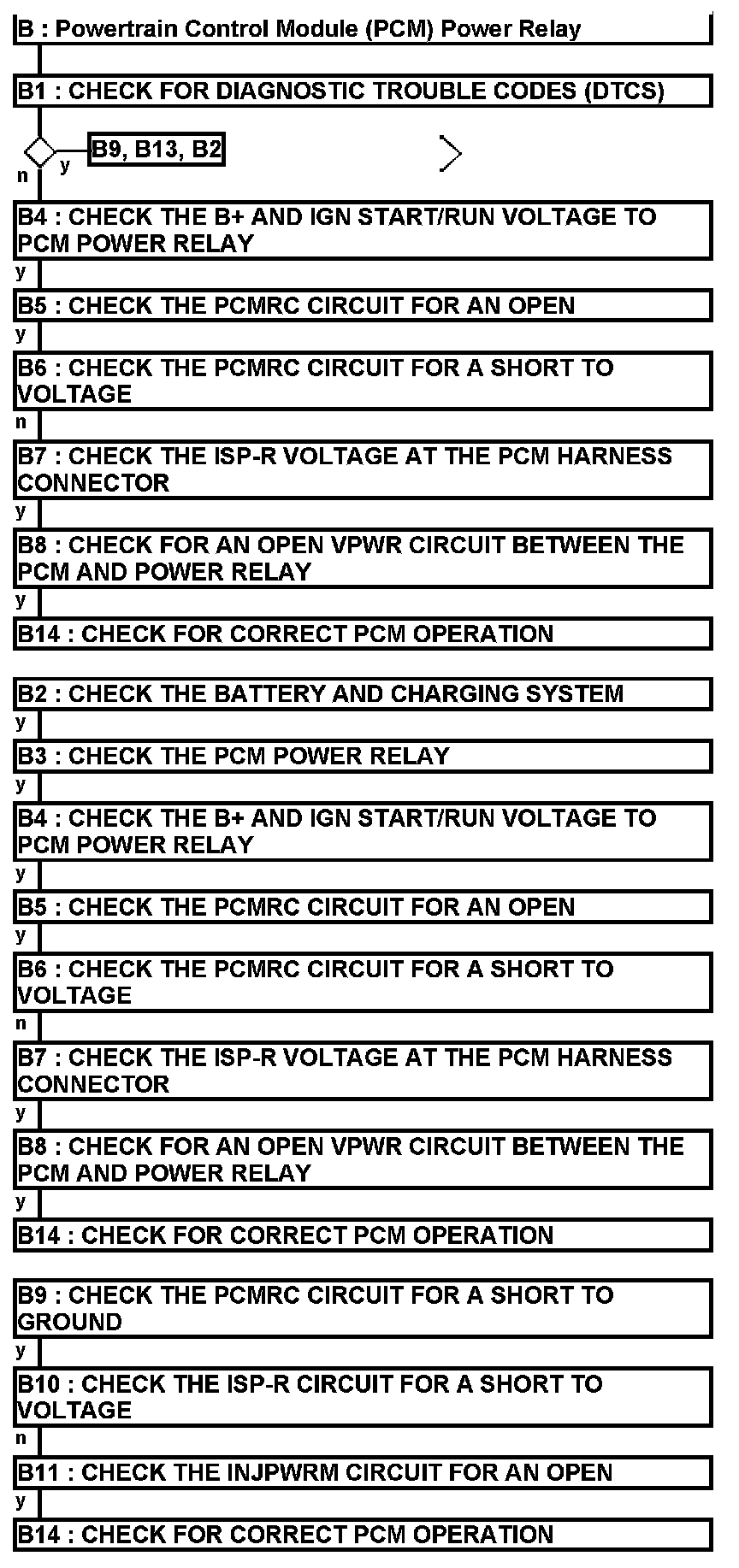

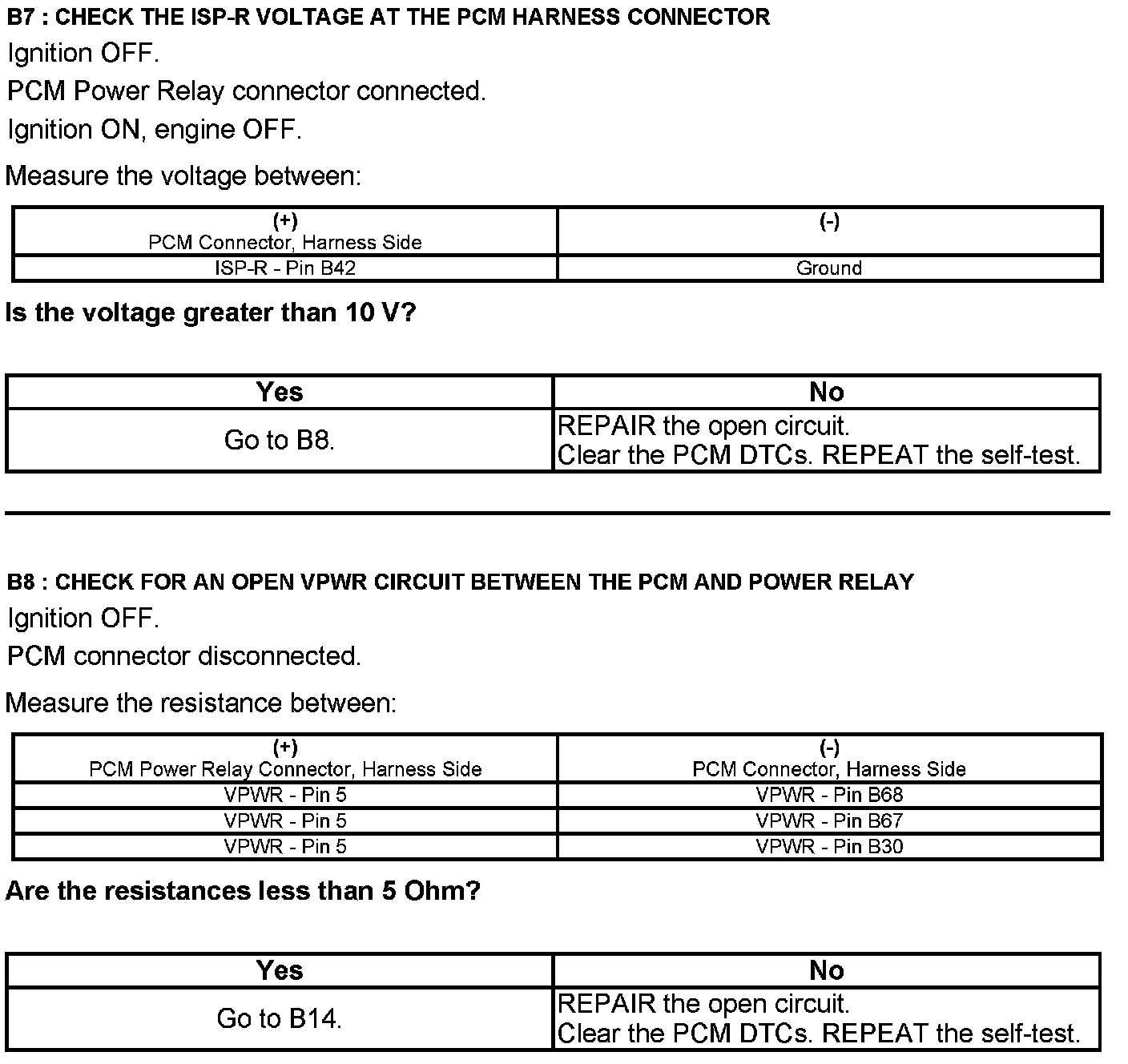

Test B: Powertrain Control Module (PCM) Power Relay

Powertrain Control Module (PCM) Power Relay

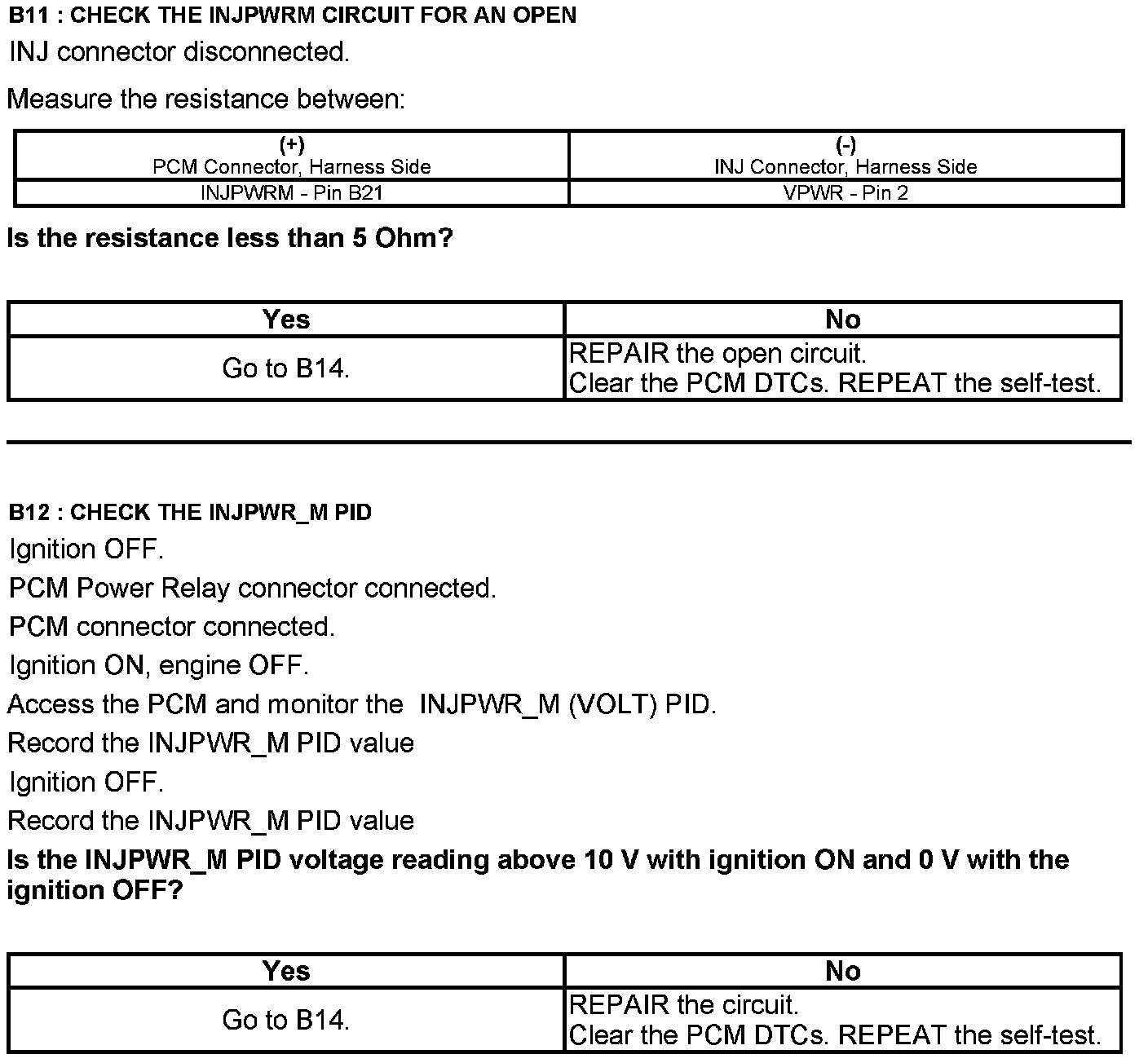

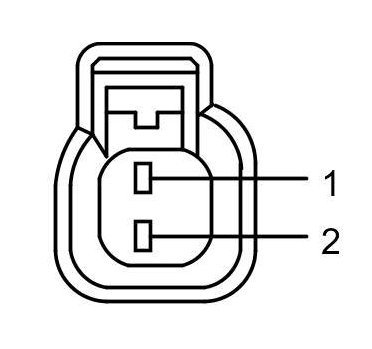

Injector (INJ) Connector

Harness Side

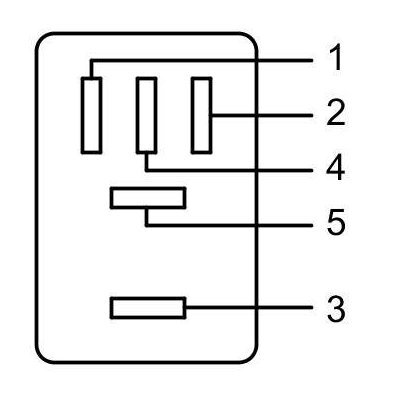

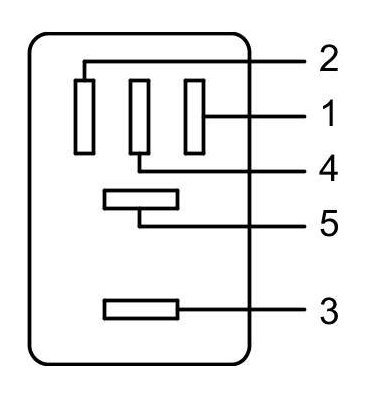

Powertrain Control Module Power (PCM Power) Relay Connector

Harness Side

Component Side

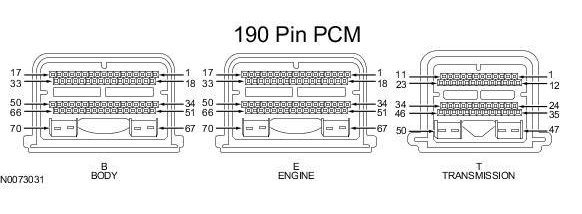

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.

Harness Side
