Pinpoint Tests KD: Electric Exhaust Gas Recirculation (EEGR) System: Introduction

WARNING: TO PREVENT THE RISK OF HIGH-VOLTAGE SHOCK, ALWAYS FOLLOW PRECISELY ALL WARNINGS AND SERVICE INSTRUCTIONS, INCLUDING INSTRUCTIONS TO DEPOWER THE SYSTEM. THE HIGH-VOLTAGE HYBRID SYSTEM UTILIZES APPROXIMATELY 300 VOLTS DC, PROVIDED THROUGH HIGH-VOLTAGE CABLES TO ITS COMPONENTS AND MODULES. THE HIGH-VOLTAGE CABLES AND WIRING ARE IDENTIFIED BY ORANGE HARNESS TAPE OR ORANGE WIRE COVERING. ALL HIGH-VOLTAGE COMPONENTS ARE MARKED WITH HIGH-VOLTAGE WARNING LABELS WITH A HIGH-VOLTAGE SYMBOL. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

This pinpoint test is intended to diagnose the following:

EEGR system
EEGR stepper motor (9D475)
harness circuits: EGRMC1, EGRMC2, EGRMC3, EGRMC4 and VPWR
powertrain control module (PCM) (12A650)

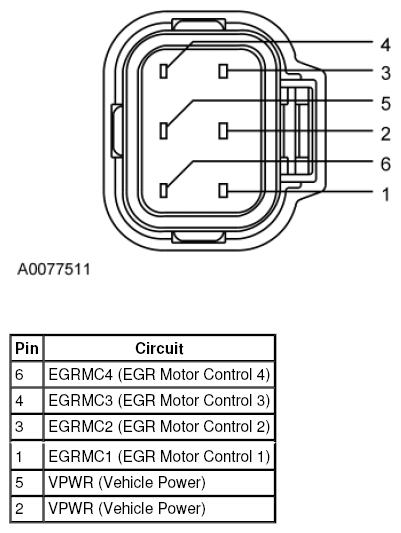

Fig 1: Identifying Electric Exhaust Gas Recirculation (EEGR) Assembly Connector
Courtesy of FORD MOTOR CO.

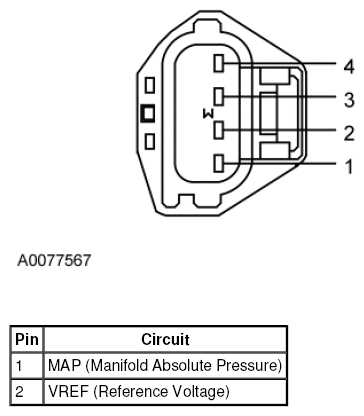

Fig 2: Identifying Manifold Absolute Pressure (MAP) Sensor Connector
Courtesy of FORD MOTOR CO.

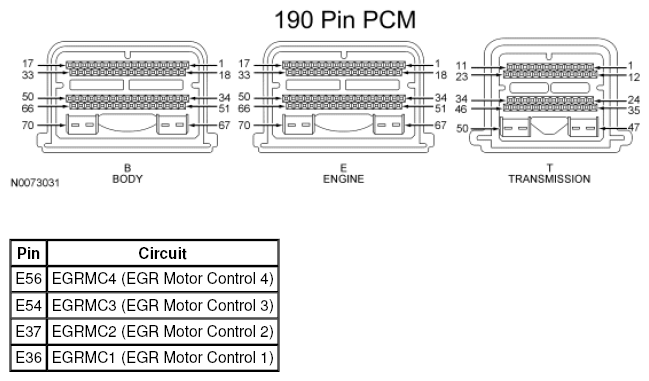

Fig 3: Identifying Powertrain Control Module (PCM) Connector
Courtesy of FORD MOTOR CO.
