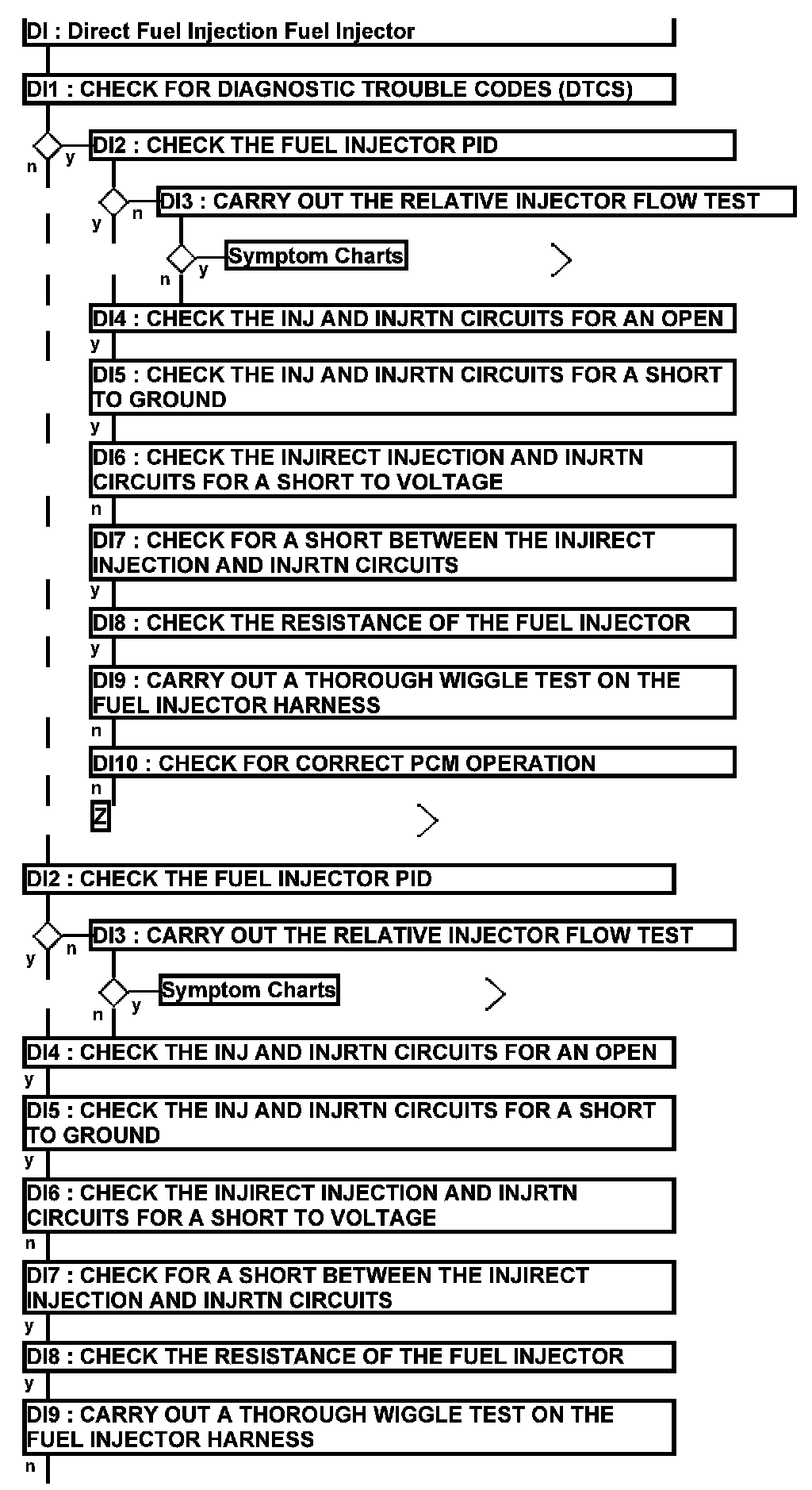

Test DI: Direct Fuel Injection Fuel Injector

Direct Fuel Injection Fuel Injector

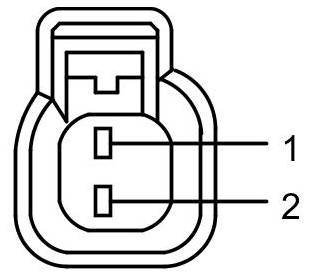

Injector (INJ) Connector

Harness Side

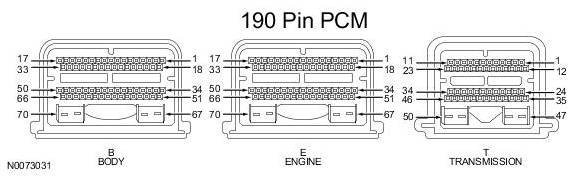

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.

Harness Side
