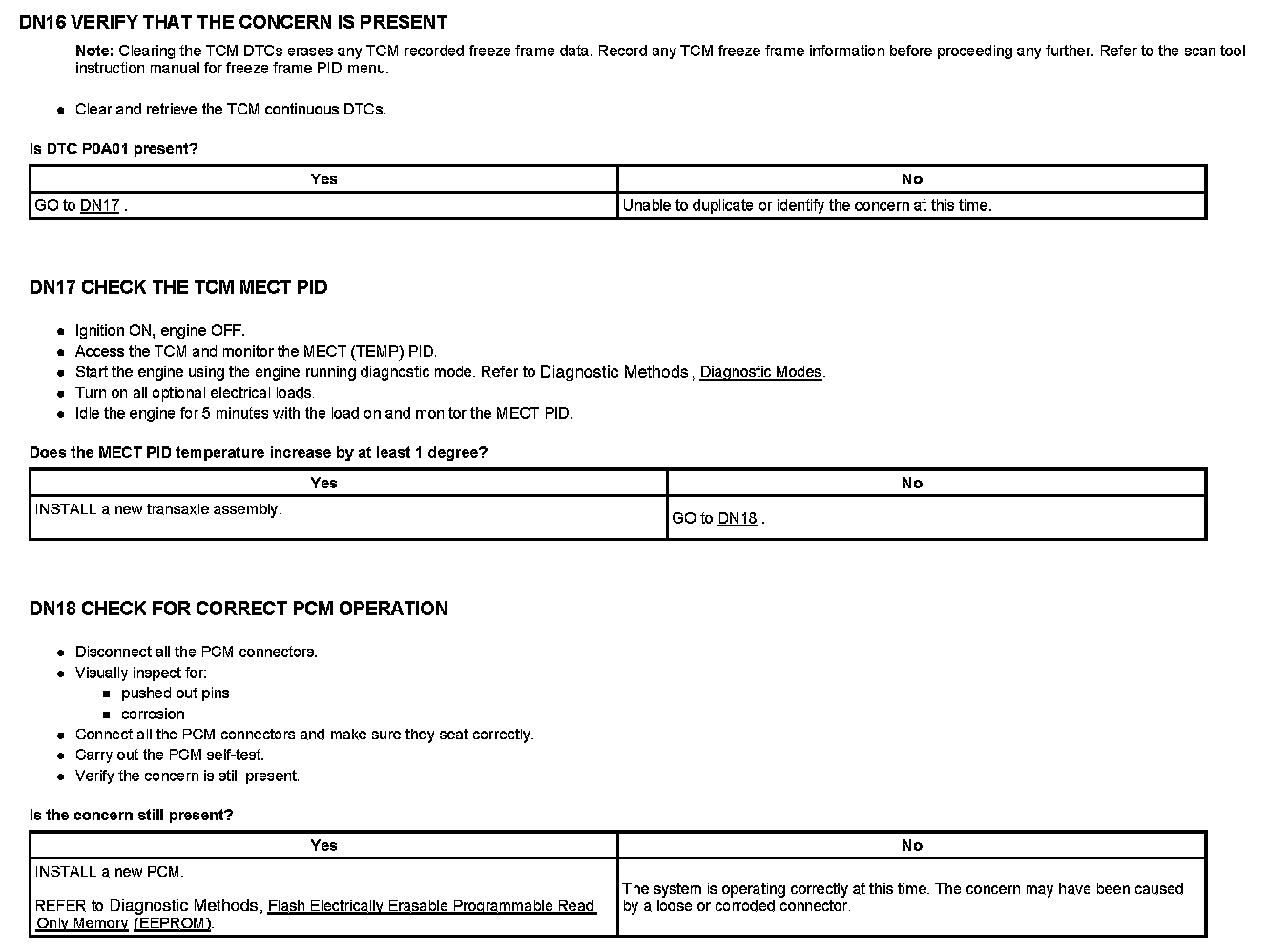

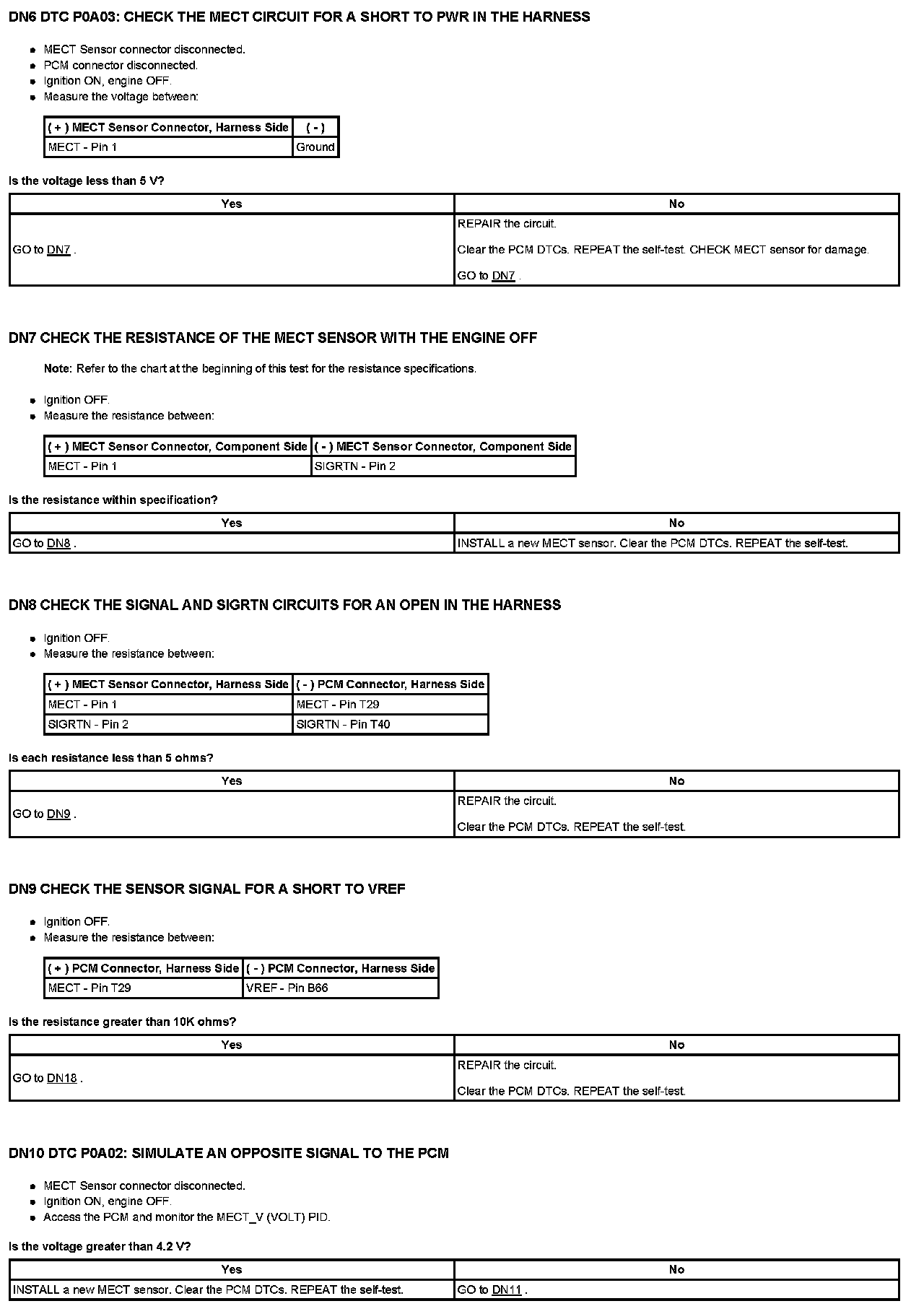

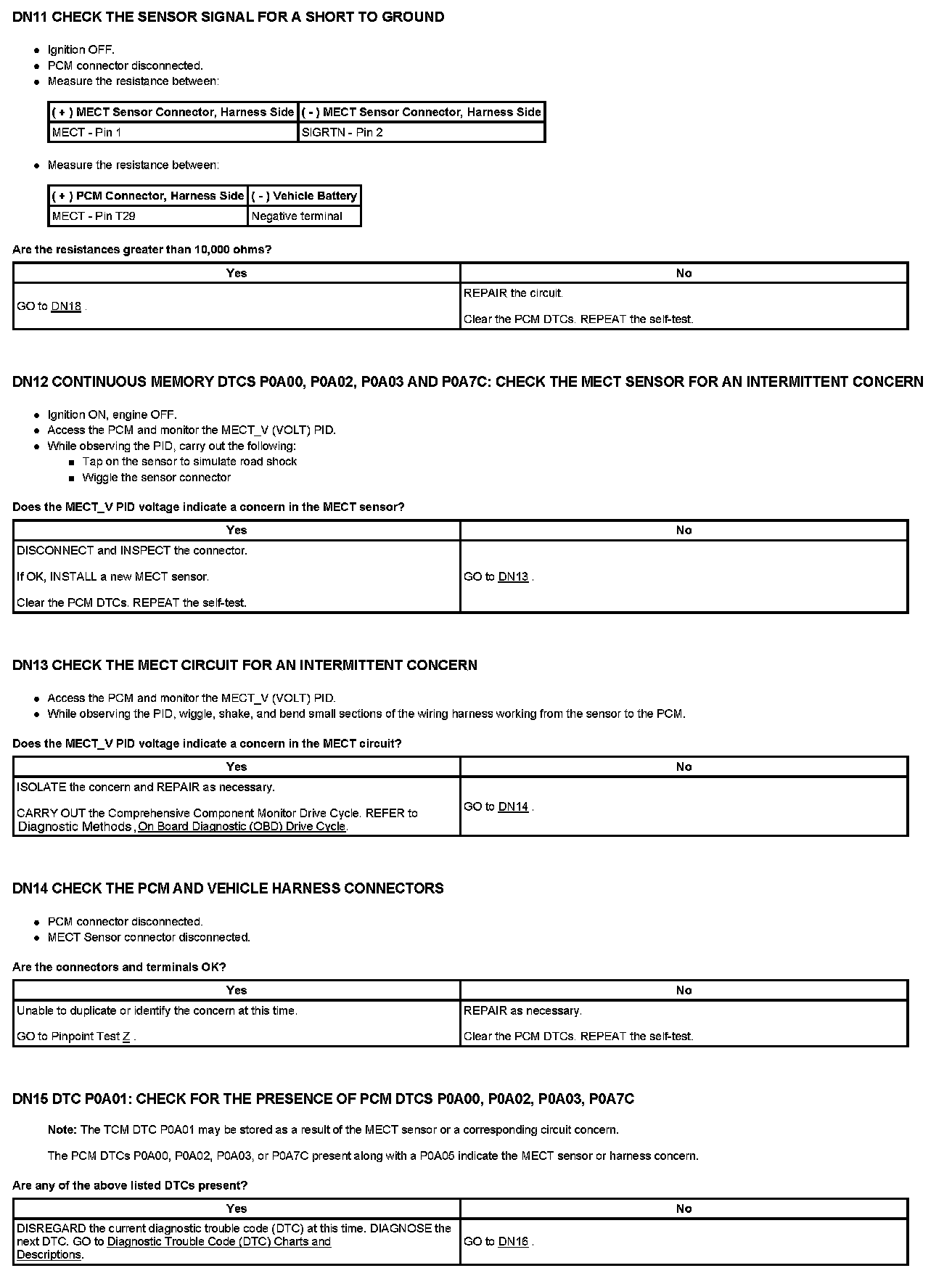

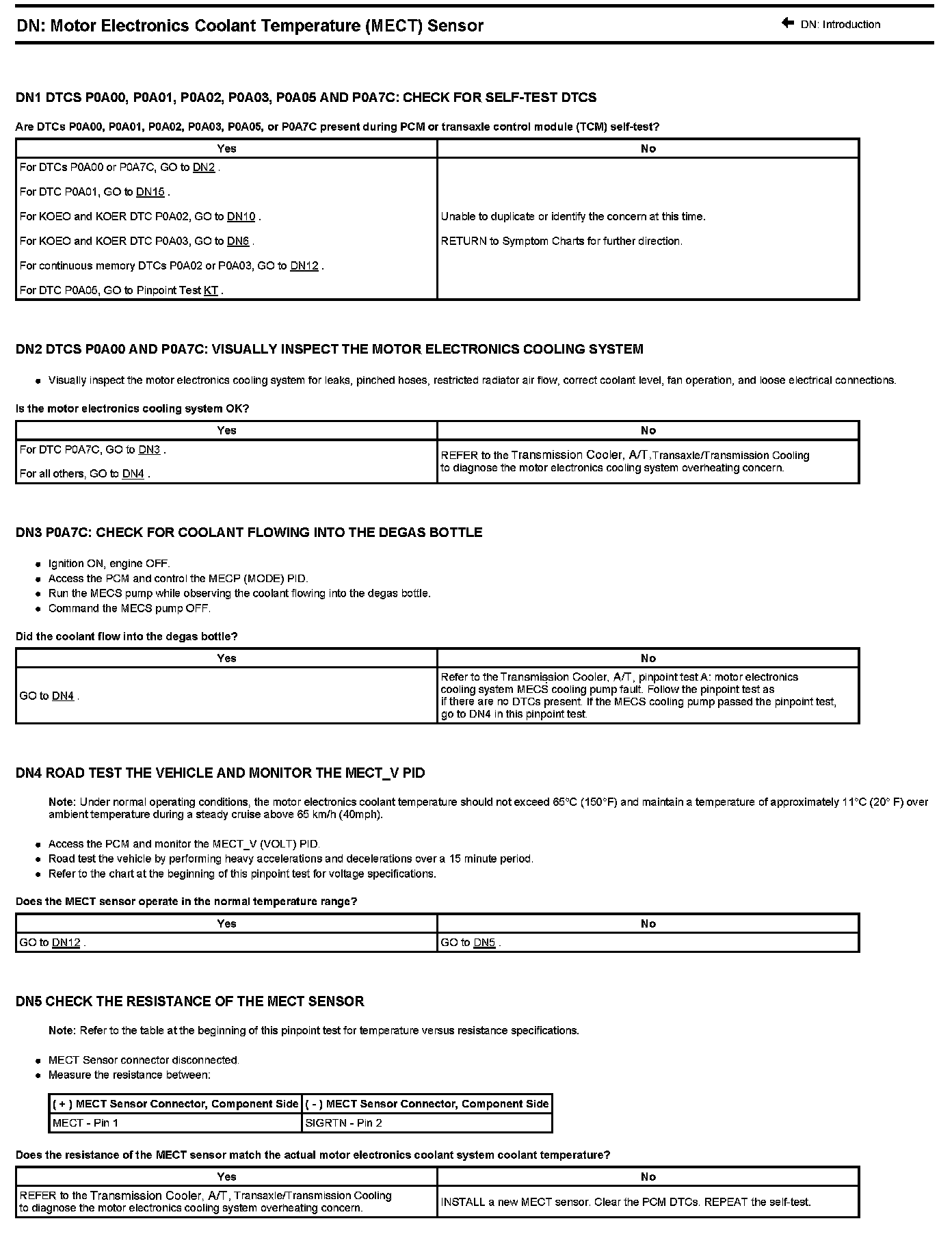

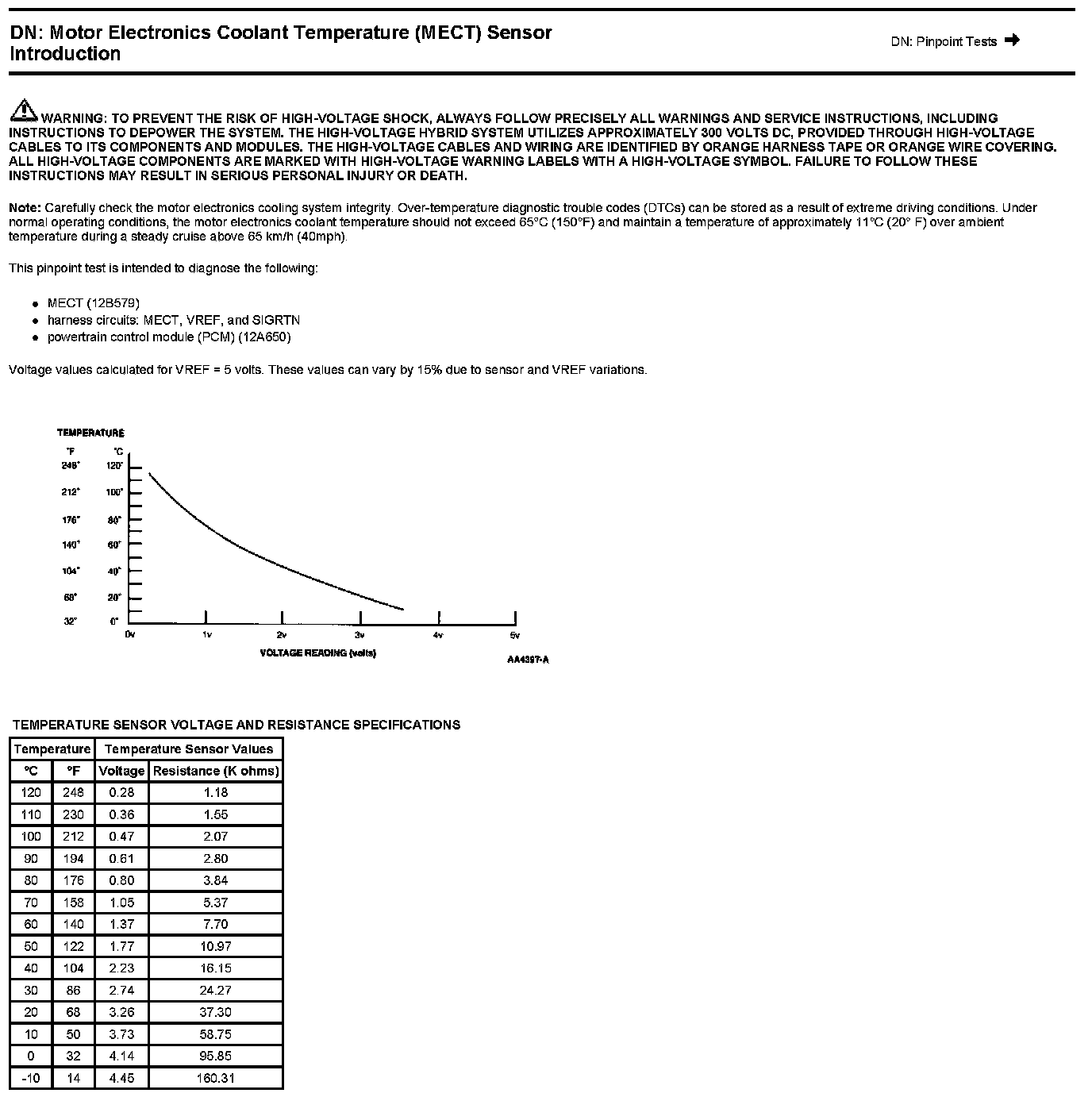

Test DN: Motor Electronics Coolant Temperature (MECT) Sensor

DN: MOTOR ELECTRONICS COOLANT TEMPERATURE (MECT) SENSOR







Motor Electronics Coolant Temperature (MECT) Sensor Connector

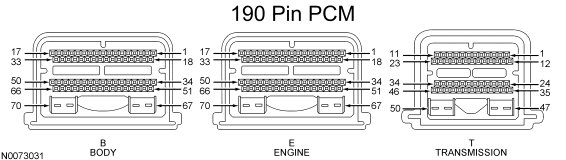

Powertrain Control Module (PCM) Connector
