Intake Air Temperature Sensor

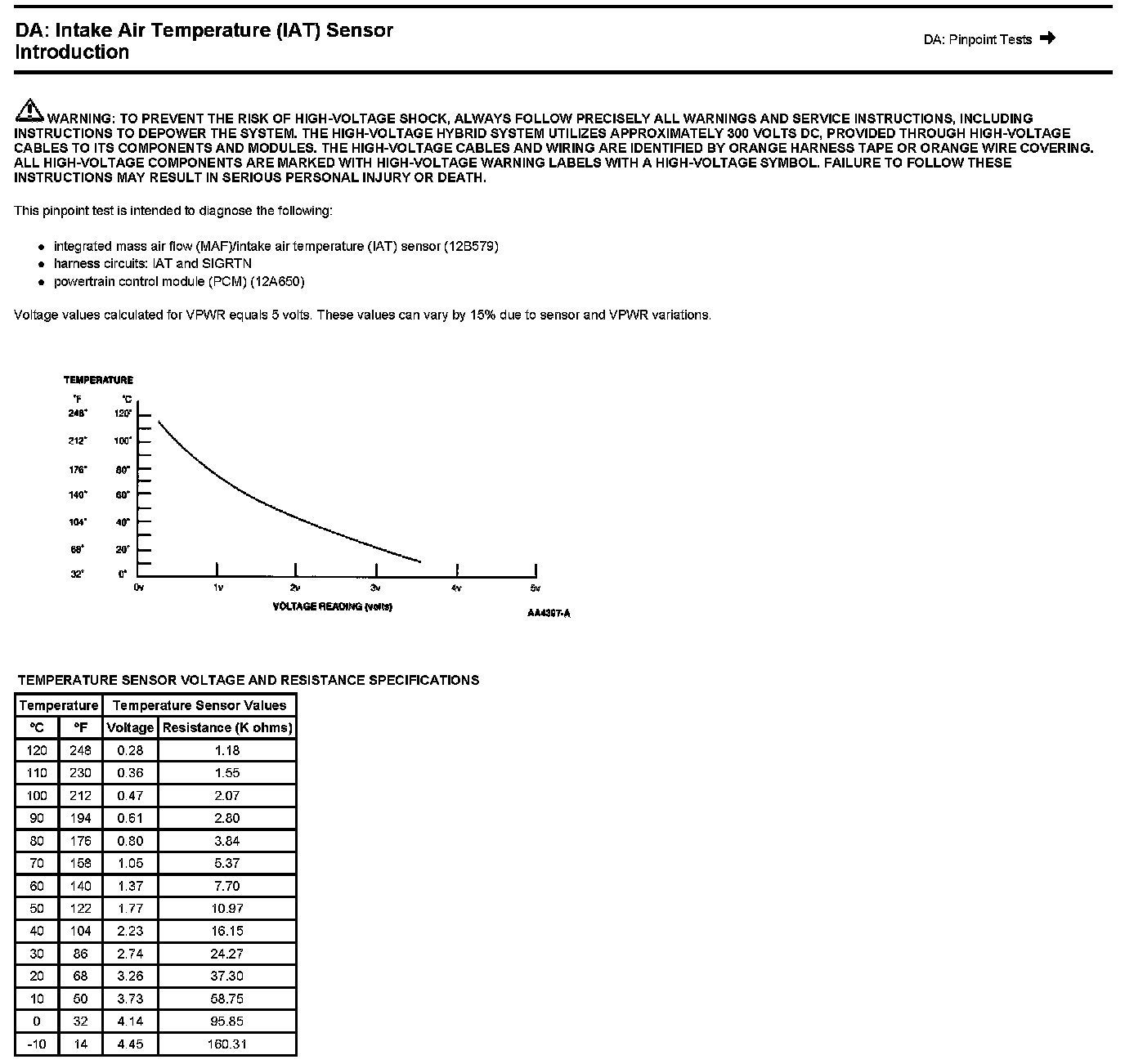

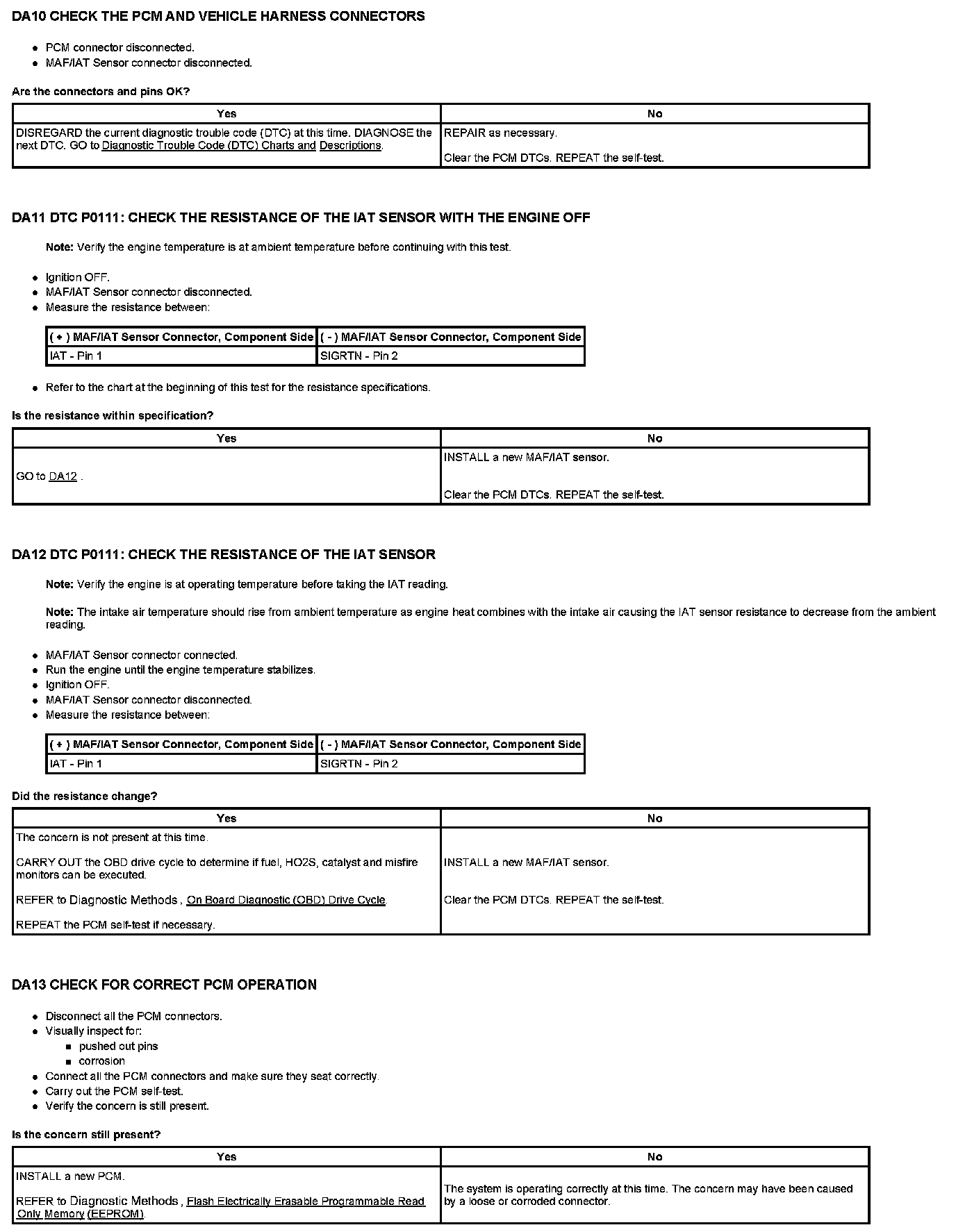

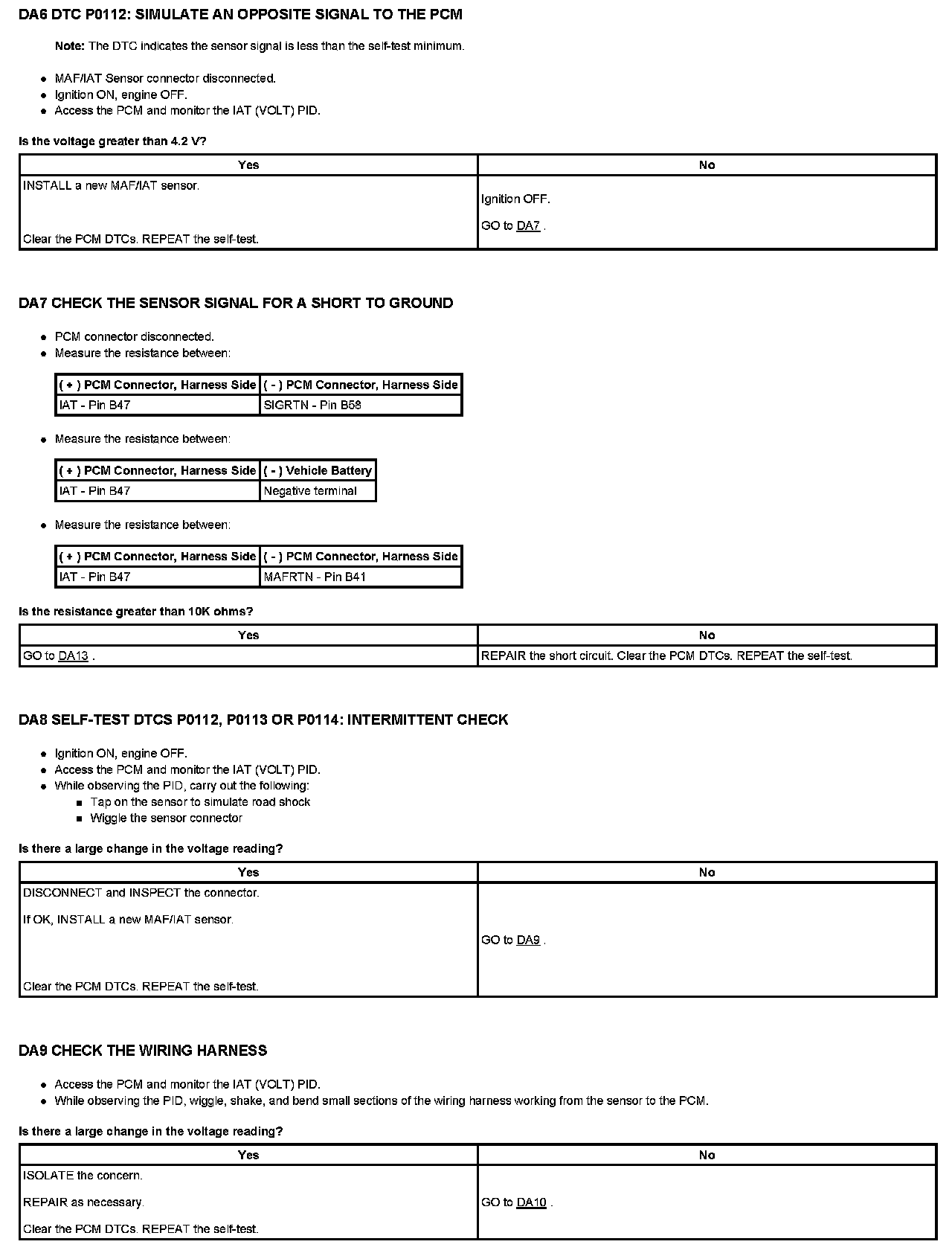

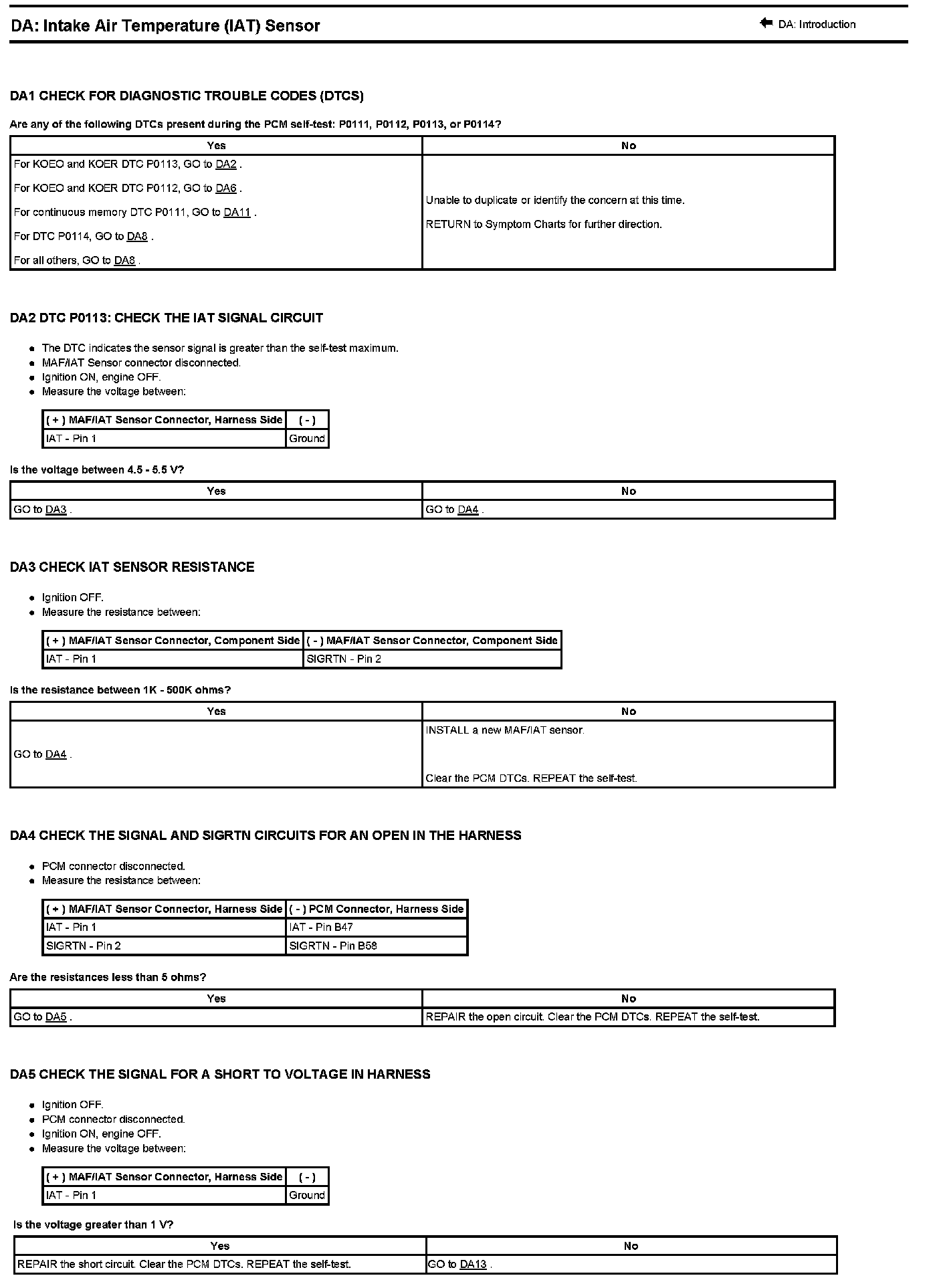

DA: INTAKE AIR TEMPERATURE (IAT) SENSOR

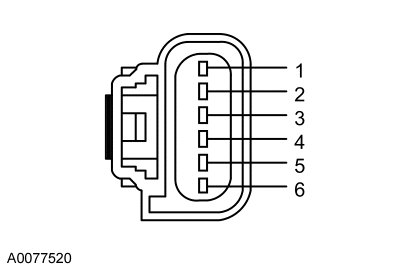

Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector

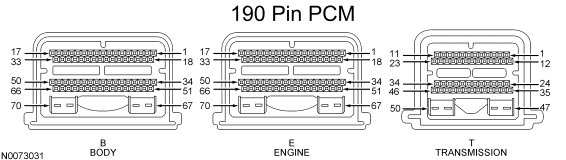

Powertrain Control Module (PCM) Connector
