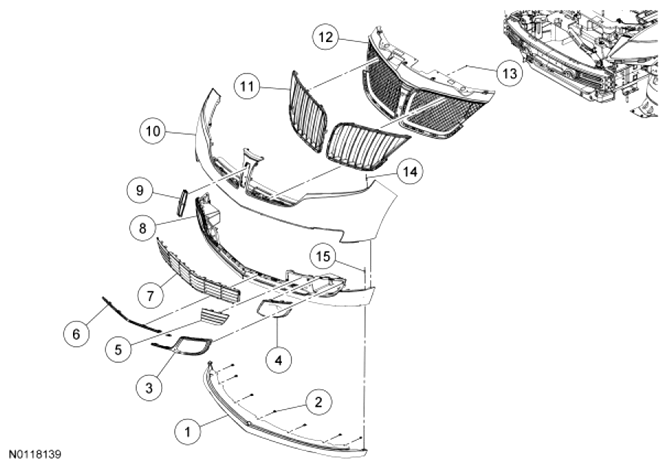

MKX Front Bumper Cover Components
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17626 | Front bumper cover lower valence |
| 2 | W704277 | Front bumper cover lower valence-to-lower bumper cover nut (7 required) |
| 3 | 15266 | Front foglamp outer bezel (RH/LH) |
| 4 | 17E810/17E811 | Front foglamp cover (RH/LH) |
| 5 | 17K946 | Lower front bumper cover outer grille (RH/LH) |
| 6 | 17E810 | Lower front bumper cover center cover |
| 7 | 17K945 | Lower front bumper cover center grille |
| 8 | 17D957 | Lower front bumper cover |
| 9 | 8213 | Emblem |
| 10 | 17D957 | Upper front bumper cover |
| 11 | 8200 | Upper radiator grille (RH/LH) |
| 12 | 8A284 | Upper radiator grille reinforcement |
| 13 | W708203 | Emblem nut |
| 14 | W702852 | Upper front bumper cover-to-lower bumper cover rivet (2 required) |
| 15 | W702852 | Lower front bumper cover-to-front bumper cover lower valence rivet (2 required) |
- For additional information, refer to the appropriate procedures.
