C1520A 6F35 Transmission
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

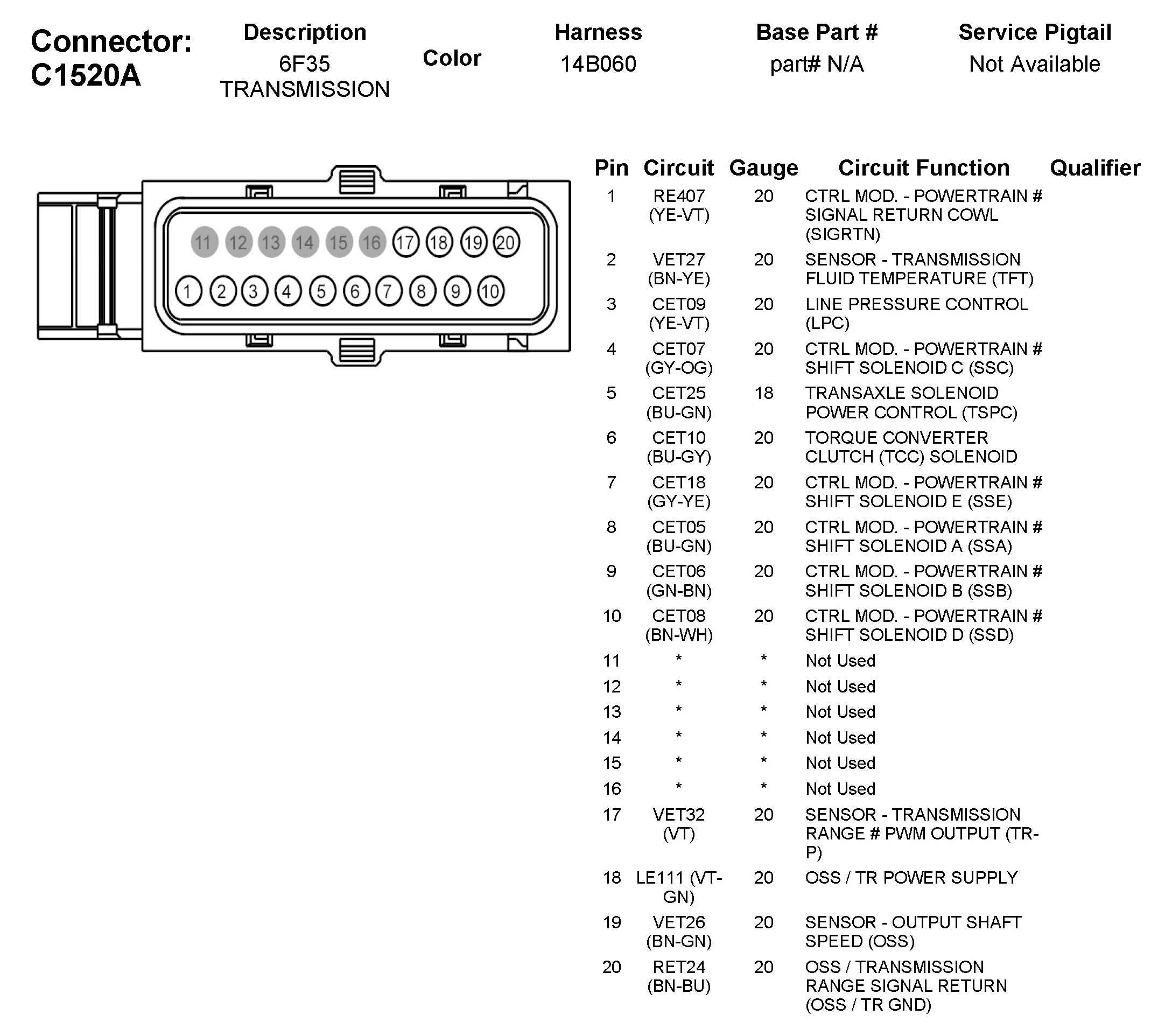

C1520A 6F35 Transmission
