Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Module









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

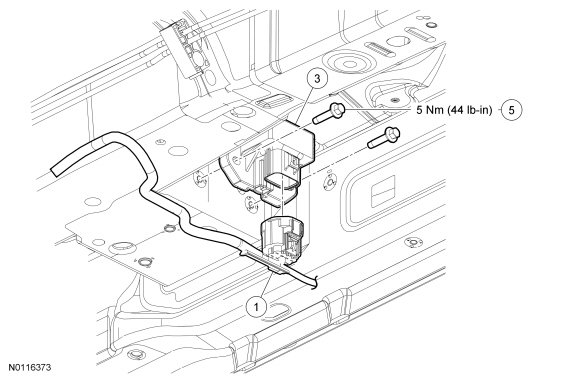

2. Disconnect the Fuel Pump Control Module (FPCM) electrical connector.

3. NOTICE: Do not overtighten the fasteners or damage to the module may occur.

Remove the 2 FPCM (Fuel Pump Control Module) bolts.
- To install, tighten to 5 Nm (44 lb-in).


4. To install, reverse the removal procedure.
