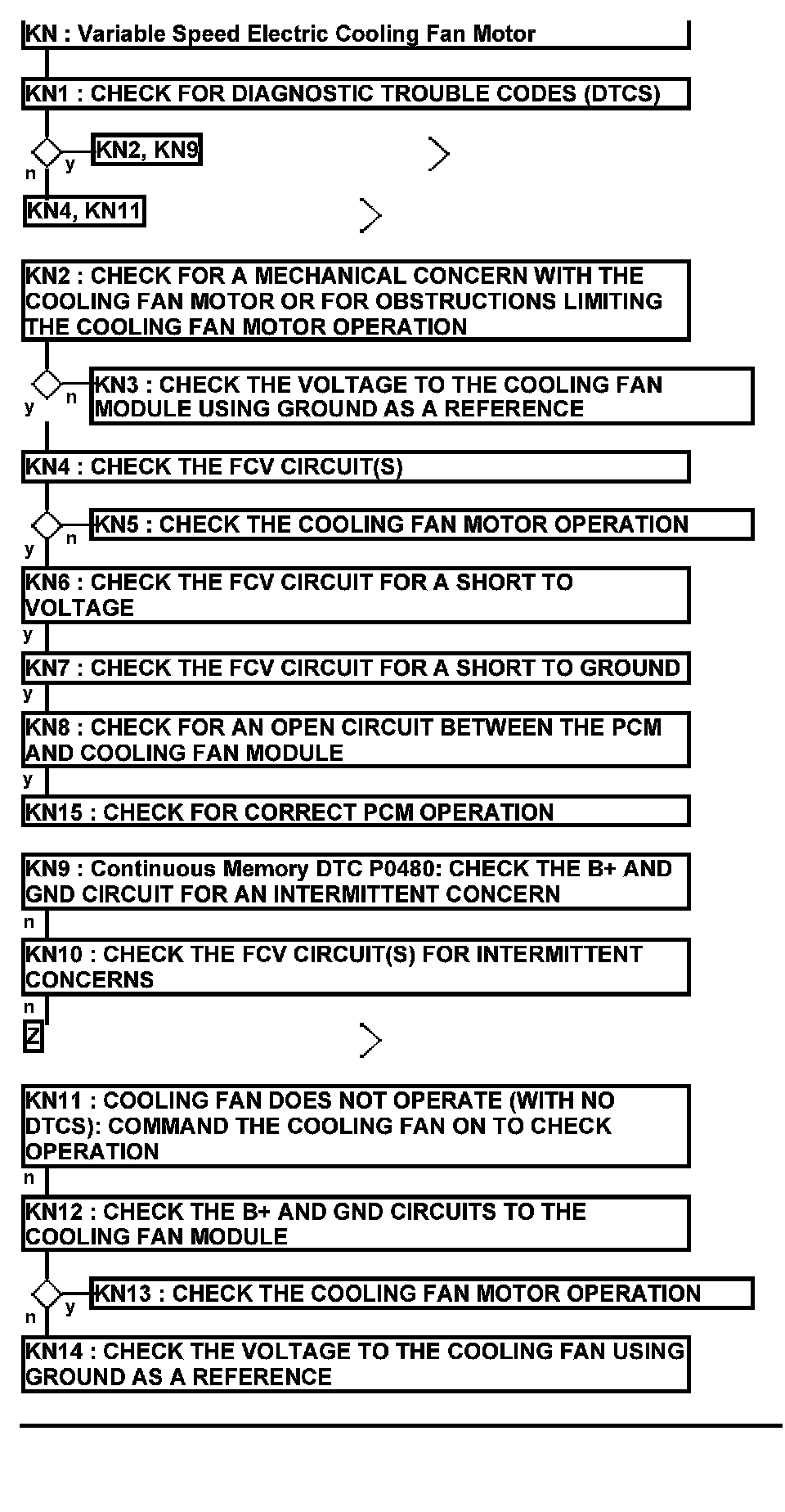

Test KN: Variable Speed Electric Cooling Fan Motor
Variable Speed Electric Cooling Fan Motor

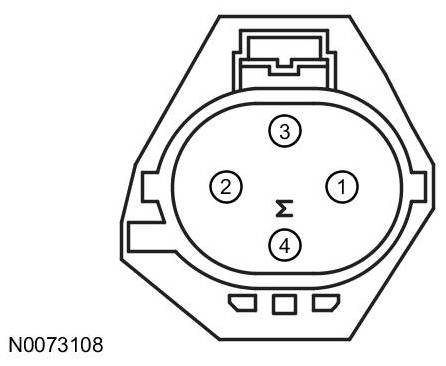

Cooling Fan (CF) Module Connector
Harness Side
Cooling Fan (CF) Motor Connector
Harness Side

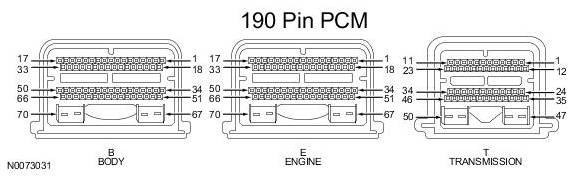

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
