Valve Spring Retainer: Service and Repair

Valve Spring, Retainer and Seal

1. NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

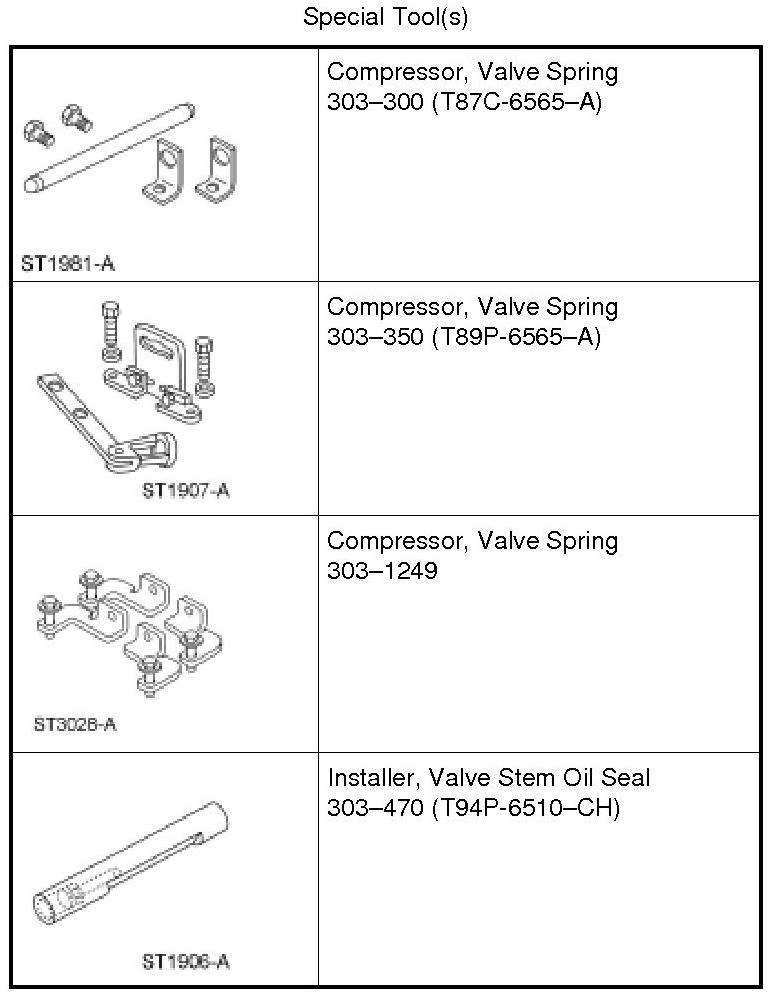

Using the Valve Stem Oil Seal Installer, install a new valve stem seal.

2. Using the Valve Spring Compressors, install the valve spring, retainer and key.

3. Install the valve tappets. For additional information, refer to Valve Tappets Removal and Replacement.
