Brake Caliper Support Plate

Brake Caliper Support Plate

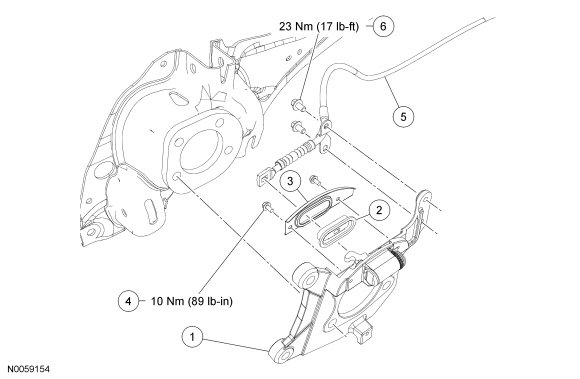

Removal and Installation

1. Remove the brake disc shield. For additional information, refer to Brake Disc Shield Brake Disc Shield.

2. Remove the 2 parking brake cable-to-support plate bolts, disconnect the parking brake cable from the lever and position the cable aside.
- To install, tighten to 23 Nm (17 lb-ft).


3. Remove the 2 dust boot shield bolts and the dust shield.
- To install, tighten to 10 Nm (89 lb-in).


4. Remove the dust boot.

5. To install, reverse the removal procedure.
