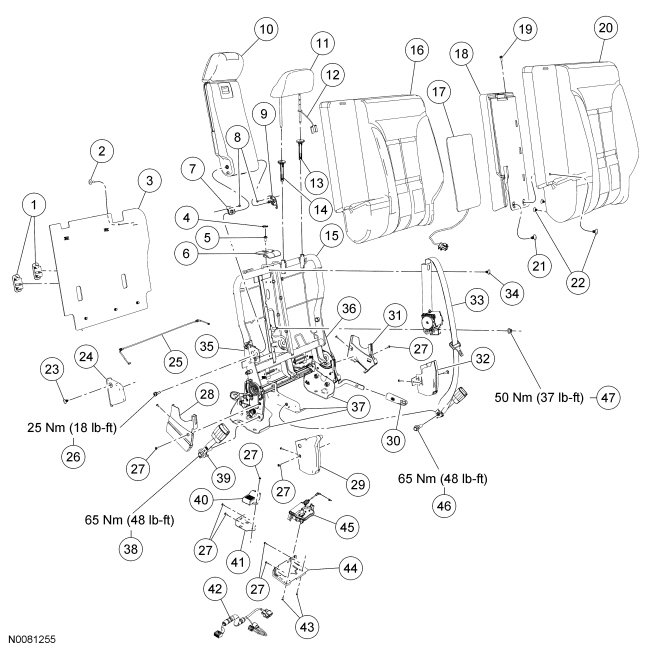

Seat - Exploded View, Rear

Seat - Exploded View, Rear

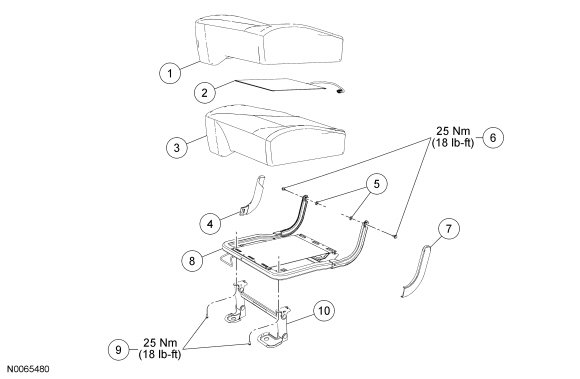

Rear Seat Cushion, 40 Percent

NOTE: A new heater mat will come assembled on a new foam pad.

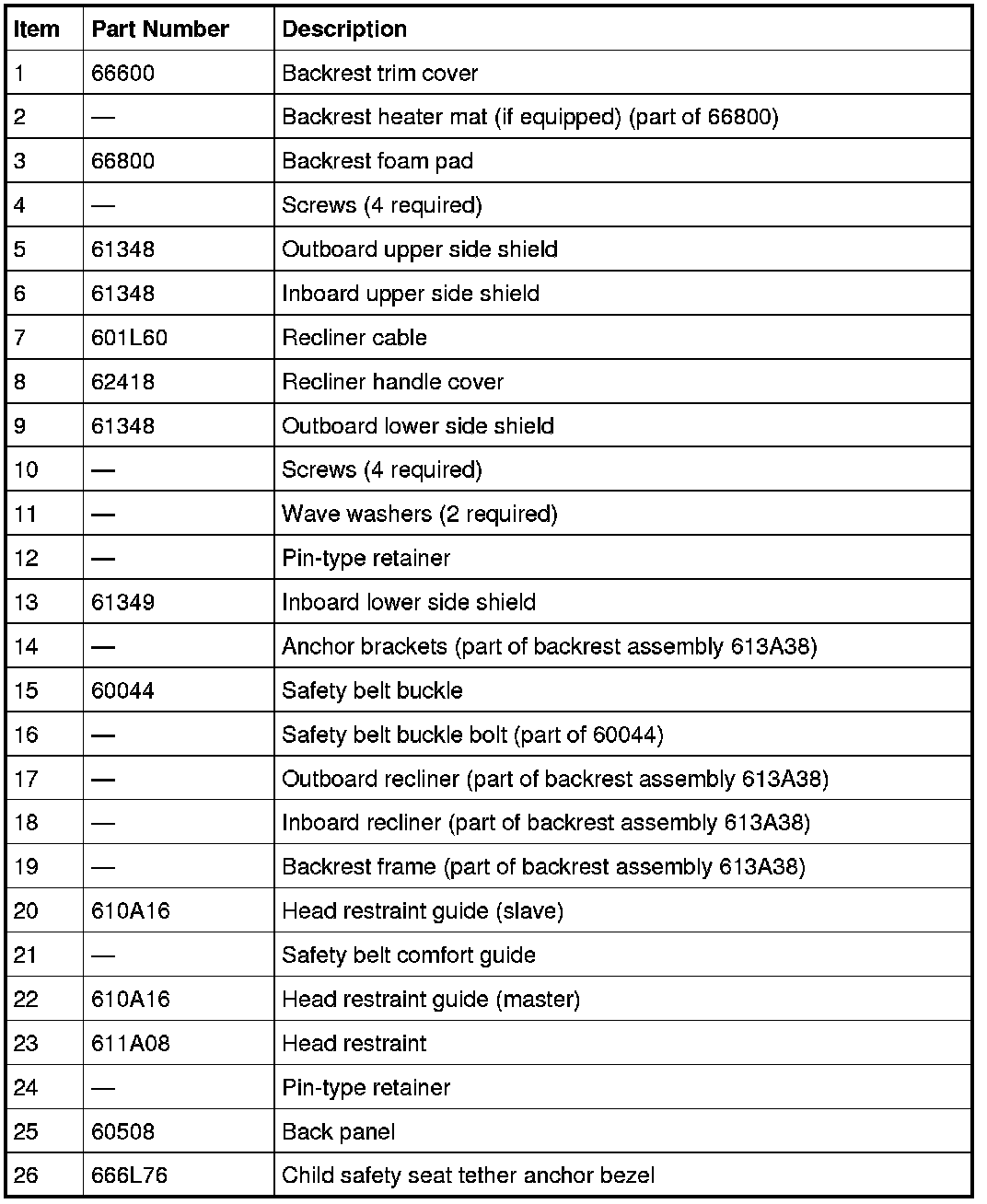

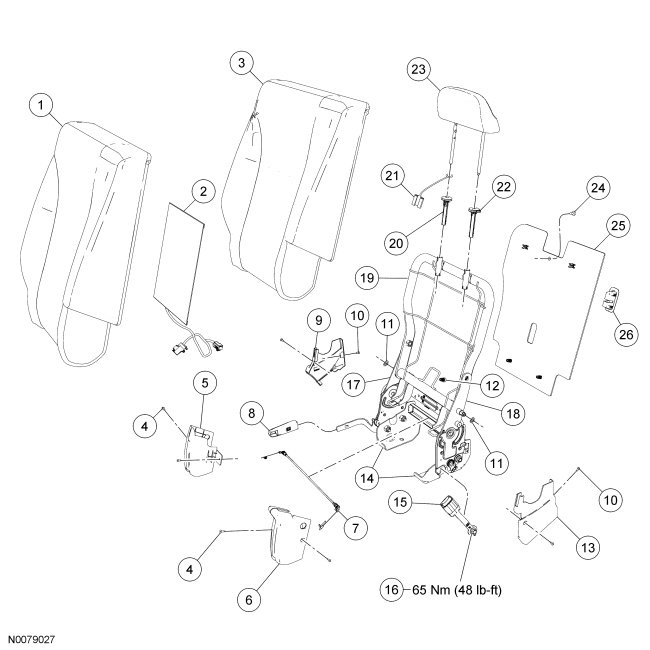

Rear Seat Backrest, 40 Percent

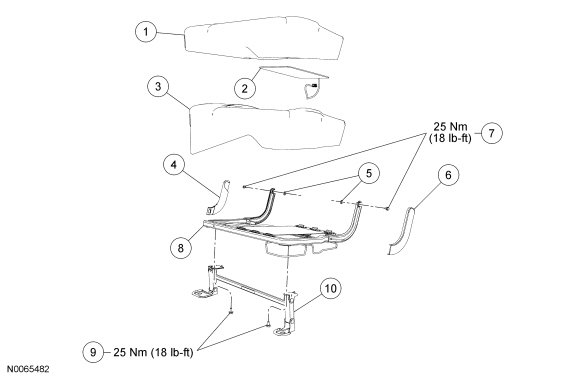

Rear Seat Cushion, 60 Percent

NOTE: A new heater mat will come assembled on a new foam pad.

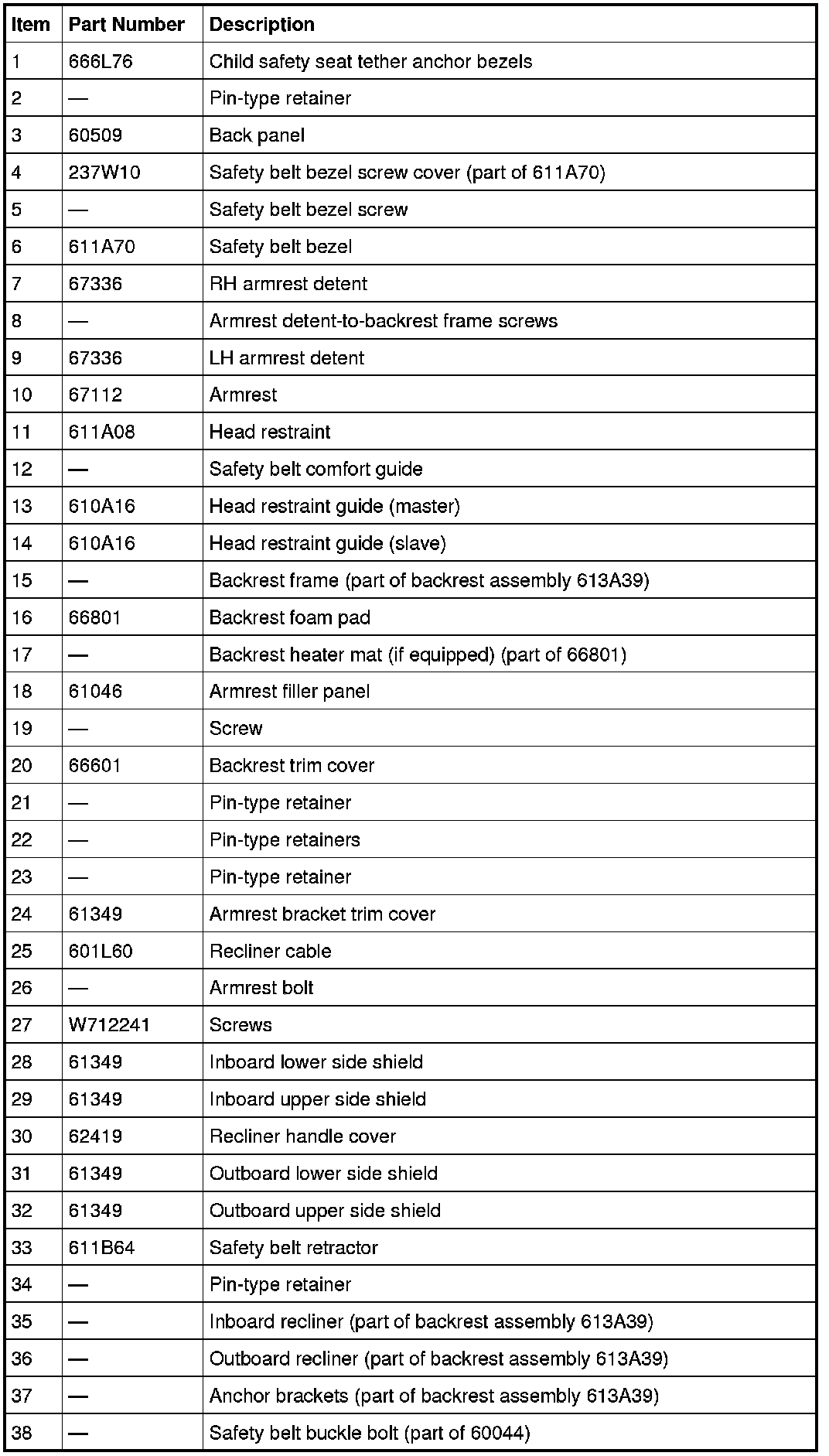

Rear Seat Backrest, 60 Percent
