Door Alignment
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Multi-Purpose Grease XG-4 and/or XL-5 |
ESB-M1C93-B |
- Loosen the hinge bolts enough to permit movement of the door.
- Move the door to the desired fit.
- Tighten the hinge bolts to 30 Nm (22 lb-ft) and check the door for proper fit.
- Repeat if necessary.
- Using grease, lubricate the door hinges.
NOTE:
The hinge holes are enlarged or elongated to provide for hinge and door alignment.
NOTE:

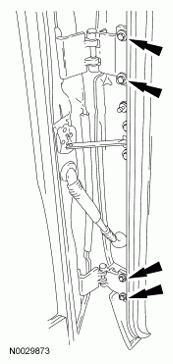

Front body side cargo door hinges shown in illustration, all other door hinges similar.
