Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different variant/trim than selected.
NOTE:
It is necessary to remove the Air Cleaner (ACL) assembly to gain access to the accessory drive belt and accessory drive belt tensioner. For additional information, refer to
INTAKE AIR DISTRIBUTION & FILTERING
.
NOTE:
4.6L with A/C shown in illustration, 5.4L and 6.8L with A/C similar.

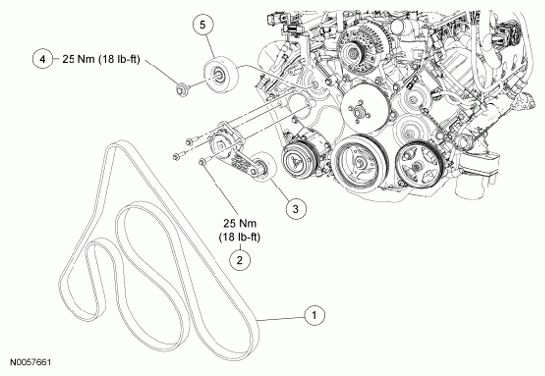

Fig 1: Exploded View Of Front End Accessory Drive (FEAD) - 4.6L With A/C Shown, 5.4L And 6.8L With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | N808920 | Accessory drive belt tensioner bolt (3 required) |
| 3 | 6B209 | Accessory drive belt tensioner |
| 4 | N808102 | Accessory drive belt idler pulley bolt |
| 5 | 19A216 | Accessory drive belt idler pulley |
NOTE:
It is necessary to remove the Air Cleaner (ACL) assembly to gain access to the accessory drive belt and accessory drive belt tensioner. For additional information, refer to
INTAKE AIR DISTRIBUTION & FILTERING
.
NOTE:
4.6L without A/C shown in illustration, 5.4L and 6.8L without A/C similar.

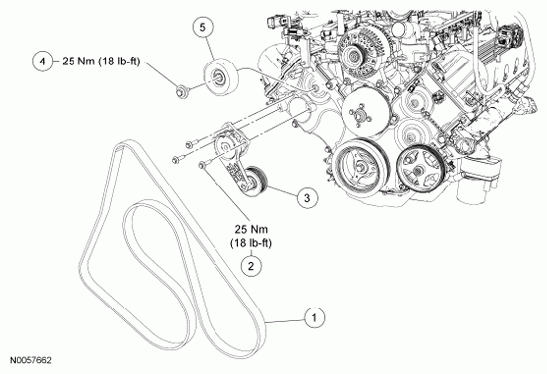

Fig 2: Exploded View Of Front End Accessory Drive (FEAD) - 4.6L Without A/C Shown, 5.4L And 6.8L With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | N808920 | Accessory drive belt tensioner bolt (3 required) |
| 3 | 6B209 | Accessory drive belt tensioner |
| 4 | N808102 | Accessory drive belt idler pulley bolt |
| 5 | 19A216 | Accessory drive belt idler pulley |
- Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
