Power Steering Fluid Cooler: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

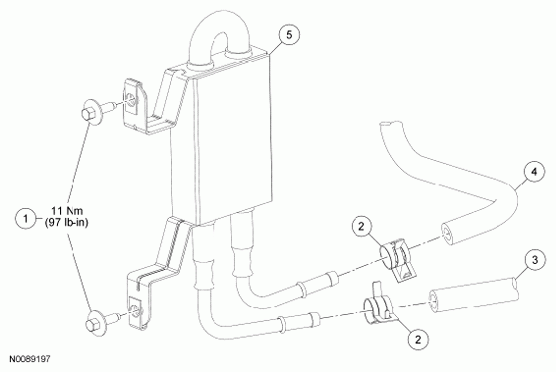

| Item | Part Number | Description |
|---|---|---|
| 1 | N606676 | Power steering fluid cooler bolts (2 required) |
| 2 | 3C750 | Clamps (2 required) |
| 3 | 3A713 | Return hose |
| 4 | 3A713 | Power steering fluid cooler-to-reservoir hose |
| 5 | 3D746 | Power steering fluid cooler |
