Ignition Switch: Notes

WARNING: This page is about a different variant/trim than selected.

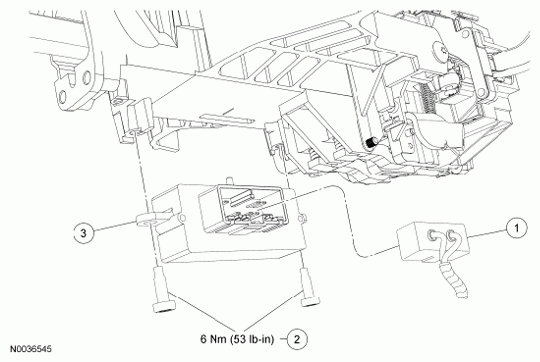

Fig 1: Ignition Switch Replacement Components With Torque Specifications
G06137350Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Ignition switch electrical connector
2 - Ignition switch screws (2 required)
3 3D568 Ignition switch
