Shock Absorber: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE: LH shown in illustration, RH similar.

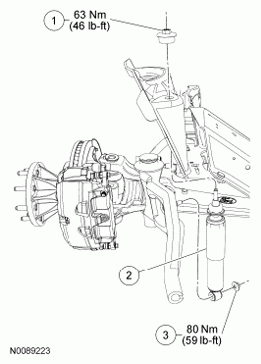

Fig 1: Shock Absorber Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18A192	Shock absorber upper nut, washer and bushing assembly
2	18045	Shock absorber
3	W806085	Shock absorber lower nut and washer

NOTE: Vehicles with 6.8L engine, RH side only.

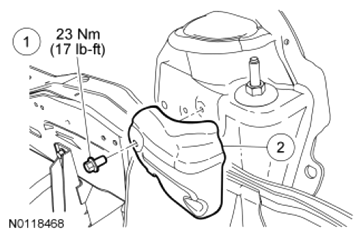

Fig 2: Shock Absorber Heat Shield And Upper Heat Shield Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505260	Shock absorber upper heat shield bolt
2	3C428	Shock absorber heat shield
