Ball Joint: Notes

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS CHART

G06136784
 Installer/Remover, Ball Joint
204-355
G06124812
 Installer/Remover, Ball Joint
204-358
G06381997
 Installer/Remover, C-Frame and Screw
205-086 (T74P-4635-C)

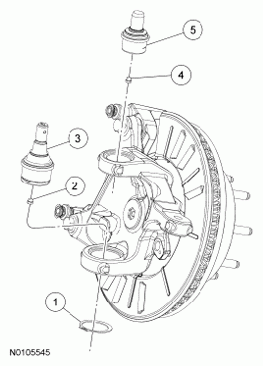

Fig 1: Snap Ring, Grease Fitting, Grease Plug Lower And Upper Ball Joint With Torque Specification
G06136787Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Snap ring (part of 3B103)
2 - Grease fitting (part of 3B103)
3 3B103 Lower ball joint
4 - Grease plug (part of 3B102)
5 3B102 Upper ball joint
