Intake Manifold

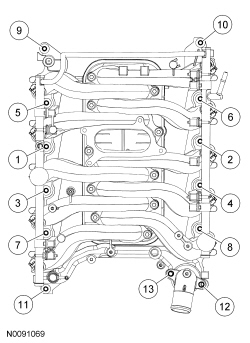

Tighten the bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 2 Nm (18 lb-in).
Stage 2: Tighten to 25 Nm (18 lb-ft).
