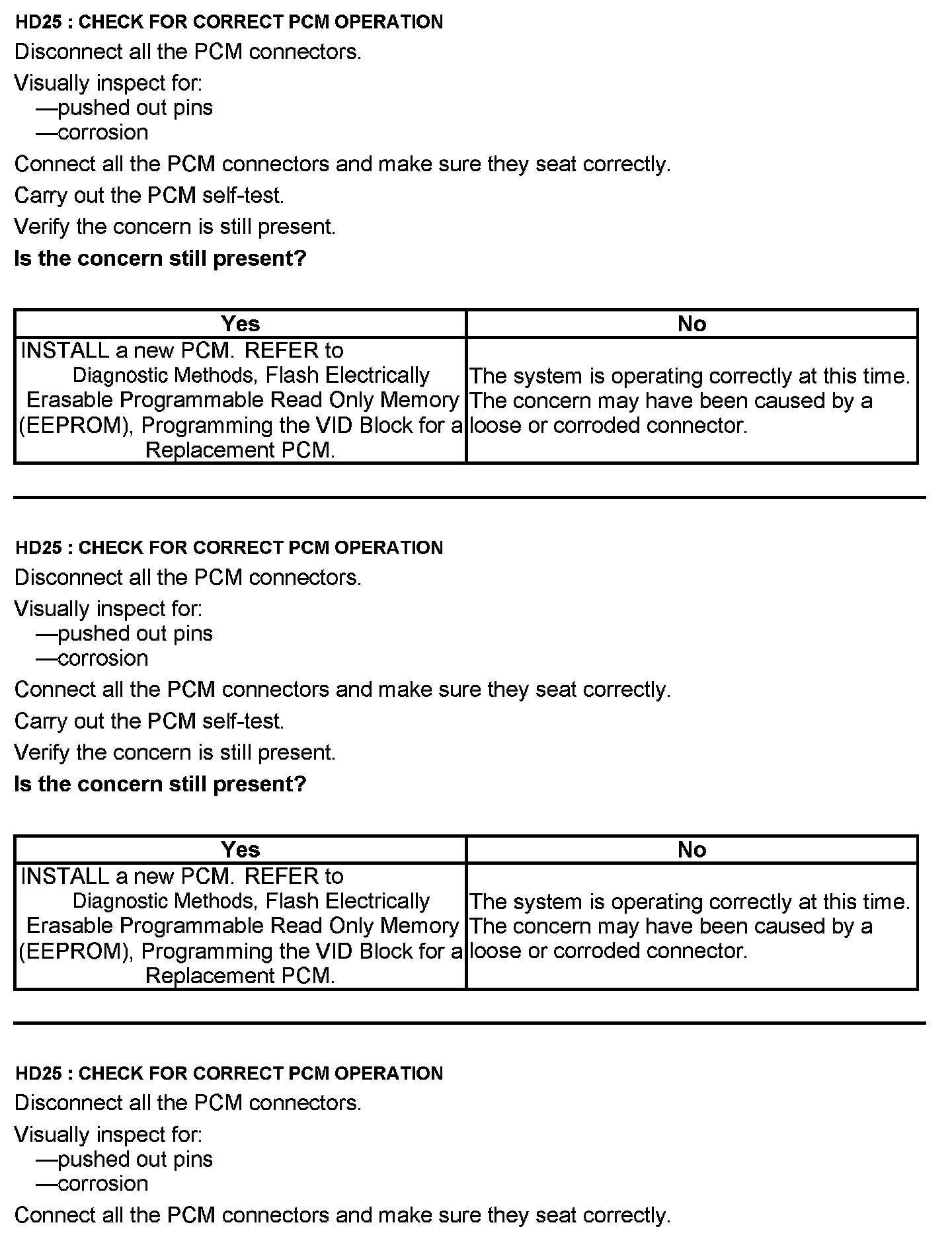

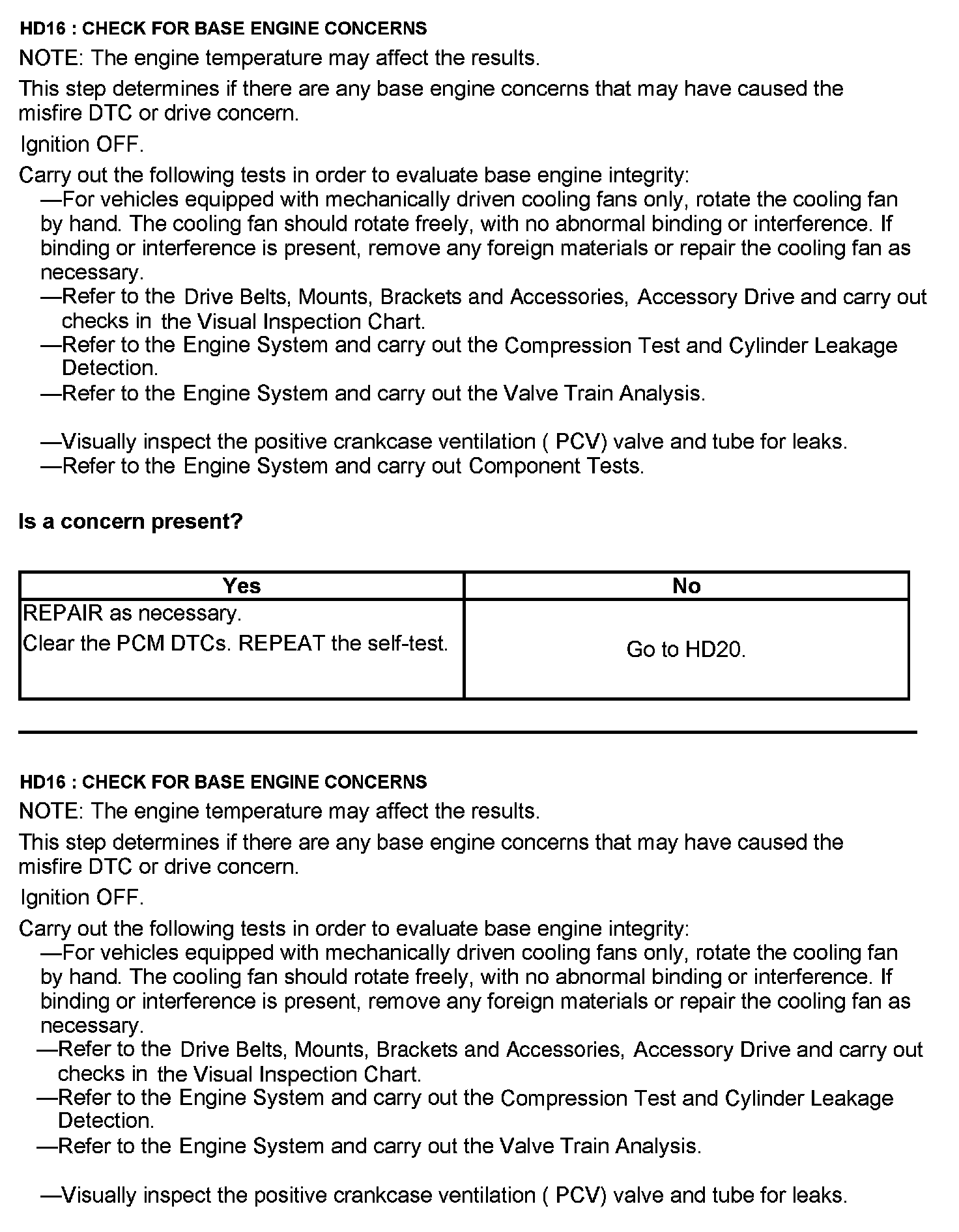

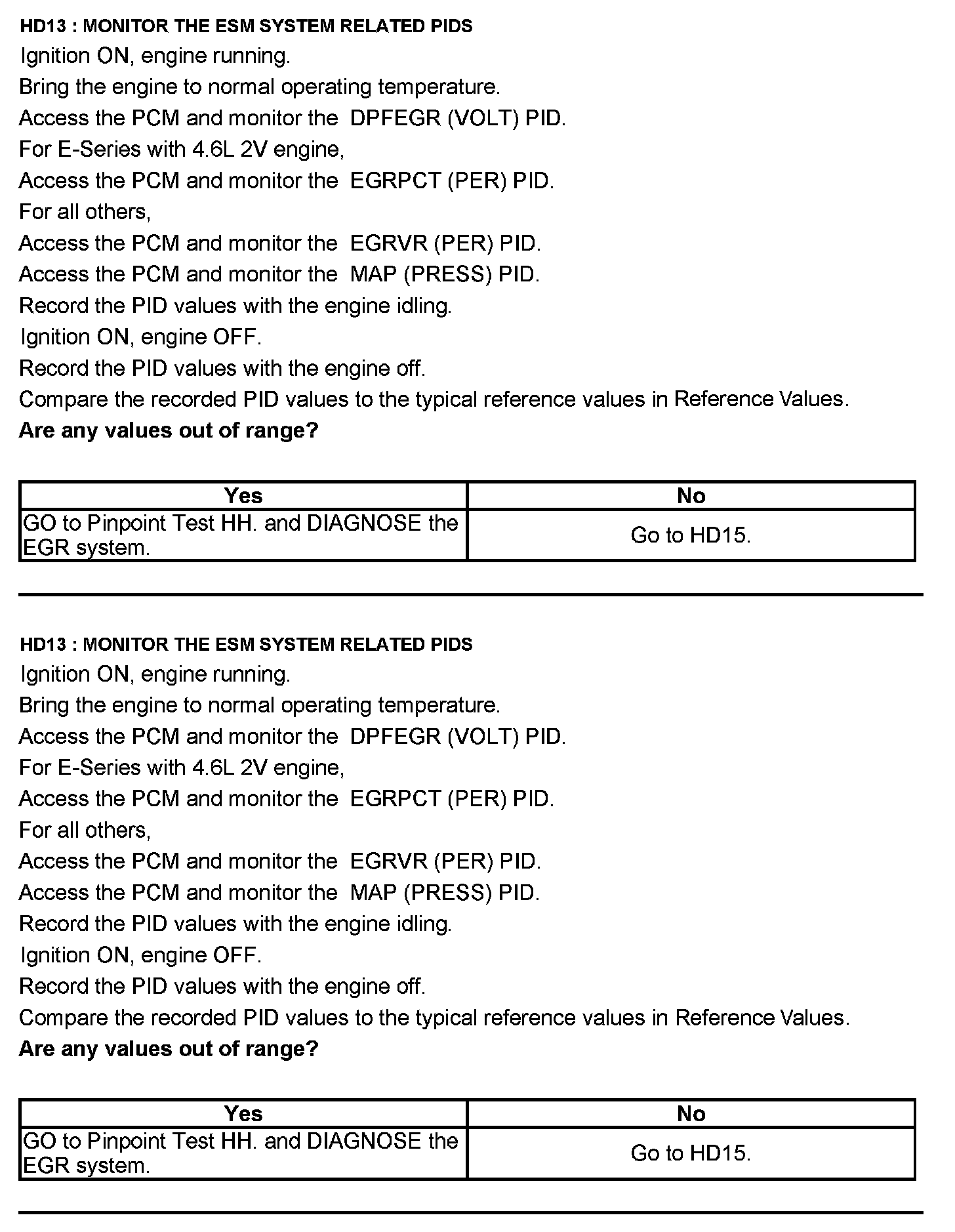

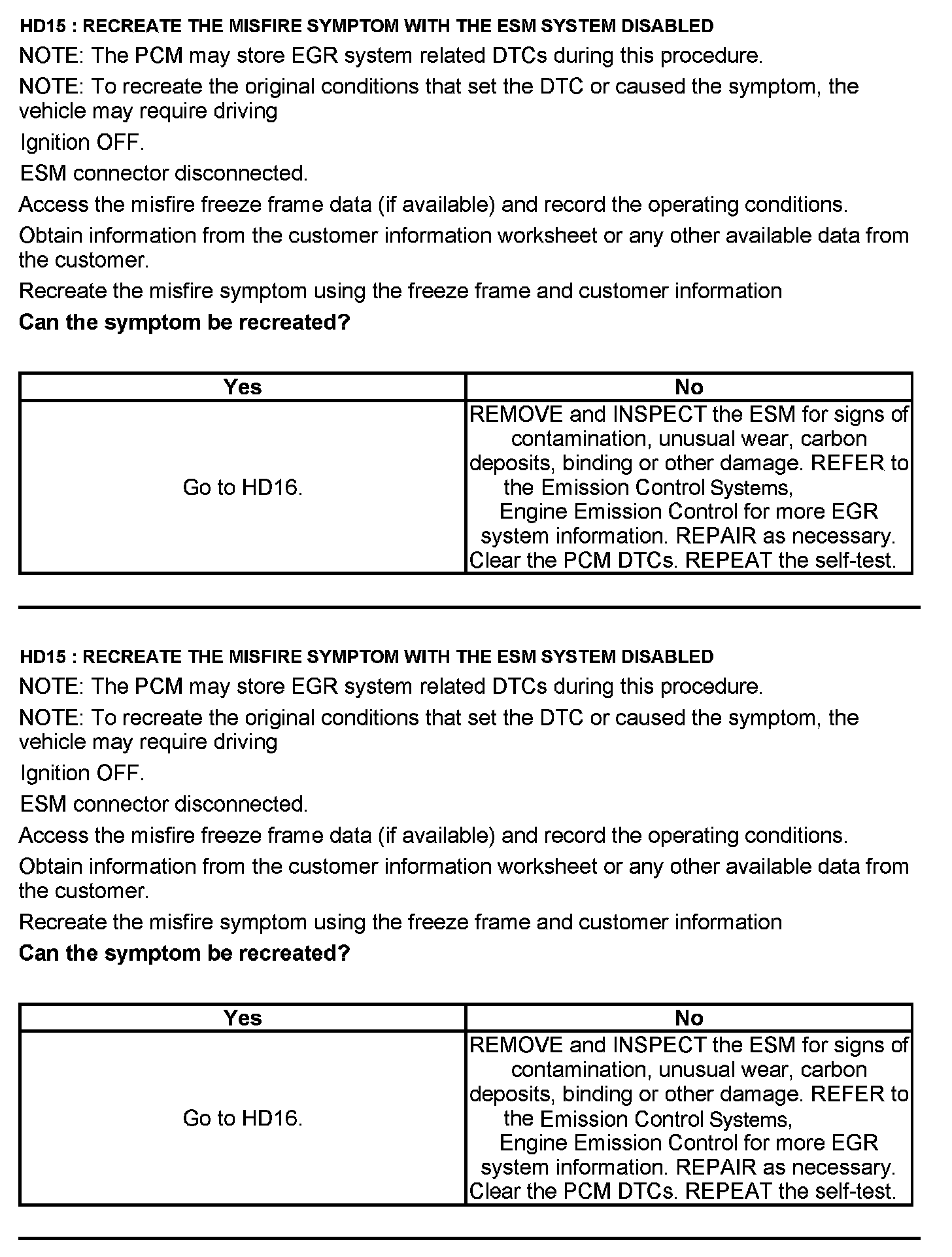

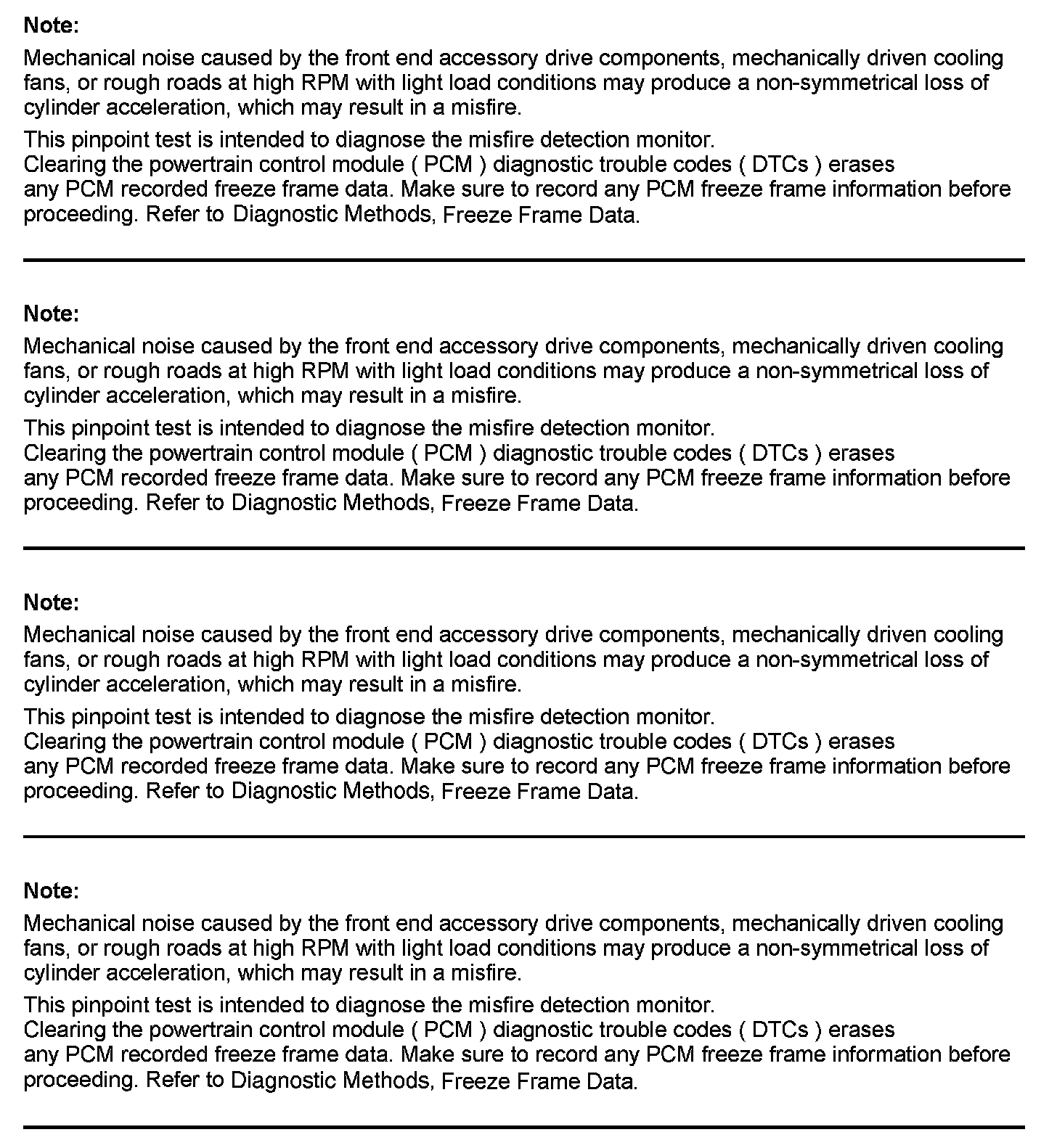

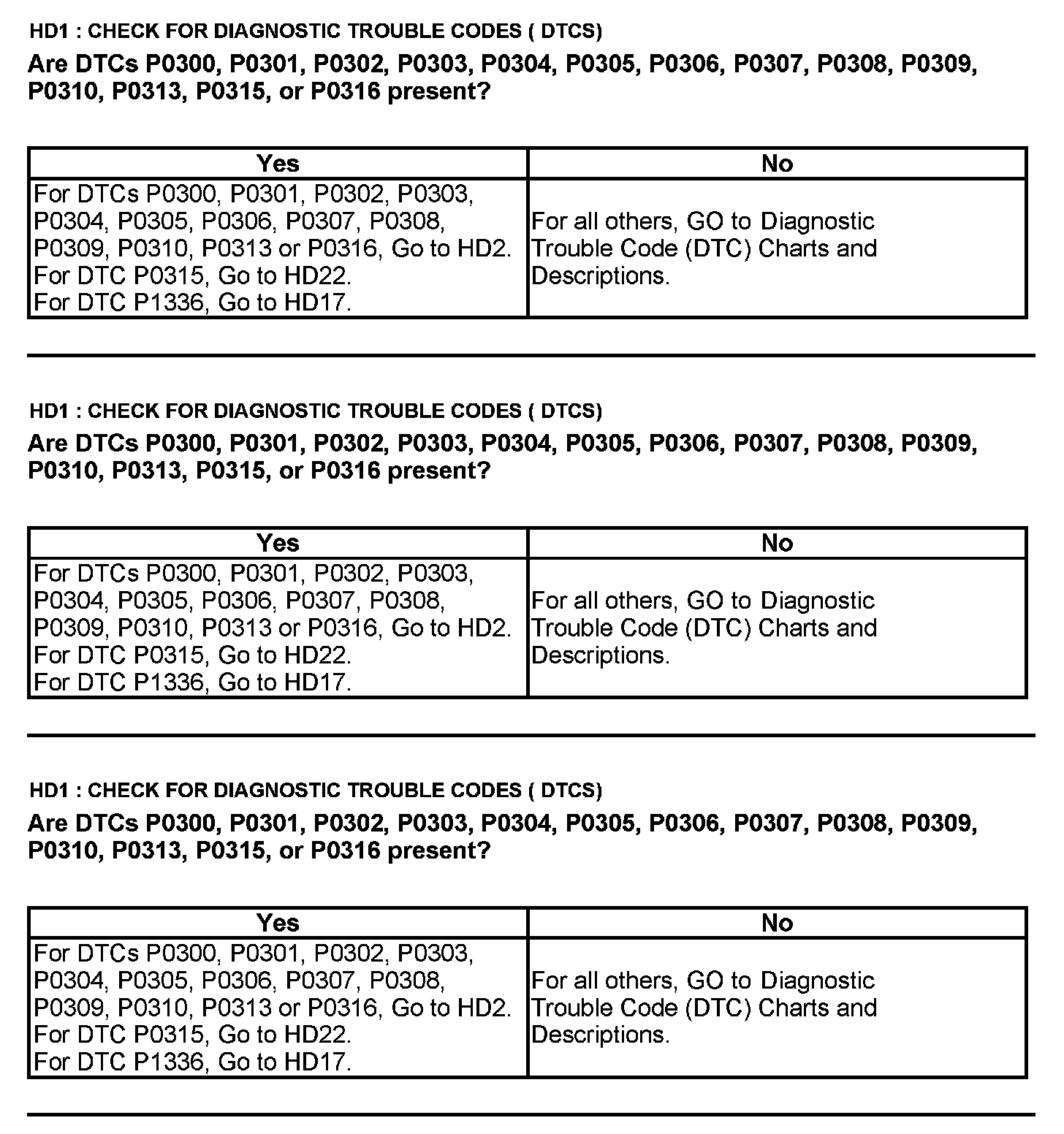

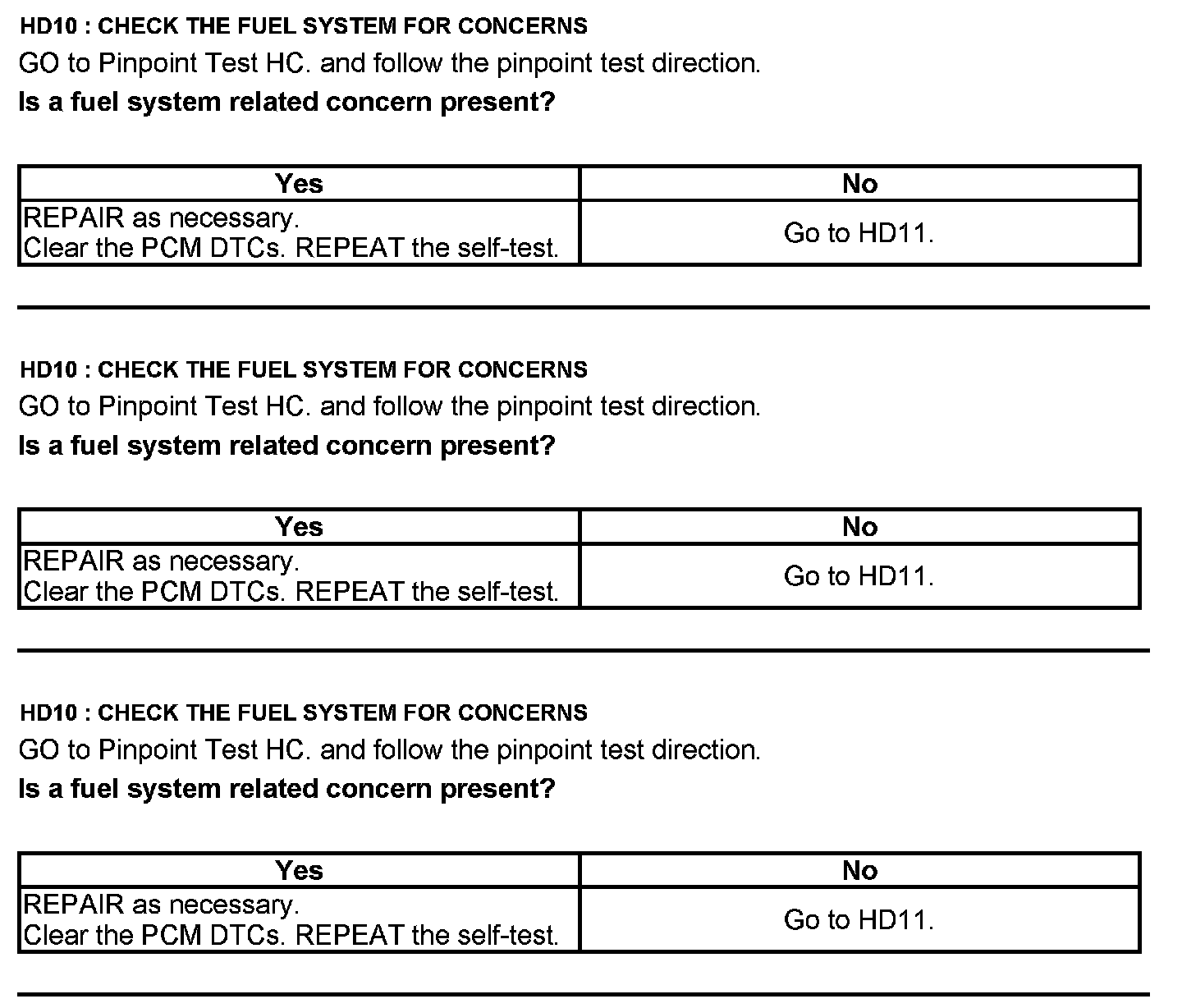

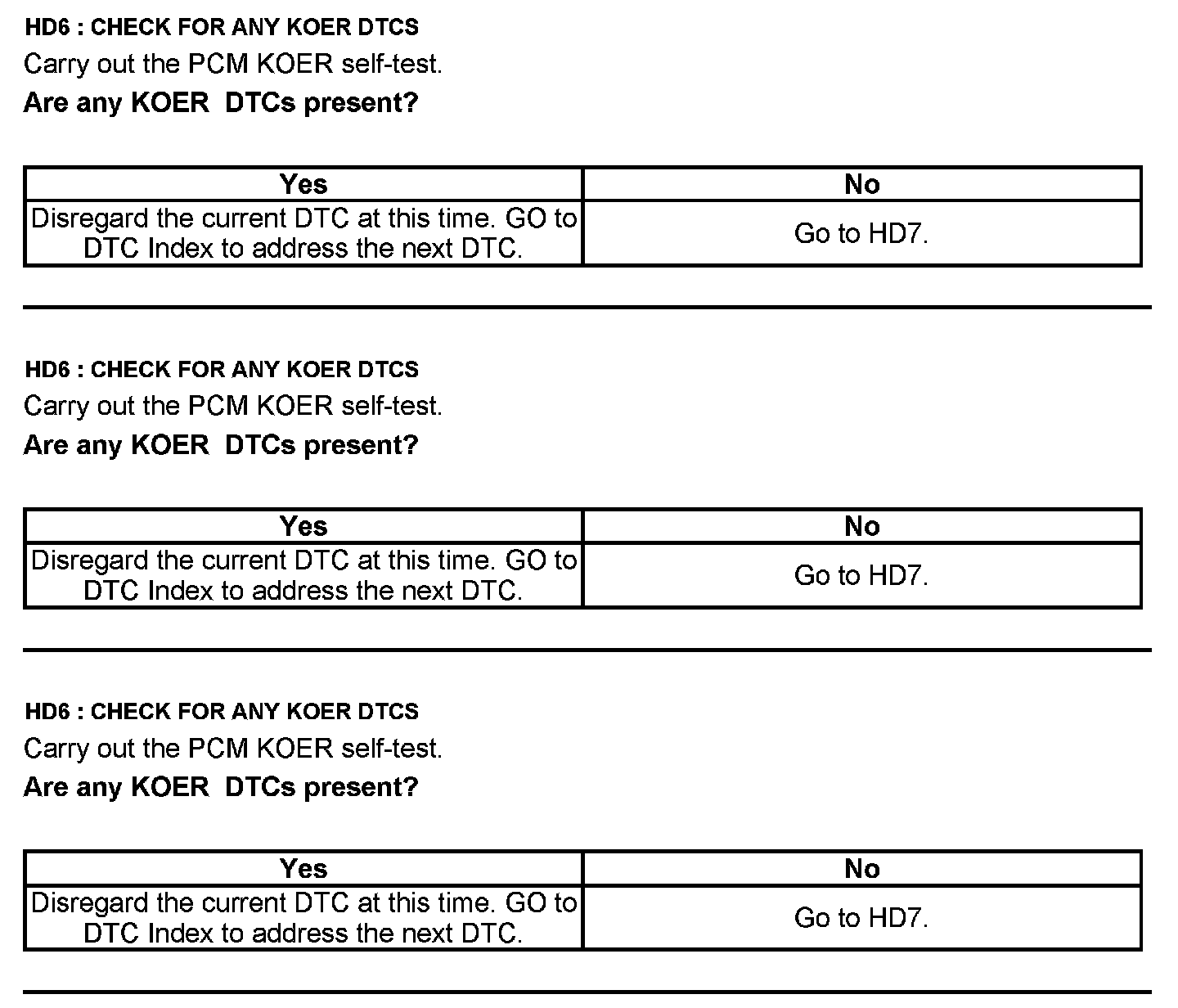

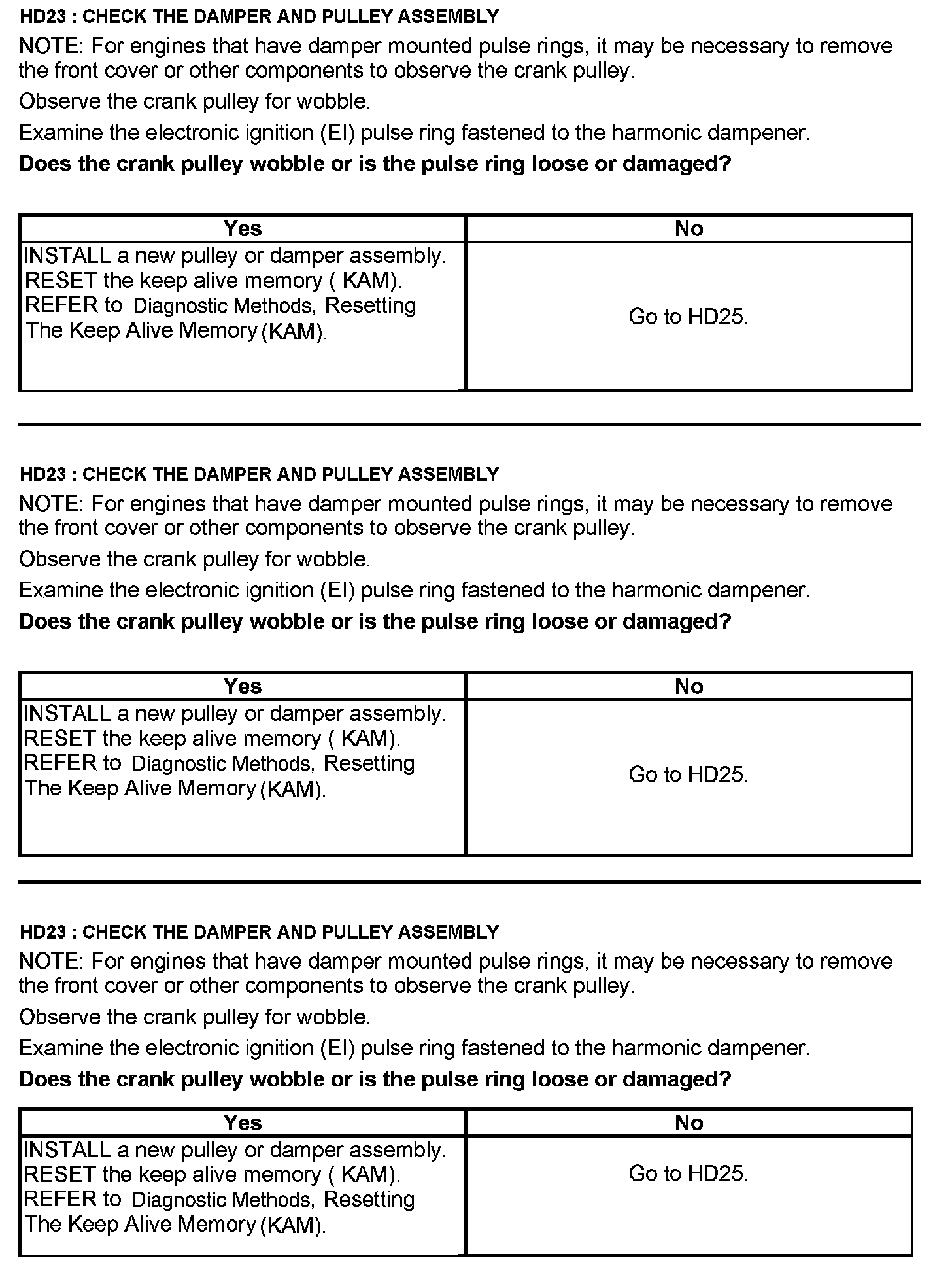

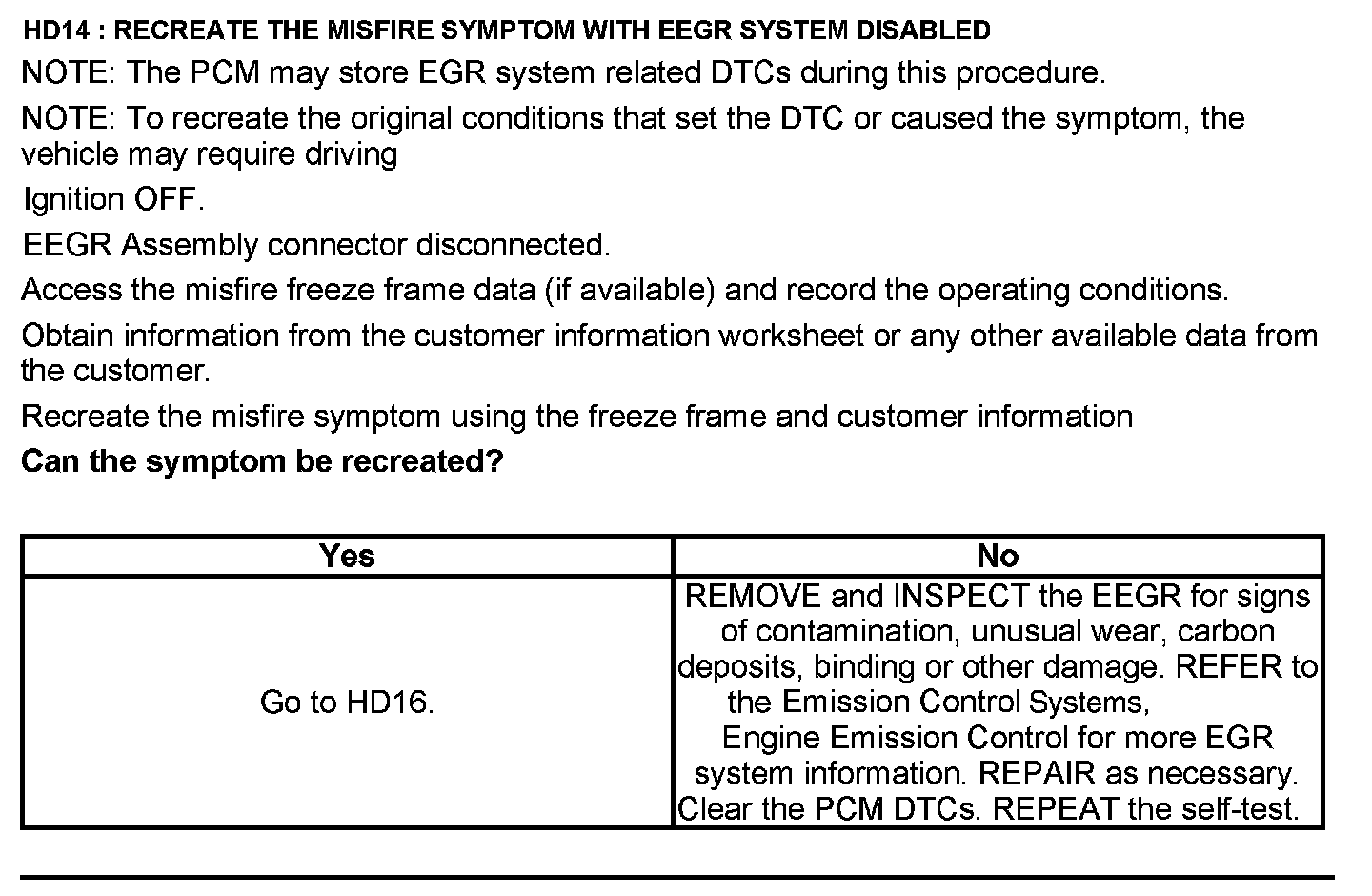

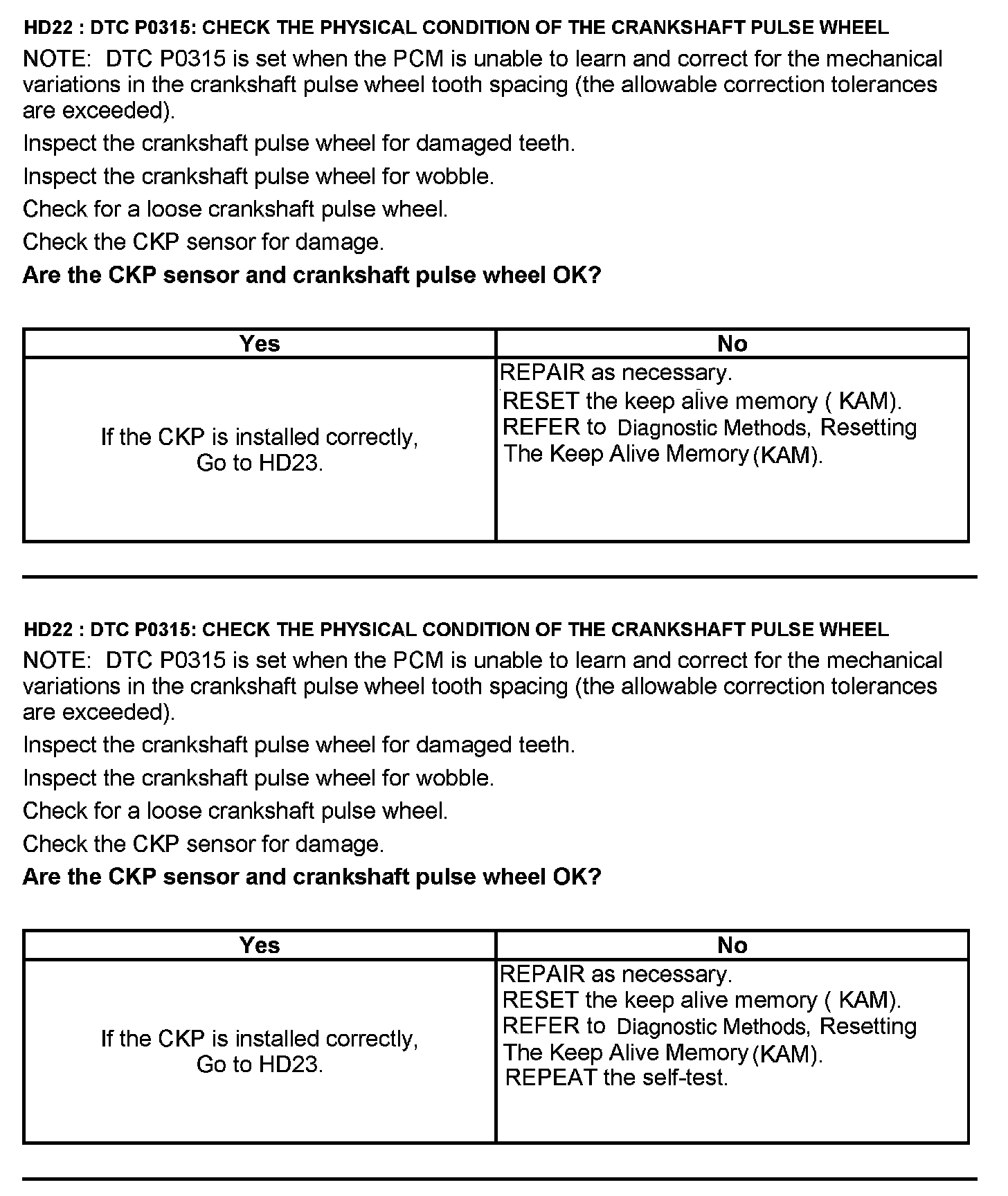

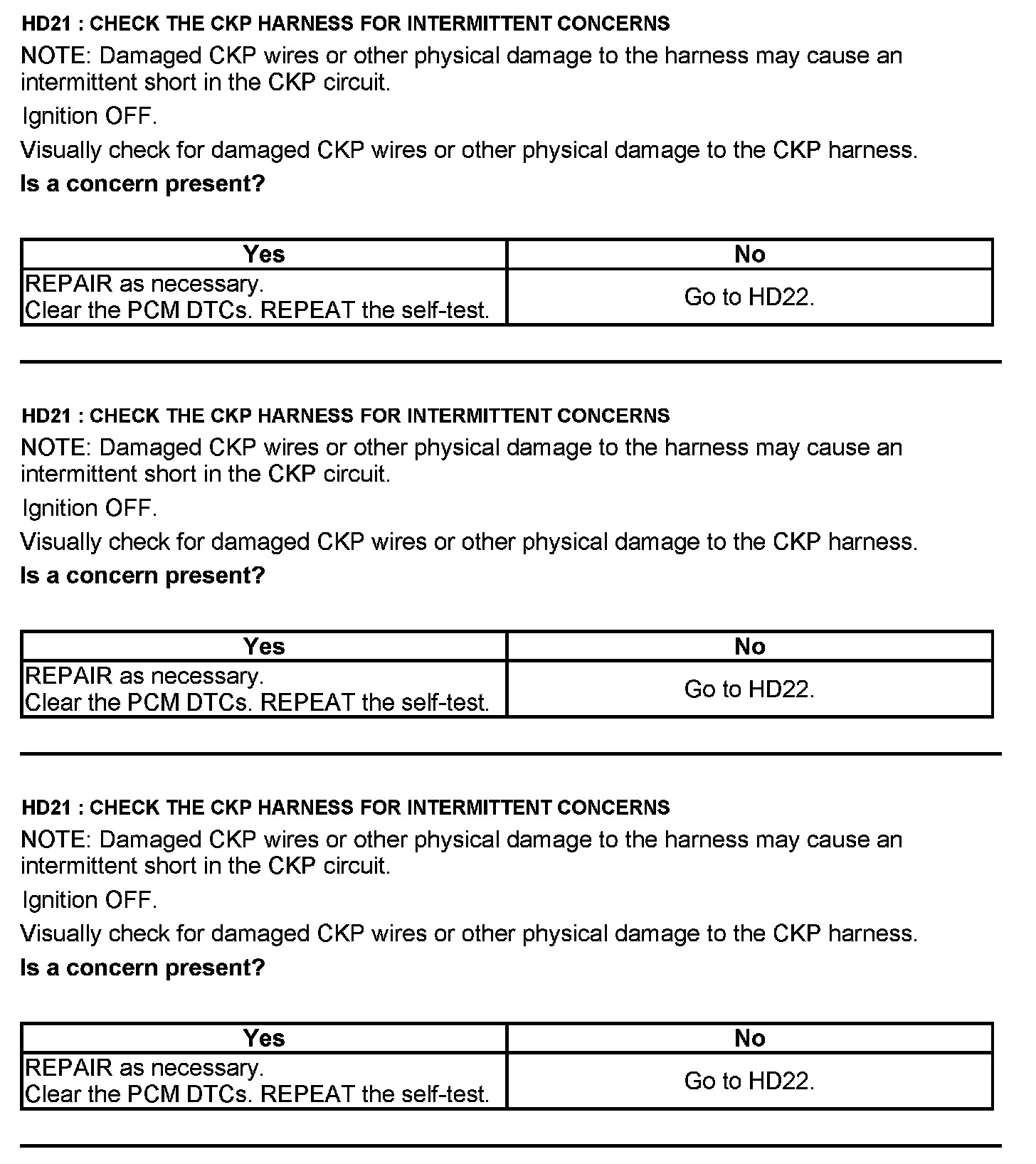

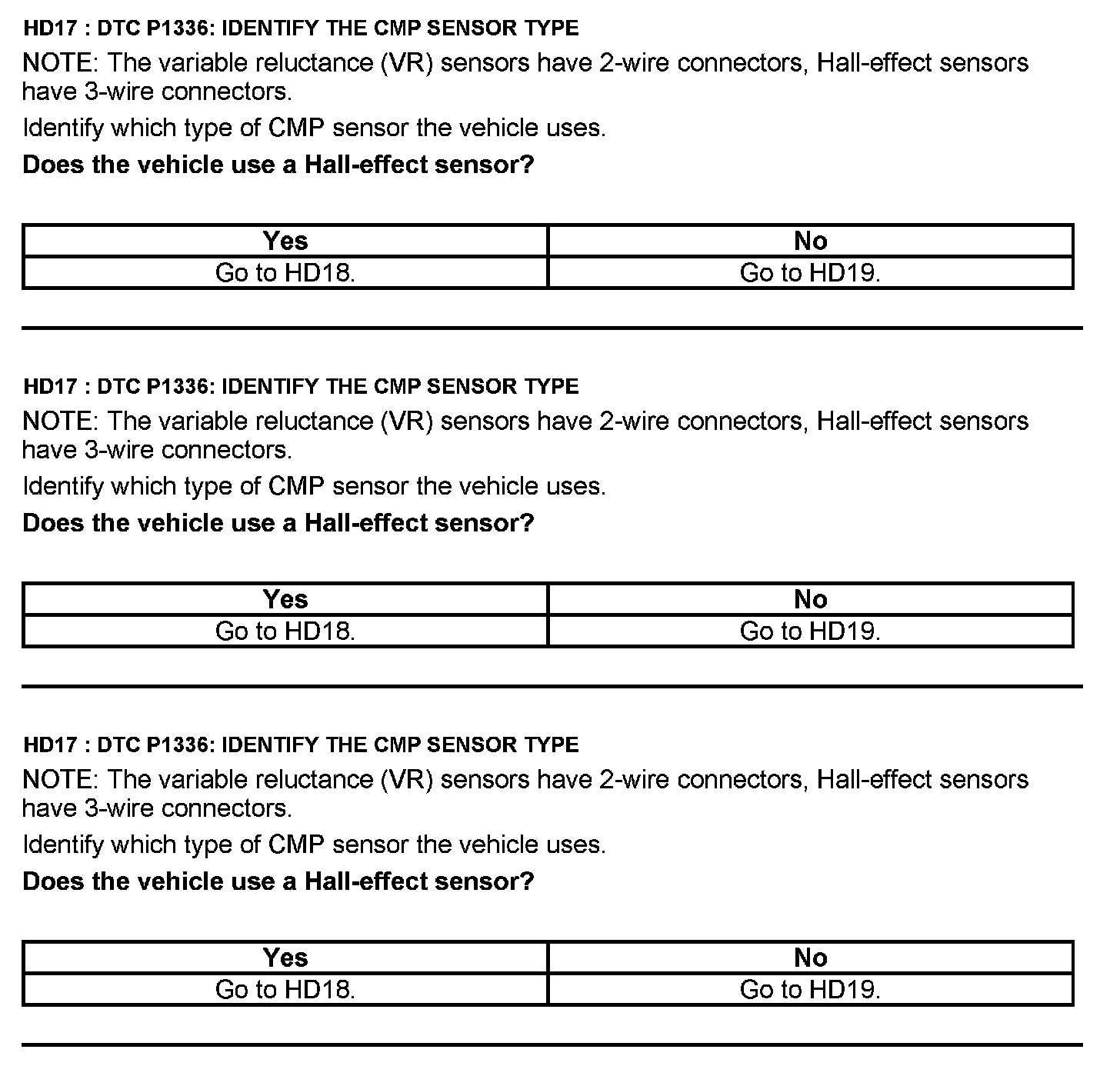

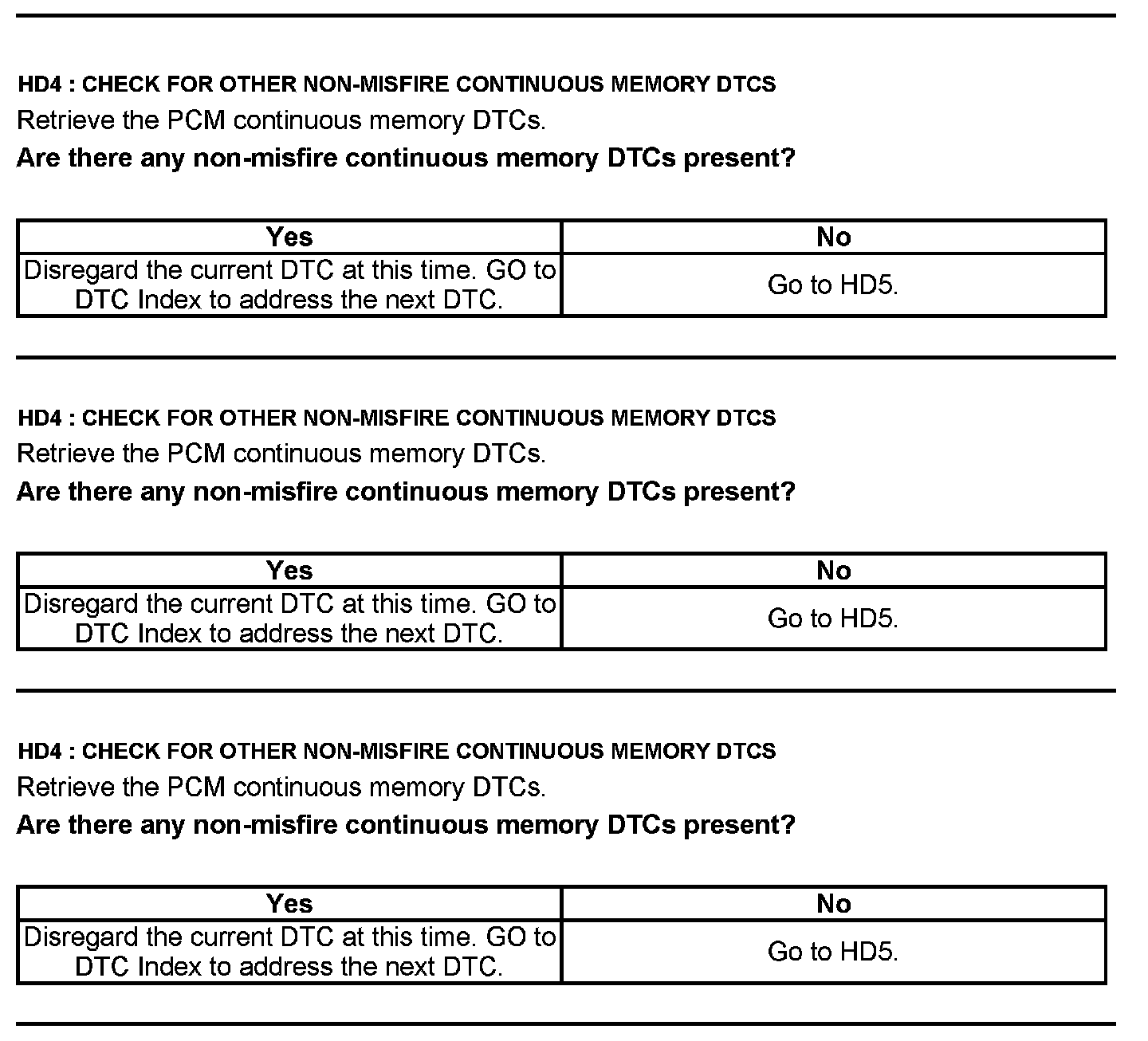

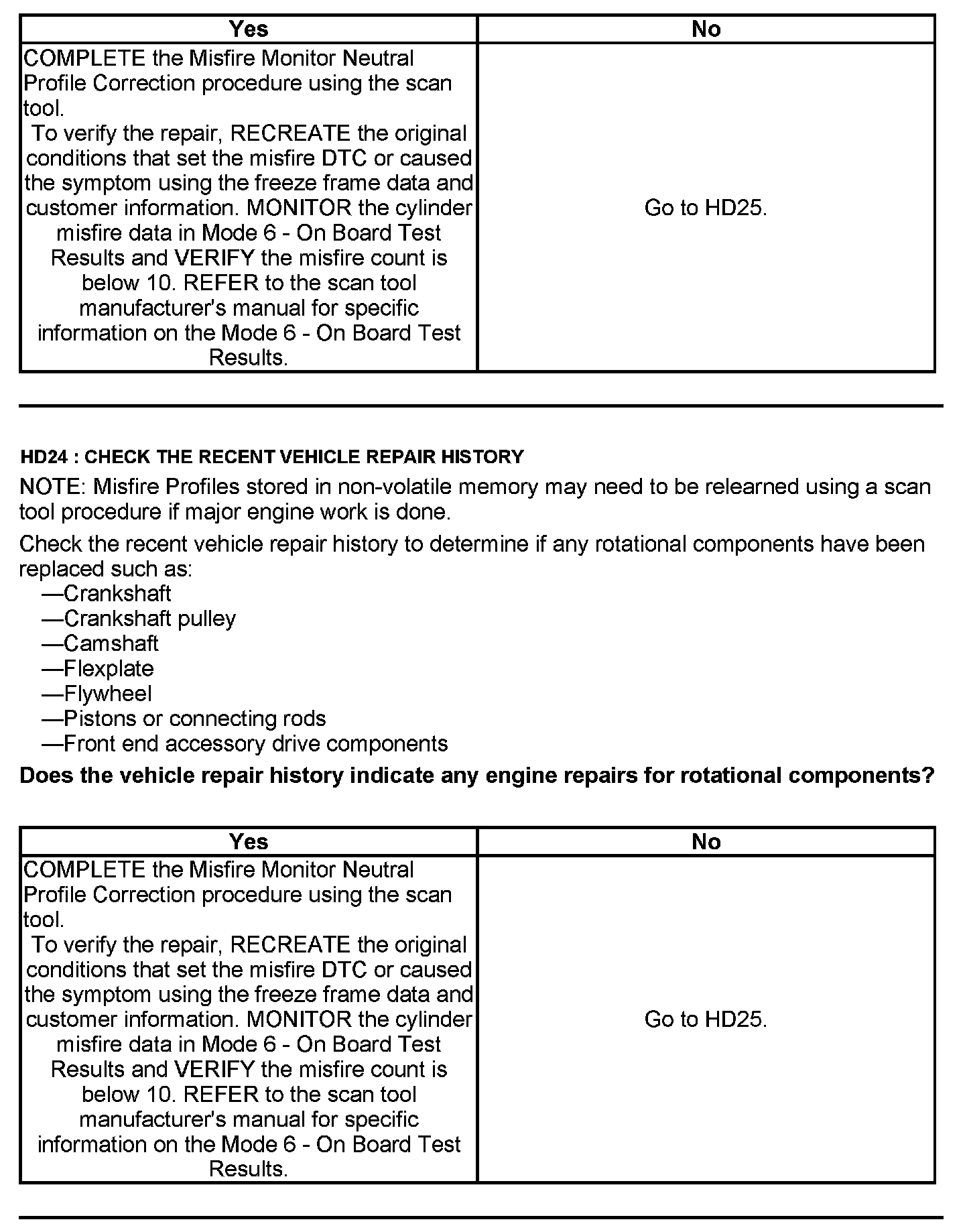

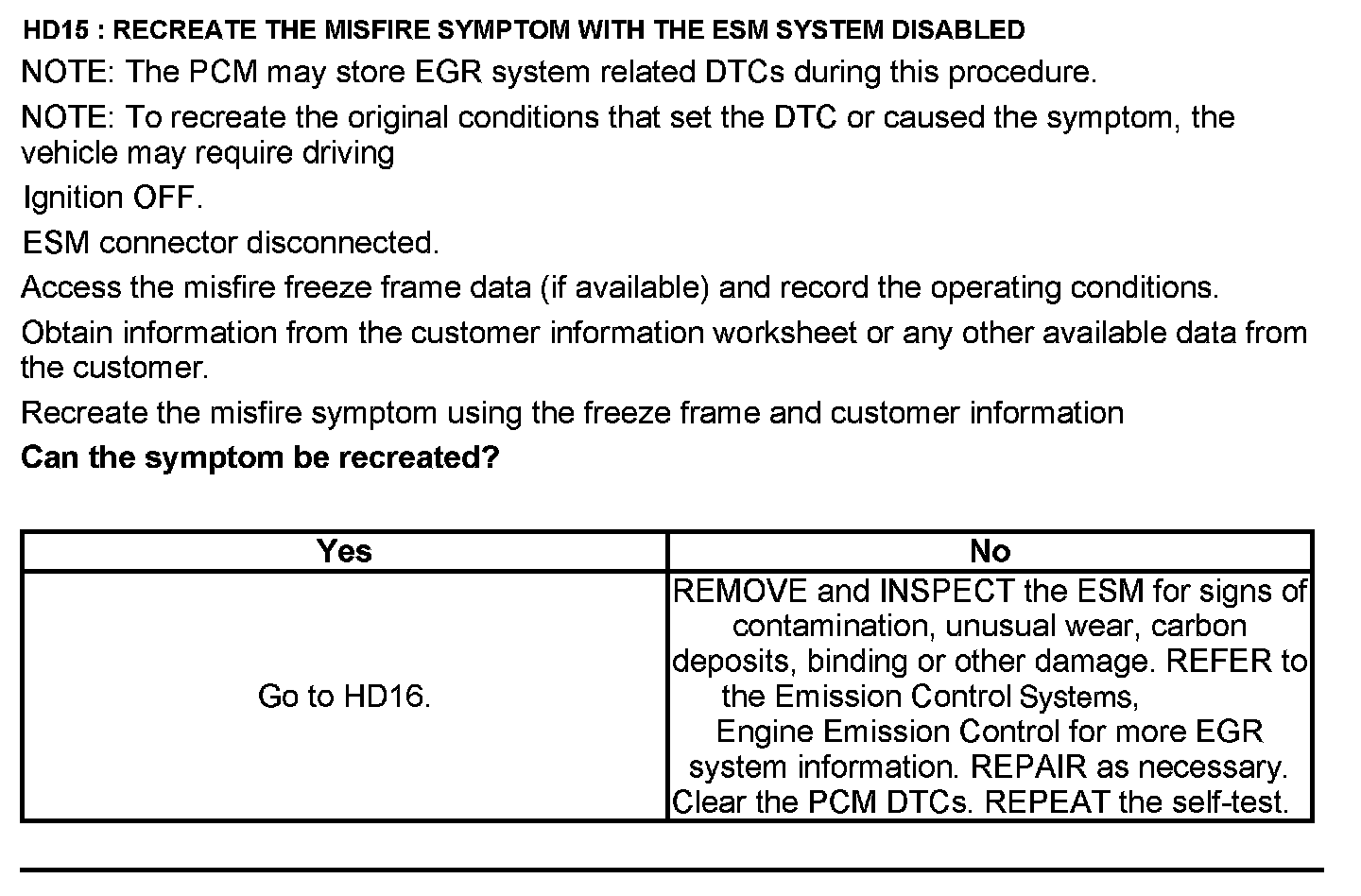

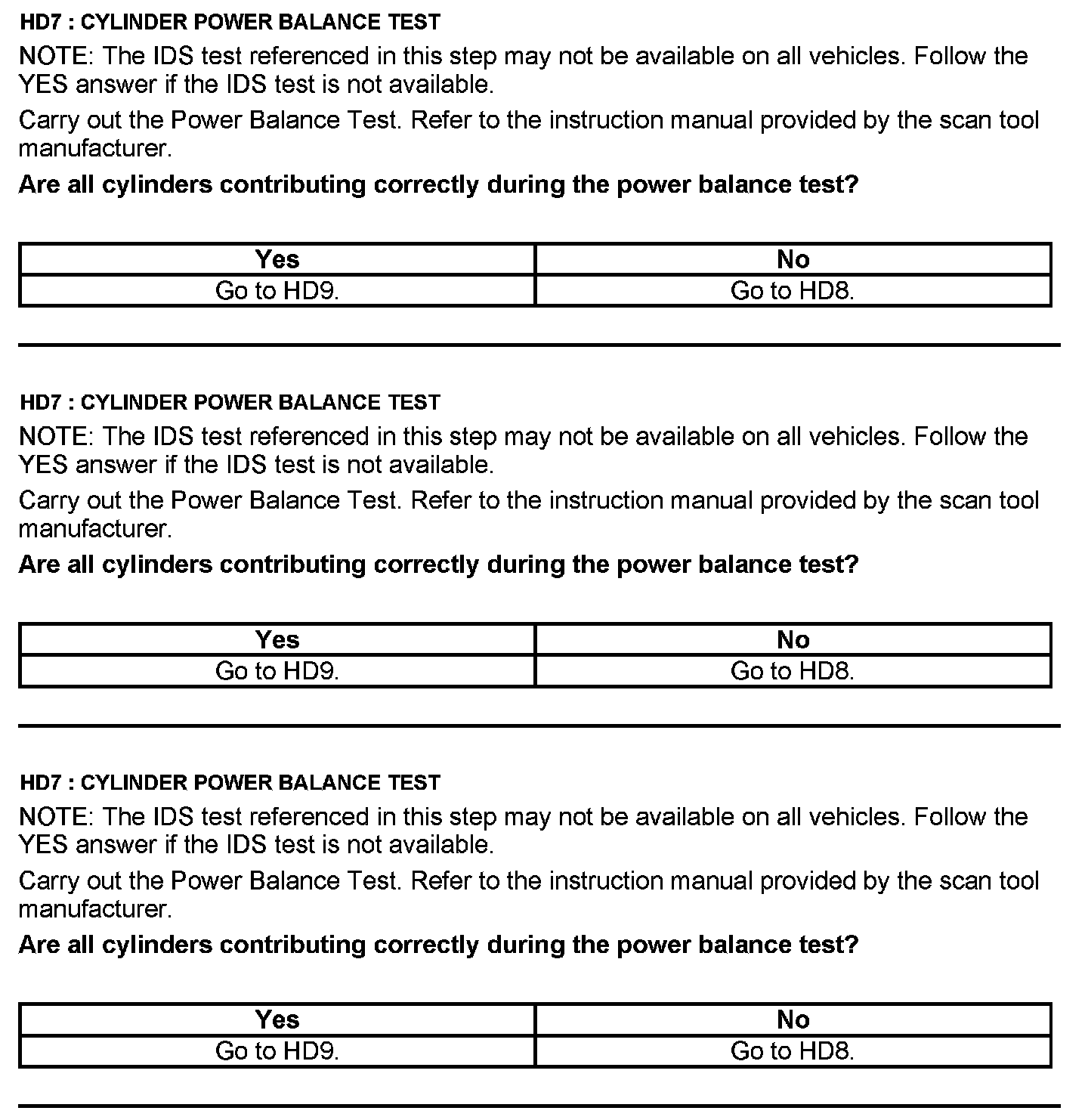

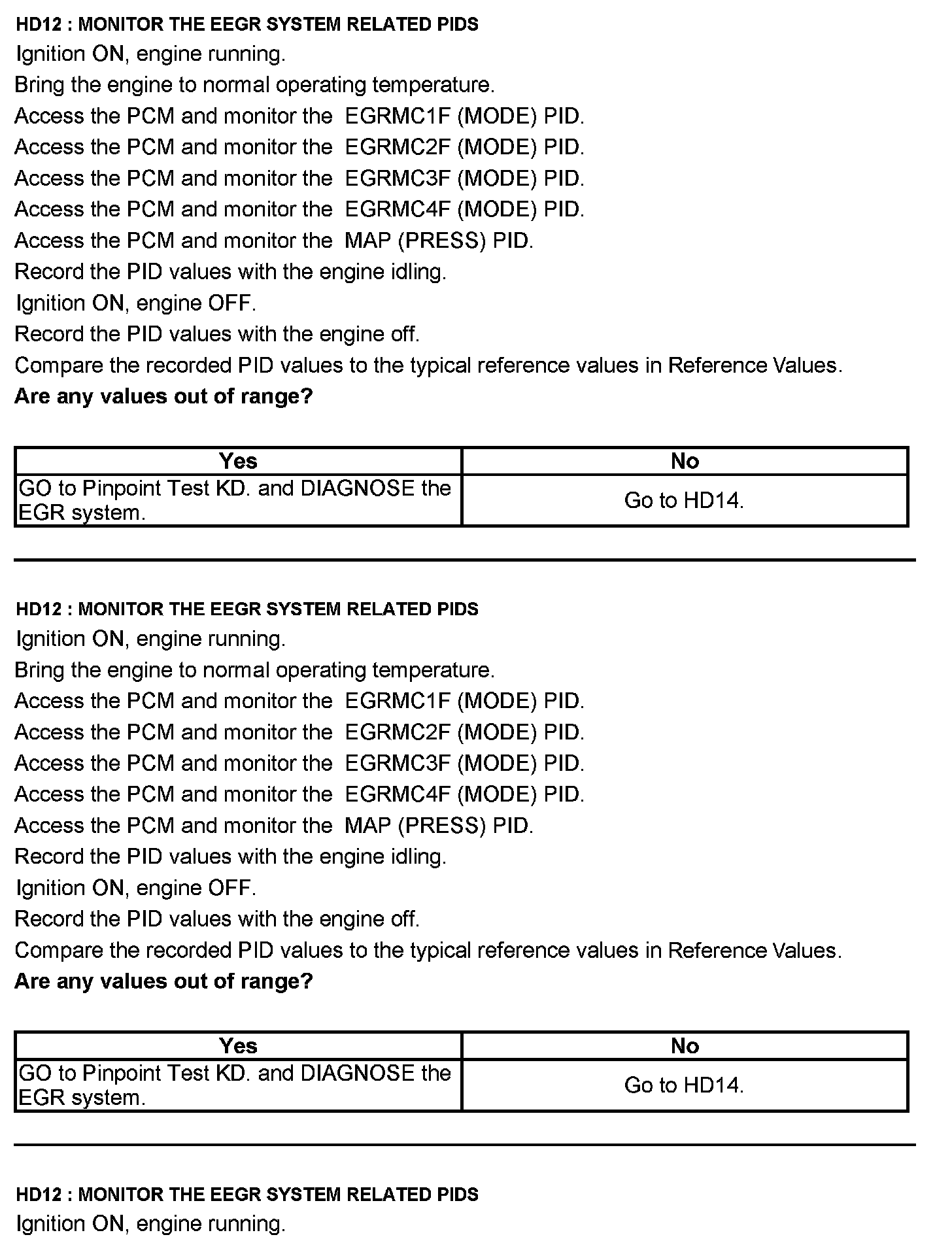

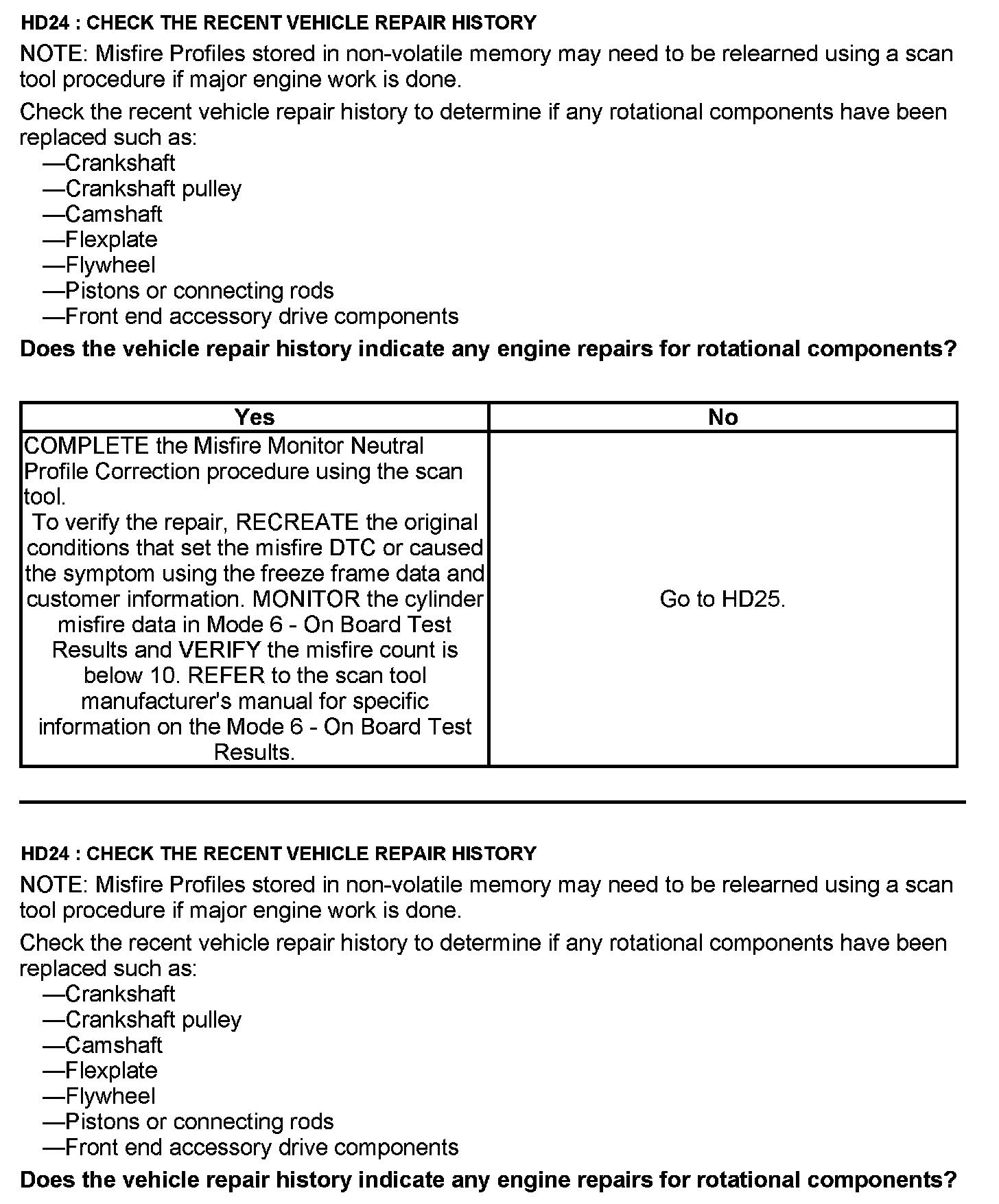

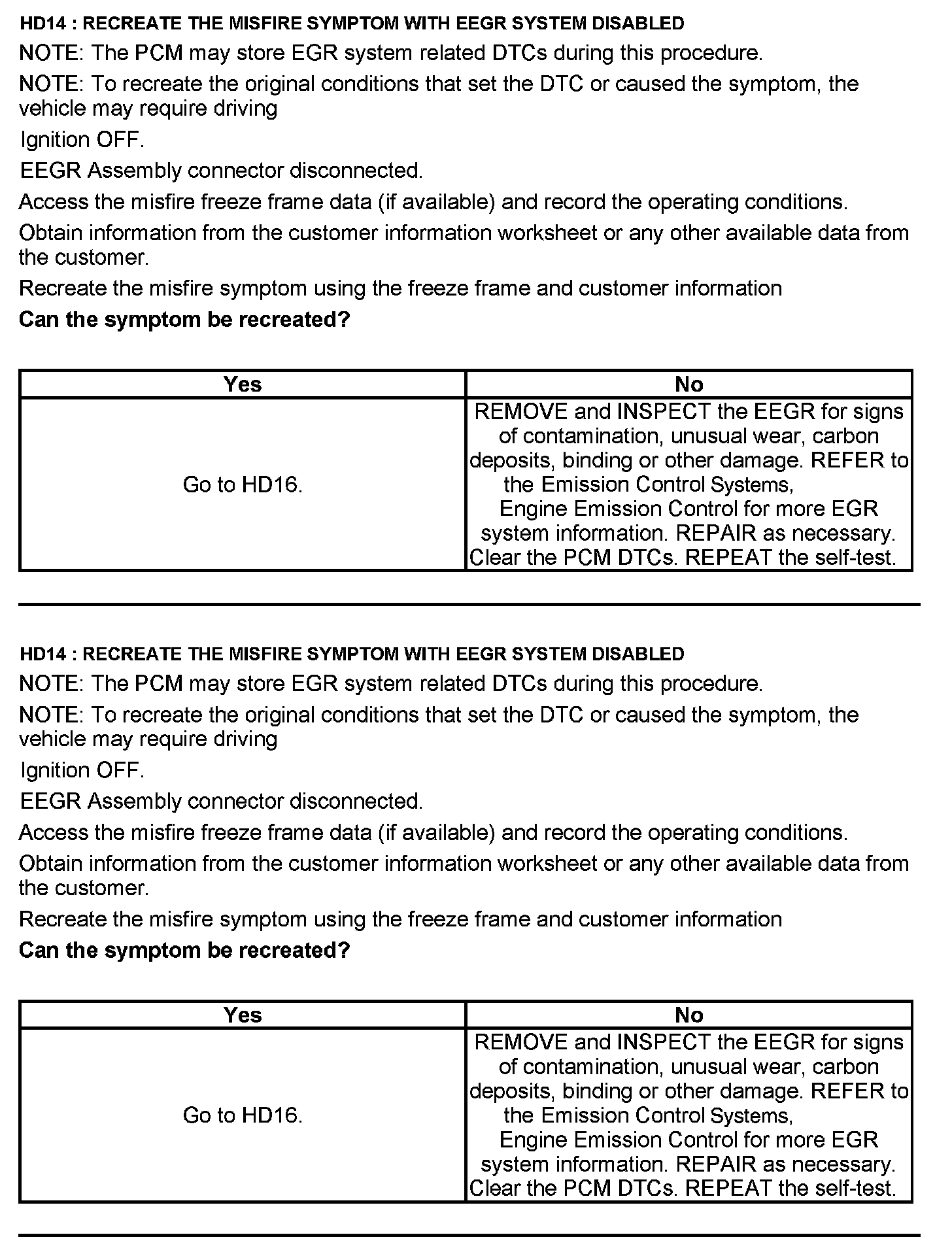

Test HD: Misfire Detection Monitor

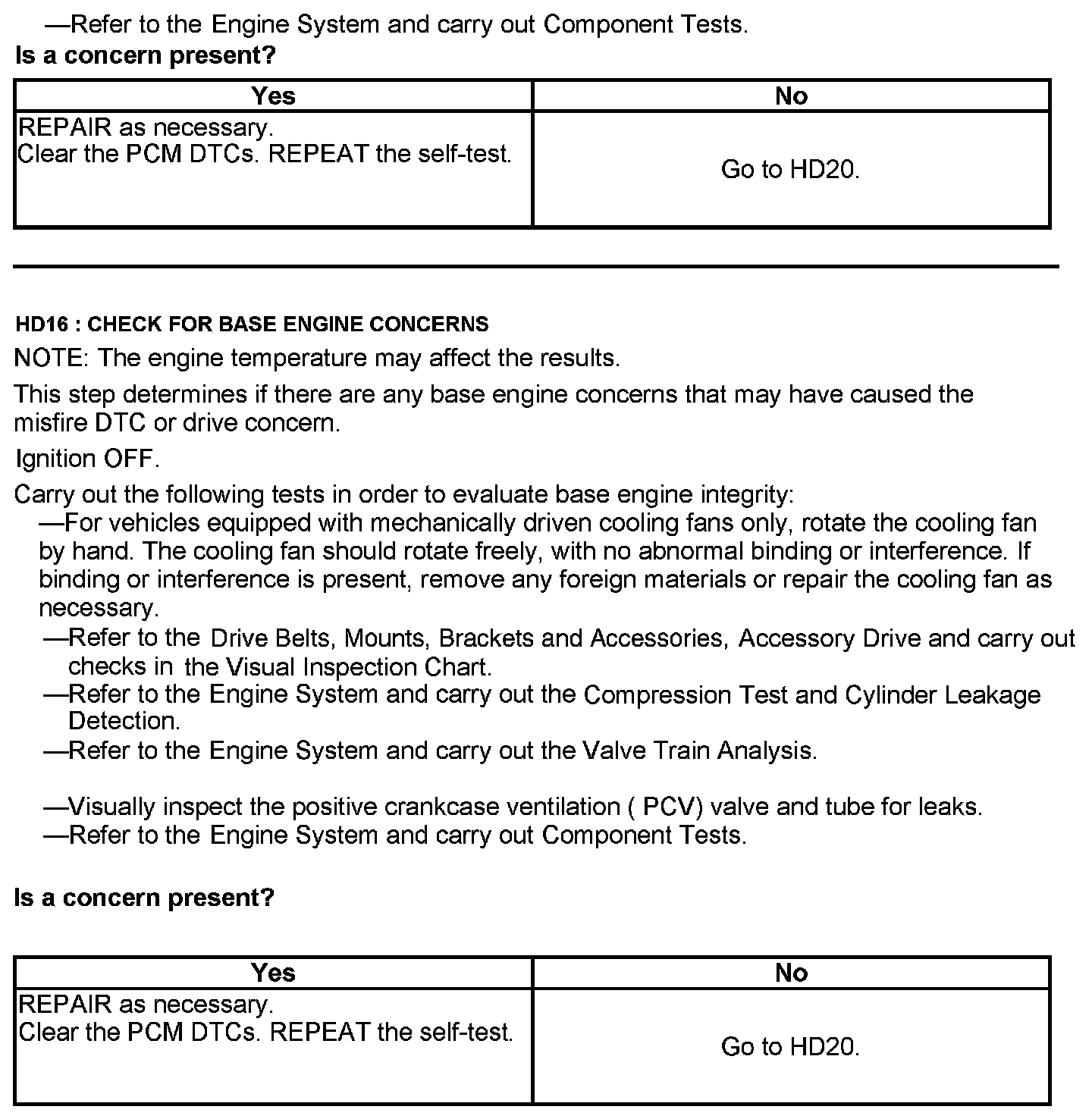

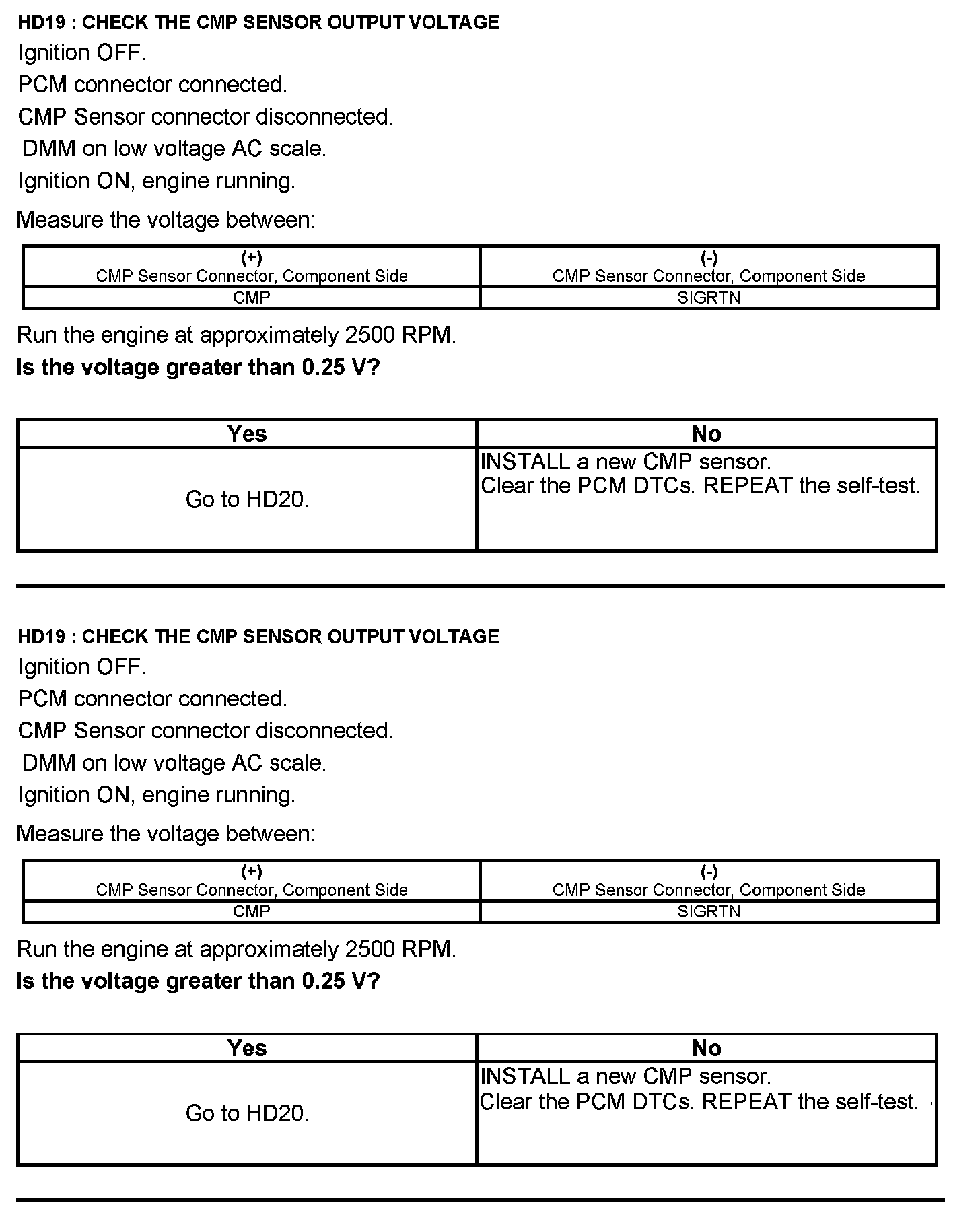

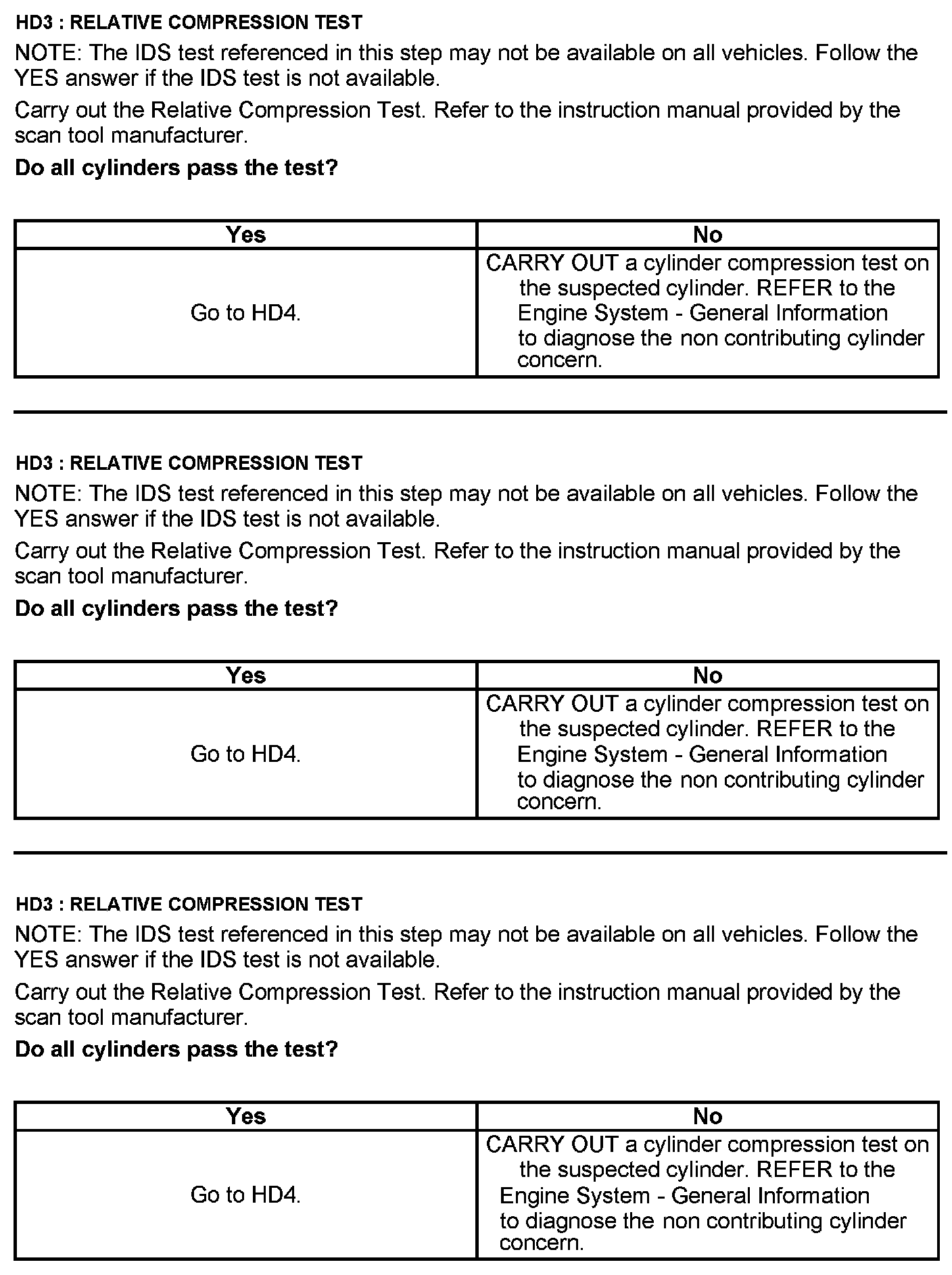

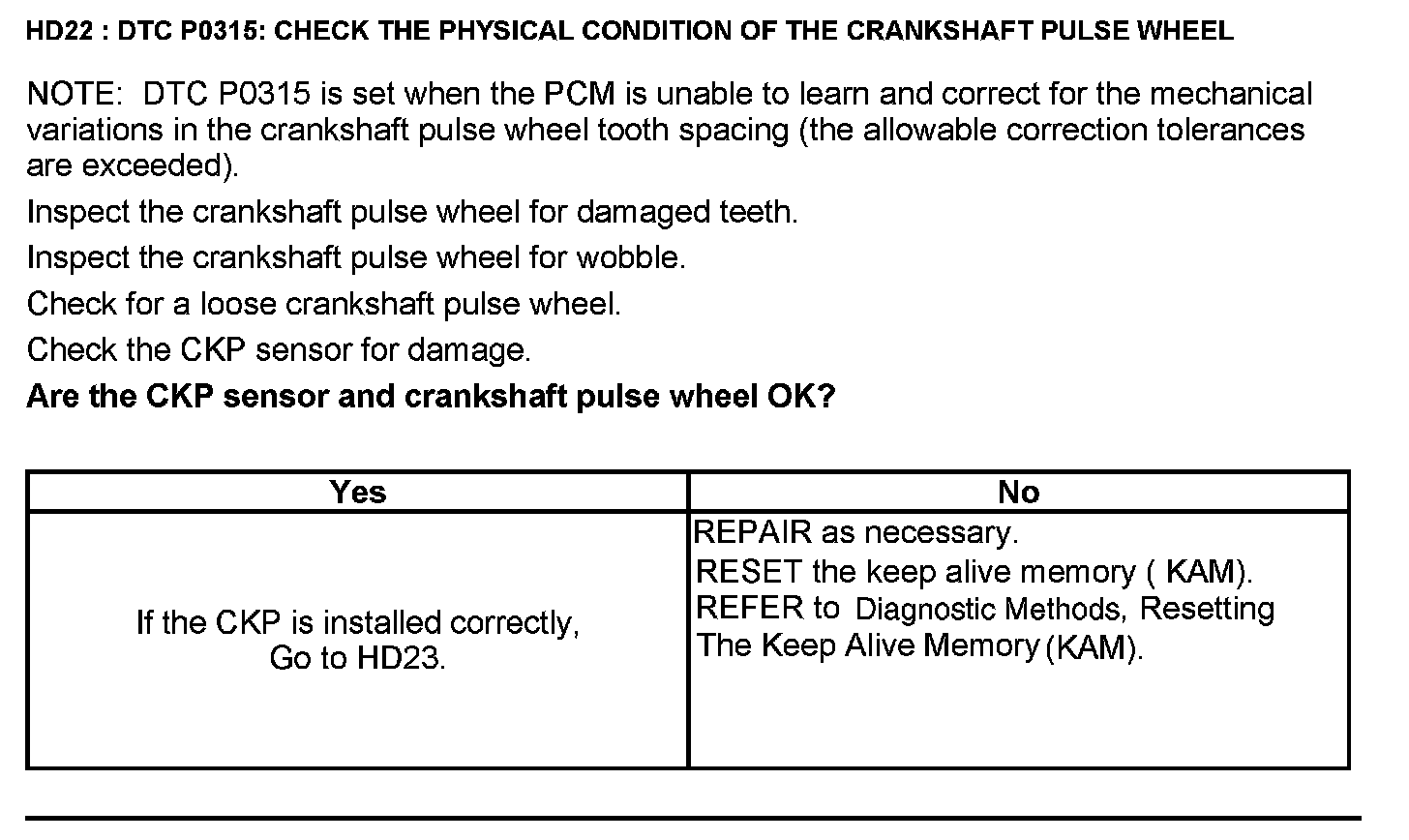

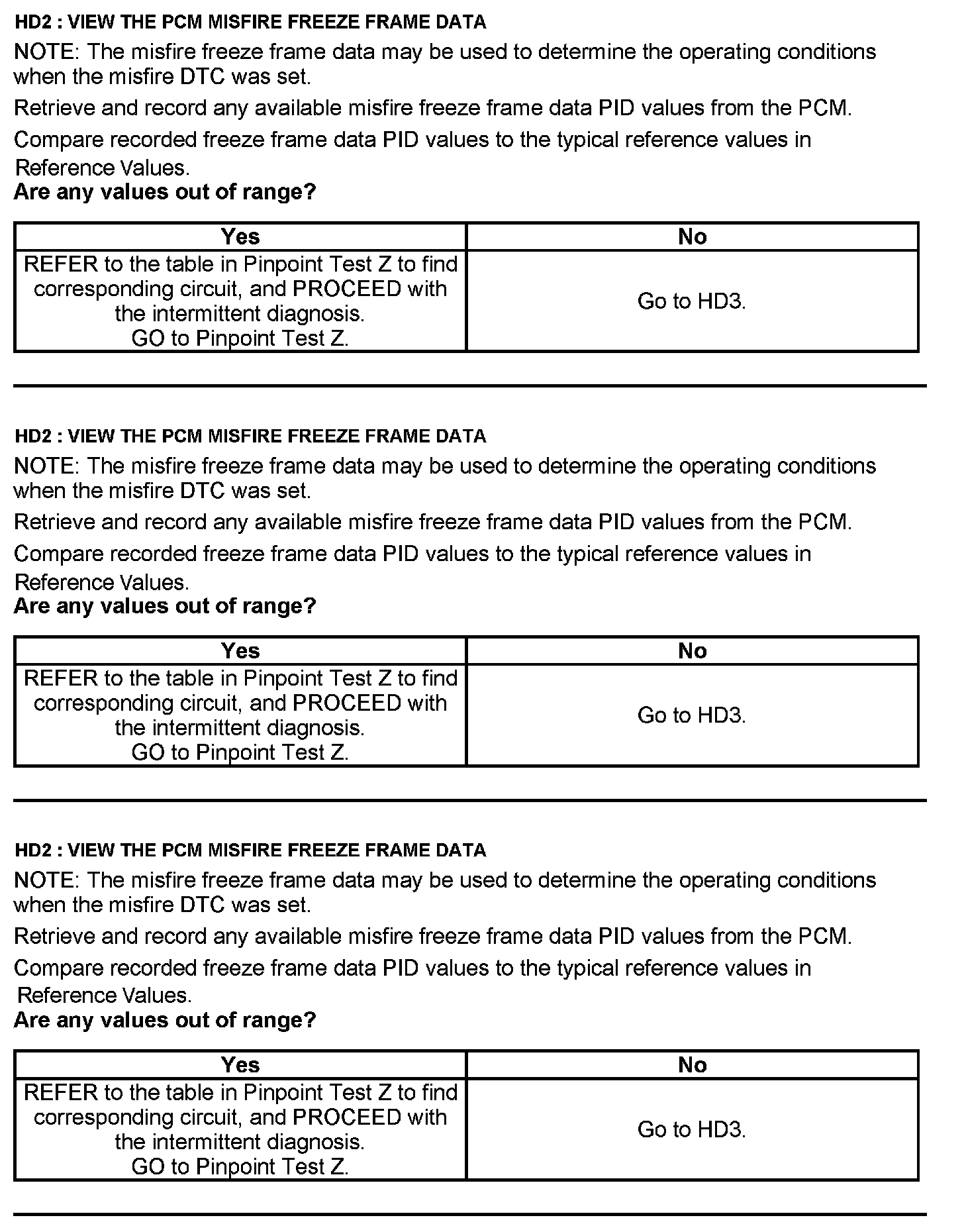

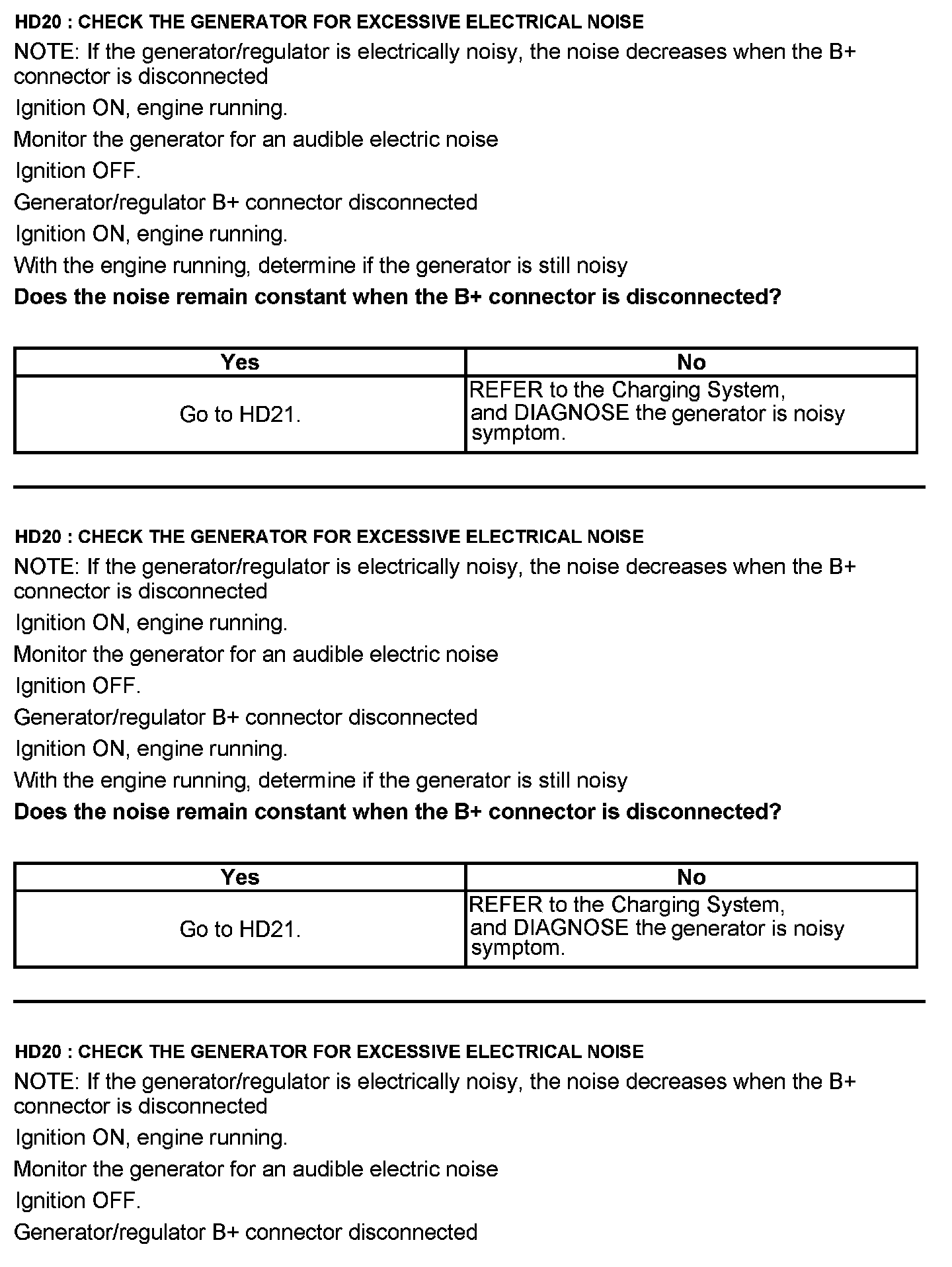

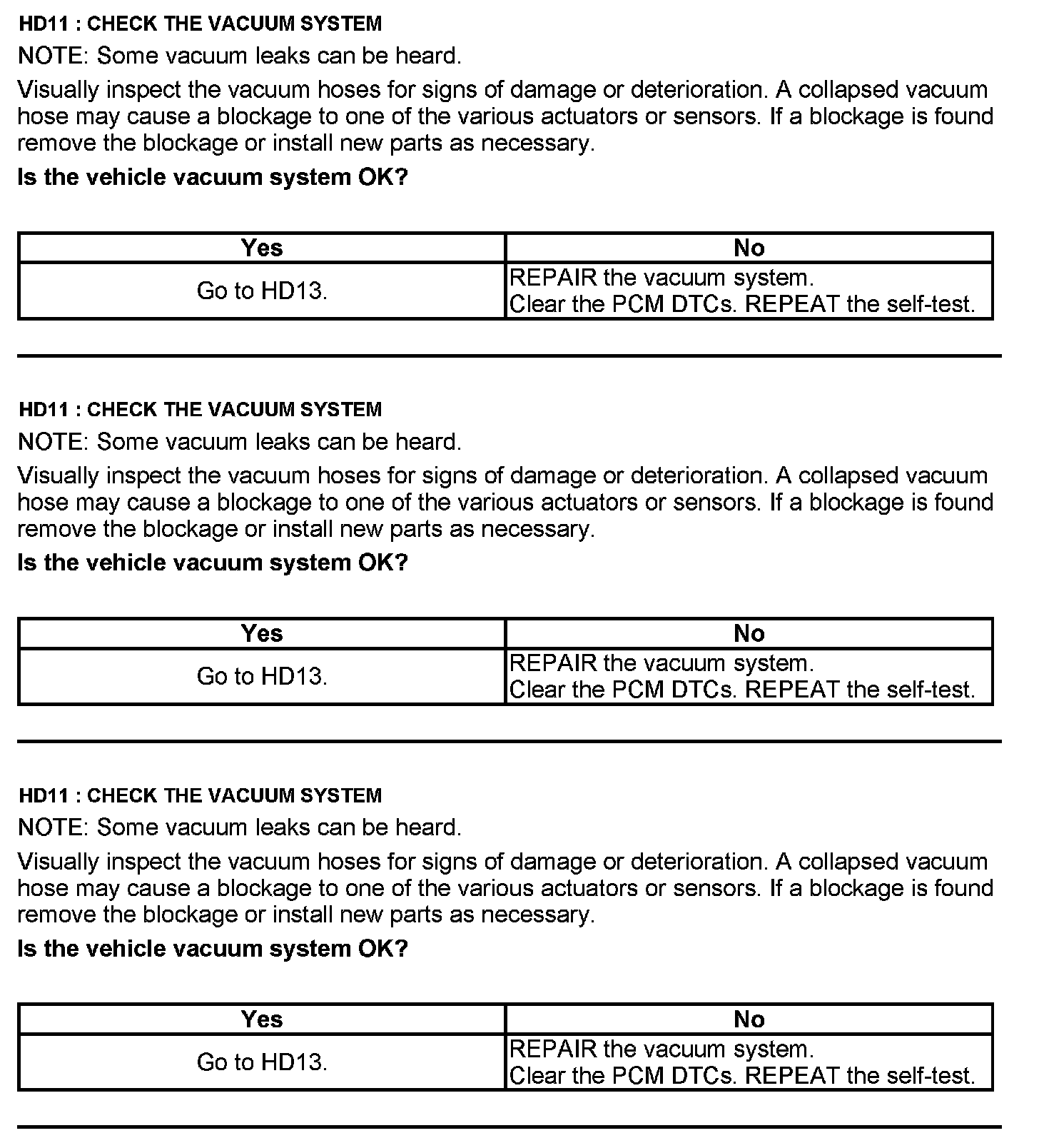

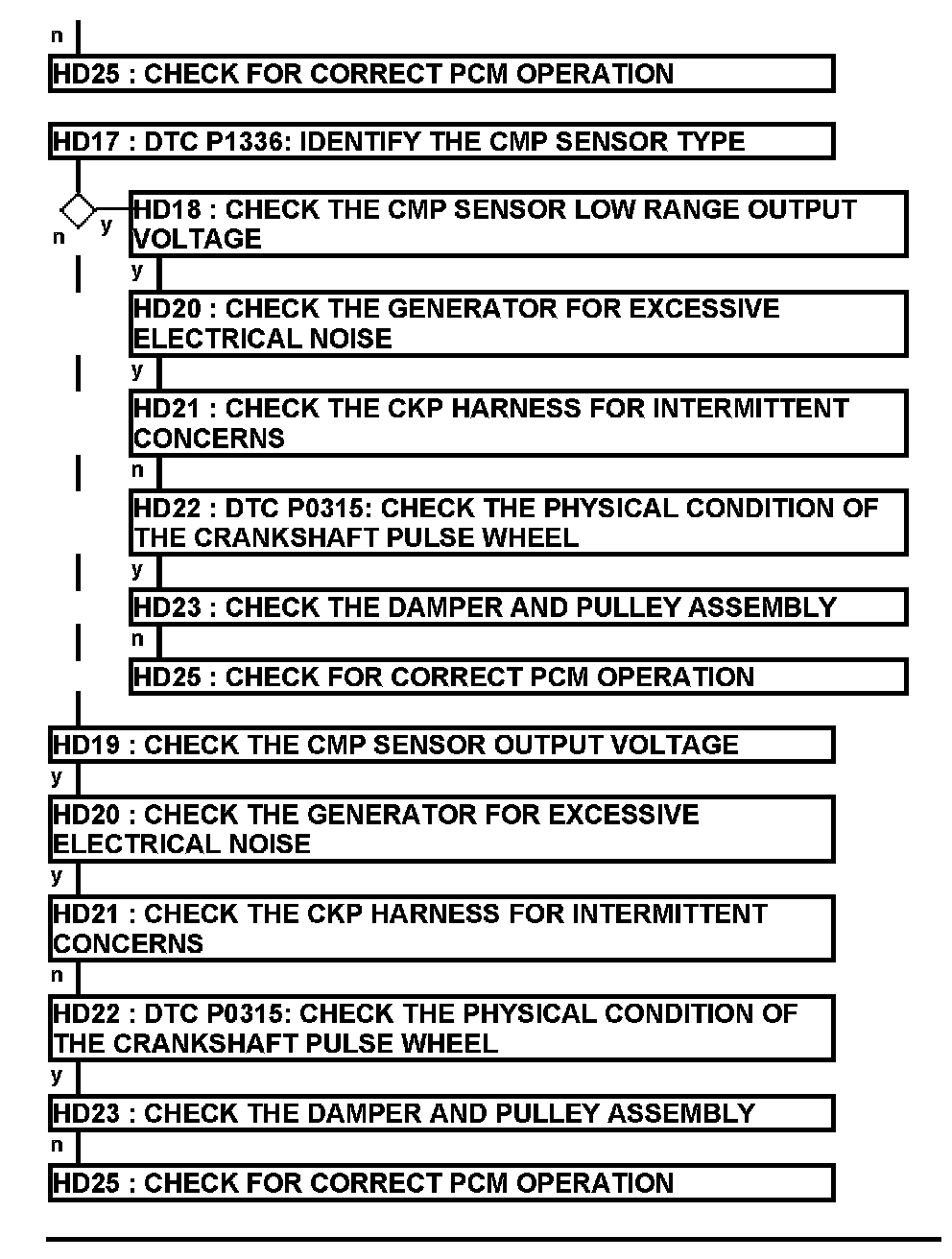

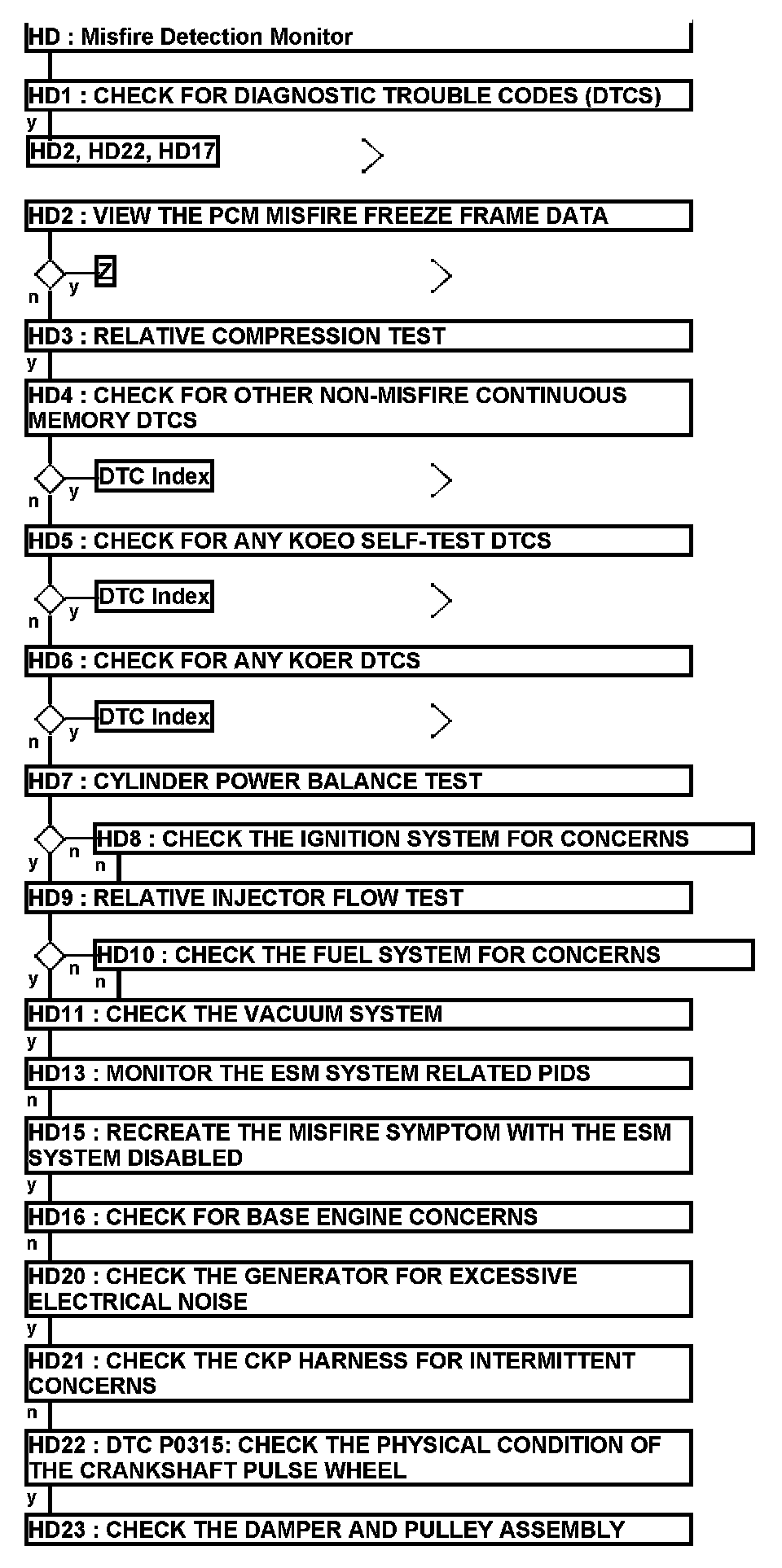

Misfire Detection Monitor

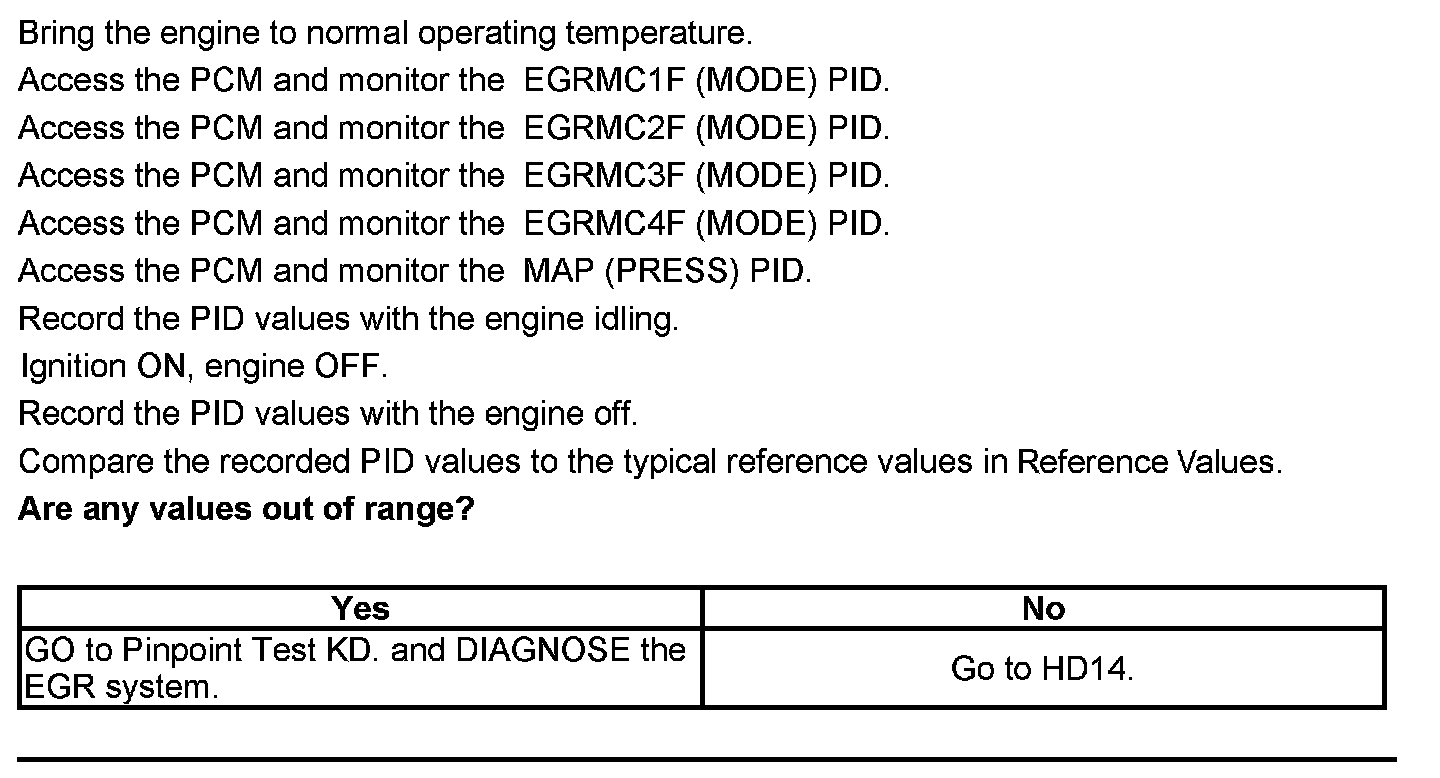

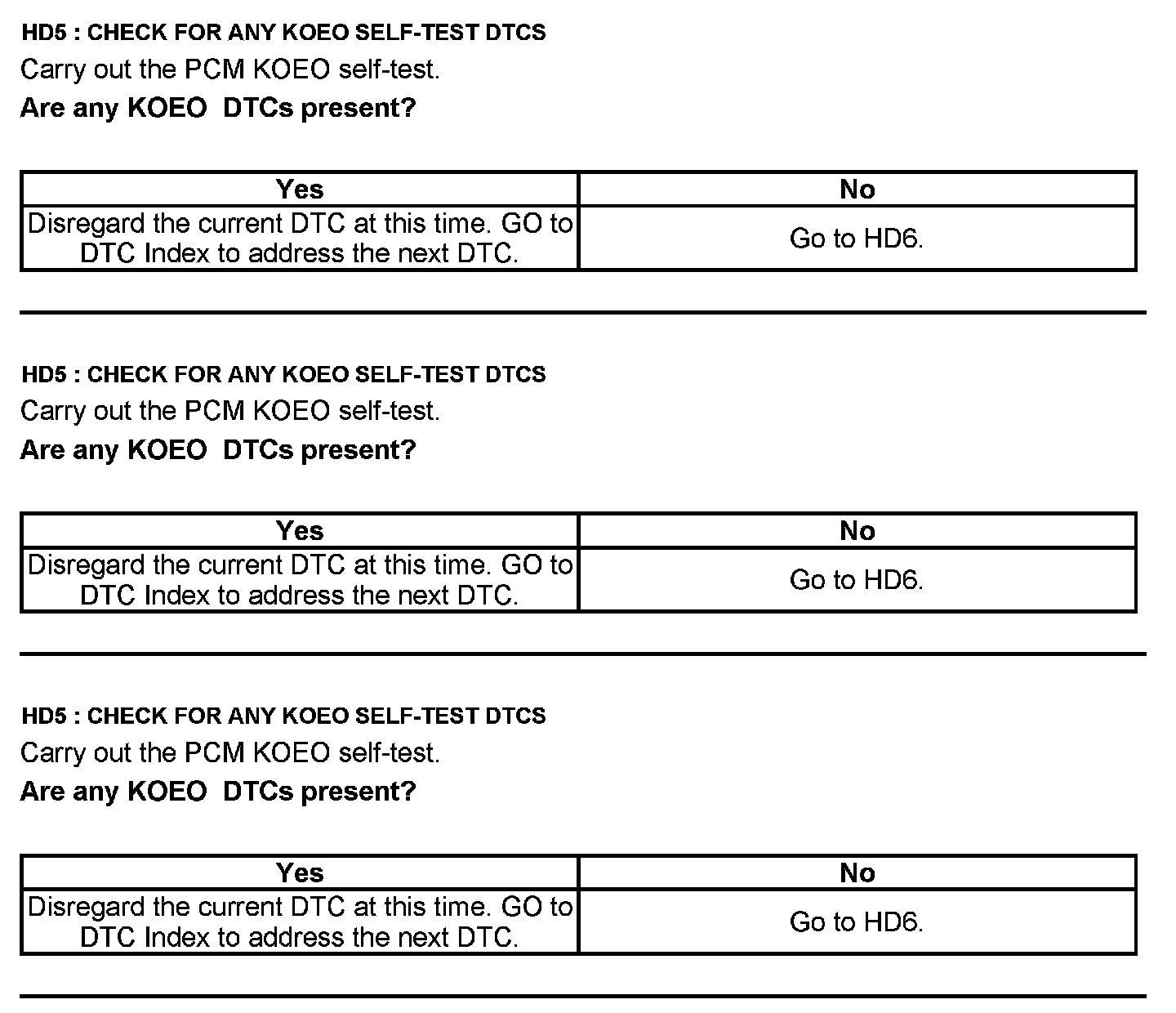

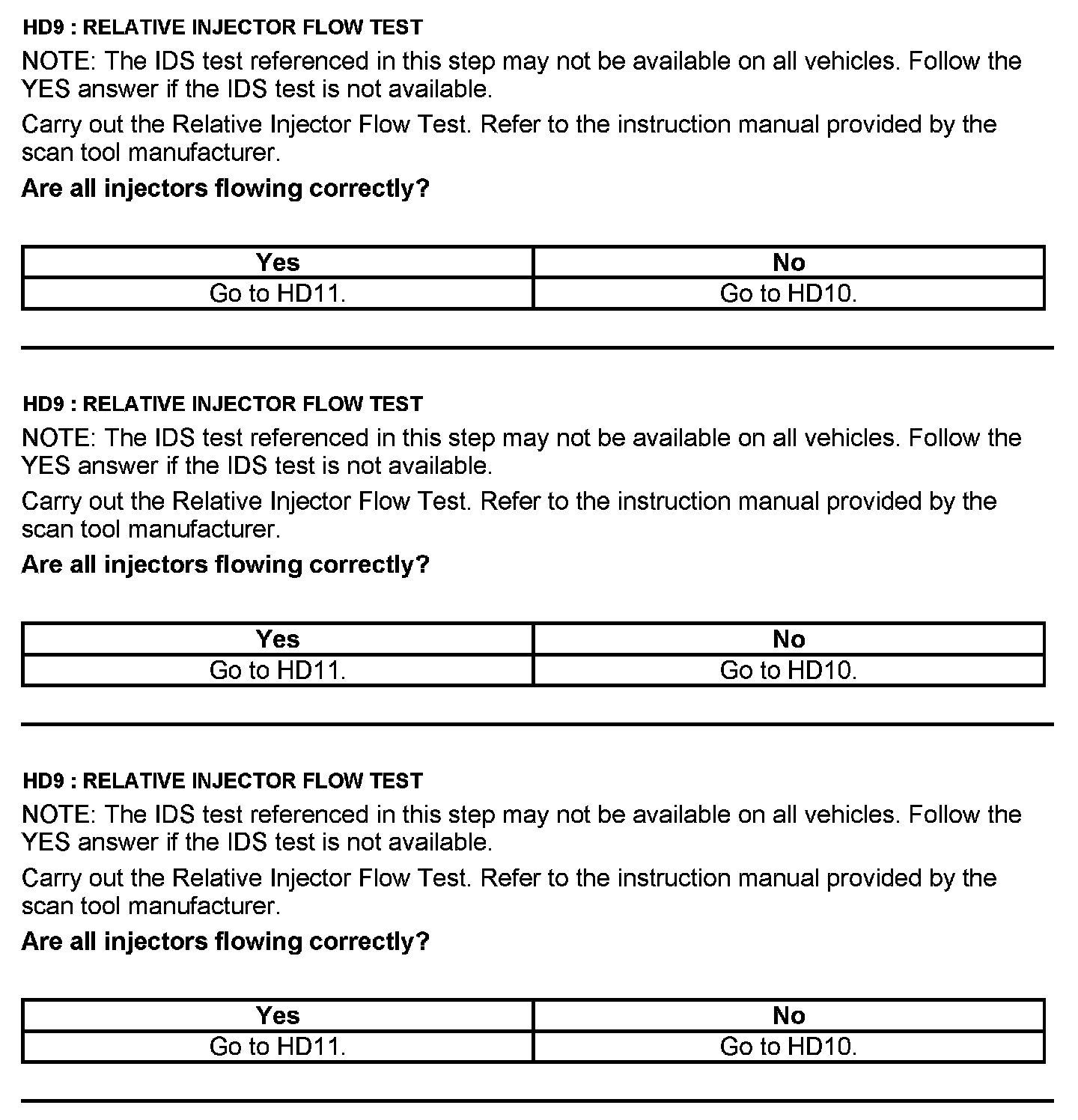

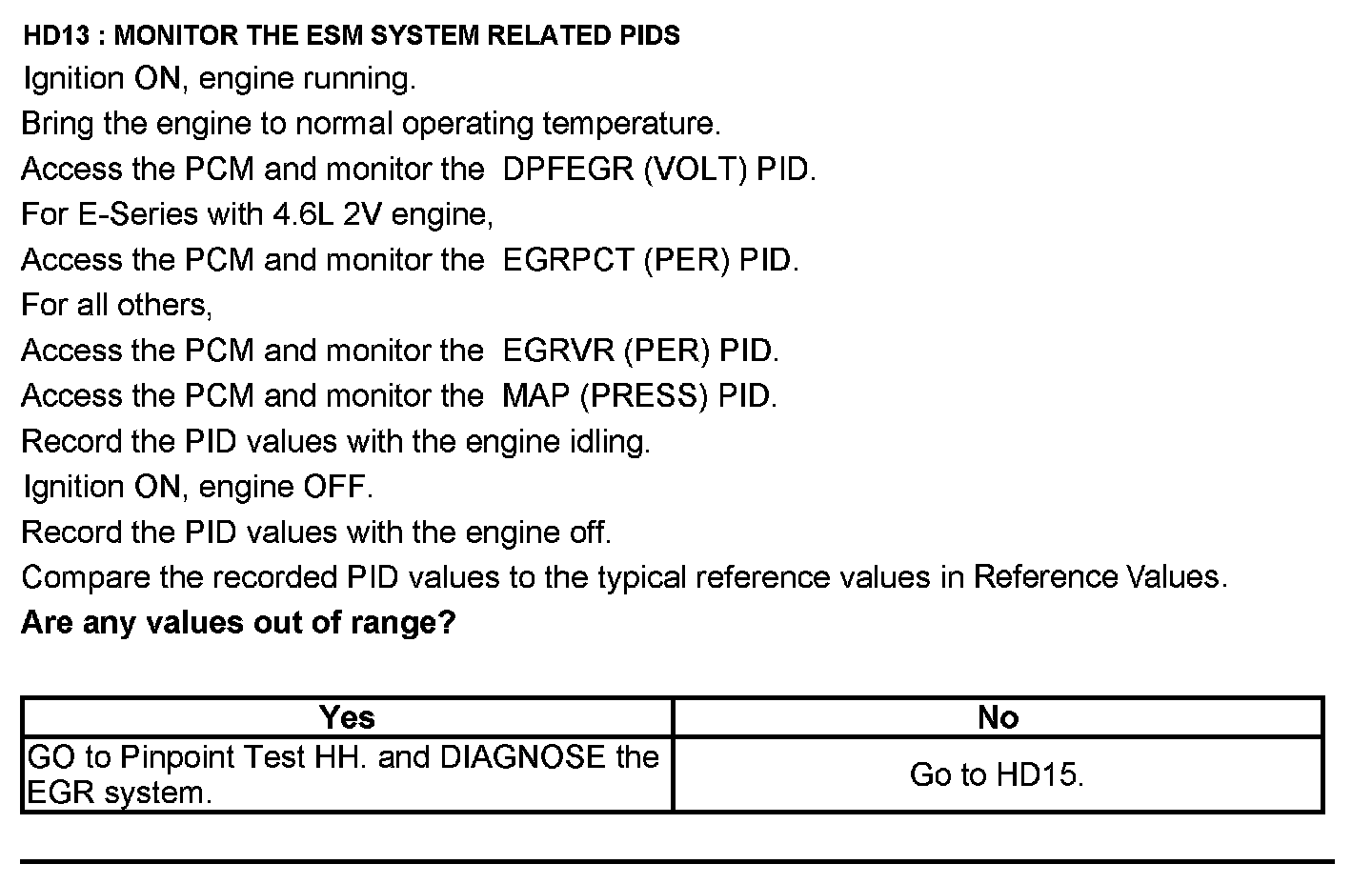

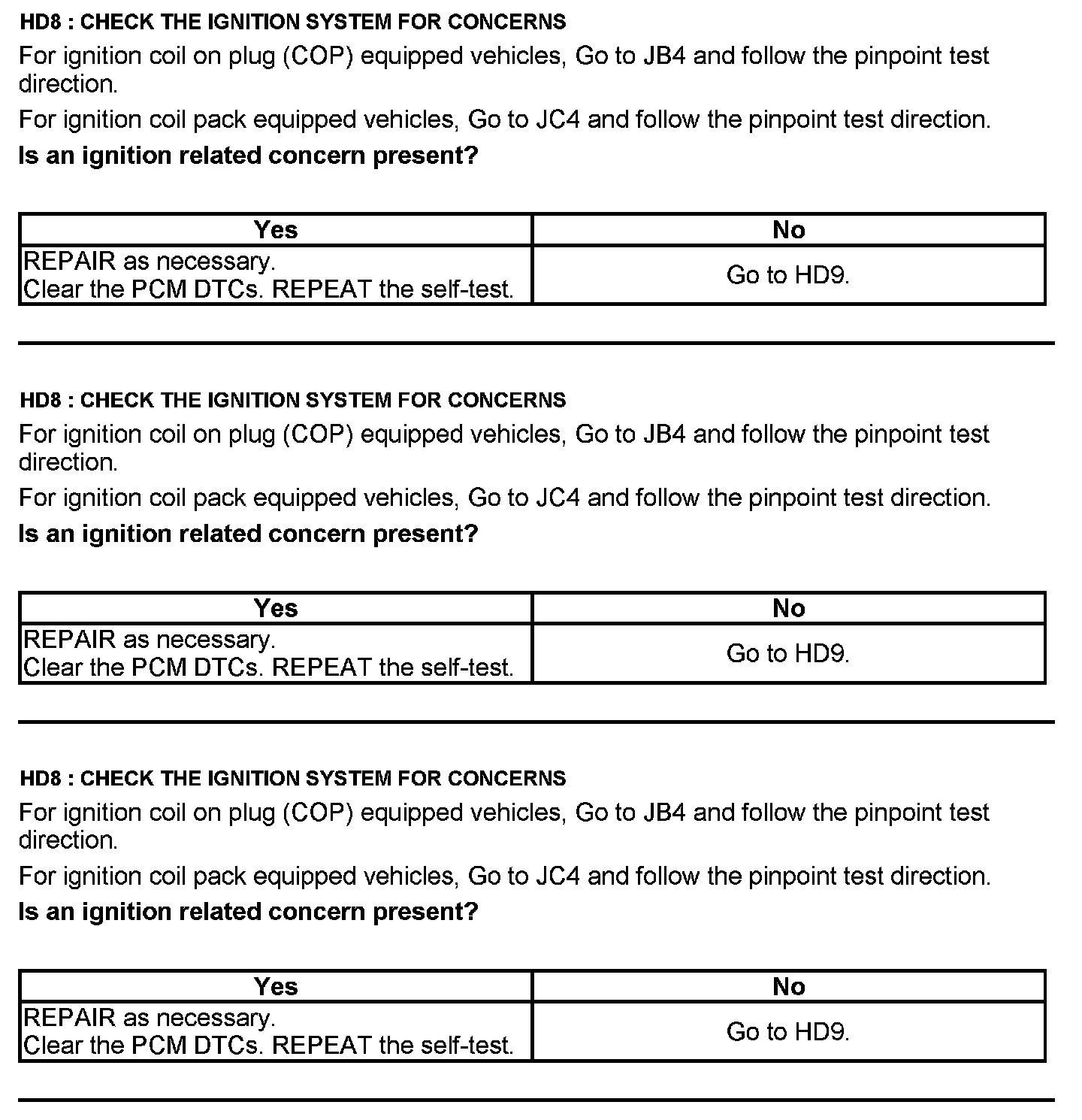

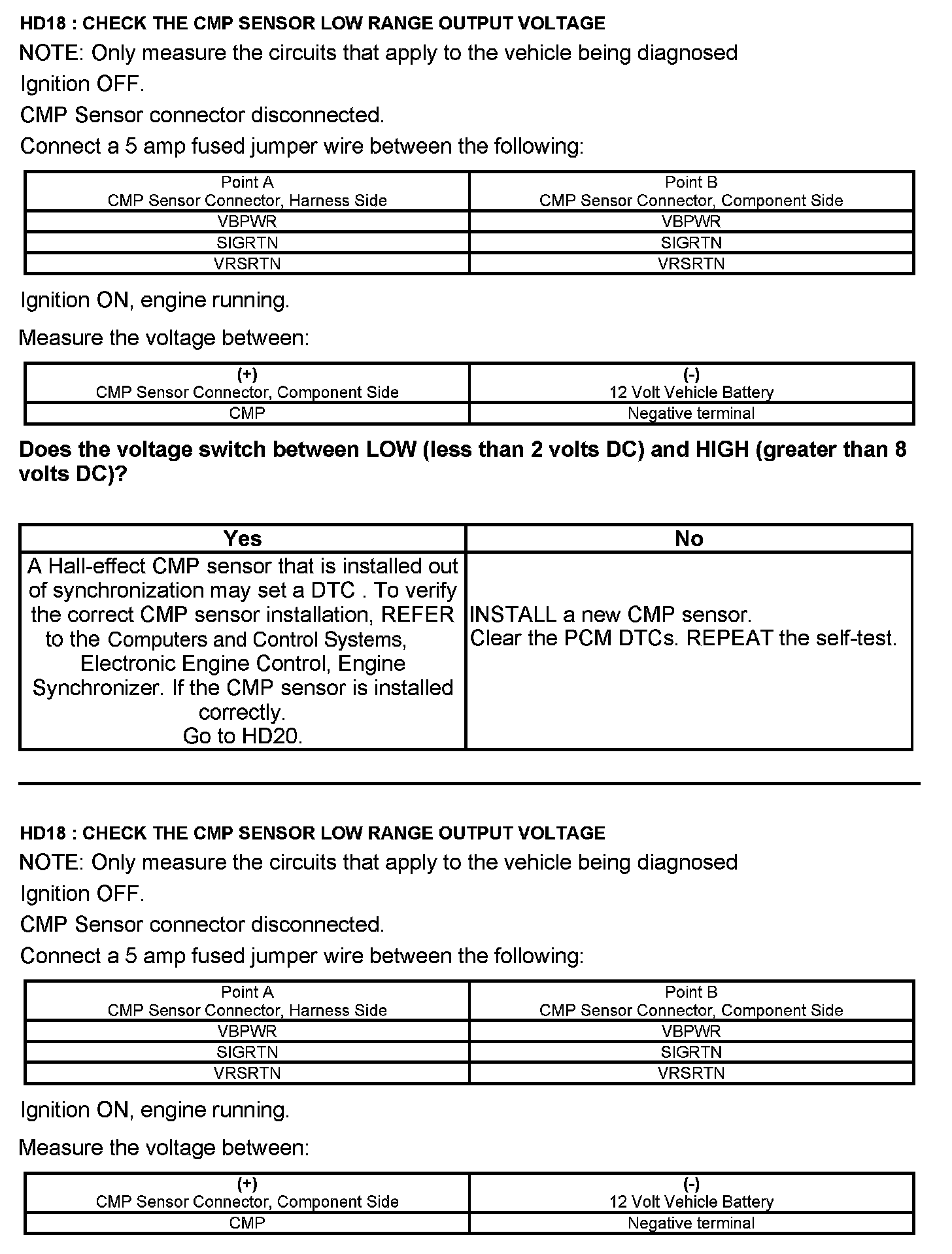

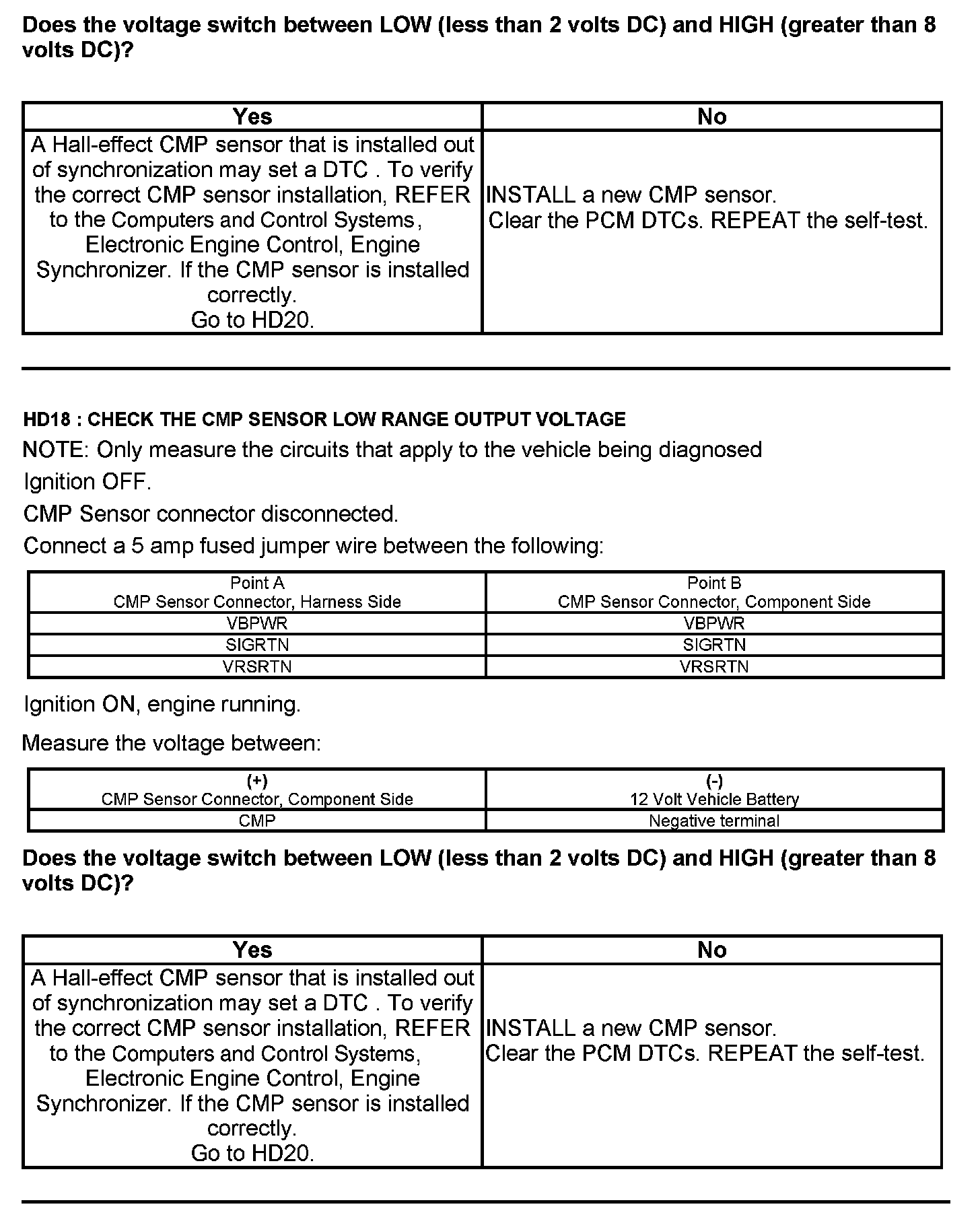

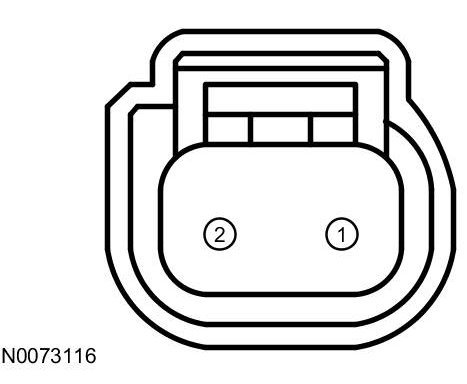

Camshaft Position 1 (CMP1) Sensor Connector





Harness Side

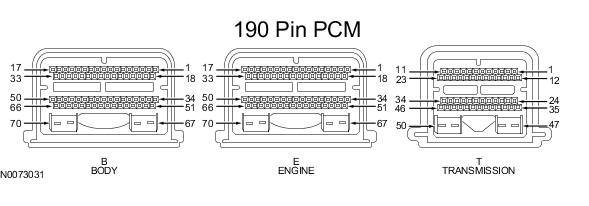

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
