Exhaust System

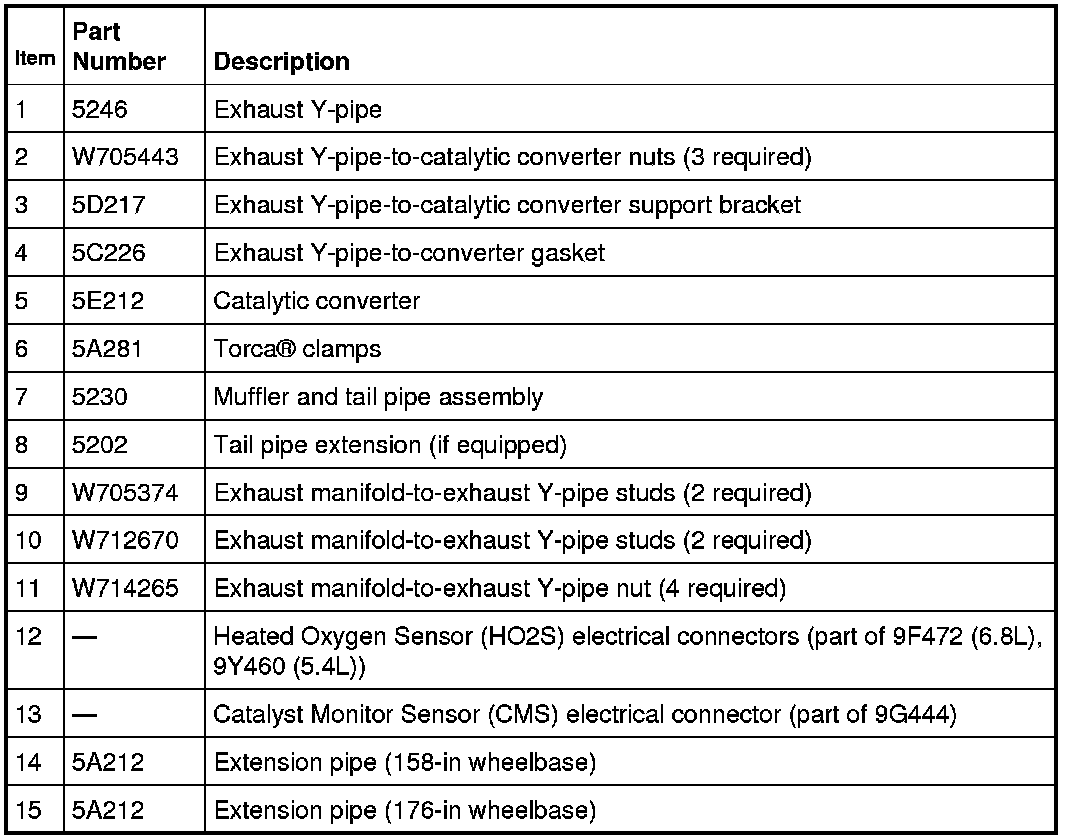

Exhaust System - Exploded View

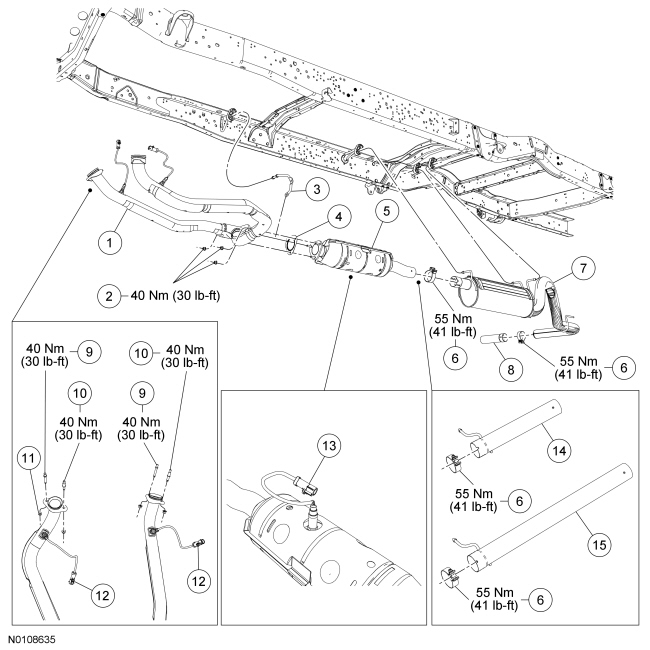

Exhaust System, Van/Wagon

NOTE: Vehicle body removed from art for clarity.

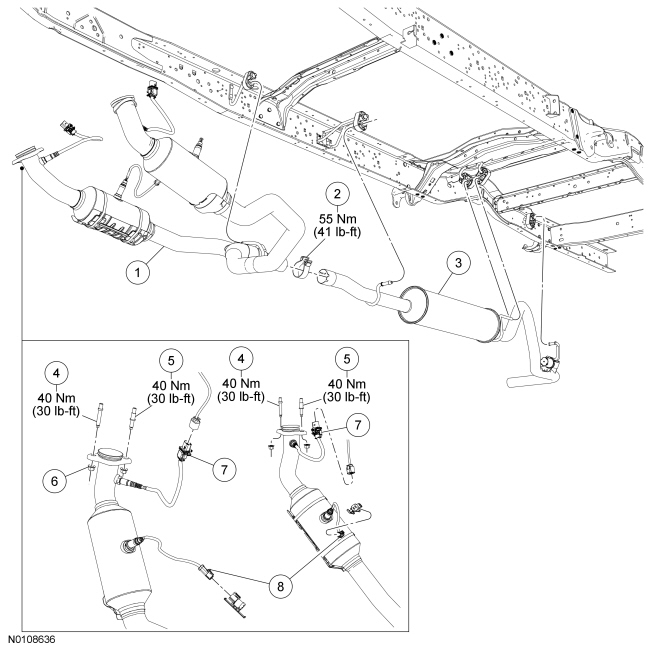

Exhaust System, Stripped Chassis (5-Speed Transmission)

NOTE: 5.4L shown, 6.8L similar.

Vehicle body removed from art for clarity.
