Frame: Service Precautions



Drilling Precautions

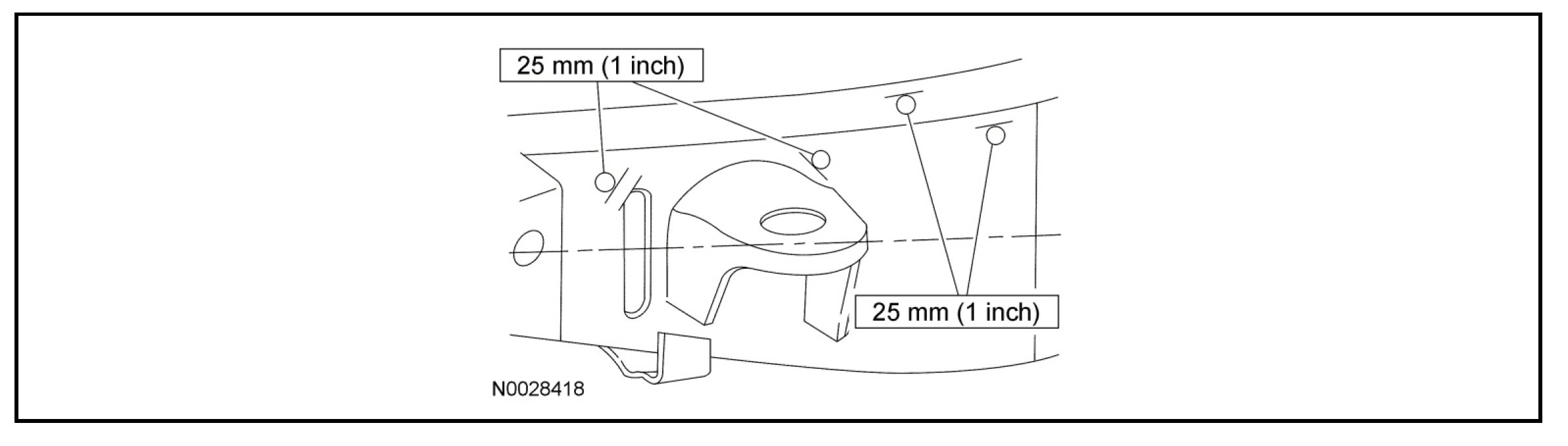

1. If a hole must be drilled in the frame, make sure the hole meets the following requirements:
- The hole is at least the specified distance from bend radius.
- The edge of the drilled hole is at least the specified distance from the edge of the nearest hole.
- The edge of the drilled hole is at least the specified distance from the edge of the flange.
- The drilled hole is at least the specified distance from any other existing bracket or component of the frame.
