Audio Control Module (ACM)




Audio Control Module (ACM)

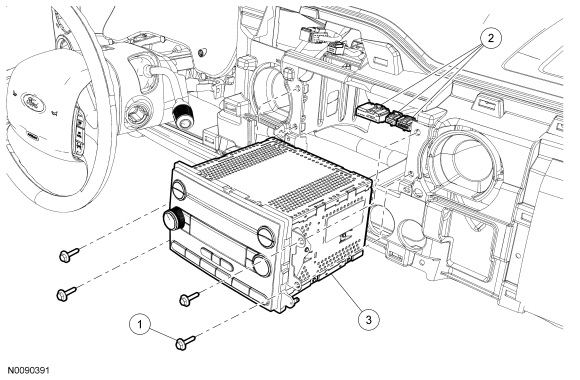

NOTE: 6-CD Audio Front Control Module (ACM) shown, others similar.









Removal and Installation

NOTE: It is not necessary to remove the Audio Front Control Module (ACM) to retrieve the part number. For additional information, refer to Audio Control Module (ACM) Self-Diagnostic Mode Audio Control Module (ACM) Self-Diagnostic Mode.

1. NOTE: Module configuration is required when a new ACM (Audio Front Control Module) is being installed.

NOTE: Module configuration is not required for the Base AM/FM ACM (Audio Front Control Module).

Upload the ACM (Audio Front Control Module) configuration information to the scan tool.

2. Remove the instrument cluster finish panel.

3. Remove the 4 screws and the ACM (Audio Front Control Module).
- Disconnect the electrical connectors and antenna cable(s).


4. To install, reverse the removal procedure.
- Download the configuration information to the ACM (Audio Front Control Module).
