Defrost Switch Connector - C241
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Defrost Switch Connector - C241

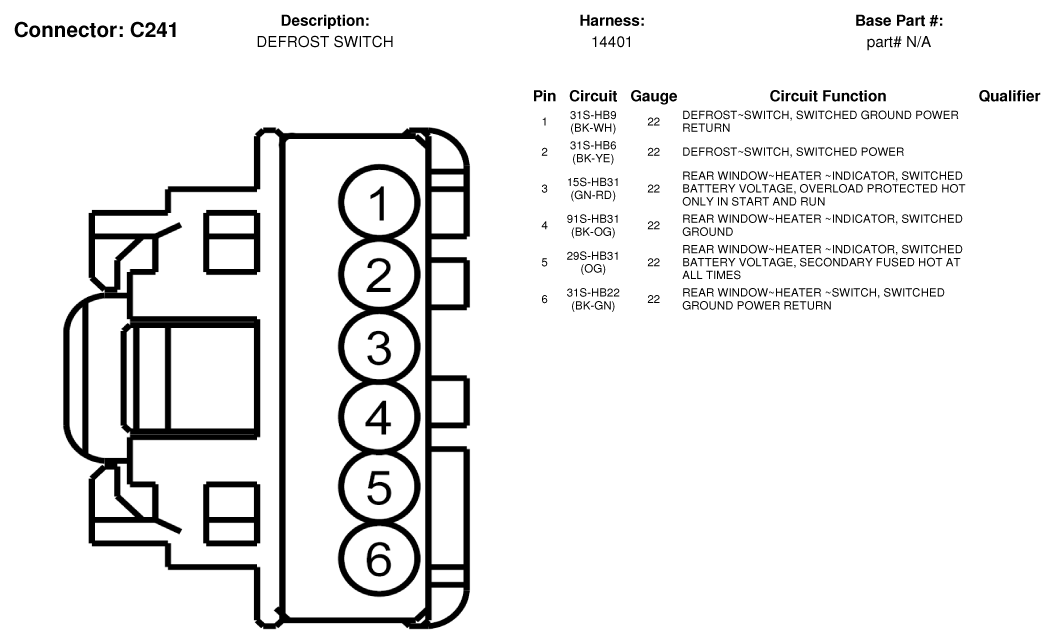

Fig 1: Defrost Switch Connector End View (C241)
Courtesy of FORD MOTOR CO.
